Setting Method: | Manual Input / Remote Input | Temperature Range: | -40℃~+150℃ |
---|---|---|---|
Humidity Range: | 20%~100% | Time: | 0~9999 Hour/Minutes/Seconds |
Temperature Resolution: | 0.01℃ | Accessory Function: | Alarm Display Function (prompt For The Cause Of The Fault) |
French Original %22Tecumseh%22 Fully Enclosed Compressor Unit: | French Original "Tecumseh" Fully Enclosed Compressor Unit | Windows Floodlight: | Philips |
Production Standards: | GB/2423.1 ;GB/2423.2;GB/2423.3,GB/2423.4 | ||
High Light: | Programmable Environmental Test Chambers,Platinum Resistor Environmental Test Chambers,ISO Environmental Test Chambers |
Programmable Constant Temperature And Humidity Chamber
Product parameters
Component configuration | The program controls 12 groups of 120 segments (the number of segments can be arbitrarily adjusted and assigned to each group) | |||
Operation mode | USB communication interface (optional) | |||
Setting/program | ||||
Setting method | Manual input / remote input | |||
Set range | Temperature:-40℃~+150℃ | |||
Humidity:20%~100% | ||||
Time::0~9999 Hour/Minutes/Seconds | ||||
Resolution | Temperature:0.01℃ | |||
Input | Humidity:0.01% | |||
Time:0.1S | ||||
PT100 platinum resistor | ||||
Accessory function | Alarm display function (prompt for the cause of the fault) | |||
Measurement data acquisition | Upper and lower limit temperature alarm function, | |||
Timing function, self-diagnosis function | ||||
PT100 platinum resistor | ||||
Cooling System | Compressor | French original "Tecumseh" fully enclosed compressor unit | ||
Air circulation system | Stainless steel fan achieves forced circulation of air | |||
Sino foreign joint venture "Heng Yi" differential motor | ||||
Multi wing wind wheel | ||||
Air supply system is single cycle | ||||
Windows floodlight | Philips | |||
Other configuration | Stainless steel movable sample holder 1 layer | |||
Test cable outlet Φ50mm hole*1 | ||||
Hollow conductive electric defrosting function glass observation window and illumination lamp | ||||
Bottom angle universal moving wheel | ||||
Security system | Leakage Protection | |||
Over temperature alarm protector | ||||
Fast fuse | ||||
Compressor high and low voltage protection, overheating, overcurrent protection | ||||
Line fuses and fully sheathed terminals | ||||
Production standards | GB/2423.1 ;GB/2423.2;GB/2423.3,GB/2423.4 | |||
Delivery period | 10 Days after advance payment | |||
Payment | 50% advance payment, 50% paid before delivery | |||
Service | Free one year warranty for equipment and lifetime service and technical service | |||
Conditions of Use | Power supply | AC240V Voltage allowable fluctuation range:AC240V ±10% | ||
Frequency allowable fluctuation range:50Hz ±0.5 Hz | ||||
Protective earthing wire grounding resistance is less than 4Ω; TN-S mode power supply or TT mode power supply | ||||
Use environment | Temperature:5℃~35℃,Relative humidity:≤85%RH | |||
Site | The floor is flat, well ventilated, free of flammable, explosive, corrosive gases and dust | |||
No strong electromagnetic radiation source nearby | ||||
Appropriate maintenance space around the equipment | ||||
After sales service |
Equipment warranty period of three packs a year, lifetime maintenance. The company will carry out the annual warranty from the date of delivery (except for damage caused by natural disasters, abnormal power, improper use of humans, improper maintenance, the company is completely free of charge). For services beyond the warranty period, a corresponding fee will be charged.The problems occurred during the use of the equipment will respond within 24 hours, and promptly contact the maintenance engineer and technician to deal with the problem in time. The supplier provides paid services when the equipment of the supplier fails after the warranty period expires. (factory fee) |

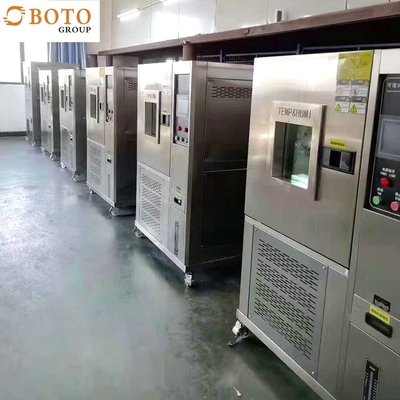

Product display
Company introduction
New factory in Hunan Province
ISO 9001 and many ceritifications
Various of production line machine to promise a better product quality, quicker lead time and customized service.
Company cooperative partners
