High And Low Temperature Humidity Environment Test Chamber Laboratory Equipment Climate Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-RHP-23AT
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Power:: Electronic Temperature Range:: -65°C~120°C
Humidity Range:: 20%~98%R.H Temperture Fluctuation:: ±0.5℃
Humidity Fluctuation:: ±2.5%R.H Temperature Deviation:: ±2.0℃
Interior Material:: Sus#304 Stainless Steel Plate Floor Bearing Load:: Rigid Polyurethane Foam + Glass Fobre
High Light:

RS232 Laboratory Test Chambers

,

Sus304 Laboratory Test Chambers

,

LCD Screen Climate Test Chamber

High And Low Temperature Humidity Environment Test Chamber Laboratory Equipment /Climate Test Chamber



Product Description





Uses:

Electronics, electrical appliances, sensors
Semiconductor, PCB, LCD & LED
Medicals tests
Mechanical, Military, aerospace products
Vehicles, Transprt, automobile supply industries
Chemicals, Petrochemical industries
Building materials, Plastics, Textile industries
Testing metal related industries like plating etc.
Instrumentation

Design Standard:

IEC68-2-1 (GB-2423.1-2008) Testing A: Low temperature testing method
IEC68-2-2 (GB-2423.2-2008) Testing B: High temperature testing method
MIL-STD-202F (GJB360.8-87) High temperature life testing
MIL-STD-810D (GBJ150.3) High temperature method
MIL-STD810D (GBJ150.4) Low temperature method
IEC68-2-3 (GB2423.3-93) Testing Ca: Constant moist heat testing method.
IEC68-2-30 (GB2423.4-93) Testing Db: Alternate moist heat testing method.
MIL-STD-810D (GJB150.9-93) Moist heat testing method

Character:

Chamber exterior material is stainless steel with environmentally baking paint resists corrosion and provides impact resistance. Interior material is SUS304# stainless steel with excellent heat resistance and easy to clean.
large LCD color touch screen controller is designed to save chamber programming and setup time with temperature limit and alarm to protect your product.
Safety relay connection is provided to protect your device under test by removing power to it when the chamber is not running.
RS-232 communications is for computer connection, programming can be set on computer by software, monitor testing process and automatically execute power on/off functions.
Fog-free viewing window and interior light makes viewing workspace freely and observe the test under best conditions.
Adjustable product shelf slides out for easier product access. Shelf design is non-tipping and supports large product loads.
Left side of chamber with diameter 50mm cable port for power-on test.
Optional electronic humidity sensor is used on all test chambers for accuracy and minimal maintenance.

Image:

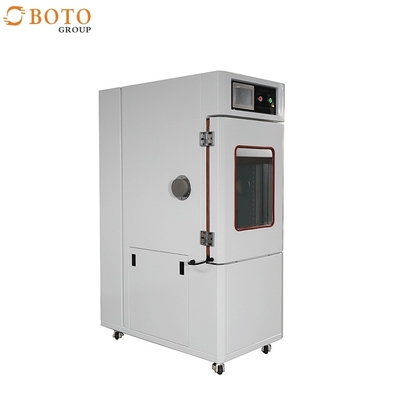

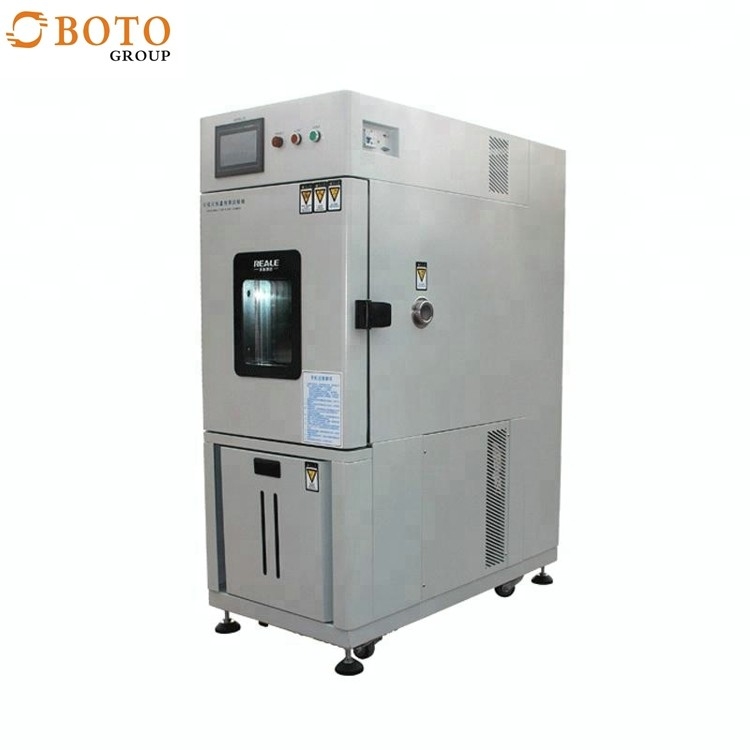

High And Low Temperature Humidity Environment Test Chamber Laboratory Equipment /climate test chamberHigh And Low Temperature Humidity Environment Test Chamber Laboratory Equipment /climate test chamberHigh And Low Temperature Humidity Environment Test Chamber Laboratory Equipment /climate test chamberHigh And Low Temperature Humidity Environment Test Chamber Laboratory Equipment /climate test chamber





Parameter:

Model   BT-RHP-23 BT-RHP-64 BT-RHP-80 BT-RHP-100 BT-RHP-120 BT-RHP-150 BT-RHP-225 BT-RHP-408 BT-RHP-800 BT-RHP-1000
System Balanced temperature & humidity control system
Temperature range -70°C~150°C Rapid temperature nolinear (linearly is option)
Humidity range 20%~98%RH
Temperture fluctuation ±0.5℃
Humidity fluctuation ±2.5%RH
Temperature deviation ±2.0℃
Humidity deviation ±3%RH(≥75%)/±5%RH(<75%)
Heat up time -20°C~150°C 45 minutes, -40°C~150°C 60 minutes, -70°C~150°C 75 minutes,
Pull down time 20°C~-20°C 40 minutes, 20°C~-40°C 60 minutes, 20°C~-70°C 85 minutes,
Interior material SUS#304 Stainless steel plate
Exterior material Backed paiting steel or stainless steel(SUS304)
Insulation material Rigid polyruethane foam +glass fibre
Floor bearing load 500Kg/m3
Refrigeration system Air cooled (Water cooled type is option)
Singl section/cascade type, hermetic/semitight compressor,CFC free refrigerant
Controller Color LCD screen in English/Chinese, programing,communicating function
Safety devices No welding wire switch,compressor overheating and over current protection,over temperature protection, blower overload protection,dry heating machine protector,low water protection,fault warning system.
Standard accessories One observation window, one test hole(Φ5cm), two sets of test racks, one floodlight, one indicator light, four moving wheels, one humidifying tank, 2 meters of power cord, communication interface
Ambinet temperature 5°C~35°C
Power AC380±10% 50HZ 3 phase 4 wires+ground wires
