| Place of Origin: | CHINA |
|---|---|
| Certification: | CE |
| Model Number: | B-CY-250 |
| Minimum Order Quantity: | 1SET |
| Price: | Negotiation |
| Packaging Details: | PLY-Wooden case |
| Delivery Time: | 12-20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30000set/year |
| Brand Name: | BOTO | Dynamic And Static (optional): | 12-16mm/s |
|---|---|---|---|
| Exterior: | Coating Or SUS#304Stainless Steel Plate | HighTemp Rang: | ＋80℃～200℃ |
| Temperature Range: | 0℃-70℃ | External Dim: | 50x60x75 |
| Model: | B-CY-250 | Time Controller: | Precision Hours,minutes,seconds Time Controller |
| High Light: | Lab Ozone Aging Test Chamber,16mm/s Climatic Test Chamber,SS304 Climatic Test Chamber |
||

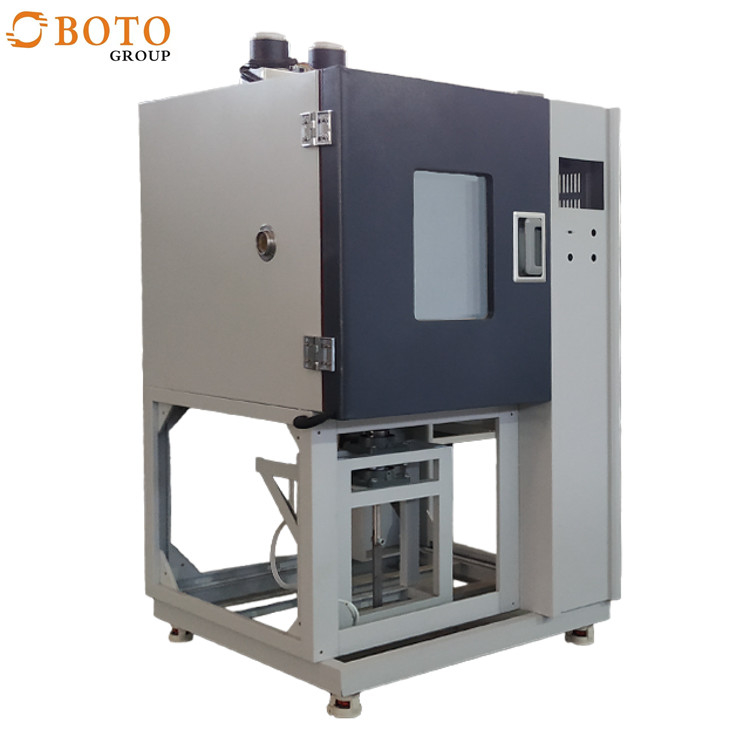

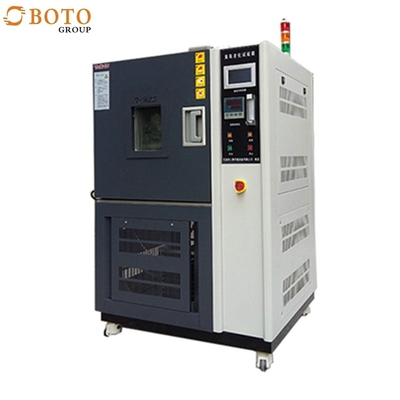

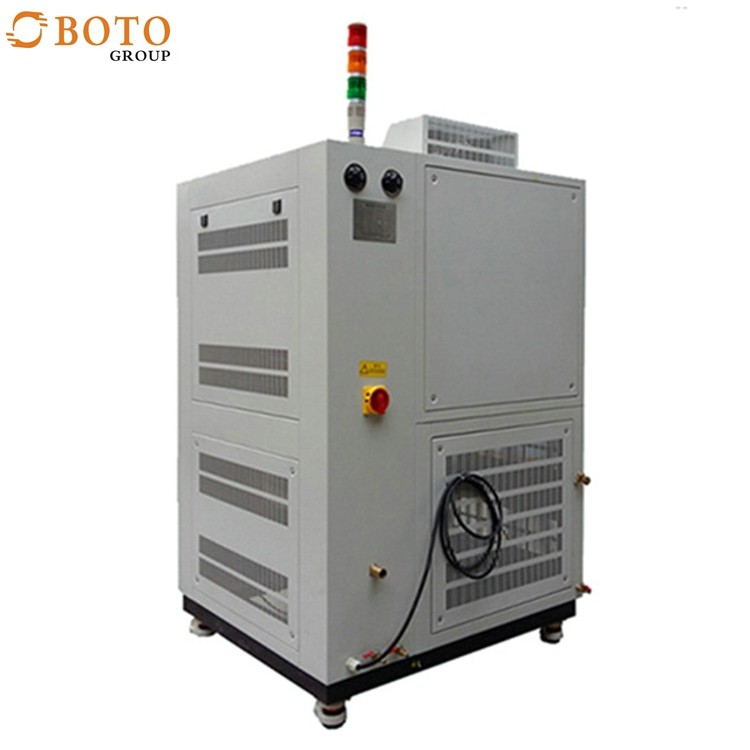

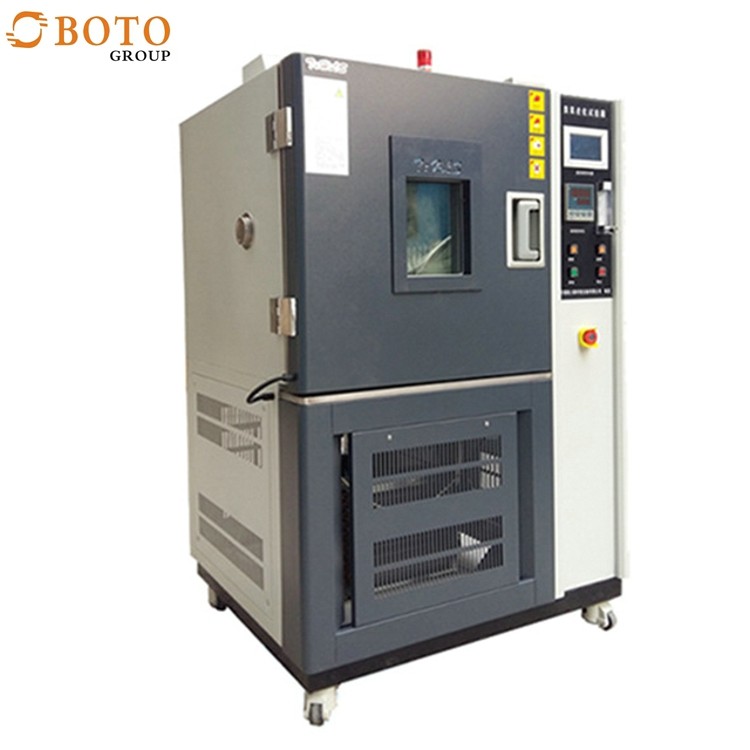

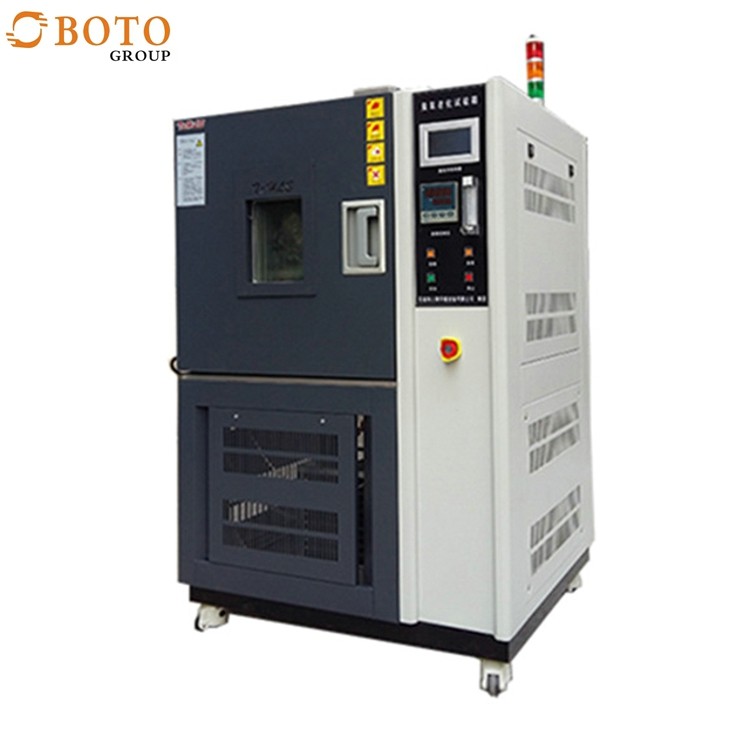

Climatic Test Chamber Ozone Aging Test Chamber GB/T2951.21-2008 Lab Drying Oven
Product Description
Scope: With constant temperature and humidity control function. It is a based equipment for environmental protection, medical, drug testing, health and epidemic prevention, livestock, aquaculture and other scientific research and college departments. Also widely application in biological engineering and water analysis field etc.
Features:
1, The inner chamber is made of mirror stainless steel.
2, Semicircular corners inner chamber is easy to clean.
3, Shelf can be adjusted.
4, LED microcomputer controller make the temperature and humidity constant.
5, Touch key parameter setting.
6, Timer, over temperature alarm function.
7, Large angle observation window, easy to watch the goods in the inner chamber with lighting.
8, Large-capacity humidifier, easy to use
Characteristic:
1. Controlled Environment: Ozone aging test chambers provide a controlled environment for testing materials, products, and components for their resistance to ozone exposure.
2. Ozone Concentration Control: The ozone concentration inside the chamber can be controlled and adjusted as per the testing requirements.
3. Temperature and Humidity Control: The temperature and humidity inside the chamber can also be controlled and adjusted to simulate real-world conditions.
4. Programmable Testing: The ozone aging test chamber can be programmed to run various testing cycles, including continuous exposure or intermittent exposure to ozone.
5. Safety Features: The ozone aging test chamber comes with safety features such as automatic shut-off in case of any malfunction or abnormal conditions.
6. Easy Maintenance: The ozone aging test chamber is designed for easy maintenance and cleaning, ensuring a longer lifespan and accurate results.
7. Accurate Results: The ozone aging test chamber provides accurate and reliable test results, making it an essential tool for research and development in various industries.
Model |
B-CY-120 | B-CY-250 | B-CY-500 | B-CY-1000 | |
Internal Dim(DxWxH) |
45x45x60 | 50x60x75 | 70x80x90 | 100x100x100 | |
| Temperature range | 0℃-70℃ | ||||
| Humidity range | >65%R·H | ||||
Ozone concentration |
0-200PPm.0-300PPm | ||||
Temperature fluctuation |
±0.5℃ | ||||
test apparatus |
Dynamic and static (optional) |
||||
Sample rack rotation speed |
360 degree rotating sample holder (1 rpm per minute) |
||||
Gas flow rate |
12-16mm/s | ||||
Temperature Controller |
Imported LED digital display P.L. D+5.5, R microcomputer integrated controller |
||||
Time controller |
Precision hours,minutes,seconds time controller |
||||
Ozone concentration analysis |
Imported concentration analysis regulator 4-20mA outputs,RS232 communication port |
||||
Ozone generator |
Silent discharge tube type |
||||
Security protection |
Leakoge,short circuit,over temperature,motor overheating.over-current protection |
||||
