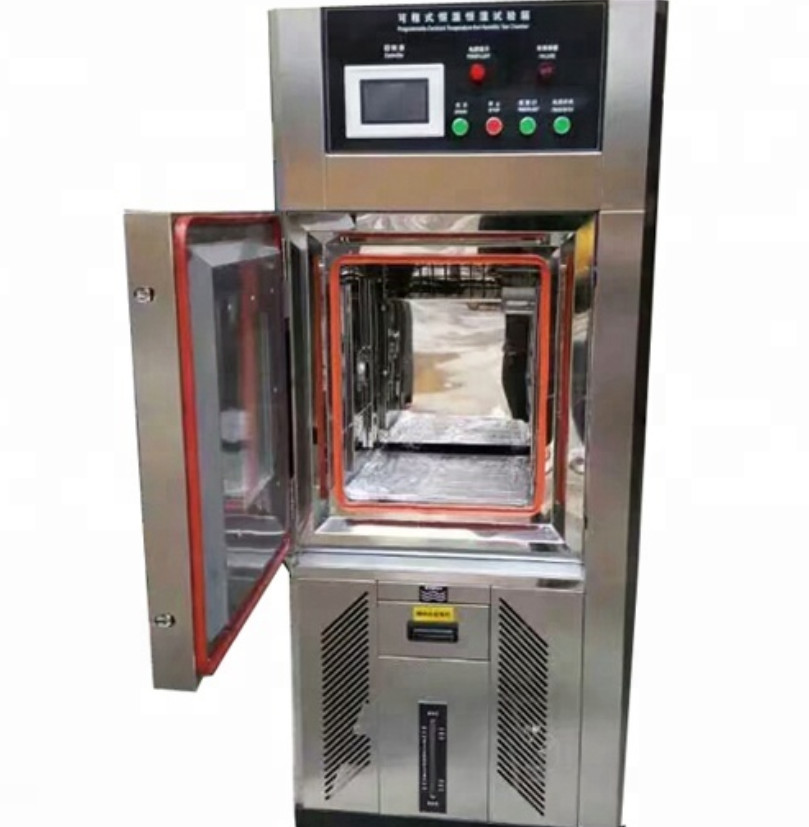

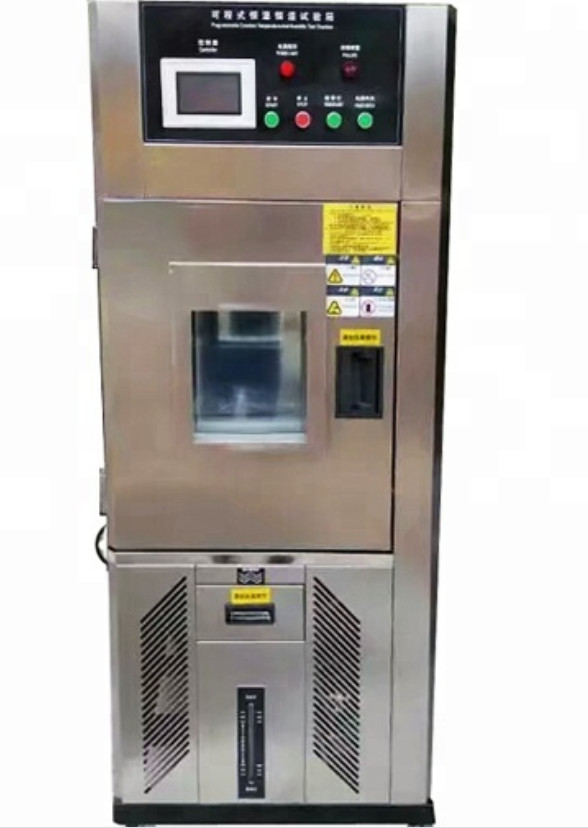

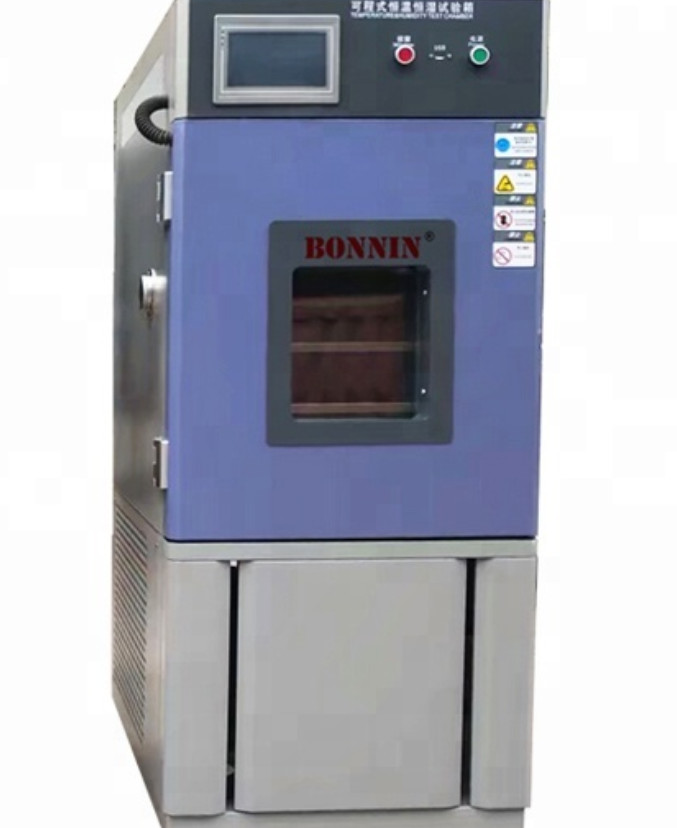

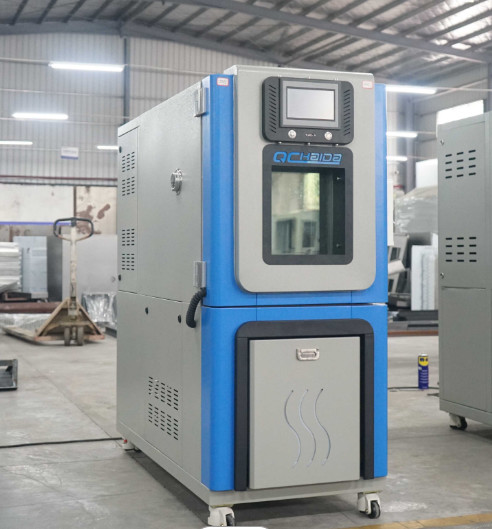

Vibration Combined Simulated Temperature Benchtop Environmental Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: BT-YYW013
Minimum Order Quantity: 1 SET
Price: 600USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Power:: Electronic Usage:: Temperature Humidity Climatic Test Chamber
Material:: Import (SUS # 304) Stainless Steel Plate, Or Painting Temperature Range:: A: 0℃~150℃; B: -20℃~150℃; C: -40℃~150℃; D: -60℃~150℃;
Inner Size:: 80L, 100L, 150L, 250L, 408L, 800L,1000L (customized) Core Part:: Using Import Parts
Product Keywords:: Temperature Humidity Climatic Test Chamber Single Package Size:: 45X45X50 Cm
Selling Units:: Single Item Single Gross Weight:: 68.000 Kg
High Light:

Simulated benchtop environmental test chamber

,

150C benchtop environmental test chamber

,

800L benchtop temperature chamber

Benchtop Simulated Temperature Humidity Vibration Combined Climatic Test Chamber Environmental Test Chambers

This Programmable temperature humidity environmental chamber simulates the conditions under which materials, devices or components might be exposed. It is normally used to improve product reliability and service life.



Programmable Constant Desktop Temperature Humidity Chamber

Features

Using electromagnetic valve to control refrigerant technology, compared with traditional test chambers, 30% energy saving.

Humanized structure design, very easy to operate and maintenance.

Chinese, English, Russian optional PLC control touch screen with high accuracy of 0.1℃ or 1% R.H.

Automatic filling water humidification system with R.O water purifier, Extend the life of the humidification system.

Dual-layer insulation of glass wool and rigid polyurethane foam for thermal integrity.

Big chamber performance / Fast temperature changes



Programmable Constant Desktop Temperature Humidity Chamber

Specifications

Model BT-BN-S series BT-BN-W series
100L 150L 225L 408L 800L 1000L 100L 150L 225L 408L 800L
Temp. range -20°C~+150°C -40 °C~+150°C
Humidity uniformity ±3.0%R.H ±5.0%R.H ±3.0%R.H ±5.0%R.H
Heat up time -20°C~+100°C, within 35 min -40°C~+100°C, within 45 min
Pull down time +20°C~-20°C, within 45 min +20°C~-40°C , within 60 min
Standard accessories Sight window*1, cable port(port dia.50mm)*1, shelves*2, chamber lamp*1, power cable *2m
Safety device (standard) No fuse breaker, over pressure,over heat and over current protection for compressor, over temp. protect, over load protect of blower, dry heat protection
Control System Balanced Temperature & Humidity Control System
Refrigeration system Air Cooled (Water Cooled Type is optional)
Hermetic compressor, single-stage refrigeration system
CFC-Free refrigerant(HFC-507/HFC-23)

Controller Panel: 7-inch LCD Touch panel; Chinese, English or Russian display selectable
Operation modes: program or setting
Memory capacity: 120 programs,1200 steps,
All repeat 999 cycles, part repeat 99 cycles
Humidity Range 20~98%R.H
Temp. constancy ±0.5°C
Humidity constancy ±2.5%R.H
Temp. uniformity ±2.0°C
Interior material Stainless Steel Plate(SUS 304)
Exterior material Painting Steel Or Stainless steel(SUS304)
Insulation material Rigid polyurethane Foam and Glass Fiber Wool
Ambient Temp. +5°C~+35°C
Power Supply 1 phase 220VAC 60/50HZ 3 phase 380VAC 60/50HZ

Remarks: 1. We reserve the right to change specifications without prior notice; 2. Customized sizes and configurations are available





Vibration Combined Simulated Temperature Benchtop Environmental Test Chamber 0

Vibration Combined Simulated Temperature Benchtop Environmental Test Chamber 1



FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
