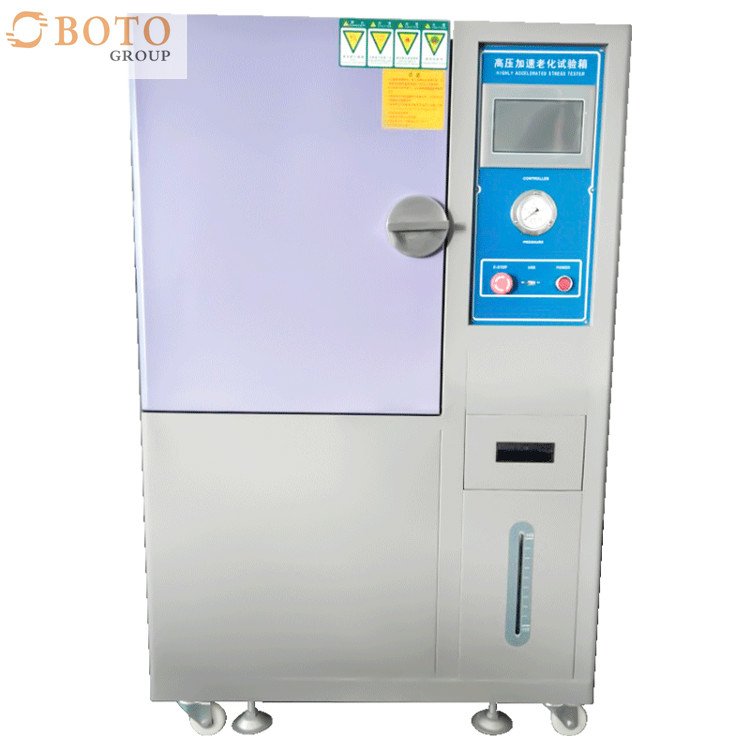

Factory High Accelerated Stress PCT High Pressure Test Chamber Price

^Features:

^{1. Adopting dual-circuit structure of imported high temperature-resistant solenoid valve, which reduces the failure rate to the greatest extent.}

^{2. Independent steam generation chamber, avoid direct impact of steam on the product, so as not to cause partial damage to the product.}

^{3. The labor-saving structure of the door lock solves the shortcomings of the disc-type handle of the first generation product which is difficult to lock.}

^{4.Exhaust the cold air before the test; the design of the exhausted cold air (exhaust air in the test barrel) during the test improves the pressure stability and reproducibility.}

^{5. Ultra-long-term experiment running time, long-term experiment machine running for 1000 hours.}

^{6. Water level protection, detection and protection through water level sensor in the test room.}

^{7.tank pressure resistance design, the pressure resistance of the cabinet (140 ℃) is 2.65kg, which meets the water pressure test of 6kg.}

^{8. Two-stage pressure safety protection device adopts two-stage combination controller and mechanical pressure protection device.}

^{9. Safety protection pressure release button, two-stage automatic pressure release button of emergency safety device}

^{10. Full touch controller, support U disk export history}

^{Product parameters}

^{2. Test chamber material:}

^{2.1 Test box size: PCT-30 (300x L500 mm), round test box}

^{2.2 Overall dimensions: 900x 900 x 1600 mm (W * D * H)}

^{2.3 Inner barrel material: stainless steel plate (SUS # 316 3 mm) or plastic spray}

^{2.4 Outer barrel material: stainless steel plate material}

^{2.5 Insulation material: rock wool and rigid polyurethane foam insulation}

^{2.6 Steam heating chamber heating tube: titanium tube heating, never rust.}

^{2.7 Control system:}

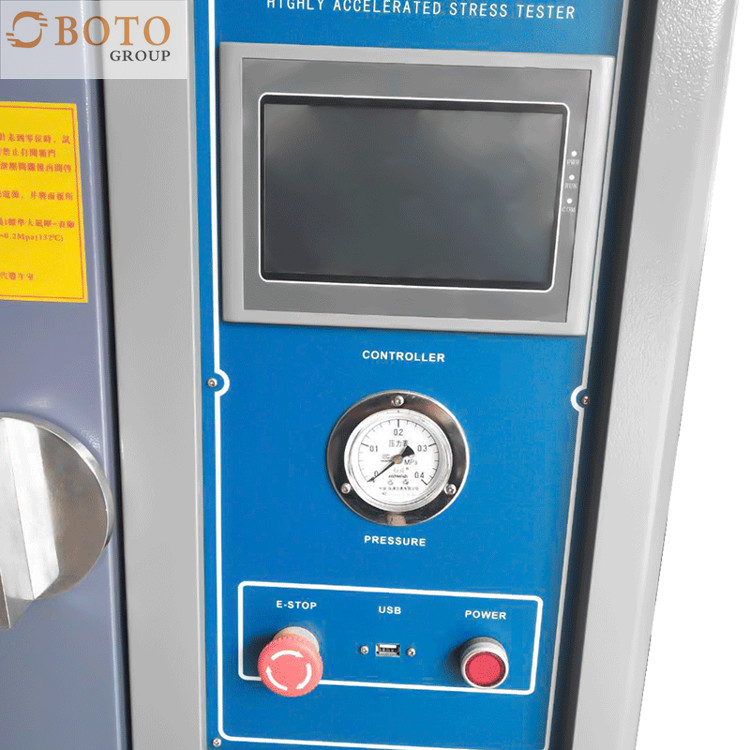

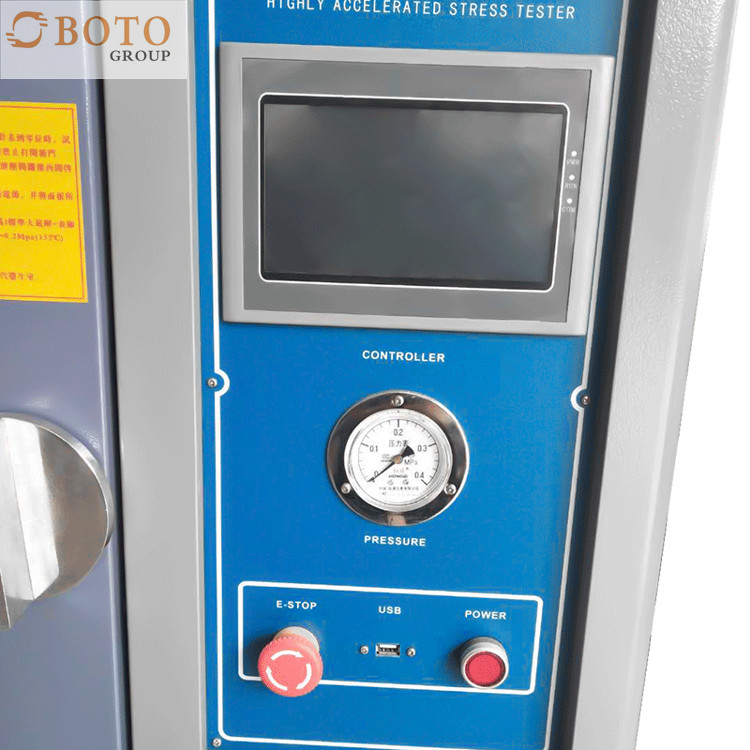

^{a. Use touch controller to control test temperature, time and information query and data export.}

^{b. Use the pointer to display the pressure gauge.}

^{c. Microcomputer P.I.D automatic calculation to control the temperature of saturated steam.}

^{d. Manual water inlet valve (automatic water supply function, continuous test without stopping). Inquiry.}

^{2.8 Mechanical structure:}

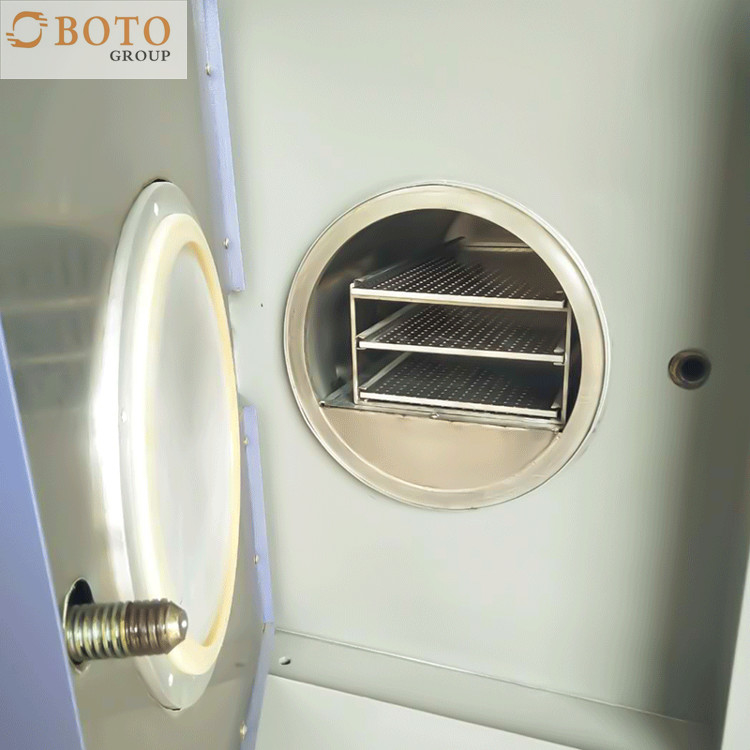

^{a. Round inner box, stainless steel round test inner box structure, in line with industrial safety container standards, can prevent dew dripping during the test.}

^{b.The circular web lining and stainless steel circular web lining design can avoid the latent heat of steam directly impacting the test product.}

^{c. Precision design, good air tightness, low water consumption, continuous 400Hrs operation with each water addition.}

^{d. The patented packing design makes the door and the box more closely integrated, which is completely different from the traditional squeeze type, which can extend the packing life.}

^{e.Critical point LIMIT mode automatic safety protection, abnormal cause and fault indicator display.}

^{2.9 Security protection:}

^{a. The imported high temperature resistant sealed solenoid valve adopts a double circuit structure to ensure no pressure leakage.}

^{b. The whole machine is equipped with multiple pressure protection devices such as over-pressure protection, over-temperature protection, one-button pressure relief, and manual pressure relief to ensure the user's use and safety to the greatest extent.}

^{c. Back pressure door lock device, when there is pressure in the test chamber, the test chamber door cannot be opened}

^{3.Main accessories table:}

^{Thermostat: Touch controller}

^{Test temperature record U disk export (standard configuration)}

^{Computer online control (optional)}

^{High temperature and high pressure water level device: Taiwan Hongyu}

^{High temperature solenoid valve: German herion}

^{Relay: Japan Omron}

^{Pressure Gauge: China Red Flag}

^{Over temperature protector: Korea AGO}

^{S. S. R: Taiwan is famous}

^{Temperature and humidity sensor: VAISALA, Netherlands}

^{Heater: self-produced (all titanium tube)}

^{Pressure safety device: self-produced (copper spring type)}

^{High pressure clean water pump: (Germany) PUM}

^{Hose: Nissan Aseptic}

^{Cabinet material (inner barrel): SUS316}

^{Outer box material: SUS304}

^{Sealing ring: Silicone V-shaped mold}

^{4.Other accessories}

^{4.1 test rack 1 set}

^{4.2 Sample tray}

^{5. Power supply system:}

^{5.1 System power fluctuation must not be greater than ± 10}

^{5.2 Power supply: single phase 220V 20A 50 / 60Hz}

^{6.Environment & Facilities:}

^{6.1 Allowable working environment temperature: 5 ℃ ~ 30 ℃}

^{6.2 Experimental water: pure water or distilled water}

^{7.With file:}

^{6.1 System new warranty, warranty}

^{6.2 Operation and Maintenance Manual}
