| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT-LY-CY-80 |
| Minimum Order Quantity: | 1set |
| Packaging Details: | wooden case |
| Delivery Time: | 5-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 Set/Sets per Month |
| Inner Material: | SUS 304 Stainless Steel | Outer Material: | SPCC Painted |
|---|---|---|---|
| Temperature Range: | RT+10°C~60°C | Temperature Deviation: | ±0.5°C (no Load) |
| Temperature Uniformity: | ±2°C (no Load) | Ozone Concentration Range: | 0~500pphm (or Custom Made) |
| Ozone Concentration Deviation: | 10% | Ozone Flow Rate: | 12~16mm/s |

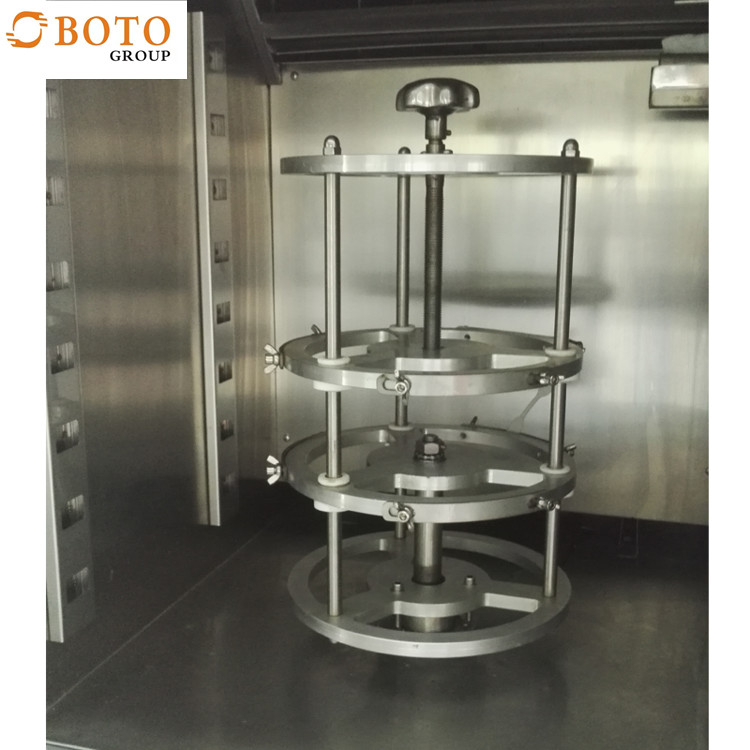

| Sample Shelf Roating Speed: | 20~25mm/s | Controller: | Touch Screen Programmable Controller |
| Ozone Generator: | Using Voltage Silent Discharge Tube Produce Ozone | Power: | AC 380V 3 Phase 4 Lines |
| High Light: | 16mm/s Environmental Test Chambers,SPCC Painted Environmental Test Chambers,Programmable Ozone Aging Test Chamber |
||

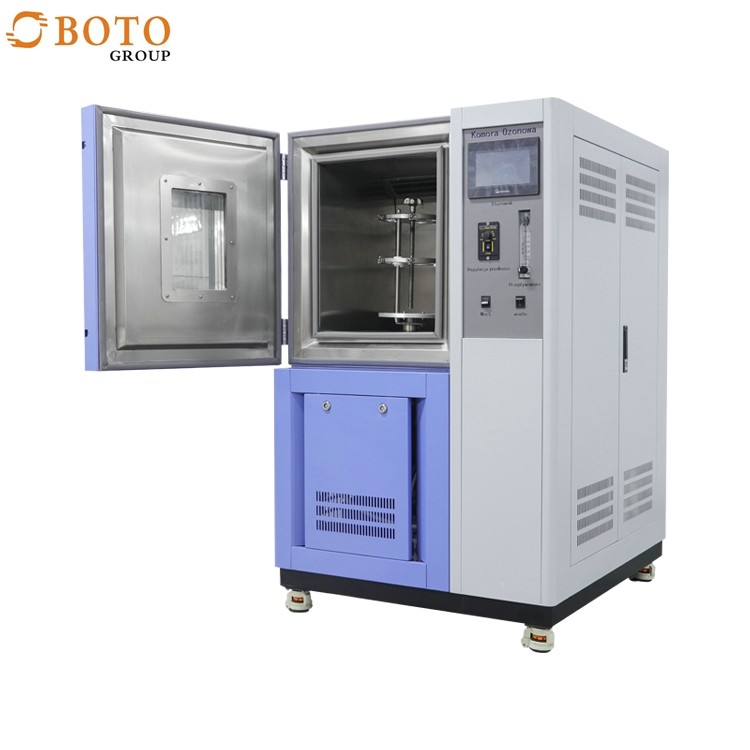

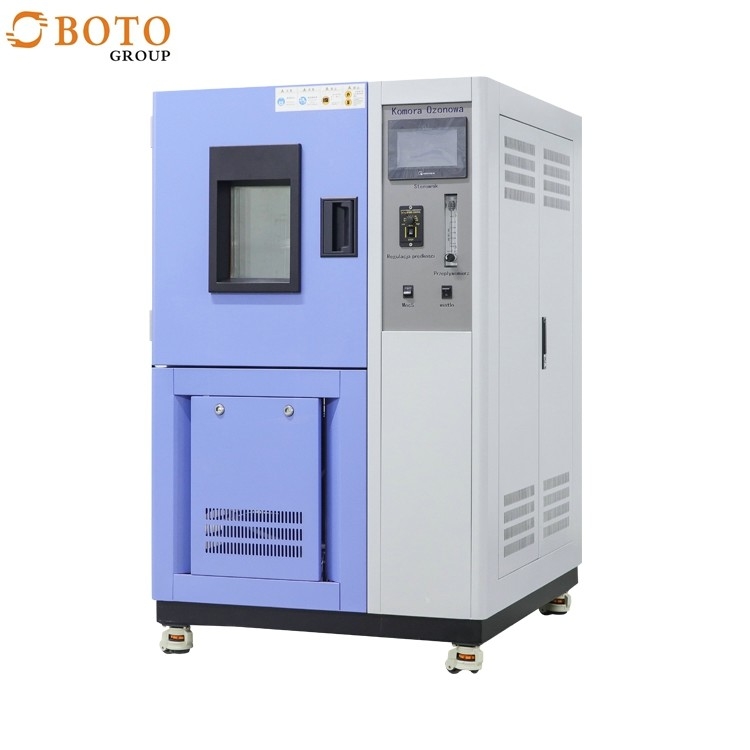

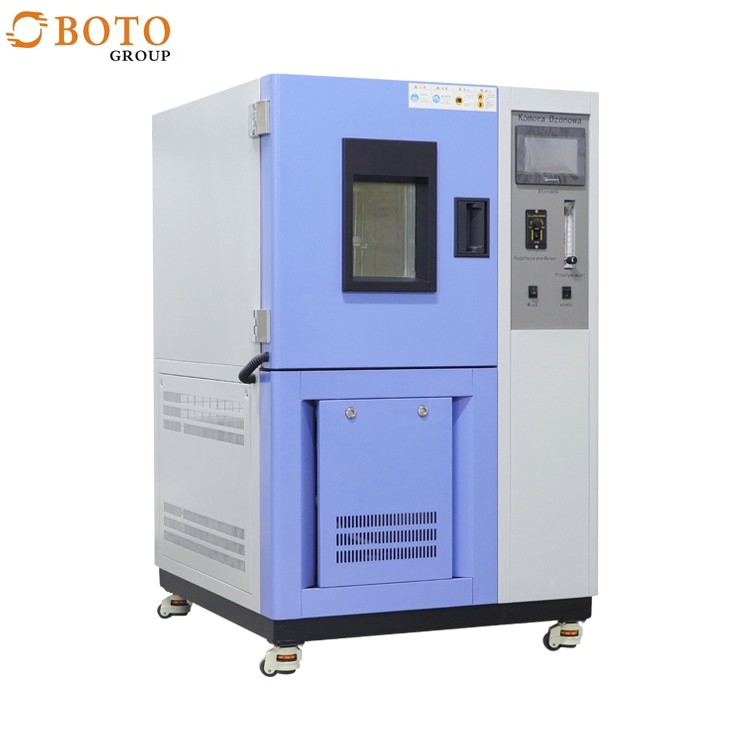

Treatment Resistance Testing Rubber Thermal Climatic Cabinet Programmable Ozone Aging Test Chamber
BOTO ozone aging test chamber is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test. Ozone content in the atmosphere is very low, but it is the main factors of polymer materials aging. Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time. The studay of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antiozonant protection efficiency method,and then take effective aging proof measures to improve the service life of rubber products.
Characteristics:
BOTO ozone aging test chamber equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.
| Model | BT-LY-CY-80 | BT-LY-CY-150 | BT-LY-CY-225 | BT-LY-CY-408 | BT-LY-CY-800 | BT-LY-CY-1000 |
| Inner size W*H*D(cm) | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 80*100*100 | 100*100*100 |
| Outer size W*H*D(cm) | 85*140*95 | 95*150*115 | 95*165*115 | 105*175*135 | 145*190*135 | 155*195*150 |
| Inner material | SUS 304 stainless steel | |||||
| Outer material | SPCC Painted | |||||
| Temperature range | RT+10°C~60°C | |||||
| Temperature deviation | ±0.5°C (no load) | |||||
| Temperature uniformity | ±2°C (no load) | |||||
| Ozone concentration range | 0~500pphm (or custom made) | |||||
| Ozone concentration deviation | 10% | |||||
| Ozone flow rate | 12~16mm/s | |||||
| Sample shelf roating speed | 20~25mm/s | |||||
| Controller | Touch screen programmable controller | |||||
| Ozone generator | Using voltage silent discharge tube produce ozone | |||||
| Power | AC 380V 3 phase 4 lines | |||||
