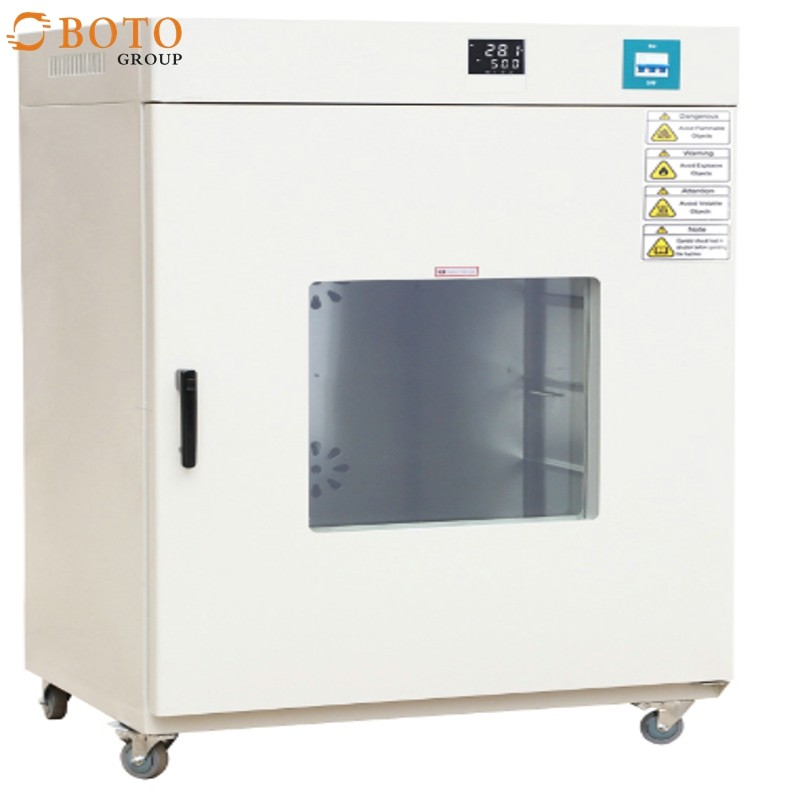

Laboratory Industrial High Temperature Drying Oven

Laboratory Industrial High Temperature Drying Oven
Laboratory Industrial High Temperature Drying Oven Laboratory Industrial High Temperature Drying Oven Laboratory Industrial High Temperature Drying Oven Laboratory Industrial High Temperature Drying Oven
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Contact Now
Power:: 15000 Voltage:: 220V50Hz
Dimension(L*W*H):: 450x560x710 Machinery Test Report:: Provided
Video Outgoing-inspection:: Provided Material:: SUS304, High-quality Steel Plate
Usage:: Industrial,sample Preparing Lab Characteristc:: Microcomputer Temperature Controller
High Light:

Industrial Laboratory Drying Oven

,

50Hz High Temperature Drying Oven

,

Industrial Drying Oven SUS304

Laboratory Industrial High Temperature Drying Oven



Product Description
As a device for removing moisture and testing the temperature characteristics of products, the electric blast drying oven is widely used in enterprises and institutions and various testing laboratories. The blast drying oven has the advantages of strong temperature control, air convection, and low temperature fluctuation.

Laboratory Industrial High Temperature Drying Oven 0

Features
1. Using digital microcomputer temperature controller, the control is accurate and reliable, and the accuracy is 0.1℃ (display range).
2. With timing function, temperature control protection function, and fan stop switch.
3. The inner tank is made of high-quality mirror stainless steel plate by argon arc welding.
4. The shell is made of high-quality steel plate material and sprayed with plastic, which is beautiful and novel in appearance.
5. Use high-quality double-layer tempered glass large observation windows and doors for observing the conditions of the studio.
6. The hot air circulation system is composed of an imported fan that can continuously operate at high temperatures and an air duct with advanced design.
7. Vertical: Vertical forced convection to ensure uniform temperature in the working room.
8. Independent temperature limit alarm system, automatically interrupts when the temperature exceeds the limit, to ensure that the experiment runs without accidents (optional).
9. The thermal insulation system uses ultra-fine glass fiber to fill the thermal insulation area, and the connecting parts of the inner and outer tanks are made of non-metallic high temperature resistant materials, which can effectively reduce high temperature conduction.

Laboratory Industrial High Temperature Drying Oven 1

Specification
Model
BT-9023A
BT-9053A
BT-9123A
BT-9203A
BT-9423A
BT-9623A
BT- 9960A
BT-3100A
Voltage
~220V50Hz
~380 or 220V 50Hz
380V50Hz
volume
25L
53L
108L
200L
430L
630L
960L
3100L
Power
0.5KW
1KW
1.5KW
2KW
3KW
5KW
8KW
24KW
Temperature
RT10-250ºC
Temperature Resolution
0.1ºC
Temperature fluctuation
±0.1ºC
Temperature uniformity
±2%
±3%
±2.5%
Timing range
1-9999min
Heating mode
Heating tube
Studio size
300×300×275
415×370×345
540×330×550
600×500×540
800×600×1000
800×600×1300
1000×600×1600
1600×1200×1600
( mm)








Oven Size
570×460×450
710×510×540
810×540×720
720×770×930
930×790×1400
930×790×1700
1340×820×1880
2192×2150×1960
( mm)








Plate QTY
2
2
2
2
3
4
5
Walk-in


Project References
Laboratory Industrial High Temperature Drying Oven 2



Packing & Delivery
Laboratory Industrial High Temperature Drying Oven 3

Company Profile



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



Laboratory Industrial High Temperature Drying Oven 4



Main products:



The main products are: High and low temperature test chamber, rapid temperature test chamber,

temperature impact test chamber, high low pressure test chamber,

temperature/humidity/vibration three comprehensive test chamber,

constant temperature and humidity test chamber, PCT,

get wet in the rain, sand dust, illumination, salt fog environment simulation system,

the vehicle climate environment simulation and testing system,

many factors environment simulation system, and various non-standard test system,

test and monitoring system Laboratory control system such as temperature, humidity, low pressure,

thermal vacuum, salt fog, sunshine, dust, explosion-proof, rain, comprehensive test box.









Laboratory Industrial High Temperature Drying Oven 5


In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.





Main market





Laboratory Industrial High Temperature Drying Oven 6


The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.





Production Details





Laboratory Industrial High Temperature Drying Oven 7

Laboratory Industrial High Temperature Drying Oven 8

Laboratory Industrial High Temperature Drying Oven 9





Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.





​Certification



Laboratory Industrial High Temperature Drying Oven 10



TRADING PROCESS

Laboratory Industrial High Temperature Drying Oven 11

Cooperative partners



Laboratory Industrial High Temperature Drying Oven 12





Our Service

1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our technical team
6.Warranty period 12 months
