| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | B-T-225(A~E) |
| Minimum Order Quantity: | 1set |
| Price: | 2580-5280USD |
| Packaging Details: | Wooden case |
| Delivery Time: | 1-25 days,to be negotiated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 Set/Sets per Month |
| Product Name: | High Temp Humidity Test Thermal Chamber | Test Appication: | Electronic, Automobile |
|---|---|---|---|
| Power:: | Electronic | Temperature Range:: | -70~+150℃ |
| Size:: | 650*1400*1500mm | Capacity:: | 80L |
| Color:: | Blue Black Or Customize | Weight:: | 300KG |
| Name: | Programmable High Temp Humidity Test Chamber | Model: | B-T-225(A~E) |
| High Light: | 80L Thermal Humidity Chamber,ISO High Temp Thermal Humidity Chamber |
||

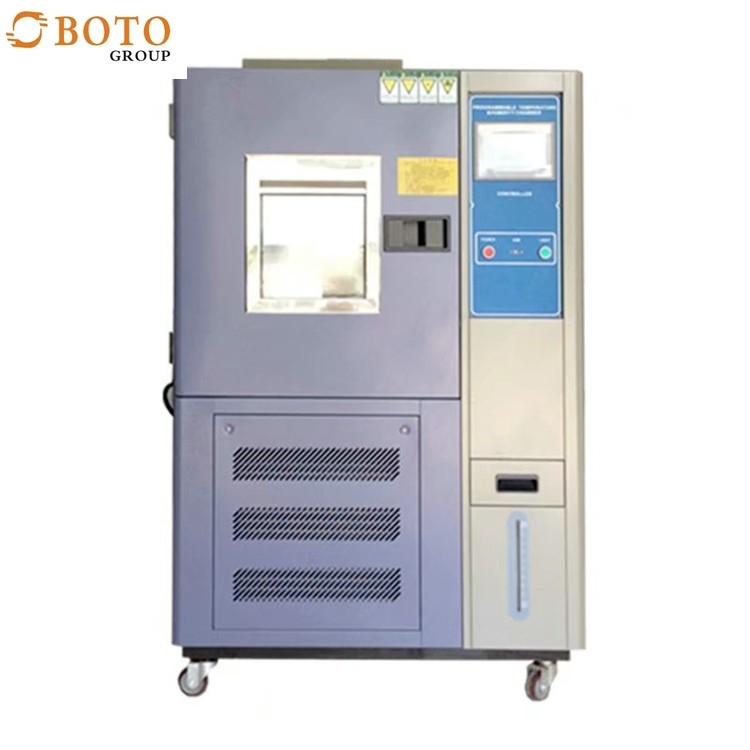

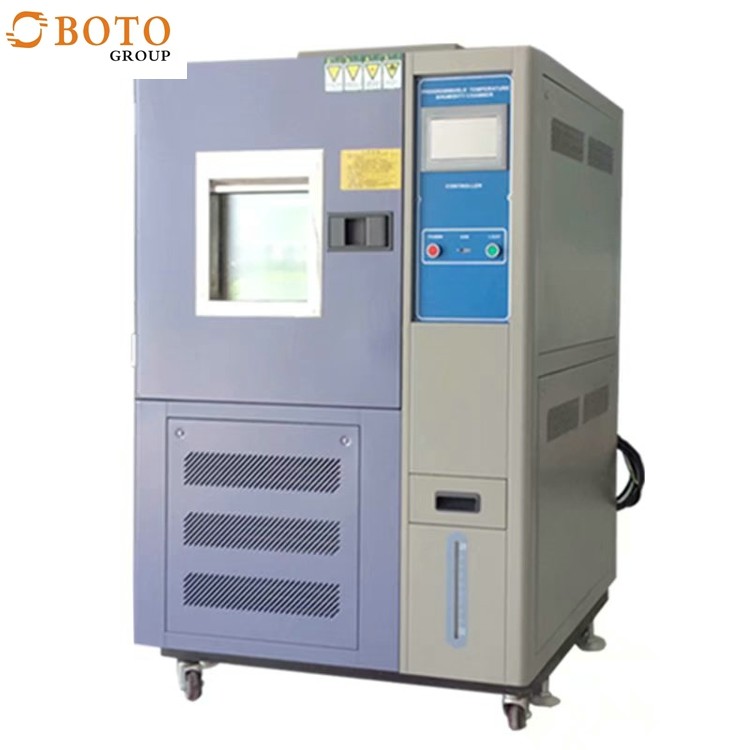

Environmental Test Chambers 80L Temperature Programmable High Temp Humidity Test Thermal Chamber
Equipment summary:
Environmental Constant Temperature Humidity Climatic Test Chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Applicable industries:
Environmental Constant Temperature Humidity Climatic Test Chamber applied to control the product
quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals,
chemicals, building materials, aerospace, medical care and so on.
1.International Electrotechnical Commission Standard:
IEC68-2-03_test method Ca_Steady damp-heat
IEC68-2-01_test method A_cold
IEC68-2-02_test method B_dry heat
2. Military Standards:
MIL-STD-810F-507.4 humidity
MIL-STD-810F-501.4 high temperature
MIL-STD-810F-502.4 low temperature
MIL-STD883C test method 1004.2 temperature and humidity cycling test
MIL-STD810D test method 502.2
MIL-STD810 test method 507.2 procedure 3
3. Japanese Industrial Standard:
JIS C60068-2-3-1987 test method Ca: Steady damp-heat
JIS C60068-2-2-1995 test method B:dry heat
JIS C60068-2-1-1995 test method A:low temperature
4. USA Semiconductor Industry Standard:
JESD22-A101-B-2004 Constant temperature and humidity test
JESD22-A103-C-2004 High Temperature Storage Test
JESD22-A119-2004 Low Temperature Storage Test
5. Chinese National Standard:
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
GB/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
GB/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
6. China's National Military Environment Test Equipment
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 hot and humid condition testing
Features:
1.High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.

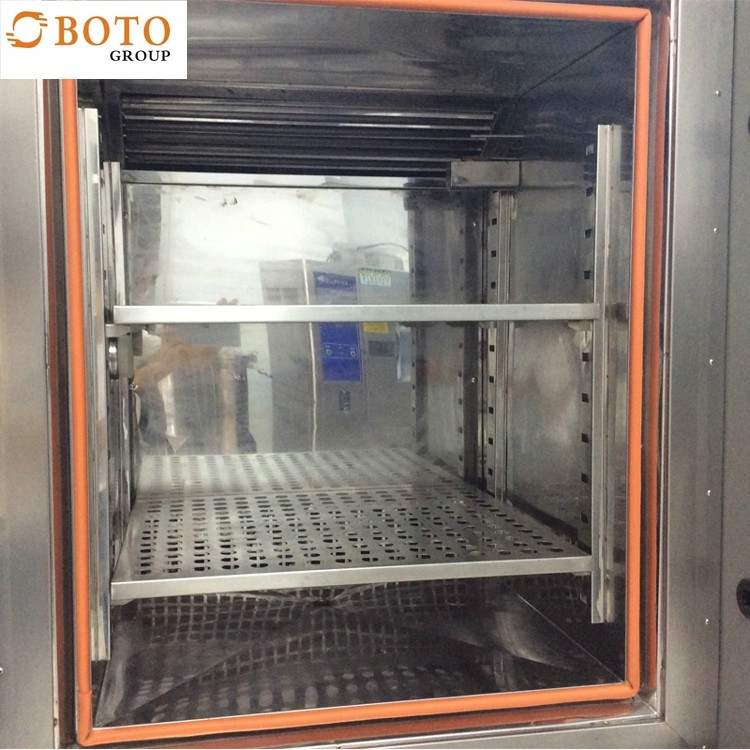

2.Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3.Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4.With an external water supply system can be easy to supply water and automatically reuse.
5.Compressor circulatory system from French "Taikang", more effective removal of oil between the condenser and the capillary and use environmentally refrigerants (R23, R404, R507).

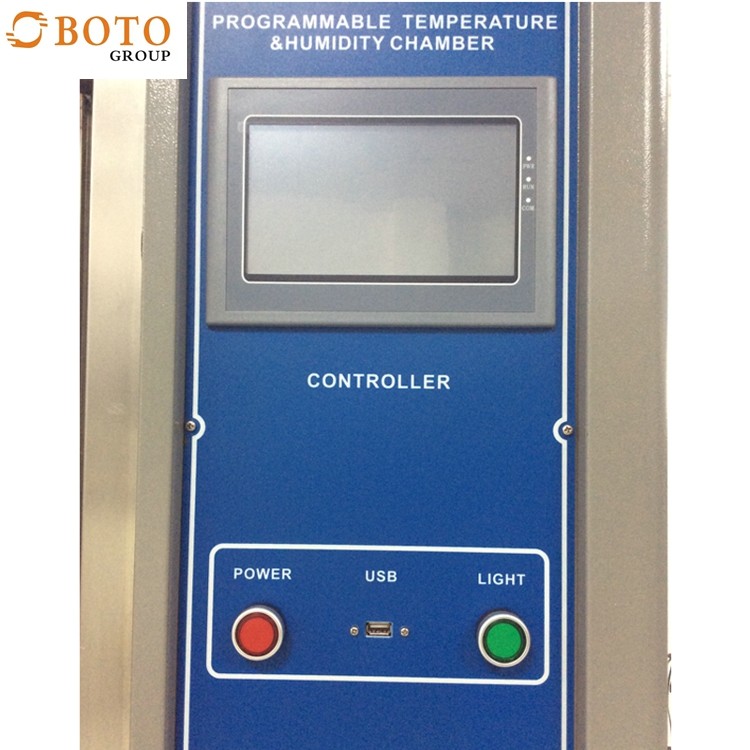

6.Controller imported LCD display screen can be displayed measuring values and setting the value and time.
7.Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
8.Built-in mobile pulley easy to move and has a strong positioning screw fixed position
Model:
| Place of origin | China | Brand Name | BOTO |
| Model Number | BT-ATH-80 | Power | Electronic |
| Chamber Volume | 80l | Refrigeration system | water/air cooled |
| Inner dimension | 400*400*500mm | Exterior dimension | 650*1400*1500mm |
| Temperature range | -20/-40/-60/-70℃ ~+150℃ | Humidity range | 20%RH~98%RH |
| Exterior material | Cold-rolled steel sheet/Stainless steel plate | Interior material | SUS 304 |

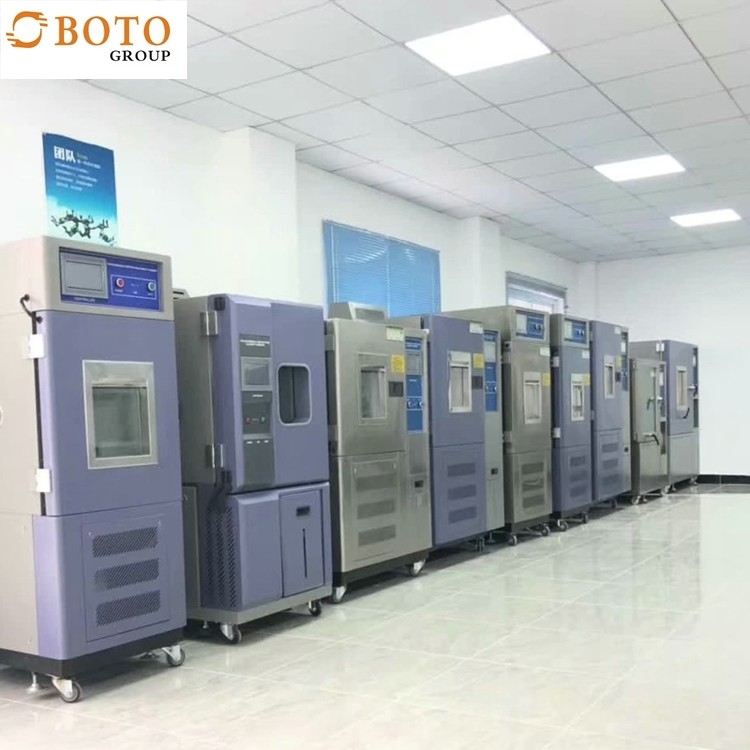

Company Profile
BOTO GROUP is a professional manufacturer of various kinds of testing equipment over 20 years. BOTO products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Packing/Shipping:
Main market
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
