| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-CCT-160 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-CCT-160 | Internal: | 160x100x50 |
|---|---|---|---|
| External Dim: | 230x130x149 | Cabinet Material: | Laboratory Corrosion-resistant Polymer Material |
| Temperature: | A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃ | Saturated Air Pressure: | 0.8-2.0±0.01 |
| Salt Spray Sedimentation Rate: | 1~2mml/80 Cm2.h(Controllable) | Power Source: | AC:220V 50Hz/AC:380V 60Hz |
| High Light: | B-CCT-160 Salt Spray Corrosion Test Chamber,Environmental Salt Spray Corrosion Test Chamber,60Hz Laboratory Environmental Test Chambers |
||

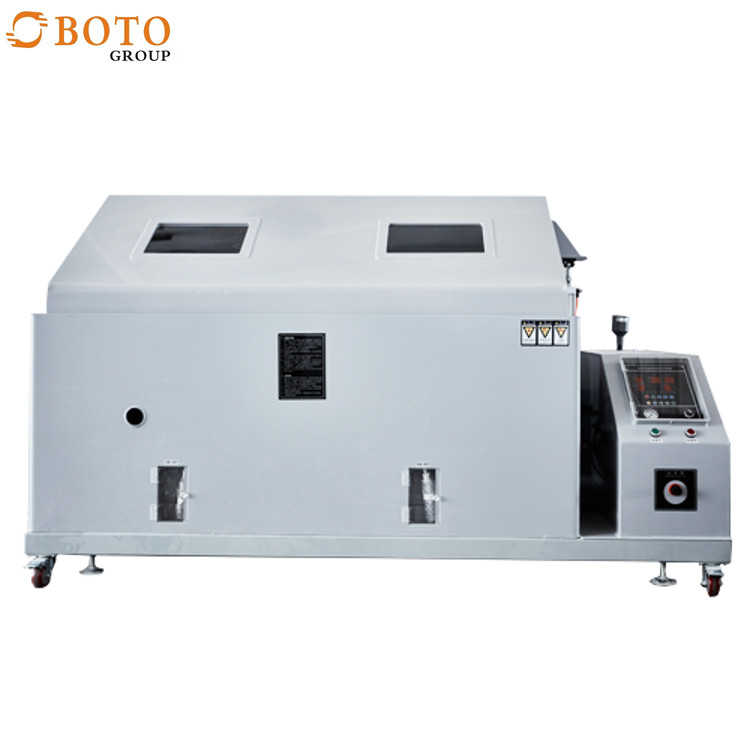

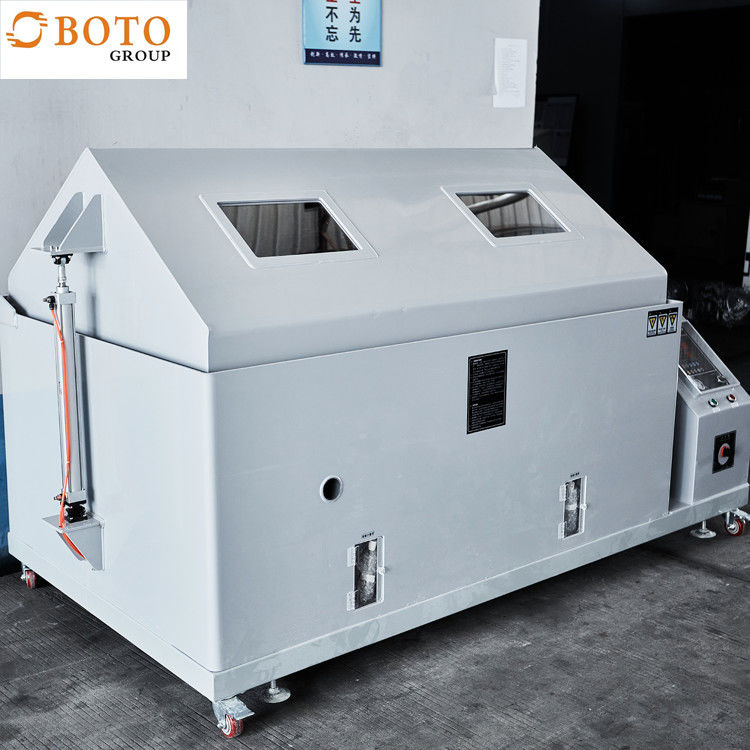

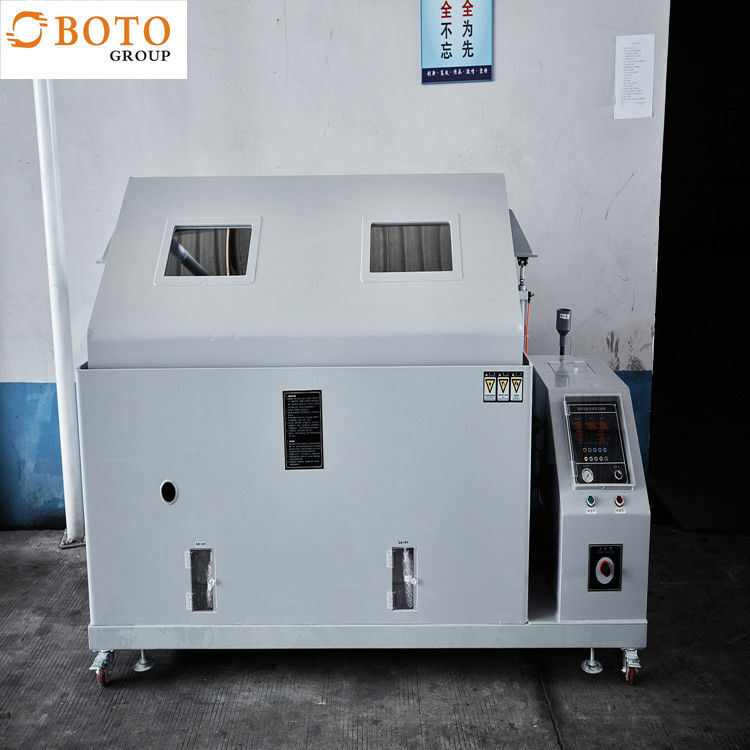

B-CCT-160 Salt Spray Corrosion Test Chamber 160x100x50 Polymer Material Machine
Product Description:
Salt Spray test chambers are commonly used to evaluate the corrosive properties of:
Phosphated surfaces (with subsequent paint/primer/lacquer/rust preventive).
Zinc and Zinc-alloy plating (see also electroplating).
Electroplated chromium, nickel, copper and tin.
Coatings not applied electrolytically (such as zinc flake coatings).
Organic Coatings.
Paint Coating.
B-CCT-160 Salt Spray Corrosion Test Chamber 160x100x50 Polymer Material Machine's is able to simulate a wide range of temperature and humidity environment condition for testing various products and components. It is widely used for basic thermal cycling test and accelerated stress test. We provide 6 standard models, test cabinet from 80L to 1000L, customized size is also available.
Features :
1. The salt spray test chamber. Completely self contained, the MX series salt spray chamber allows for test items to be subjected to a corrosive environment without introducing other contaminants into the test area.
2. The standard MX salt spray test chamber is compliant with ASTM-B117, MIL-STD-202F, MIL-STD-750B, MIL-STD-810D standards for corrosion testing and can be modified to meet MIL-STD-883C and MIL-STD-19500.
Standard:
1. IEC68-2-1 Environmental testing - Part 2: Test methods - Tests A: Cold
2. IEC68-2-2 Environmental testing for electric and electronic products Test methods - Tests B: Dry Heat
3. IEC68-2-3 Environmental testing for electric and electronic products - Part 2: Testing method test Cab: Damp heat Steady state
4. IEC68-2-30 Environmental testing for electric and electronic products - Part 2: Test method - Test Db: Damp heat,cyclic ( 12h+12h cycle)
5. IEC68-2-14 Environmental testing for electric and electronic products-Part 2:Test methods-Test N:Change of temperature
6. MIL-STD-810D High temperature test
7. MIL-STD-810D Low temperature test
8. MIL-STD-810D Damp heat test
| Model | B-SST-60 | B-SST-90 | B-SST-120 | B-SST-160 | B-SST-200 | |
| Internal Dim(W*H*D) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 | |
| External Dim(W*H*D) | 108x63x119 | 140x80x139 | 178x120x149 | 230x130x149 | 270x130x159 | |
| Cabinet Material | Corrosion-resistant polymer material | |||||
| Laboratory temperature (℃) | A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃ | |||||
| Saturated air barrel temperature(℃) | 35±1℃50±1℃ Saline test method:35±1℃/Corrosion test method:50±1℃ |
|||||
| Saturated air pressure (kg/c㎡) | 0.8-2.0±0.01 | |||||
| Salt spray sedimentation rate | 1-2ml/80 cm2.h(Controllable) | |||||
| PH value | Salt water test method:6.5～7.2／Test method for corrosion resistance:3.0-3.2 Saline test method:6.5-7.2/Corrosion test method:3.0-3.2 |
|||||
| Power Source | AC:220V 50Hz/AC:380V 60Hz | |||||
