| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-LY |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-LY | Internal Dim （CM）: | 800×800×800 |
|---|---|---|---|
| External Dim（CM）: | 880×1180×1540 | Sample Weight: | 5KG |
| Radius Of Arc Pendulum Tube: | 400mm | Right Angle Pendulum Tube Length: | 500mm |
| Water Jet Pressure: | 50-400kpa | Water Tank Material: | High-grade Stainless Steel Plate |
| High Light: | IPX3 Rain Test Chamber,500mm Rain Test Chamber,Stainless Steel Waterproof Lab Instrument |
||

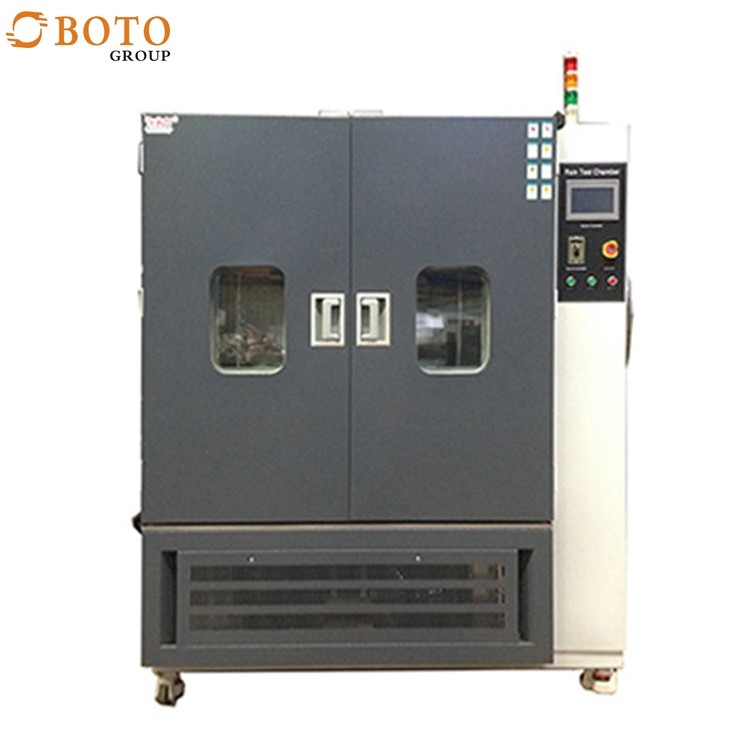

IPX3 Order Rain Test Chamber Lab Instrument B-LY Test Matchine GB10485-89
The Rain Test Chamber IPX 123456 is suitable for testing the IPX1, IPX2, IPX3, IPX4, IPX5, and IPX6 waterproof levels of the product. The shell is made of domestic steel plate, and the surface is sprayed with paint, which is beautiful and durable.
Suitable for outdoor lamps, household appliances, auto parts and other electronic and electrical products.

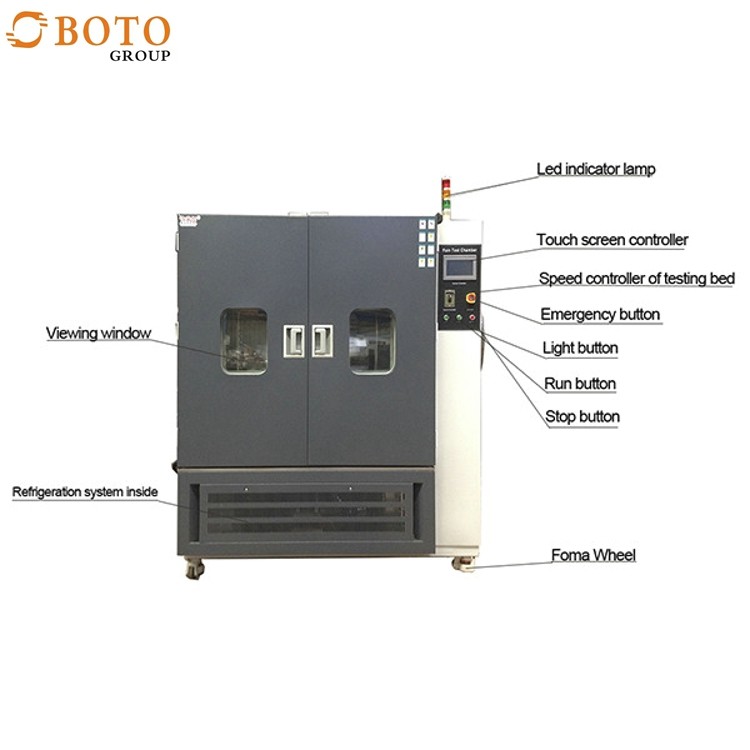

Structure of EN/ UL Rain test chambers:

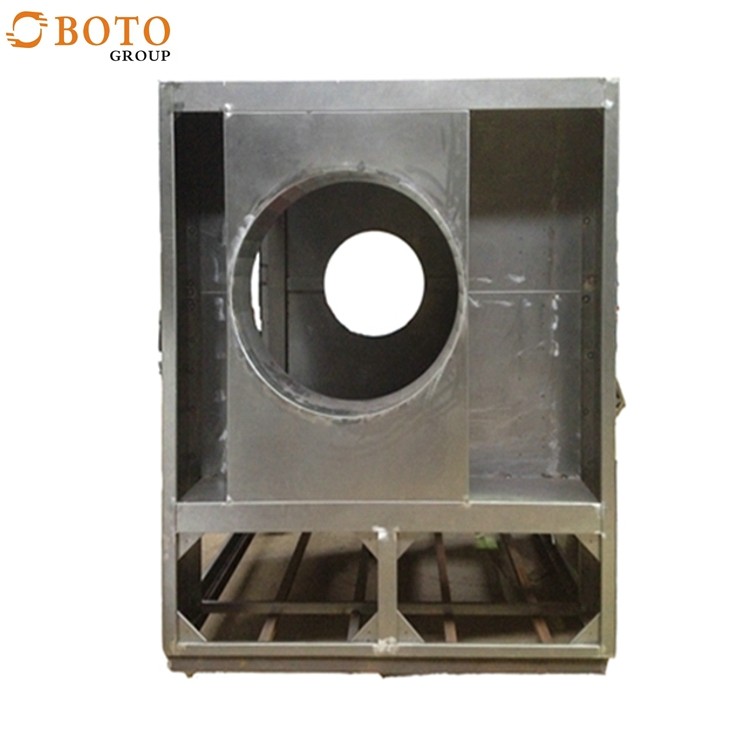

1,The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.
2, Large area of visible glass door, easy to observe the test specimens in the testing chamber
3,The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.

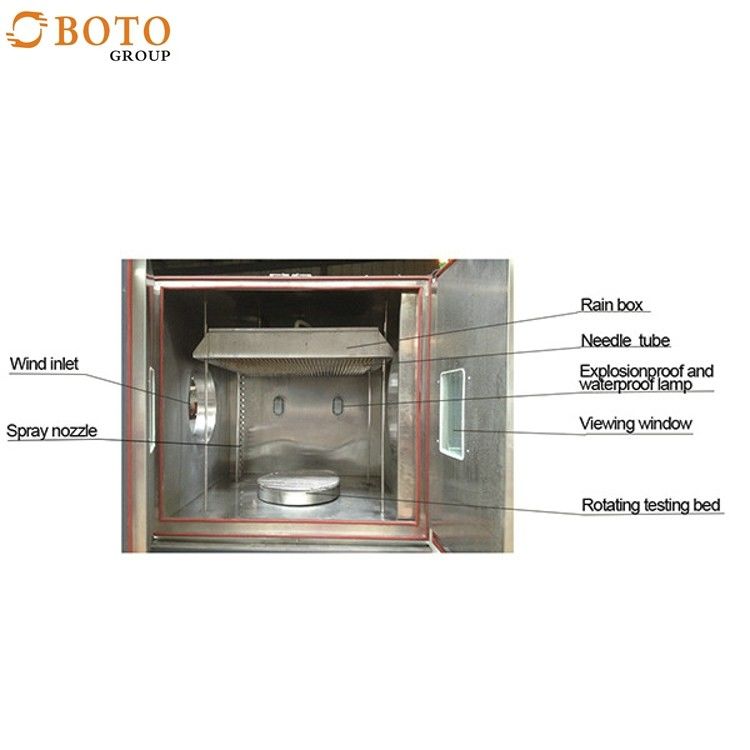

4, With 270 degree swing pipe and 360 degrees whorl pole water jet device.
5, Adjustable speed samples stage.
Equipment summary:
Water Rain Proof Testing chamber used to test anti-rain and waterproof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.
Main functions:
1 the hydraulic flow design type, about 10cm/h commonly, the maximum fall rainfall with the greatest rainfall coming decades 35mm/m. Unique with water device can make rainfall and stabilize the pressure control.
2, RS. Separate control slots, without the operator into change.
3, the machine type B can make the test content from Rt ~ 85 ℃ heat, temperature under test than water temperature high produce a negative pressure, make more accurate test. (MIL - STD).
Corresponding standard:
JIS D0203, D5500, SAE J585e, CNS 7138
Applicable industries:
Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control
| Model | B-LY | ||
Internal Dim(mm) |
custom | ||
| SOT(mm) | undetermined | ||
| structural features | Radius of arc pendulum tube | 400mm | |
| Right Angle pendulum tube length | 500mm | ||
| Water jet pressure | 50-400kpa | ||
| Right Angle swing pipe spray diameter | 16mm | ||
| Water tank material | High-grade stainless steel plate | ||
The main technical parameters:
IP6 &UL1598, the external structure: a closed chamber
Inside diameter (L×W× H): 1960 x 1960 x 1900mm
Accessories:
Features of EN/ UL Rain test chambers:
