| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-ZW |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-ZW | Ultraviolet Wavelength: | 290nm-400nm UV-A、UV-B、UV-C |
|---|---|---|---|
| Internal: | 45x117x50 | External Dim: | 58x128x135 |
| Humidity Range: | ≥95%R.H | Distance Between Tubes: | 35mm |
| Distance Between Sample And Tube: | 50mm | Material: | 304Stainless Steel Plate |
| Lamp Wattage: | 40W | Safety Protection: | Leakage, Short Circuit, Over Temperature, Water Shortage, Over Current Protection/controller Power Failure Memory |

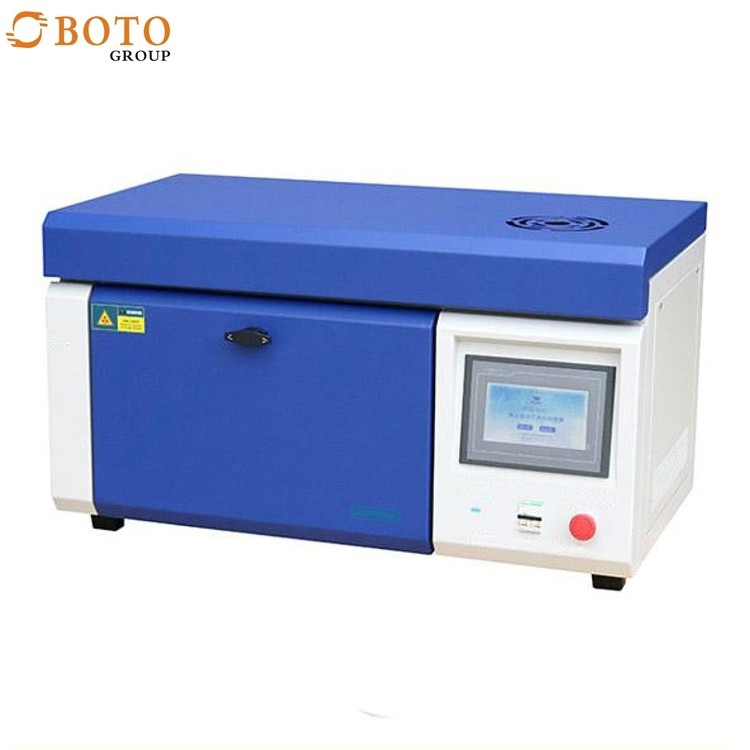

Environmental Test Chambers VG95218-2 UV Aging Test Chamber B-ZW Climatic Chamber 290nm-400nm UV-A Mathine
Introduction
Ultraviolet accelerated aging test box is our company's ultraviolet accelerated aging test in luv-i
On the basis of the box of newly developed micro-machine products, the technical parameters fully comply with the national standard.
High Quality UV Light Accelerated Aging Test Chamber,Anti Ultraviolet Test Machine, UV Accelerated Weathering Tester
GB/T1865-2009;ISO11341:2004 artificial weathering and radiation exposure of paints and varnishes.

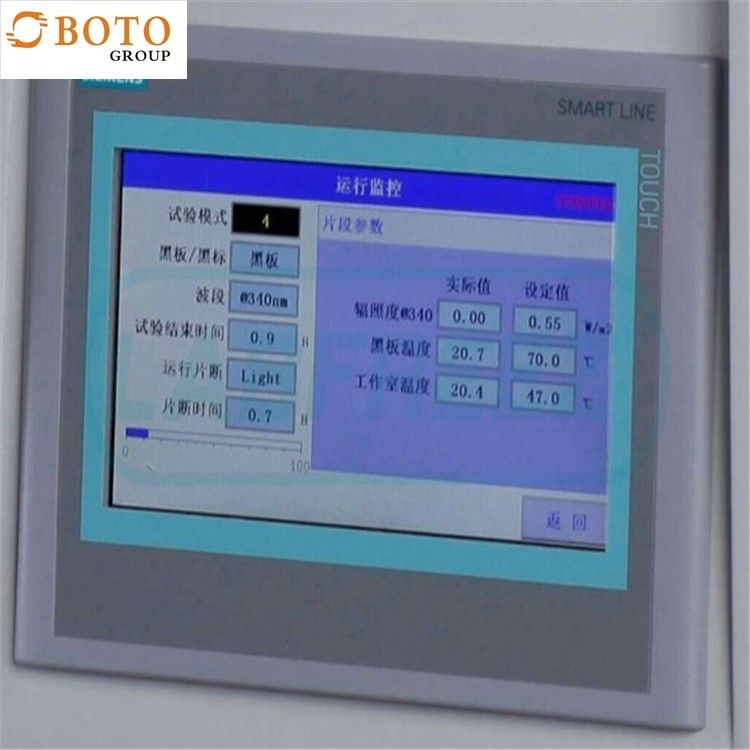

ISO4892 plastics - methods for exposure to laboratory light sources ASTM D3451 coatings powders and powder coatings Testing », ASTM D3794« testing of coil coatings ».The instrument adopts LCD display
Intuitive, easy to operate, replacing the (old) luv-ii instrument cumbersome operation;High precision digital temperature is adopted
The temperature control precision is greatly improved by degree sensor and PID adjustment.It also added the ability to remember time,
The sudden power failure during the test process is avoided, which causes the test to start again.
The UV aging test chamber simulates the effect of sunlight with fluorescent ultraviolet(UV) lamps and carry out these circles automatically.While it simulates rain and dew with condensing humidity or waterspray.In a few days or weeks,the UV can reproduce the damage that occurs over months or years outdoors.The damages include fading,color change,chalking,cracking,crazing,embrittlement,strength loss,etc.The test data can help you to select the new materials or improve the performance of materials. Chamber cover introduces the two-way flip type for easy opening and closing.The spec-imen and the shelf constitute the trapezidal inner wall of the chamber.
It has the following performance characteristics:
The heating mode is the inner tank heating, fast heating and uniform temperature distribution
The drainage system uses reflux type and U-type sedimentation device to drain water
The distance between the sample surface and the UV lamp plane is 50 mm and parallel

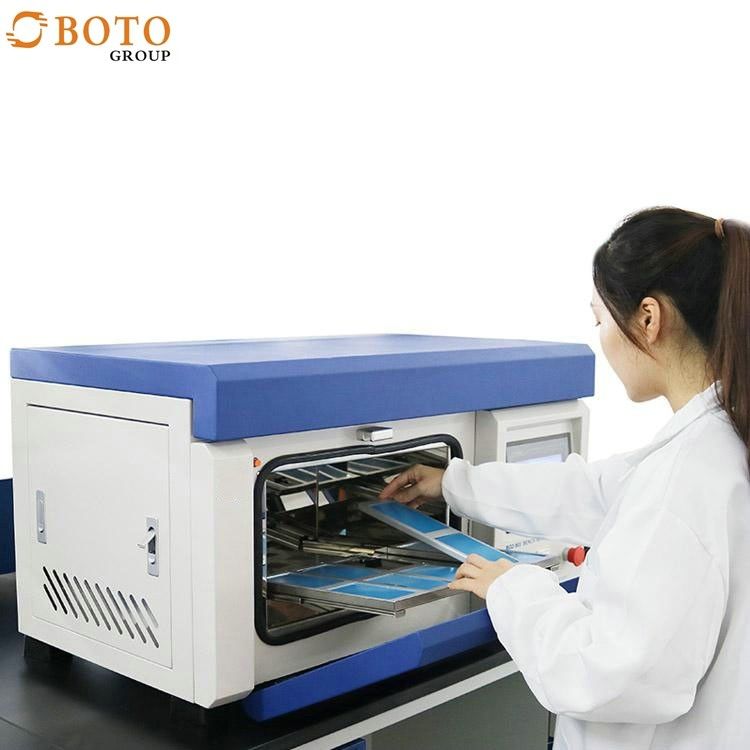

The actual studio consists of test samples and supports to form the inner wall of the box, trapezoidal
Automatic water refill of tank water level
The lid is bidirectional clamshell type, easy to open and close
High quality fixed PU movable wheel is used at the bottom of the test chamber
Model |
B-ZW | ||||
Internal Dim(DxWxH) |
50x75 | ||||
| External Dim(DxWxH) | 58x128x135 | ||||
| power(kw) | 4KW/3.2kW | ||||
| performance index | Temperature range | RT+10℃-70℃ | |||
| Humidity range | ≥95%R.H | ||||
| Distance between tubes | 35mm | ||||
| Distance between sample and tube | 50mm | ||||
| ultraviolet wavelength | 290nm-400nm UV-A,UV-B,UV-C | ||||
| Lamp wattage | 40W | ||||
| safety protection | Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory | ||||
Packing/Shipping:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
