| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-LY |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-LY | Internal Dim （CM）: | 30x30x30 |
|---|---|---|---|
| External Dim（CM）: | 118x185x180 | Sample Weight: | 5KG |
| Low Temp Range: | -10℃--60℃ | HighTemp Rang: | ＋80℃～200℃ |
| Right Angle Swing Pipe Spray Diameter: | 16mm | Water Tank Material: | High-grade Stainless Steel Plate |

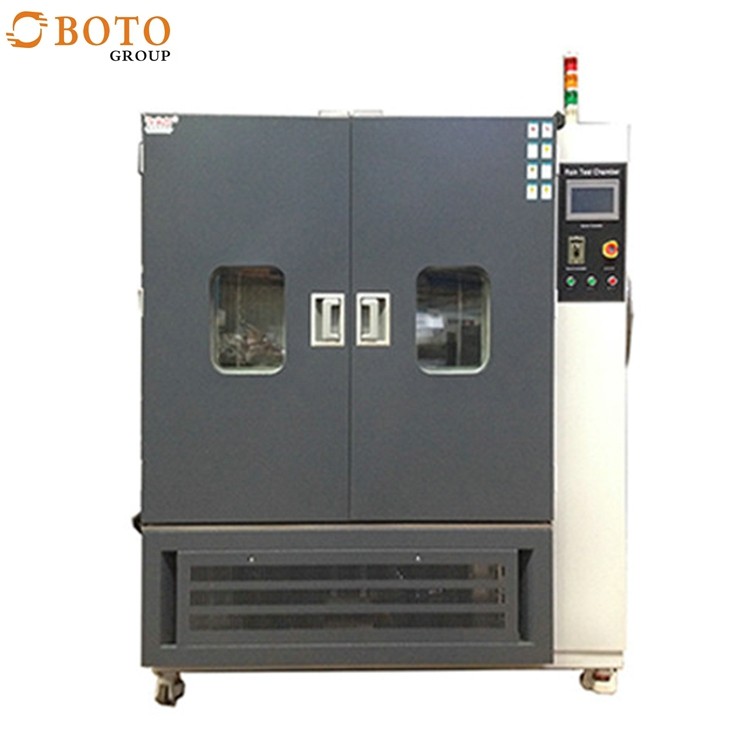

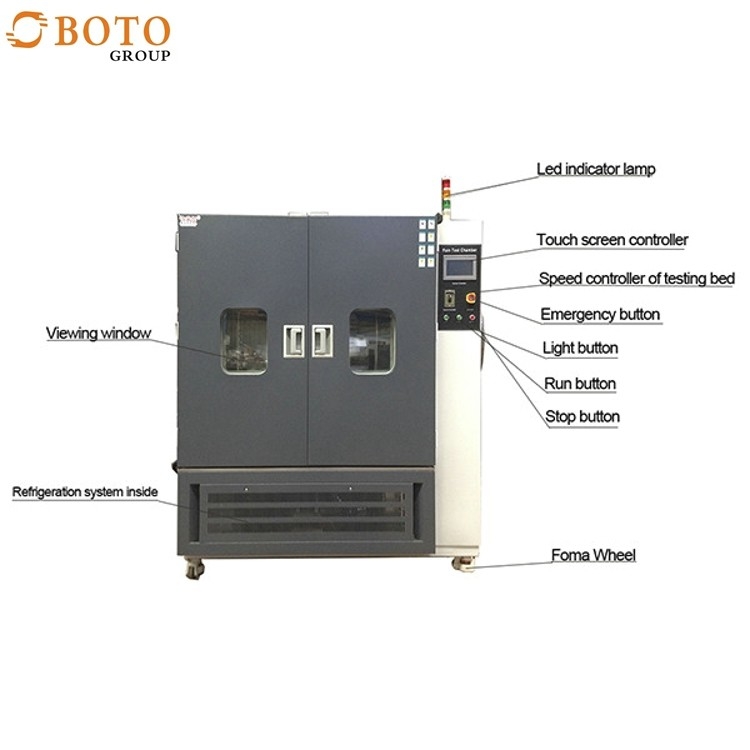

Rain Test Chamber Simulation Chamber Climatic Environmental Chamber Manufacturer IEC 60529
Introduction:
Rain spray test chamber simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
This product uses the scientific design makes the device capable of realistic simulation drip, water spray, splashing water, environmental, water and so on. Into the overall control system and the use of inverter technology, making the rotation angle of rainfall in the test frame, spray angle and swing the pendulum swinging spray volume can automatically adjust the frequency.
Standard:
Level 0: completely waterproofing without protection
Level 1: Vertical dripping should have no harmful effect
Level 2: When each vertical plane of the case is tilted within the range of 15°, the vertical dripping shall have no harmful effect
Level 3: Water is sprayed within 60° of each vertical plane, without harmful effects
Level 4: Splashing the shell in all directions has no harmful effect
Level 5: Spraying water in all directions to the enclosure has no harmful effect
Unit is placed in its normal operating position.
IPX-2 Protected against falling water when tilted up to 15 degrees - Same as IPX-1 but unit is tested in 4 fixed positions -
tilted 15 degrees in each direction from normal operating position.
IPX-3 Protected against spraying water - Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.
IPX-4 Protected against splashing water - Same as IPX-3 but water is sprayed at all angles.
IPX-5 Protected against water jets - Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at
a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.
IPX-6 Protected against heavy seas - Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at
a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.
IPX-7 Protected against water immersion - Immersion for 30 minutes at a depth of 1 meter.
IPX-8 Protected against water submersion - The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.
| Model | B-LY | ||
Internal Dim(mm) |
custom | ||
| SOT(mm) | undetermined | ||

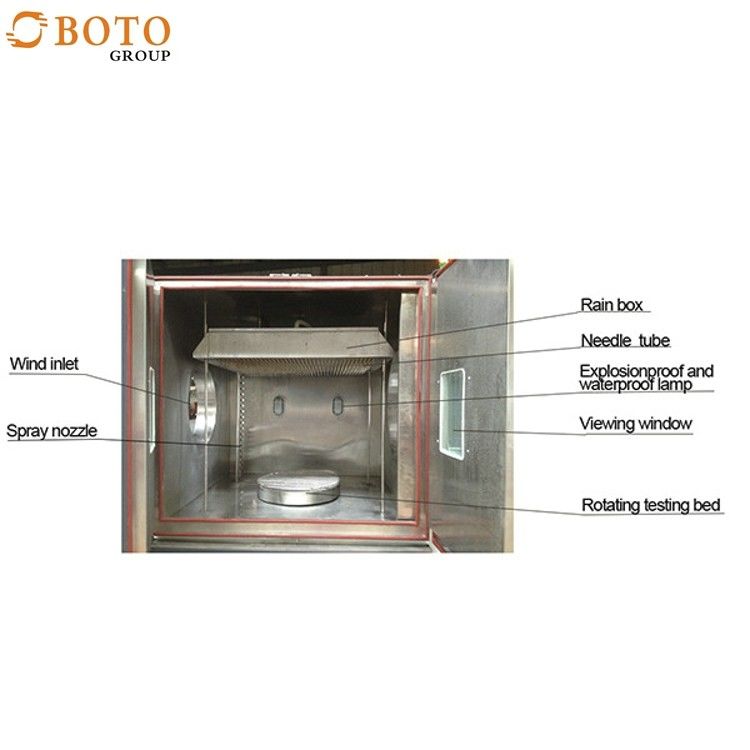

| structural features | Radius of arc pendulum tube | 400mm | |
| Right Angle pendulum tube length | 500mm | ||
| Water jet pressure | 50-400kpa | ||
| Right Angle swing pipe spray diameter | 16mm | ||
| Water tank material | High-grade stainless steel plate | ||
