| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-CY-500 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-CY-500 | Internal: | 45x45x60 |
|---|---|---|---|
| External Dim: | 143x210x170 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| High Light: | Ozone Aging Test Environmental Chambers,Ozone Aging Test Lab Instrument,SUS304 Environmental Simulation Chamber |
||

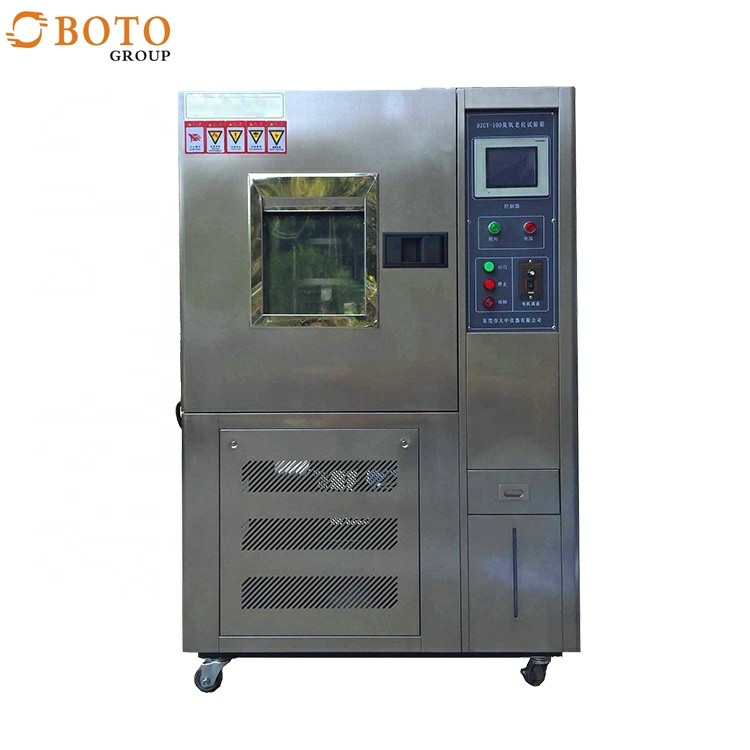

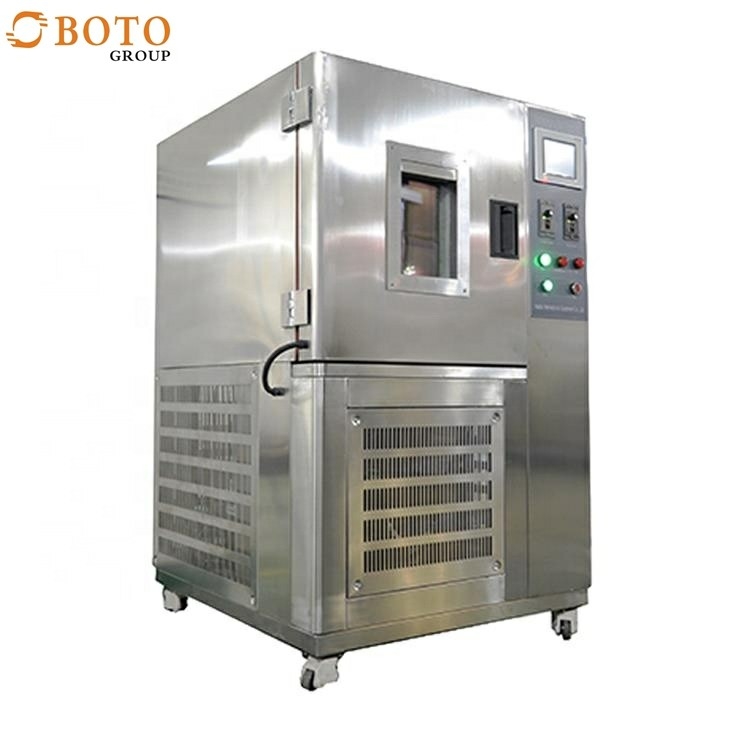

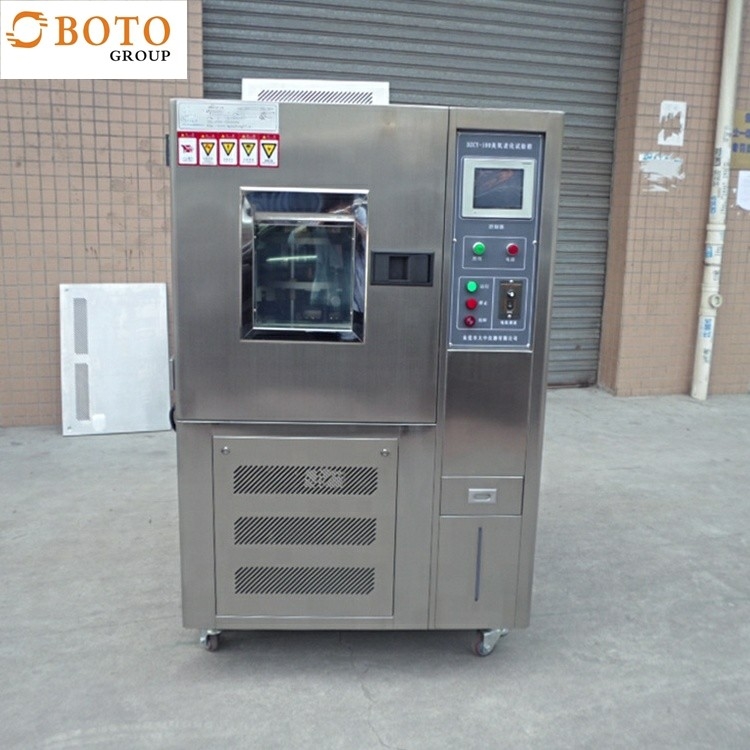

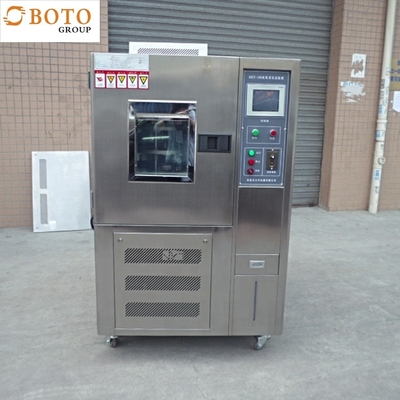

Environmental Climatic Chamber Manufacturer Ozone Aging Test Chamber Lab Instrument GB/T7762-2008
Products Description:
1.Aging

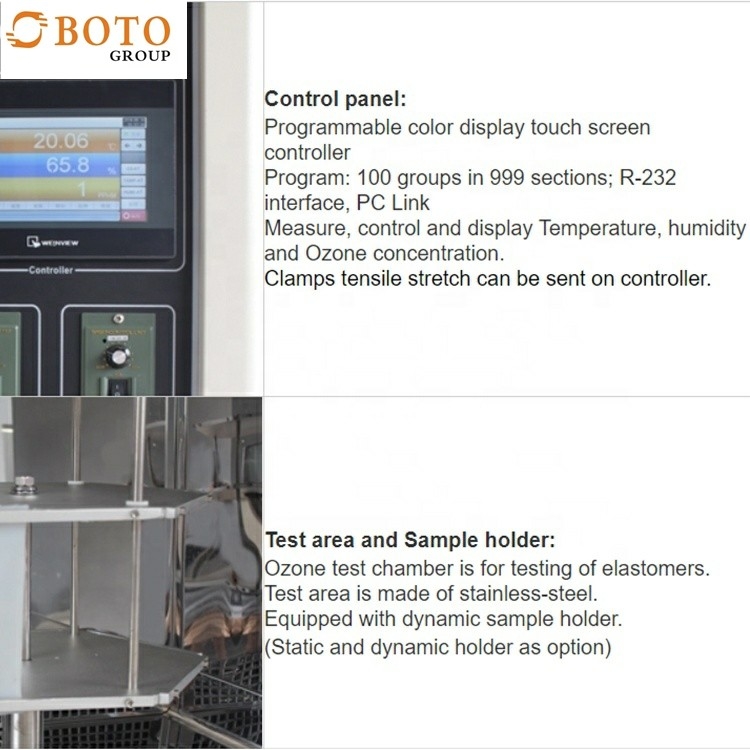

Integrated ozone concentration, temperature and humidity controller (setting mode is touch button), high integration, good reliability, LED display, display resolution temperature (0.1℃), humidity (0.1%RH), ozone concentration (1pphm), PID set value control, easy to operate
No vulnerable components, maintenance free work, long life. And high frequency along the surface discharge ceramic corona generator ceramic electrode surface is easy to produce oxidation attachments, when the surface oxide is too thick, easy to produce corona block, not timely cleaning, ozone will not be able to produce.
Sample rack requirements:
1. It is composed of shell, electronic components and ozone generator.
2. At the required elongation, the fixture is used to fix both ends of the sample. When contacting with the ozonated air, the length direction of the sample should be basically parallel to the direction of the air flow.
3. The fixture should be made of materials (such as aluminum) that are not easy to decompose ozone.
4, make the sample rotation speed between (20^-25) mm/s, in a vertical dry air plane, each sample continuously along the same path.
5. The rotation time of one sample is (8^-12) min. The scanning area of the sample (the shaded part shown in Figure 2) is at least 40% of the effective area of the test chamber.
Ozone aging test chamber, as the name suggests, is a kind of test equipment to identify the weatherability of products by simulating or accelerating the aging situation of ozone in the atmosphere to rubber. So, for ozone aging test box in today's society market situation, its market value and reflected in where. The market value and application prospect of ozone aging test chamber are discussed here.
Today, both at home and abroad, the idea of environmental testing is gaining momentum. In order to meet the growing needs of today's society, people's research and development of new materials is on the rise. At the same time, in order to test the weatherability of new materials and the adaptability of special environment, more and more test equipment has been put on the stage of scientific development. We are familiar with UV aging test chamber, salt spray test chamber, high and low temperature test chamber, vibration test bench, ozone aging test chamber and so on. Today we will talk separately about the market value and application prospects of ozone testing in terms of gas corrosion.
In 2012, the industrial technology is increasingly developed. In recent years, the rubber industry has been developed a lot. The existing subdivision industry is stable and rising, and the new rubber subdivision industry is developing rapidly. In life, plastic toys, rubber gloves, tape and other products add a lot of happiness and convenience to our life; Rubber not only provides people with indispensable daily life, medical and other light industrial rubber products, and to mining, transportation, construction, machinery, electronics and other heavy industry and emerging industries to provide a variety of rubber production equipment or rubber parts, such as: in the industrial field, rubber in bridge construction shock absorption, automotive parts sealing, electronic product conductor and so on. However, here is a question: if the quality and performance of so many rubber products in our life once the problem, will bring people how much loss will be?
| Model | B-CY-120 | B-CY-250 | B-CY-500 | B-CY-1000 | |
| Internal Dim(DxWxH) | 45x45x60 | 50x60x75 | 70x80x90 | 100x100x100 | |
| Temperature range | 0℃-70℃ | ||||
| Humidity range | >65%R·H | ||||
| Ozone concentration | 0-200PPm.0-300PPm | ||||
| Temperature fluctuation | ±0.5℃ | ||||
| Test apparatus | Dynamic and static (optional) |
||||
| Sample rack rotation speed | 360 degree rotating sample holder (1 rpm per minute) | ||||
| Gas flow rate | 12-16mm/s | ||||
| Temperature Controller | Imported LED digital display P.L. D+5.5, R microcomputer integrated controller | ||||
| Time controller | Precision hours,minutes,seconds time controller | ||||
| Ozone concentration analysis | Imported concentration analysis regulator 4-20mA outputs,RS232 communication port | ||||
| Ozone generator | Silent discharge tube type | ||||
| Security protection | Leakoge,short circuit,over temperature,motor overheating.over-current protection | ||||
