| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-CY-120 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-CY-120 | Internal: | 45x45x60 |
|---|---|---|---|
| External Dim: | 143x210x170 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| Temperature Fluctuation: | ±0.5℃ | Test Apparatus: | Dynamic And Static (optional) |
| High Light: | B-CY-120 Environmental Test Chambers,Laboratory Dynamic Ozone Aging Test Chamber,Coating Ozone Aging Test Chamber |
||

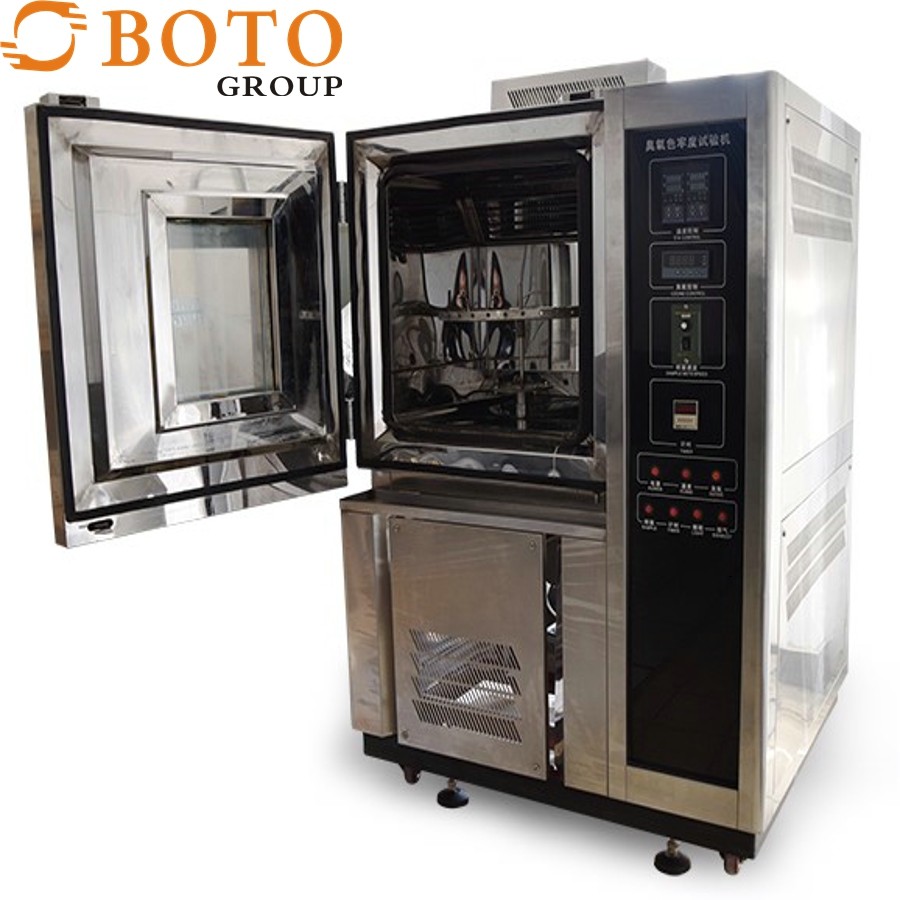

Ozone Aging Test Chamber Environmental Test Chambers Lab Machine GB/T7762-2008 Test Machine
Description:
Ozone is present in very small amounts in the atmosphere, but is a major factor in rubber cracking.
Ozone aging chamber is to simulate and enhance the ozone environment in the atmosphere. Studied the effect of ozone on rubber, fast identification and evaluation of rubber ozone aging resistance and antiozonant shielding efficiency of the method, and then take effective measures, the anti aging in order to improve the service life of rubber products.
This series of products are suitable for nonmetallic materials, organic materials (coating, rubber, plastic, paint, pigment, etc.) under the condition of ozone aging test.
Ozone resistance aging test box is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test. Ozone content in the atmosphere is very low, but it is the main factors of polymer materials aging. Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time. The studay of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antiozonant protection efficiency method,and then take effective aging proof measures to improve the service life of rubber products.
Sample rack requirements:
1. It is composed of shell, electronic components and ozone generator.
2. At the required elongation, the fixture is used to fix both ends of the sample. When contacting with the ozonated air, the length direction of the sample should be basically parallel to the direction of the air flow.
3. The fixture should be made of materials (such as aluminum) that are not easy to decompose ozone.
4, make the sample rotation speed between (20^-25) mm/s, in a vertical dry air plane, each sample continuously along the same path.
5. The rotation time of one sample is (8^-12) min. The scanning area of the sample (the shaded part shown in Figure 2) is at least 40% of the effective area of the test chamber.
6. Sample preparation shall comply with the provisions of GB/T 9865.1. The sample is best cut from the new molded test piece, if necessary, from the finished product.
7. At least 3 samples should be used for each test condition.
8. The width of the standard strip sample shall be no less than 10mm, and the thickness shall be 2.Omm 0.2mm. The length of the sample between the two ends of the fixture shall be no less than 40mm before stretching.
Ozone aging test chamber, as the name suggests, is a kind of test equipment to identify the weatherability of products by simulating or accelerating the aging situation of ozone in the atmosphere to rubber. So, for ozone aging test box in today's society market situation, its market value and reflected in where. The market value and application prospect of ozone aging test chamber are discussed here.
Today, both at home and abroad, the idea of environmental testing is gaining momentum. In order to meet the growing needs of today's society, people's research and development of new materials is on the rise. At the same time, in order to test the weatherability of new materials and the adaptability of special environment, more and more test equipment has been put on the stage of scientific development. We are familiar with UV aging test chamber, salt spray test chamber, high and low temperature test chamber, vibration test bench, ozone aging test chamber and so on. Today we will talk separately about the market value and application prospects of ozone testing in terms of gas corrosion.
Model |
B-CY-120 | B-CY-250 | B-CY-500 | B-CY-1000 | |
Internal Dim(DxWxH) |
45x45x60 | 50x60x75 | 70x80x90 | 100x100x100 | |
| Temperature range | 0℃-70℃ | ||||
| Humidity range | >65%R·H | ||||
Ozone concentration |
0-200PPm.0-300PPm | ||||
Temperature fluctuation |
±0.5℃ | ||||
test apparatus |
Dynamic and static (optional) |
||||
Sample rack rotation speed |
360 degree rotating sample holder (1 rpm per minute) |
||||
Gas flow rate |
12-16mm/s | ||||
Temperature Controller |
Imported LED digital display P.L. D+5.5, R microcomputer integrated controller |
||||
Time controller |
Precision hours,minutes,seconds time controller |
||||
Ozone concentration analysis |
Imported concentration analysis regulator 4-20mA outputs,RS232 communication port |
||||
Ozone generator |
Silent discharge tube type |
||||
Security protection |
Leakoge,short circuit,over temperature,motor overheating.over-current protection |
||||
