| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-TCT-403 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-TCT-403 | Internal Dim （CM）: | 50x50x50 |
|---|---|---|---|
| External Dim（CM）: | 138x205x200 | Sample Weight: | 5KG |
| Power Source: | 19KW | Low Temp Range: | -10℃--60℃ |
| HighTemp Rang: | ＋80℃～200℃ | Recovery Time: | Within 3 Minutes |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| High Light: | Hot And Cold Impact Chamber,Lithium Battery Environmental Chambers,B-TCT-403 Environmental Test Chambers |
||

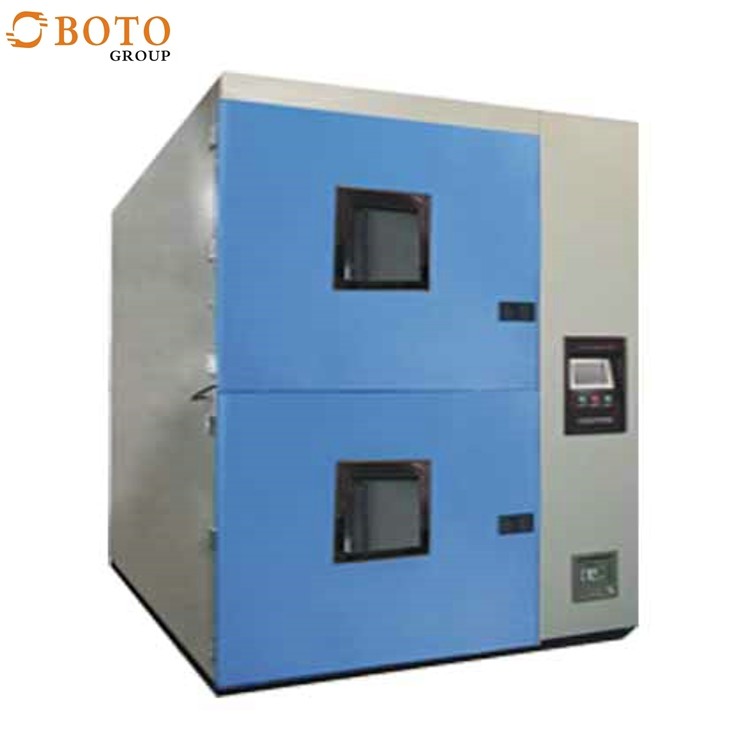

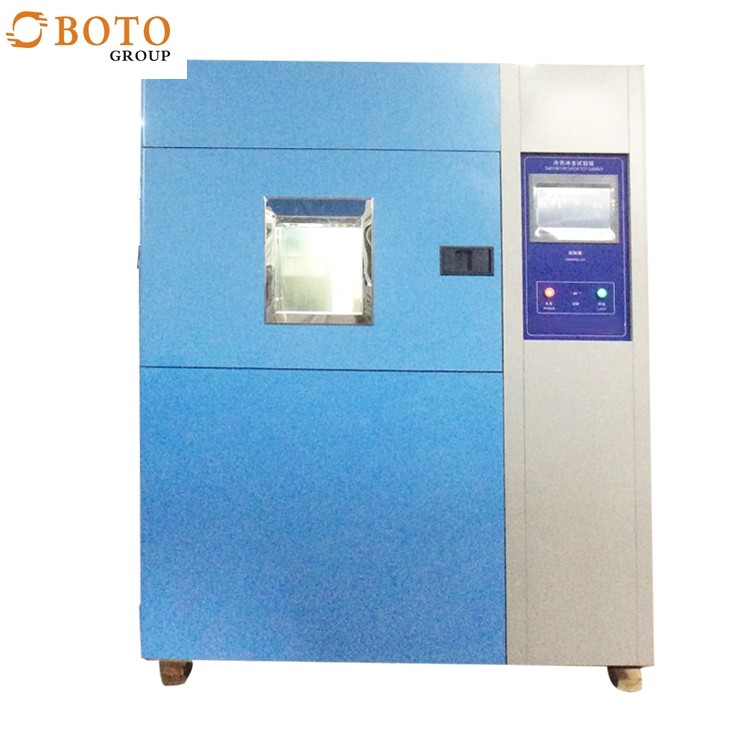

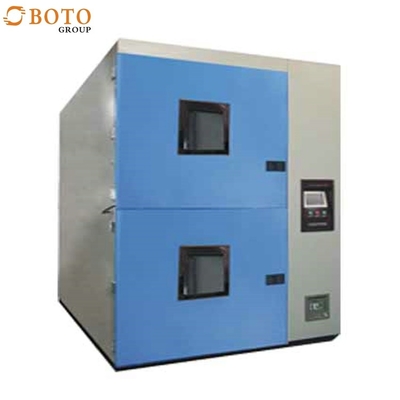

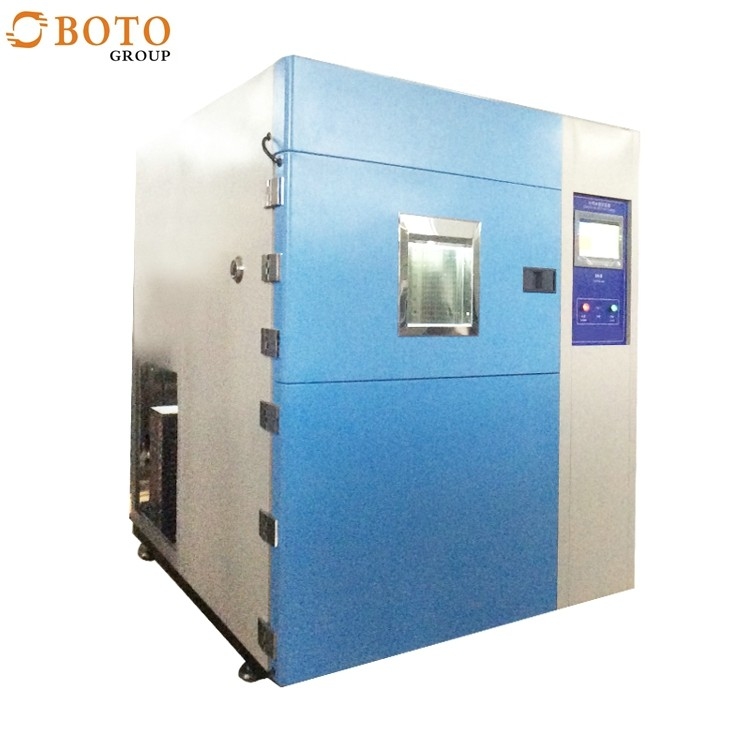

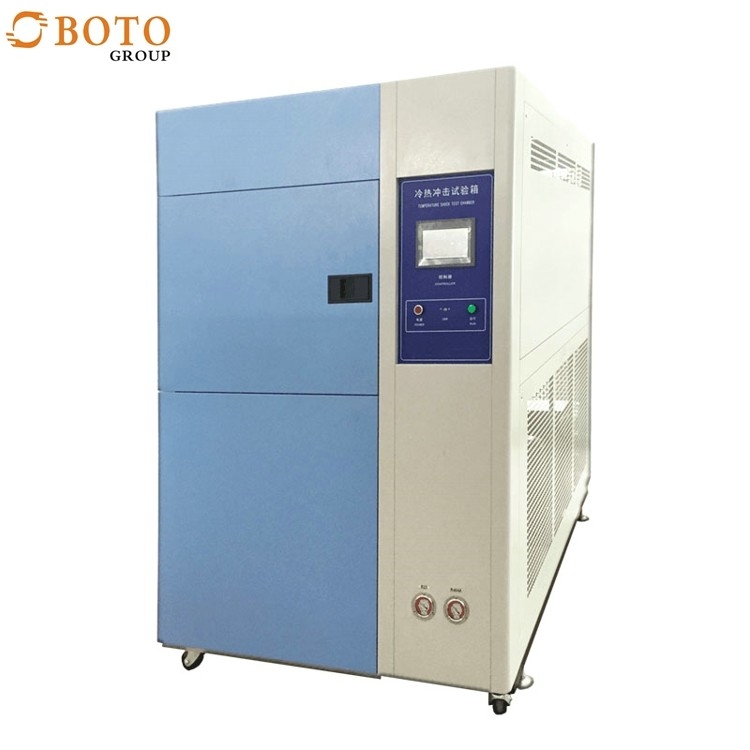

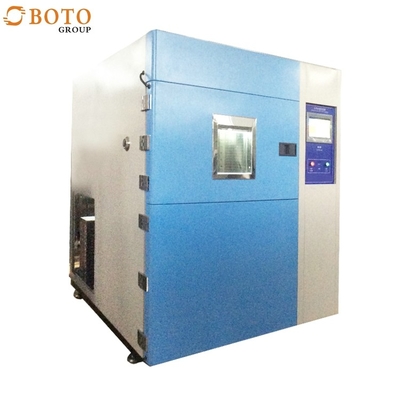

Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Lab Machine
Description:
Lithium Battery Thermal Shock Test Chamber used to test the change of material under extremely high temperature and extremely low temperature
environment that continue alternation in the shortest time, Testing the chemical changes or physical damage of material caused by the thermal expansion and contraction. Testing box divided two parts, one is high-temperature region, another is low-temperature region, the testing sample placed on the moving basket, using unique heat storage and cool storage, the cylinder taking basket moves up and down in the hot and cold region to complete the hot and cold temperature impact testing; applied to test the material, including metal, plastic, rubber, electronics .... and other materials, it can be used as a
basis for improvement of their products.
Applicable Industries:
Widely used in aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civilian nuclear
energy; colleges and universities; research laboratories; commodity inspection, arbitration, technical supervision departments building materials ceramic; petroleum and chemical products, machine and spare parts.
Temperature and Humidity Test Chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals,food, chemicals, building materials, medical care, aerospace, etc.
TEST CHAMBER APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
Model:
| (Model) | B-TCT-401 | B-TCT-402 | B-TCT-403) | B-TCT-501 | B-TCT-502 | B-TCT-503 | B-TCT-601 | B-TCT-602 | B-TCT-603 | |
| Internal Dim (CM) | 30x30x30 | 40x40x40 | 50x50x50 | 30x30x30 | 40x40x40 | 50x50x50 | 30x30x30 | 40x40x40 | 50x50x50 | |
| External Dim(CM) | 118x185x180 | 128x195x190 | 138x205x200 | 118x185x180 | 128x195x190 | 138x205x200 | 118x185x180 | 128x195x190 | 138x205x200 | |
| Sample Weight | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG | |
| Low Temp Range | -10℃--60℃ | -10℃~-70℃ | -10℃--80℃ | |||||||
| Test Temp Rang | -40℃-150℃ | -55℃~150℃ | -65℃~150℃ | |||||||
| HighTemp Rang | +80℃-200 ℃ lvarious specifications applicablel |
|||||||||
| Recovery time | Within 3 minutes | |||||||||
| Interior | SUS#304Stainless steel plate | |||||||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||||||
| Power Source | AV:380V 50/60Hz | |||||||||
| Power(KW) | 13.5KW | 15KW | 19KW | 13.5KW | 15KW | 19KW | 15KW | 19KW | 22KW | |
