| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-LY |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Name: | Rain Test Chamber | Standard: | IEC 60529 |
|---|---|---|---|
| Model: | B-LY | Internal Dim （CM）: | 30x30x30 |
| External Dim（CM）: | 118x185x180 | Sample Weight: | 5KG |
| Low Temp Range: | -10℃--60℃ | HighTemp Rang: | ＋80℃～200℃ |
| Recovery Time: | Within 3 Minutes | Interior: | SUS#304Stainless Steel Plate |
| High Light: | Simulation Test Chamber IEC 60529,SUS304 Simulation Test Chamber,Laboratory Simulation Rain Test Chamber |
||

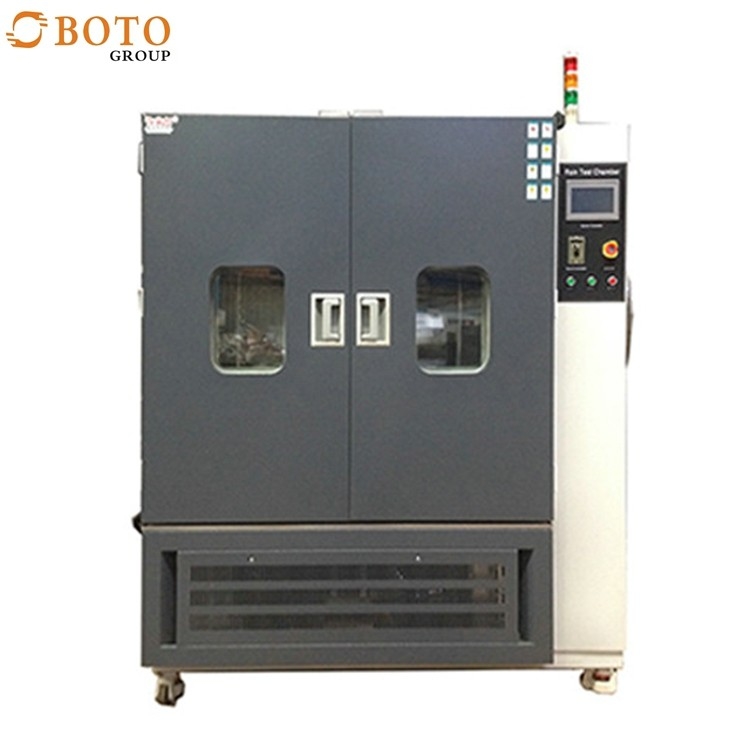

Environmental Test Chambers Rain Test Chamber Automatic Lab Instrument Simulation Test Chamber IEC 60529
Description:
The rain test box is suitable for external lighting and signal devices and automobile lamp shell protection, can provide realistic simulation of electronic products and components during transportation and use may be subjected to a variety of environment such as water and spray test. In order to detect the waterproof performance of various products.
Use:
Rain test box is mainly used in electronic, electrical, aerospace, military and other scientific research units of external lighting, signal devices and car lamp shell protection test.

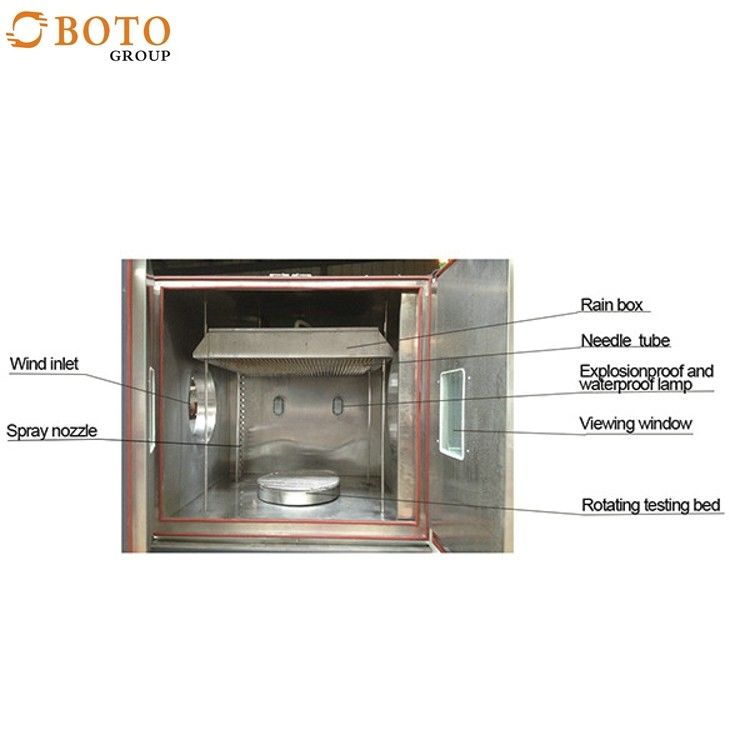

Test Area
● Inner material is 2.5 mm thickness SUS 304 stainless steel, high water proof resistance.
● The turntable can load 20 kg.
● Built-in waterproof socket electrifies the specimen.
● Water filter system ( Environmental protection, water saving and cost saving )

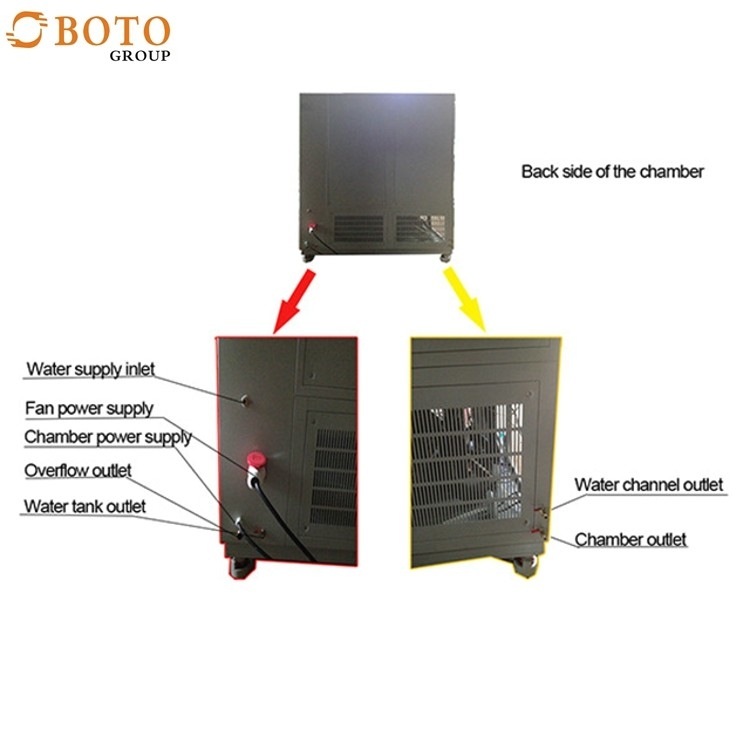

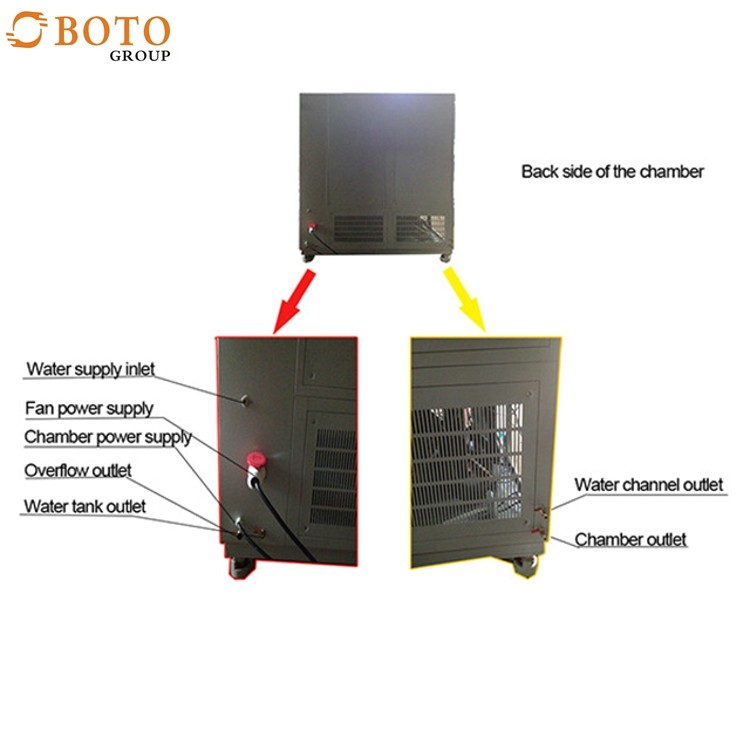

● Automatic water inlet, Customers can connect directly to the faucet in the lab for automated testing.
● Water circulation system.
Waterproofing test class:
There are waterproof testing requirements for portable, outdoor and automotive electronics. IEC, MIL, ETSI and SAE have formulated corresponding testing requirements internationally.
Level 0: completely waterproofing without protection
Level 1: Vertical dripping should have no harmful effect
Level 2: When each vertical plane of the case is tilted within the range of 15°, the vertical dripping shall have no harmful effect
Level 3: Water is sprayed within 60° of each vertical plane, without harmful effects
Level 4: Splashing the shell in all directions has no harmful effect
Level 5: Spraying water in all directions to the enclosure has no harmful effect
Level 6: Spraying water strongly in all directions to the enclosure has no harmful effect
Level 7: The water intake into the shell will not reach the harmful degree after immersion in the water under the specified pressure for the specified time
Level 8: The water intake of the casing will not reach harmful Level after continuous diving under conditions agreed by the manufacturer and the user (which shall be harsher than Level 7)
Level 9: High voltage test.
The main technical parameters:
IP6 &UL1598, the external structure: a closed chamber
Inside diameter (L×W× H): 1960 x 1960 x 1900mm
Structure of EN/ UL Rain test chambers:

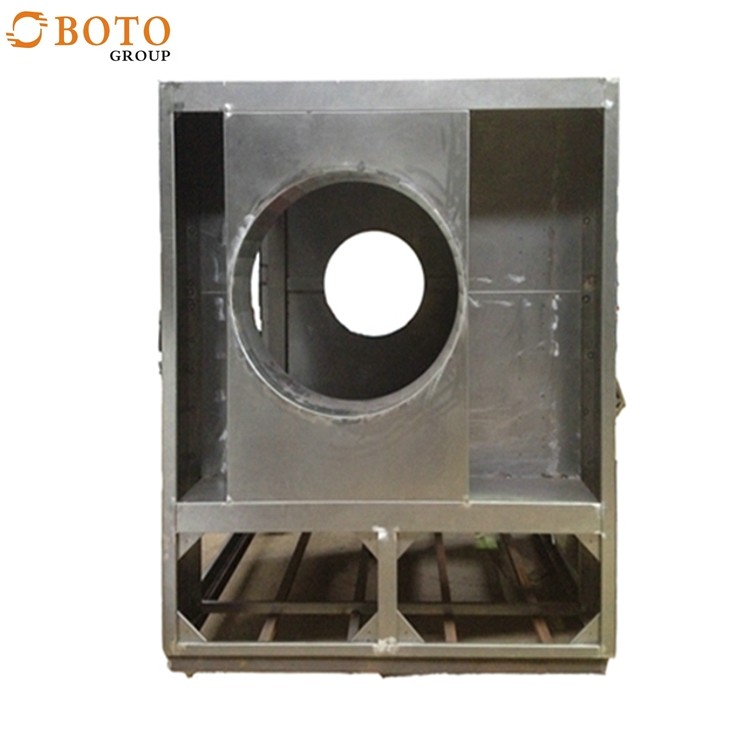

1,The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.

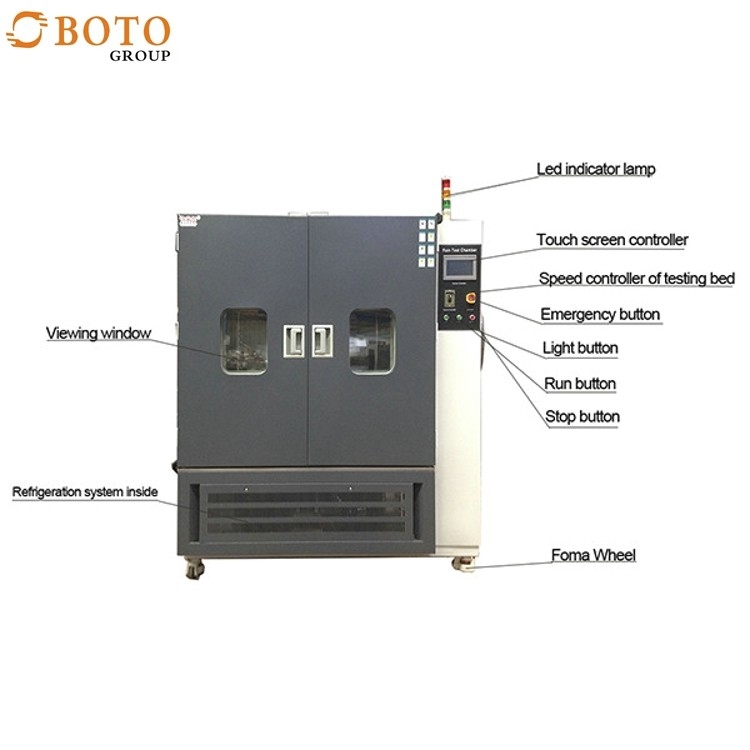

2, Large area of visible glass door, easy to observe the test specimens in the testing chamber
3,The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.
4, With 270 degree swing pipe and 360 degrees whorl pole water jet device.
5, Adjustable speed samples stage.
Model:
| Model | B-LY | ||
Internal Dim(mm) |
custom | ||
| SOT(mm) | undetermined | ||
| structural features | Radius of arc pendulum tube | 400mm | |
| Right Angle pendulum tube length | 500mm | ||
| Water jet pressure | 50-400kpa | ||
| Right Angle swing pipe spray diameter | 16mm | ||
| Water tank material | High-grade stainless steel plate | ||
Our company:
Payment :
1. Price terms: EXW, CFR,CIF,FAC Shanghai or Shenzhen.
2. Payment terms:T/T.
3. Sample lead time: 3-8 days.
4. Mass production time: 10-15 days depending on the order qty.
5. Delivery method time: By air, by sea or combined transportation.
We provide 1 stop solutions, provide standard and custom service.
