| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-LY |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Name: | Rain Test Chamber | Model: | B-LY |
|---|---|---|---|
| Internal Dim （CM）: | 30x30x30 | External Dim（CM）: | 118x185x180 |
| Sample Weight: | 5KG | Low Temp Range: | -10℃--60℃ |
| HighTemp Rang: | ＋80℃～200℃ | Right Angle Swing Pipe Spray Diameter: | 16mm |
| Water Tank Material: | High-grade Stainless Steel Plate | Power: | 1KW~2KW |
| High Light: | Mil 60529 Environmental Test Chambers,Automatic Rain Test Chamber 16mm,Laboratory Rain Test Simulation Chamber |
||

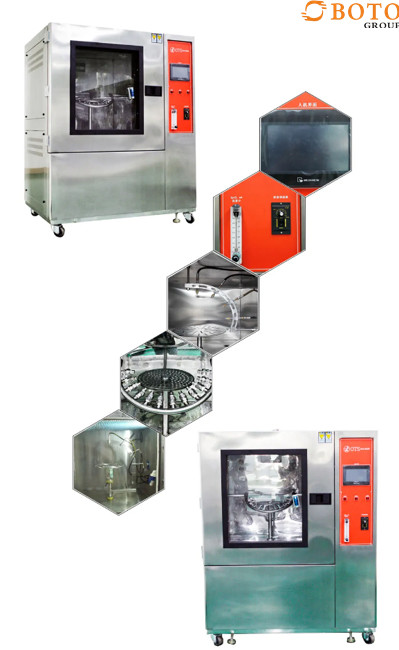

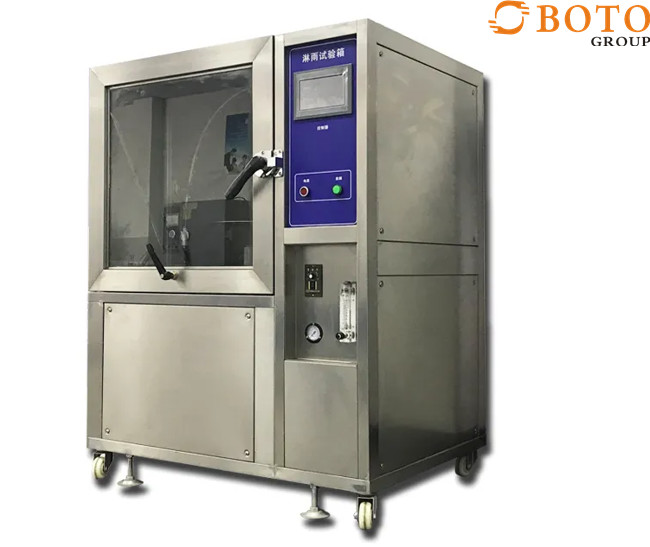

Climatic Chamber Automatic Laboratory Environmental Test Chambers Rain Test Chamber Simulation Chamber Mil 60529
Product Description:
This product meets GB 2423.38-90 “Basic Environmental Test Regulations for Electrical and Electronic Products Test R: Water Test Method ”, GB / T10485-2007, strictly according to the protection of IPX3...IPX4...IPX5...IPX6... grades of GB / T4942.2-93, GB 4208—93, GB 4706, GB 7000 and other corresponding national standards and other relevant technical parameters.Can carry out water test specified by corresponding standards.
In accordance with IEC60529: 2001 “Degrees of protection provided by enclosures (IP Code),GB4208-2008 "Enclosure protection level (IP code)" 14.2.5, 14.2.6 clauses and Figure 6 and GB7000.1 "Lamps Part 1: General Requirements and Tests "9.2.6, 9.2.7 and Figure 9.5 requirements.
Waterproofing test class:
There are waterproof testing requirements for portable, outdoor and automotive electronics. IEC, MIL, ETSI and SAE have formulated corresponding testing requirements internationally.
Rain test box is mainly used in electronic, electrical, aerospace, military and other scientific research units of external lighting, signal devices and car lamp shell protection test.

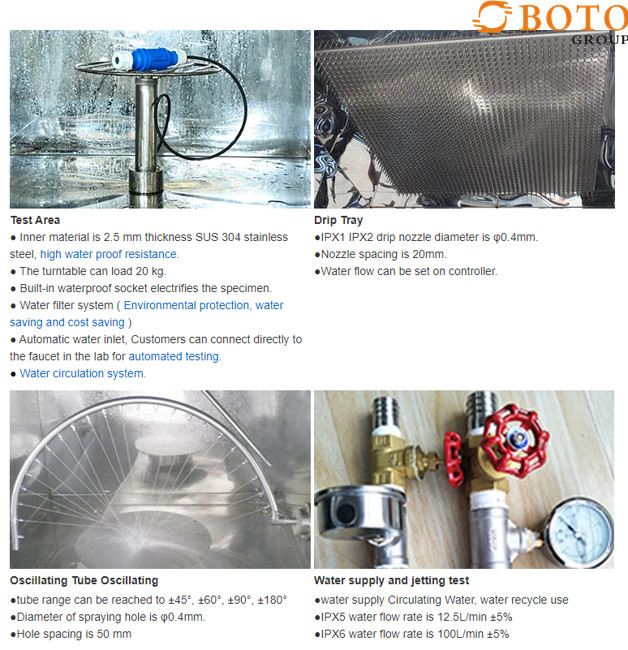

Features of EN/ UL Rain test chambers:
Rotating rain and spray nozzles designed to JIS specifications
Speed control for the rotating spray nozzles
Stationary product shelf - A rotating shelf is optional: see options
Water pressure regulators, gauges and flow meters
Special high-volume floor drain system to rapidly drain water out of the chamber
Interior chamber size is the smallest possible area using the JIS specified nozzles
Other sizes and capabilities available upon request. Please contact us with your application.
| Model | B-LY | ||
| Internal Dim(mm) | custom | ||
| SOT(mm) | undetermined | ||
| structural features | Radius of arc pendulum tube | 400mm | |
| Right Angle pendulum tube length | 500mm | ||
| Water jet pressure | 50-400kpa | ||
| Right Angle swing pipe spray diameter | 16mm | ||
| Water tank material | High-grade stainless steel plate | ||
Our company:
1. After-sales service commitment:
Transport method and packaging instructions
• Package:Wooden cases.
