| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-LY |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-LY | Internal Dim （CM）: | 30x30x30 |
|---|---|---|---|
| External Dim（CM）: | 118x185x180 | Sample Weight: | 5KG |
| Low Temp Range: | -10℃--60℃ | HighTemp Rang: | ＋80℃～200℃ |
| Recovery Time: | Within 3 Minutes | Interior: | SUS#304Stainless Steel Plate |
| High Light: | Rain Test Climatic Chamber,IEC 60529 Automatic Laboratory Instrument,30x30x30 Rain Test Chamber |
||

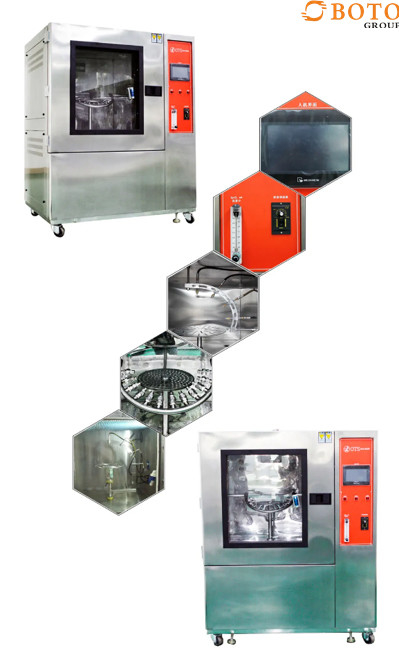

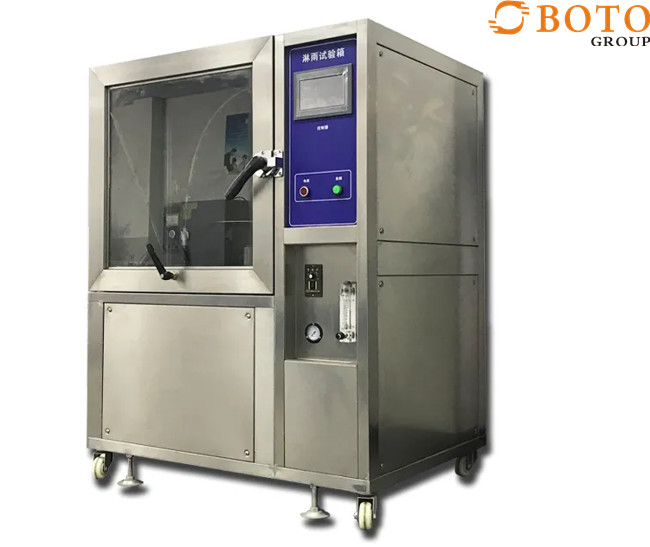

Environmental Test Chambers Automatic Laboratory Instrument Rain Test Chamber Test Chamber IEC 60529
This Programmable rubber/ plastic Rain Test Chamber is used to simulating the lighting , auto parts , household appliances and other products in condition of moisture or rain , to see the influence of water to the products. Through this can test the resistance to the rain penetration and moisture proof ability of products.
Programmable rubber/ plastic Rain Test Chamber through a rigorous scientific design, making it can realistically simulate dripping rain , splashing water , water spray and other environment. It uses advanced controlling system and inverter technology , making the rotation angle of the specimen frame, the swing angle of the oscillating bar and the water swing rate can be automatically adjusted.
Feature:
1. Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.
2. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.
3. Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
4. PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
6 Best after sales service: One year free parts maintenance.
7 Customization is available & welcomed.

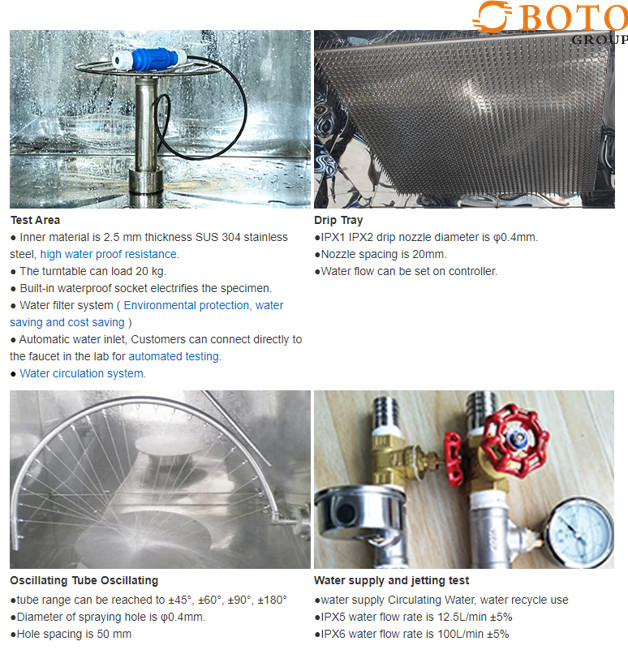

Structure of Rain test chambers:
1,The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.
2, Large area of visible glass door, easy to observe the test specimens in the testing chamber
3,The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.
4, With 270 degree swing pipe and 360 degrees whorl pole water jet device.
5, Adjustable speed samples stage.
| Model | B-LY | ||
Internal Dim(mm) |
custom | ||
| SOT(mm) | undetermined | ||
| structural features | Radius of arc pendulum tube | 400mm | |
| Right Angle pendulum tube length | 500mm | ||
| Water jet pressure | 50-400kpa | ||
| Right Angle swing pipe spray diameter | 16mm | ||
| Water tank material | High-grade stainless steel plate | ||
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
