| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE certificate |
| Model Number: | BTCY-3168 |
| Minimum Order Quantity: | 1 Set |
| Price: | Discussible |
| Packaging Details: | Plastic+wooden case |
| Delivery Time: | 5-15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 set/ Month |
| Egg Capacity(pcs): | 5280 Chicken Eggs | Voltage: | 220 V |
|---|---|---|---|
| Usage: | Bird, Chicken, DUCK, GOOSE | Material: | PP |
| Inverter: | 200W | Weight (KG): | 220 KG |
| Egg Turning Mode: | Automatic Egg Turning | Warranty: | 6 Months |
| High Light: | Xenon Lamp Aging Chamber,Climatic Xenon Aging Test Chamber,Xenon Aging Test Environment Test Chamber |
||

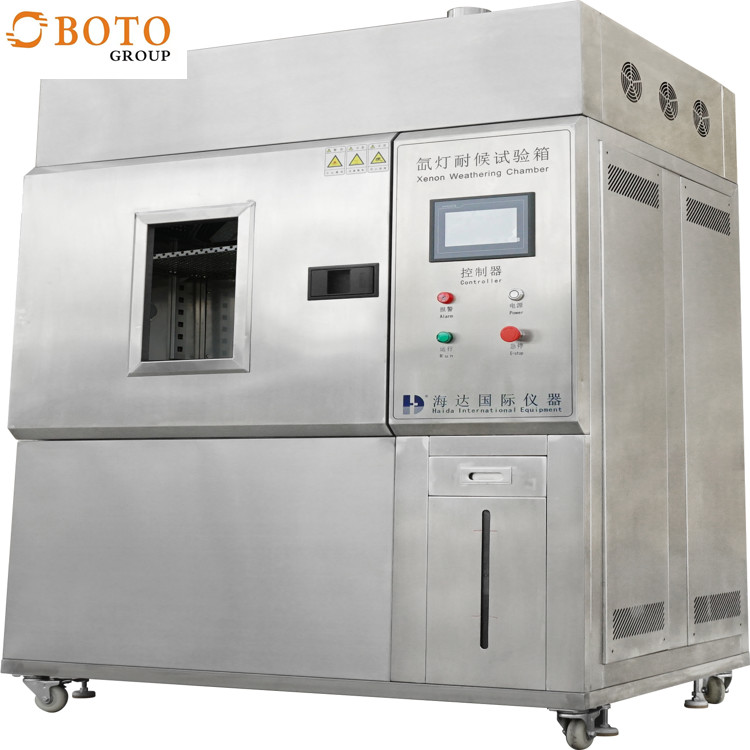

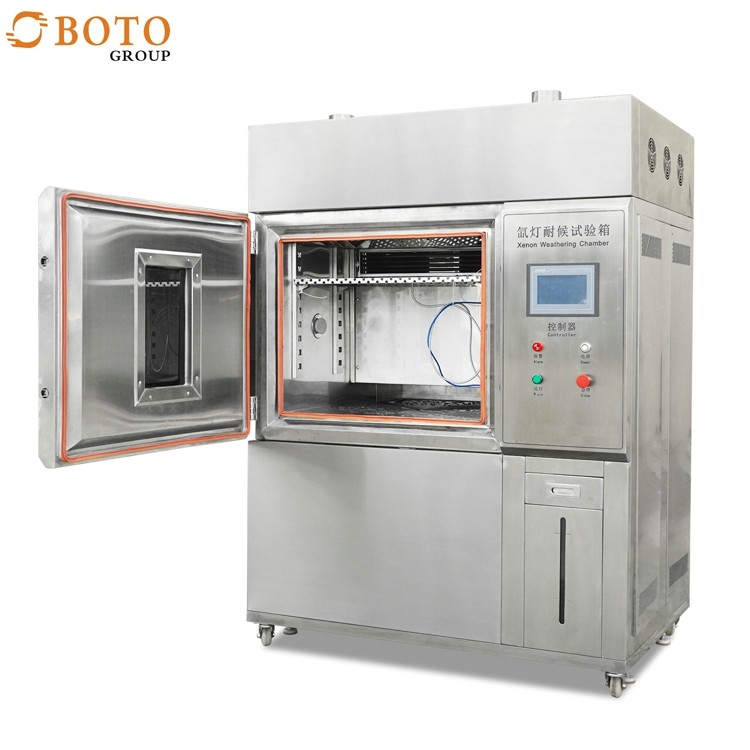

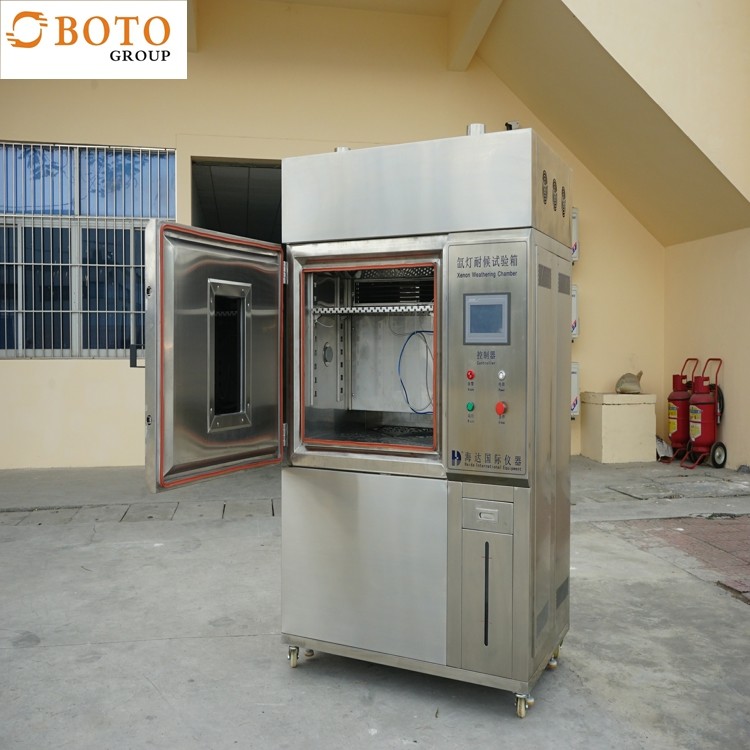

Xenon Lamp Aging Chamber DIN50021 Environment Test Chamber Climatic Chamber Manufacturer
Description:
This series chamber is to simulate and strengthen the natural climate influenced by solar radiation, temperature, humidity, condensation, rain and other major aging damage environmental factors, observation and analysis the change of material. The test chamber is for doing ground solar radiation test, to view the influence of equipment and components, the main features on simulation environment are the ground observed solar spectrum energy distribution and the strength of the composite absorbing energy with control temperature conditions.
It is mainly used in the nonmetallic materials, organic materials (paint, coating, rubber, plastic, etc.) in simulated climate aging test. And widely used in: rubber, plastic, paint, oil, chemical industry, automobile, textile and other industries.
Xenon lamp aging testing machine is a comprehensive climate testing machine, in addition to climatic aging test, the light fastness of materials can be carried out to test, polymer materials exposed at simulated sunlight. It simulates the light,temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition;It is divided into air-cooled 2.5kw and water-cooled 6.5kw with water-cooled machine.
MAIN PARAMETER
| Item | Specification |
| Internal Dimension (W*D*H) | 800*800*800mm |
| External Dimension (W*D*H) | 1450*1350*2150mm |
| Inner chamber material | SUS 304 # Stainless Steel, Anti-rust, easy to clean |
| Outer chamber material | Stainless steel |
| Chamber Temperature | 40±3℃ |
| Temperature Uniformity | ≤3℃ |
| Blank panel temperature | 65±3℃ |
| Humidity Range | 50%-90% |
| Irradiated intensity | 0.35±0.02w/m²at 340nm |

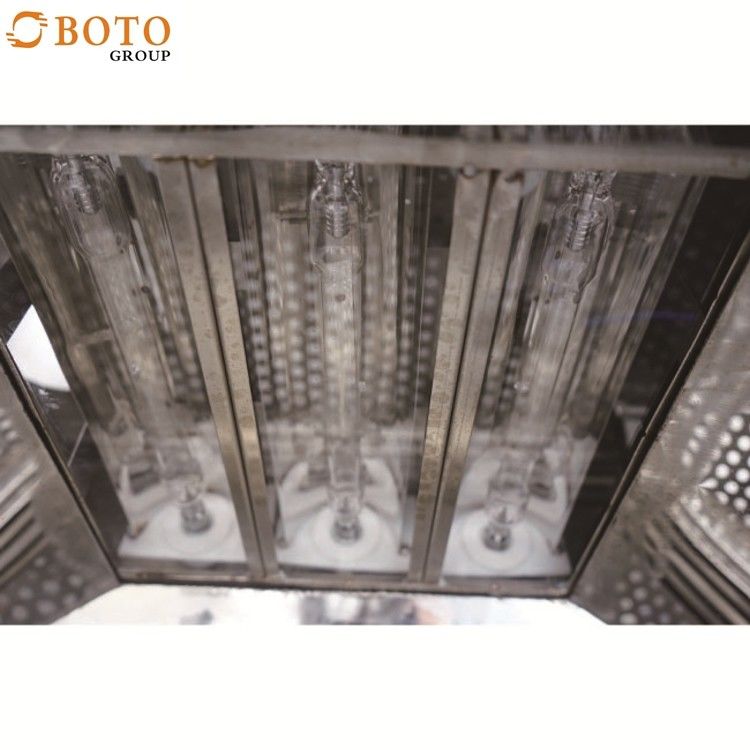

| Xenon lamp power | 6.5KW water-cooled xenon lamp x 1pc |
| Control system | PLC controller, touch screen |
| Distance from specimen to arc center | 250~300mm, Effective exposure area 6400cm2 |
| Max. Sample dimension | 200*90mm Thickness<20mm |
| Filter | Daylight filter |
| Door seal | Silicone rubber seal |
| Temperature sensor | PT100 high precision temperature sensor |
| Air circulation system | Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity |
| Cooling ventilator | Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system |
| Cooling ventilator | France Tecumseh compressor |
| Power | AC380V, 50Hz, three phase |
| Safety Protection |
Over heat protection for fan, Over load protection for cooling system, Over pressure protection for cooling system, Over temperature protection, Over heat and over flow protection for water pump, Leakage protection, Water shortage protection, Auto stop after failure warning |
