| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-CY-250 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| External Dim: | 50x60x75 | Temperature Range: | 0℃-70℃ |
|---|---|---|---|
| Test Apparatus: | Dynamic And Static (optional) | Sample Rack Rotation Speed: | 360 Degree Rotating Sample Holder |
| Time Controller: | Precision Hours,minutes,seconds Time Controller | Ozone Generator: | Silent Discharge Tube Type |
| HighTemp Rang: | ＋80℃～200℃ | Gas Flow Rate: | 12-16mm/s |
| Model: | B-CY-250 | Exterior: | Coating Or SUS#304Stainless Steel Plate |

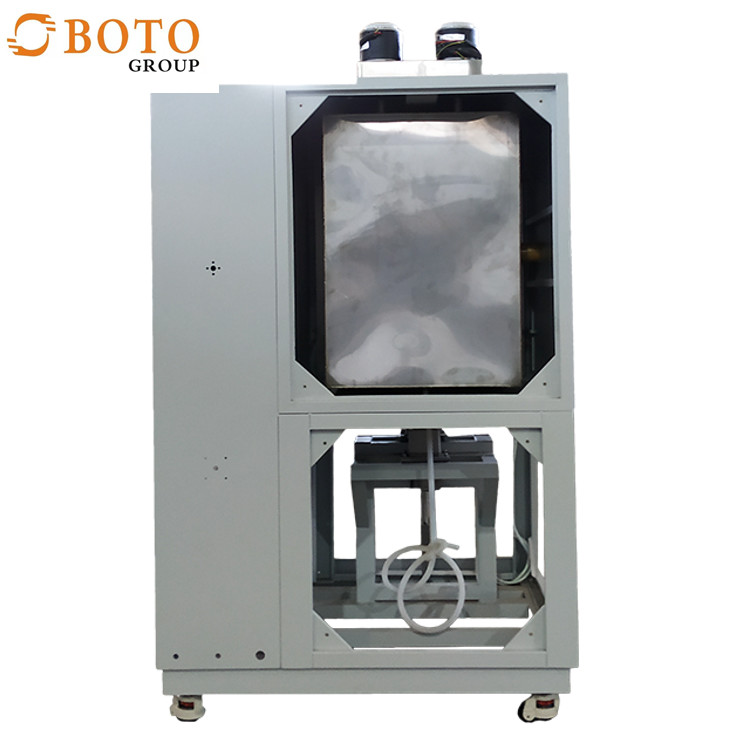

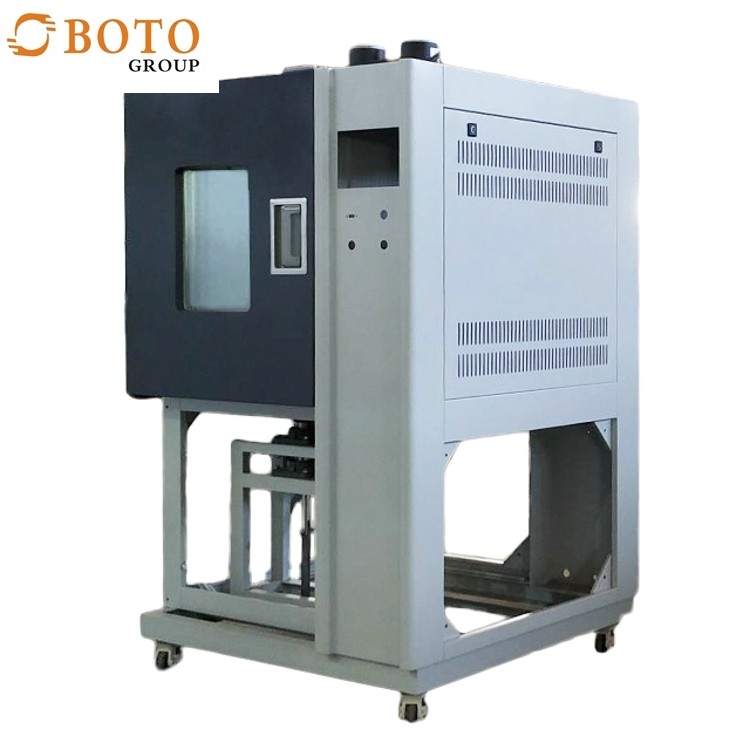

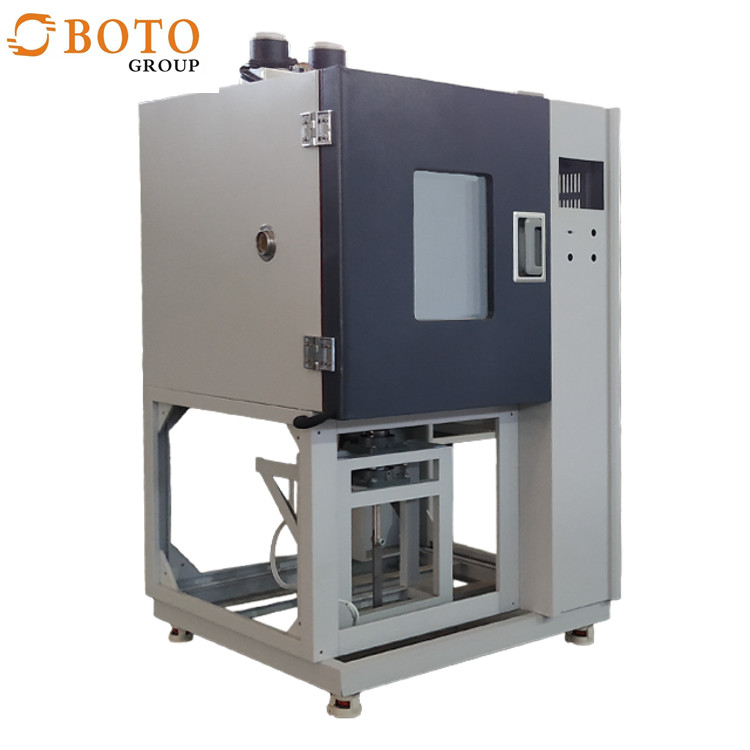

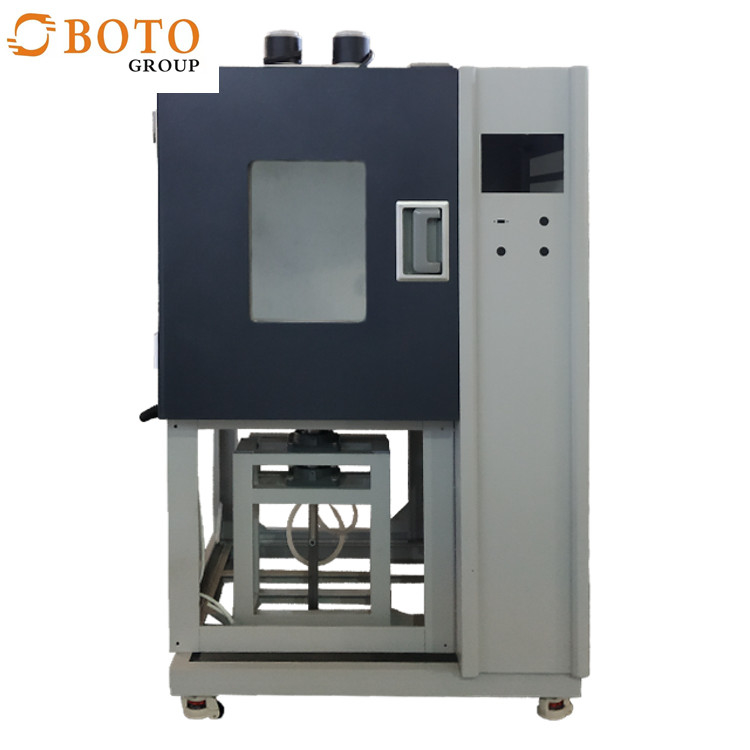

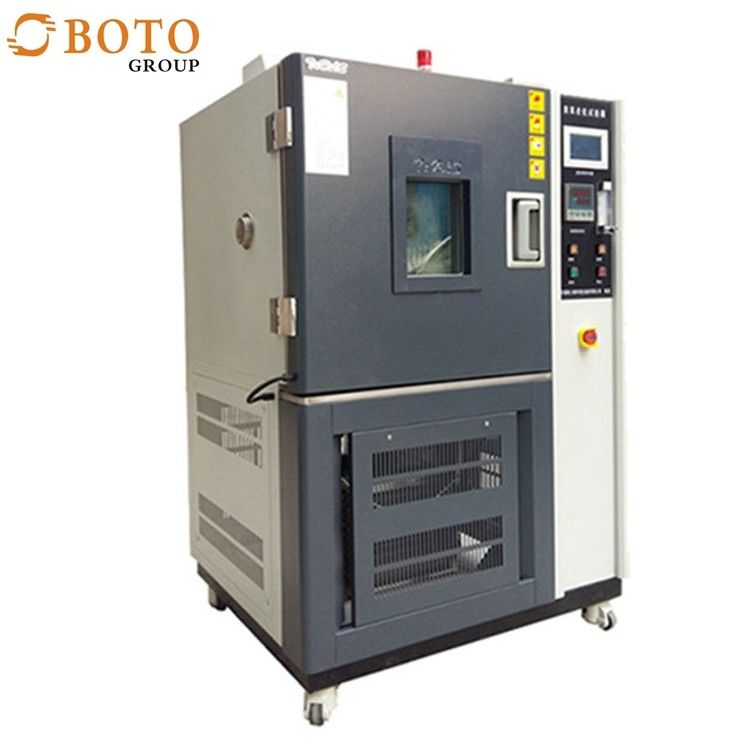

Ozone Aging Test Chamber Dynamic GB/T2951.21-2008 IPC-9701 Environmental Test Chambers
Product purpose :
The ozone chamber is used to test the damage degree of rubber under ozone environment. The content of ozone in the atmosphere is very small, but it is the main factor for rubber cracking. The ozone aging box simulates and strengthens the ozone conditions in the atmosphere, studies the effect of ozone on rubber, and quickly identifies and evaluates the anti-ozone aging performance of rubber and antiozonants. The method of protective efficacy, and then take effective anti-aging measures to improve the service life of rubber products Control System
Adopt ozone concentration sensor, with standard signal output and sampling. Silent discharge point tube ozone generator (with the characteristics of low noise and high purity). The controller uses a high-resolution LCD touch screen. Temperature, moderate, ozone concentration can be directly displayed and set Application field
Leather industry, soft tires, aviation industry, etc. According to international standards such as ASTM, ISO and DIN, HONGJIN has developed and manufactured an ozone test system, which provides reliable test conditions for users to test ozone aging of rubber products.
MOST POPULAR STANDARDS:
DIN 53509 static strain ISO 1431/1 static strain ISO 1431/2 dynamic strain ASTM D 1149 ozone cracking ASTM D518 ASTM D1171 ASTM D4574 ASTM D 3395 dynamic strain Different models meet different standards...
Equipment summary:
Ozone is a major factor in rubber cracking although it is rare in the atmosphere, ozone aging tank simulates and enhance the condition of ozone in the atmosphere to study the effects of ozone on rubber, and then identify and evaluate the method to resist ozone and aging for rubber, adopt effective anti-aging measures to enhance the life of rubber products.
Main feature:
Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.
Main material of equipment:
1, the shell cold plate spray/inner stainless steel.
2, AI digital display intelligent program control regulator. 3, gas flowmeter, precise control of gas flow at all levels. Equipped with "QUA" non-dispersive ultraviolet ozone detector (the most reliable and popular method for ozone detection in the world).
4. Beer-lambert Principle measurement application software (internationally recognized).
5, equipped with gas purifier, constant temperature tank, active carbon absorption and silica gel drying tower.
6, the ozone air flow is parallel to the sample.
7, optional remote monitoring software (available PC print test data).
8. Interfaces for classical chemical testing of ozone concentration are provided.
9, the test box is provided with a regulated power supply.
Model |
B-CY-120 | B-CY-250 | B-CY-500 | B-CY-1000 | |
Internal Dim(DxWxH) |
45x45x60 | 50x60x75 | 70x80x90 | 100x100x100 | |
| Temperature range | 0℃-70℃ | ||||
| Humidity range | >65%R·H | ||||
Ozone concentration |
0-200PPm.0-300PPm | ||||
Temperature fluctuation |
±0.5℃ | ||||
test apparatus |
Dynamic and static (optional) |
||||
Sample rack rotation speed |
360 degree rotating sample holder (1 rpm per minute) |
||||
Gas flow rate |
12-16mm/s | ||||
Temperature Controller |
Imported LED digital display P.L. D+5.5, R microcomputer integrated controller |
||||
Time controller |
Precision hours,minutes,seconds time controller |
||||
Ozone concentration analysis |
Imported concentration analysis regulator 4-20mA outputs,RS232 communication port |
||||
Ozone generator |
Silent discharge tube type |
||||
Security protection |
Leakoge,short circuit,over temperature,motor overheating.over-current protection |
||||
