| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-504(A~E) |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-T-504(A~E) | Power Source: | AV：220V/380V 50/60Hz |
|---|---|---|---|
| Power（KW）: | 1KW~2KW | Internal Dim: | 70x90x80 |
| Interior: | SUS#304Stainless Steel Plate | Name: | Rapid Temperature Test Chamber |
| Exterior: | Coating Or SUS#304Stainless Steel Plate | External Dim（CM: | 100X180X103 |

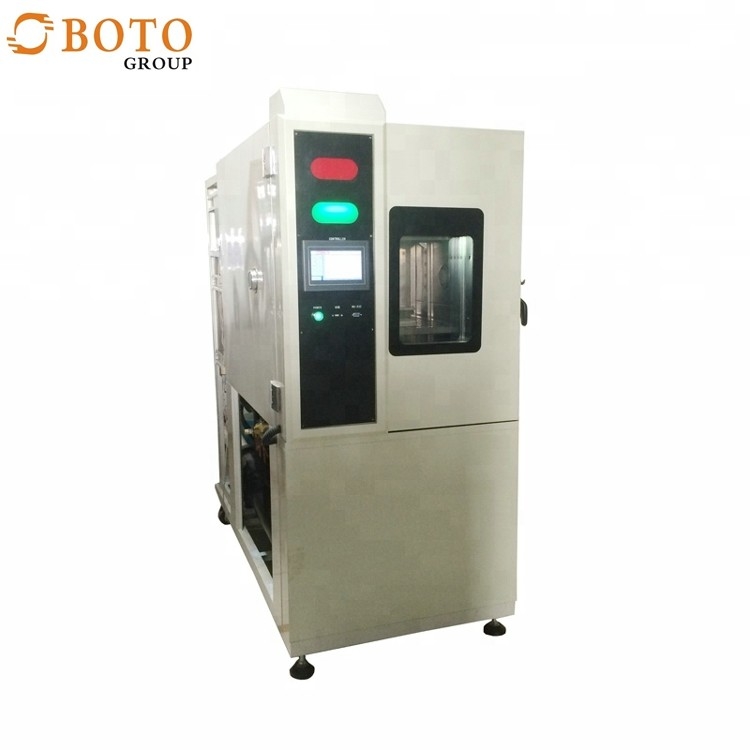

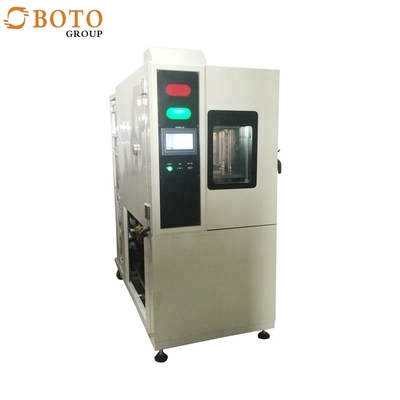

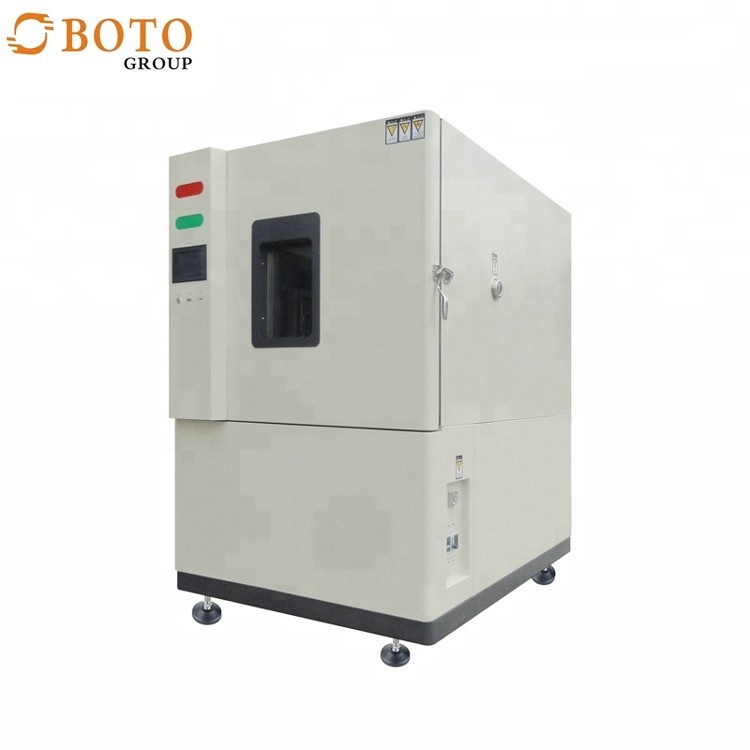

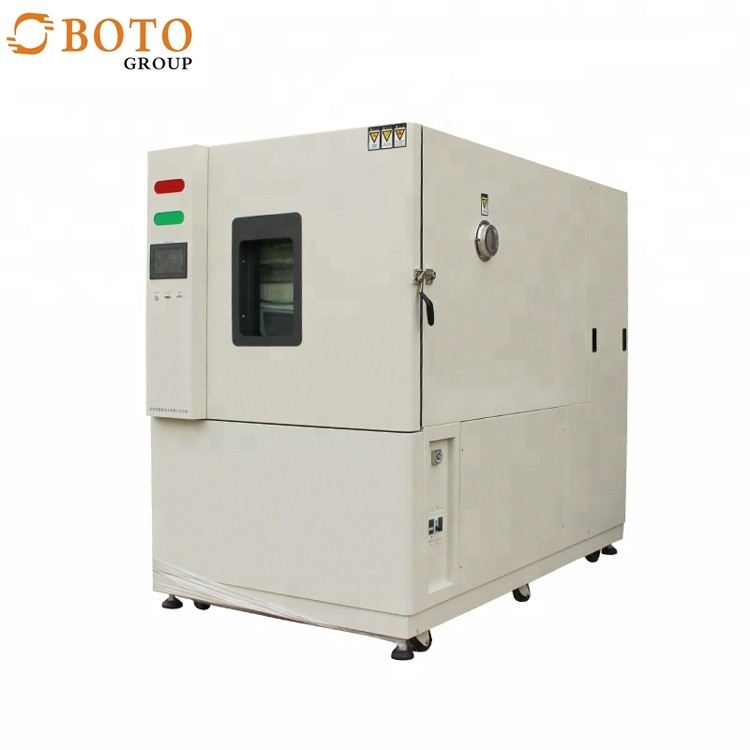

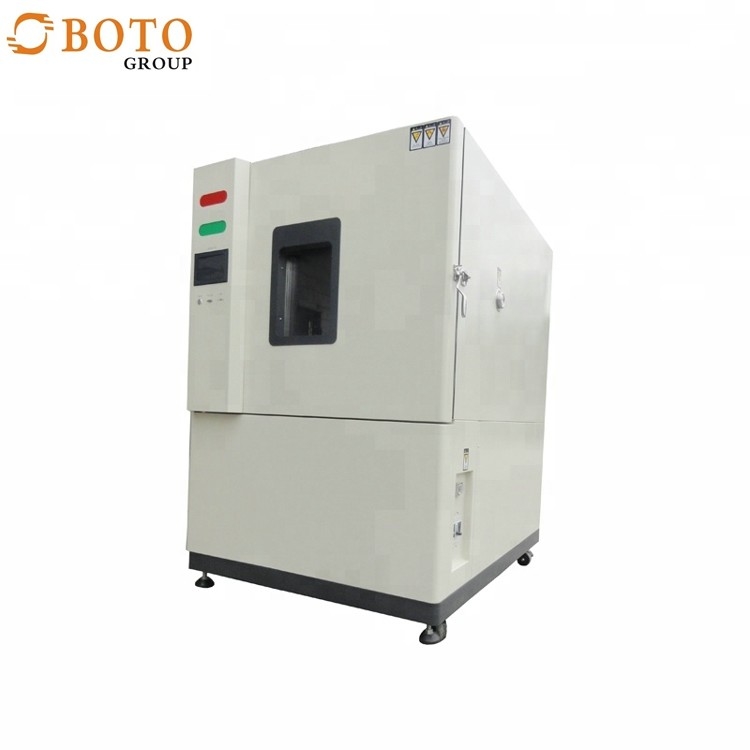

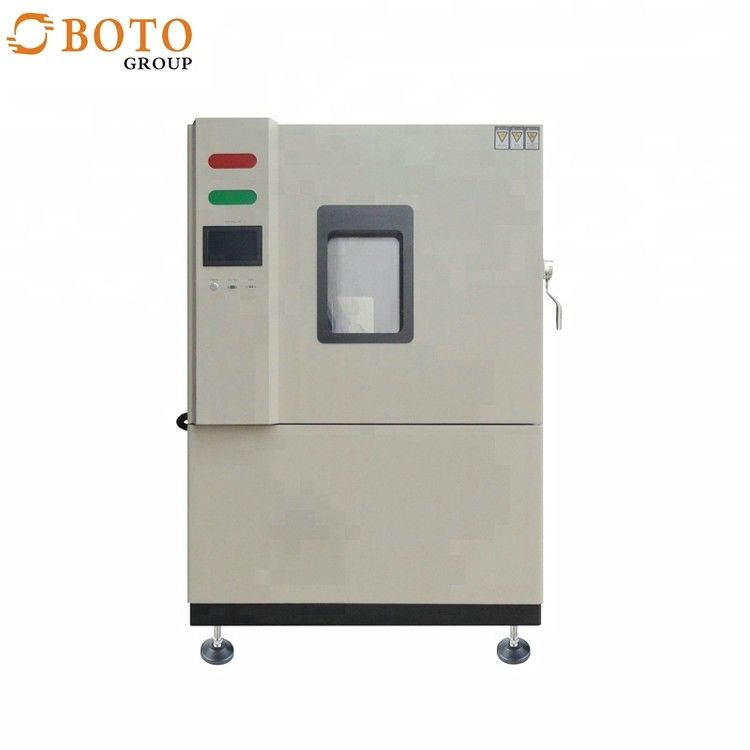

Rapid Temperature Test Chamber Lab Test Machine Nabmat-9492 Cipipc-9701 Environmental Test Chambers
Description:
A rapid temperature test chamber is a specialized piece of equipment used for testing the response of materials and products to extreme temperature changes. It is designed to quickly and accurately simulate the effects of temperature on various materials and products, including plastics, rubber, electronics, and other materials.
Rapid temperature test chambers typically consist of a temperature-controlled chamber with a heating and cooling system that can rapidly change the temperature inside the chamber. They are often used in research and development, quality control, and production testing to determine the thermal properties of materials and products.
Some common applications of rapid temperature test chambers include testing the thermal stability of electronic components, evaluating the impact of temperature on packaging materials, and assessing the performance of materials used in extreme environmental conditions.
Overall, rapid temperature test chambers are essential tools for ensuring the quality and reliability of products and materials in a variety of industries, including aerospace, automotive, electronics, and medical devices.
1 The whole box adopts the integral structure. Box structure
2 The inside of the box is made of 1.0mm imported SUS304B stainless steel plate, the outside is made of 1.0mm cold rolled steel spray, and the thermal insulation material is made of ultra-fine glass thermal insulation cotton.
3 The door is sealed with double-layer silicone rubber sealing material.
4 The observation window is made of multi-layer conductive film tempered insulating glass with a size of 350×500mm. In order to prevent frosting of the glass at low temperature, the built-in special safety voltage heating wire is specially built to surround the heating belt with a power supply voltage of 36V, and a lamp is set up to provide illumination for observation.
5 A φ50mm test hole with a plug is arranged on the side of the box body. The plug material is silicone rubber with low foaming, high and low temperature resistance, with thermal insulation effect.
6 An air conditioning cabinet is arranged at the back of the box studio, in which humidifier, evaporator, electric heater, fan, fan volute and other equipment are installed.
7 Place the temperature sensor in the air outlet.
8 The air supply mode in the test box is used for the refrigeration system products of upper supply air and lower return air
Temperature rapid change test box is suitable for aerospace products, information electronic instruments, materials, electrical, electronic products, all kinds of electronic components in the environment of high temperature and low temperature rapid change, to test their performance indicators.
Rapid temperature change test chamber refrigeration system and compressor:
In order to ensure the cooling rate of the test chamber and the minimum temperature requirements, the test chamber uses a set of Taikang fully enclosed compressor composed of binary overlapping air cooling refrigeration system. The overlapping refrigeration system consists of a high temperature refrigeration cycle and a low temperature refrigeration cycle, and its connecting vessel is the evaporative condenser. The evaporative condenser also plays the role of energy transfer, transferring the heat energy in the working room through the two-stage refrigeration system to achieve the purpose of long temperature. Refrigeration system design application of energy regulation technology, an effective treatment can ensure that in the normal operation of the refrigeration unit and the refrigeration system of energy consumption and cooling capacity for effective regulation, so that the refrigeration system operating costs and failure rate down to a more economic state.
Manufacturer:
| Model | dry heat | B-T-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
| damp and ho | B-TH-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) | |
| Internal Dim (CM) | 40x50x40 | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 | |
| External Dim(CM) | 75x203x203 | 75X189X110 | 90X177X130 | 100X180X103 | 130X190X123 | |
| Relative Humidity | 20％-98％RH | |||||
Temp Range |
-70℃~180℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ E:-70℃) | |||||
| heat-up time | 1℃-15℃／min |
|||||
| Pull down time | 1℃-15℃／min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp&Humi.Deviation | ±1.0℃/±3.0℃RH | |||||
| Interior | SUS#304Stainless steel plate | |||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | The technical proposal shall prevail | |||||
