| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-XD-120 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-XD-120 | Test Temp Rang: | -40℃-150℃ |
|---|---|---|---|
| External Dim: | 107x145x68 | Internal: | 40x35x35 |
| HighTemp Rang: | ＋80℃～200℃ | Interior: | SUS#304Stainless Steel Plate |
| Exterior: | Coating Or SUS#304Stainless Steel Plate | Low Temp Range: | -10℃--60℃ |

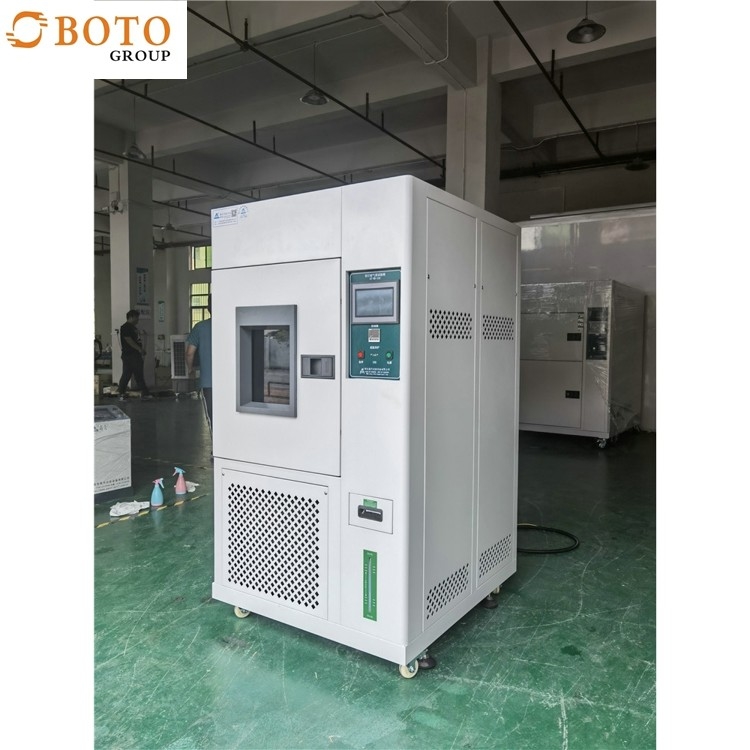

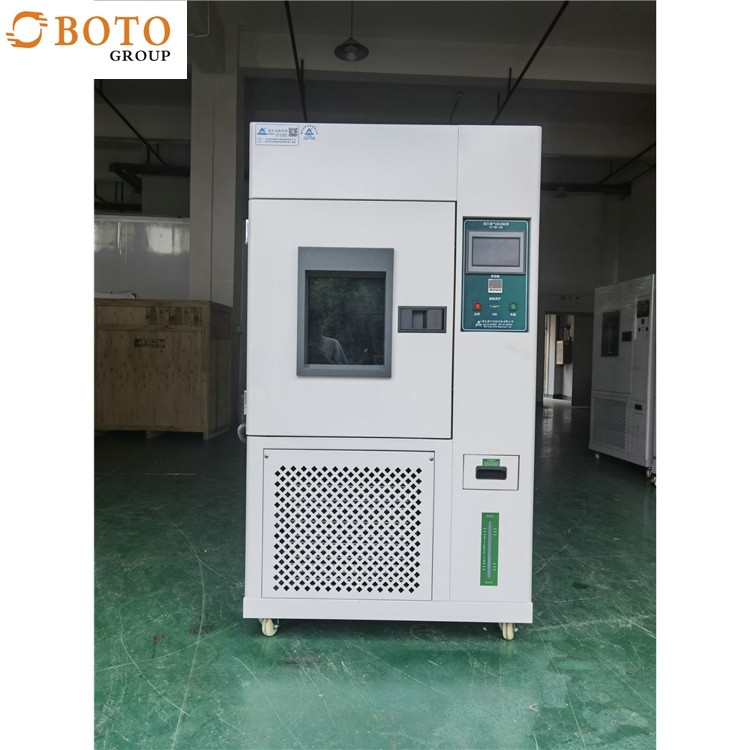

DIN50021 Xenon Lamp Aging Chamber Xenon Arc Test Chamber Environmental Test Chambers
Description:
A Xenon Lamp Aging Chamber or Xenon Arc Test Chamber is a testing device used to simulate the effects of outdoor weathering on materials and products. It is primarily used in the automotive, aerospace, and building materials industries to test the durability of materials, coatings, and finishes.
The chamber uses a xenon arc lamp to simulate sunlight and produce a spectrum of light that closely matches natural sunlight. The lamp emits high levels of UV radiation, which is the primary cause of material degradation and fading in outdoor environments. The chamber also controls temperature and humidity to simulate the effects of different climates and weather conditions.
During testing, samples are exposed to the simulated sunlight for a set period of time, ranging from a few days to several months. The samples are then evaluated for changes in appearance, color, and physical properties such as strength and elasticity.
The Xenon Lamp Aging Chamber is an important tool for manufacturers and researchers to ensure that their products meet quality and performance standards and can withstand the rigors of outdoor exposure.
Xenon arc lamp is used to simulate the full sunlight spectrum to reproduce the destructive light waves in different environments:
1. It can provide corresponding environmental simulation and accelerated test for scientific research, product development and quality control.
2. It can be used for selection of new materials, improvement of existing materials or change test to evaluate durability after changes in material composition.
3. It can well simulate the changes of materials exposed to sunlight under different environmental conditions.
4. If the test sample is not large or not much, it is recommended to use xenon lamp bench, can achieve the same effect.
It has the following performance characteristics:
1. Adopt full-spectrum xenon lamp luminescent tube;
2, a variety of filter system for choice;
3, rain spraying function;
4. Relative humidity control.
5, test chamber air temperature control system;
6. Sample fixer with irregular shape;
7. Cheap and fine xenon arc lamp tube.
8, xenon lamp aging test chamber has the characteristics of easy installation, convenient use and simple daily maintenance.
Model |
B-XD-120 | B-XD-225 | B-XD-408 | B-XD-800 | |
Internal Dim(W*H*D) |
45x60x45 | 50x75x60 | 60x85x80 | 100x100x80 | |
| External Dim(W*H*D) | 107x145x68 | 120x164x92 | 122x169x112 | 162x184x112 | |
| Temperature range | RT+10℃~70℃ | ||||
| Humidity range | 50%~90%RH | ||||
| Radiation intensity of xenon lamp | 550W/m² | ||||
| Spectral wavelength region | 290nm-800nm | ||||
| rainfall time | 0-9999／min | ||||
| Total power xenon lamp | 2KW/6KW | ||||
| type of cooling | forced air cooling／water-cooling | ||||
| Interior | SUS#304Stainless steel plate | ||||
| External material | Coating or SUS#304Stainless steel plate | ||||
Power Source |
AV:220V/380V 50/60Hz | ||||
Produce Making Details:
Packing/Shipping:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
