| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | IEC ISO |
| Model Number: | B-TS-401 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 2000PC/Month |
| Internal Dim: | 30x30x30cm | External Dim: | 118x185x180cm |
|---|---|---|---|
| Sample Weight: | 5KG | Low Temp Range: | -10℃--60℃ |
| Test Temp Range: | -40℃-150℃ | High Temp Range: | +80℃-200℃ |
| Recovery Time: | Within 3 Minutes | Power: | 13.5K |

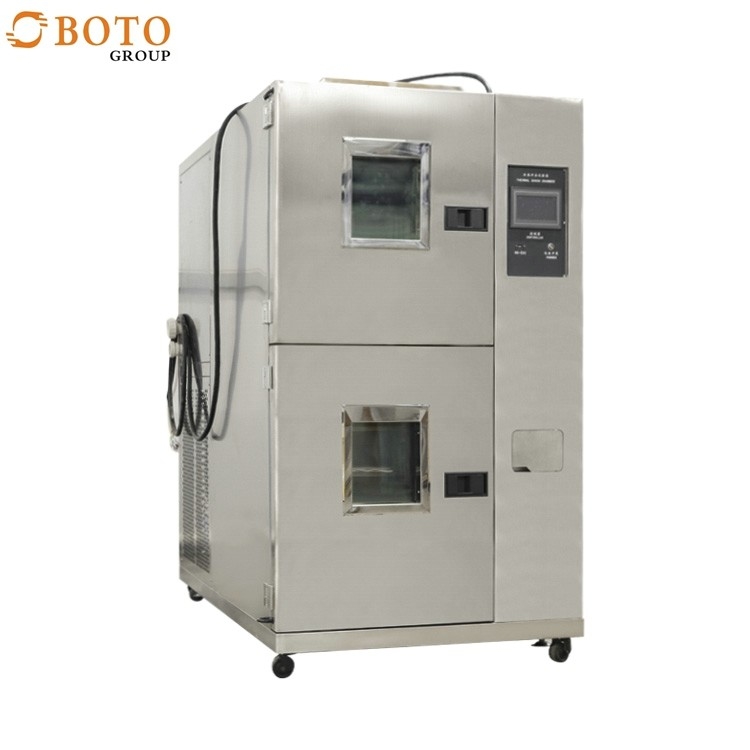

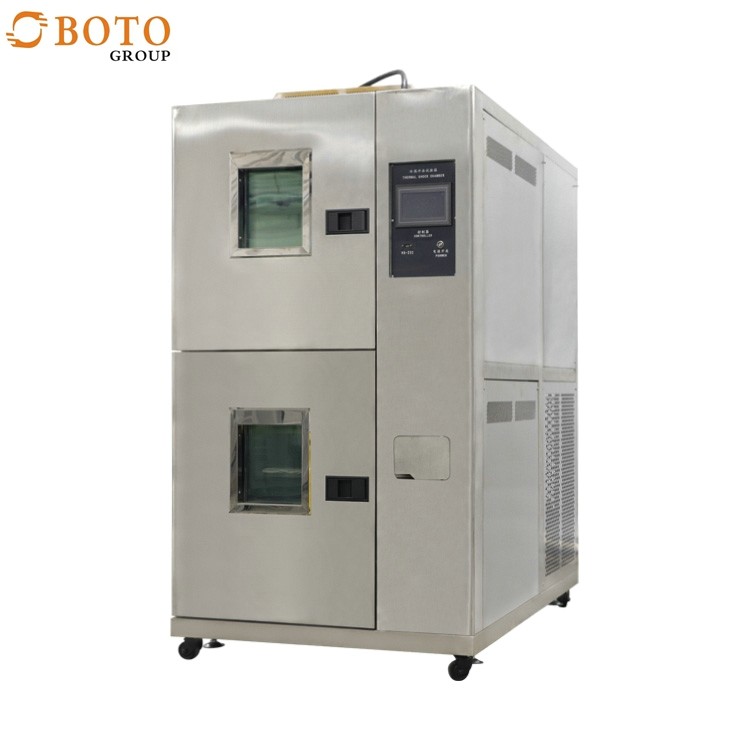

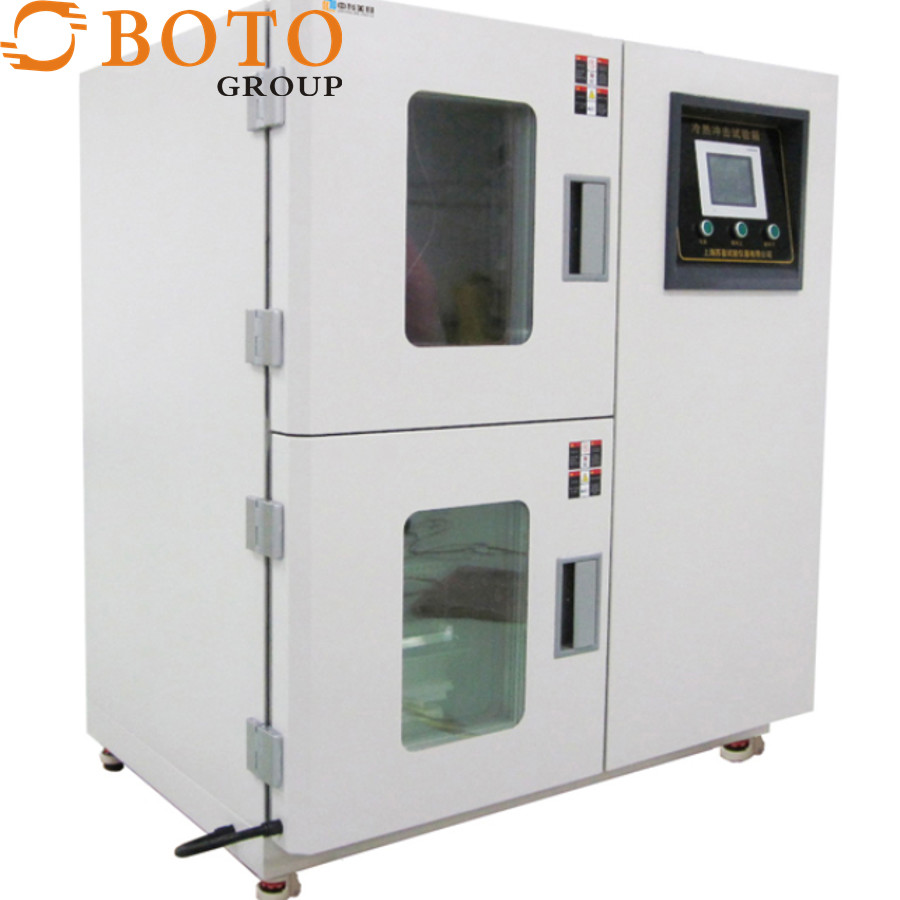

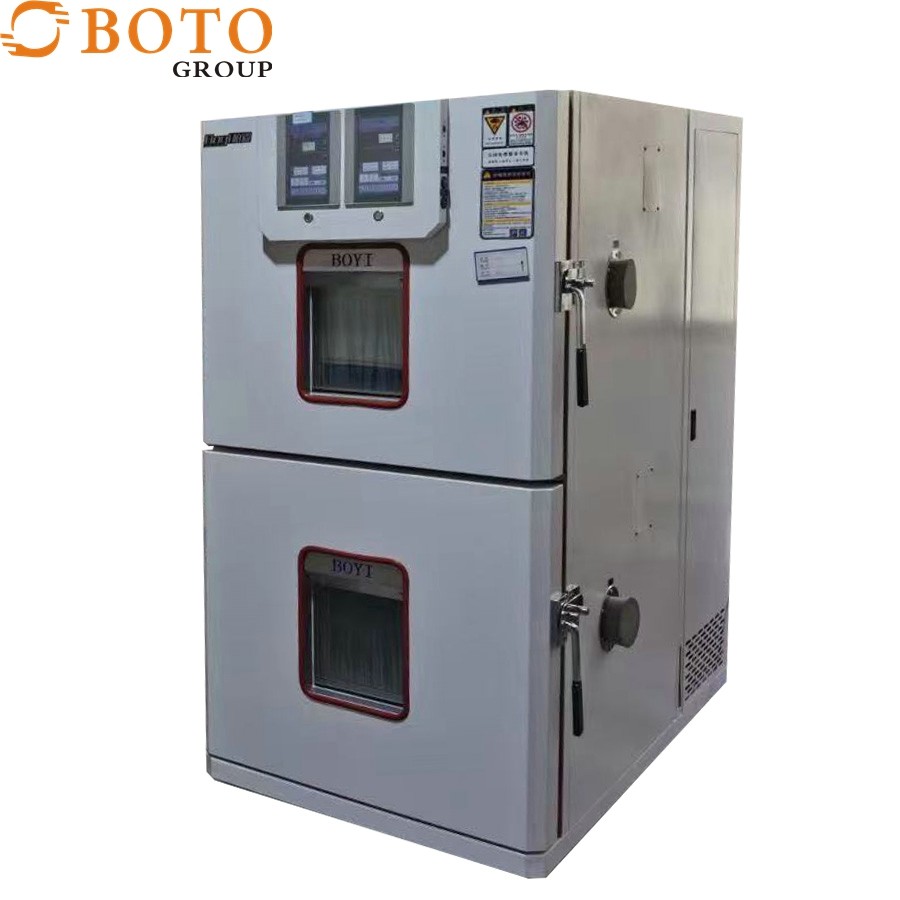

Two box-type hot and cold impact temperature shock chamber B-TCT-401 5KG 380V 50HZ
The two-box cold and heat shock test box is switched and transferred in the high-low greenhouse, using the hanging basket mobile control, the conversion time is short, the temperature recovery time is short, the temperature change speed is fast, the overall structure of the equipment is compact, the volume is small, and the two-box method improves the temperature uniformity of the studio.
The two-box cold and thermal shock test chamber can be used to test the degree of material structure or composite material that can be tolerated under the continuous environment of extremely high temperature and extremely low temperature in an instant, so as to test chemical changes or physical damage caused by thermal expansion or contraction in the shortest time. Applicable objects include metal, plastic, rubber, electronic.... Such materials can be used as the basis or reference for the improvement of its products.
Primary structure editing
7 inch true color touch screen, screen display intuitive and easy to operate, can be fixed value and program control;
250 groups of 12500 segments storage, 250 days of historical data storage function;
Reservation switch function, end planning and setting, power outage automatically save data curve, etc. Standard USB/RS-232 interface, test data curve download, data copy computer automatically generate excel form, convenient analysis;
Optional LAN remote control function;
Balanced temperature control PID+PWM+SSR system, stable and accurate temperature control;
Moving up and down pneumatic switching basket structure, fast temperature conversion;
The latest control system, circuit, refrigeration system optimization design, more reliability, stability
Refrigeration system editing
Modular refrigeration system, high efficiency, easy installation and maintenance.
Adopts cascade type (binary type) refrigeration system, adopts French Taikang (or German Bitzer) compressor.
Dupont environmental refrigerant,SWEP plate cold and heat exchanger.
Water leak check, leak check thoroughly, prevent potential leakage problems.
Refrigeration system, electronic control system a number of safety protection mechanisms.
Rapid temperature change test chamber refrigeration system and compressor:
In order to ensure the cooling rate of the test chamber and the minimum temperature requirements, the test chamber uses a set of Taikang fully enclosed compressor composed of binary overlapping air cooling refrigeration system. The overlapping refrigeration system consists of a high temperature refrigeration cycle and a low temperature refrigeration cycle, and its connecting vessel is the evaporative condenser. The evaporative condenser also plays the role of energy transfer, transferring the heat energy in the working room through the two-stage refrigeration system to achieve the purpose of long temperature. Refrigeration system design application of energy regulation technology, an effective treatment can ensure that in the normal operation of the refrigeration unit and the refrigeration system of energy consumption and cooling capacity for effective regulation, so that the refrigeration system operating costs and failure rate down to a more economic state.
Manufacturer:
| Model | dry heat | B-T-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
| damp and ho | B-TH-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) | |
| Internal Dim (CM) | 40x50x40 | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 | |
| External Dim(CM) | 75x203x203 | 75X189X110 | 90X177X130 | 100X180X103 | 130X190X123 | |
| Relative Humidity | 20％-98％RH | |||||
Temp Range |
-70℃~180℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ E:-70℃) | |||||
| heat-up time | 1℃-15℃／min |
|||||
| Pull down time | 1℃-15℃／min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp&Humi.Deviation | ±1.0℃/±3.0℃RH | |||||
| Interior | SUS#304Stainless steel plate | |||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | The technical proposal shall prevail | |||||
Why should i choose your company and your products?
we have been in this field for more than 17 years,and our quality is good.Due to our good quality ,some of the famous companies are also using our products ,such as ,Apple ,Foxconn,BYD,etc.
How to choose the most suitable products?
just tell me your temperature and other requirements ,we will find the suitable machine for you according to your requirements .
Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after sale service
