| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | IEC ISO |
| Model Number: | B-T-107(A-D) |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 2000PC/Month |
| Internal Dim: | 30.5x23x29cm | External Dim: | 53x68x72cm |
|---|---|---|---|
| Relative Humidity: | 20%-98%RH | Temperature Range: | -70℃-180℃ |
| Heat-up Time: | 3-5℃/min | Pull-down Time: | 0.7-1℃/min |
| Temp Fluctudtiont: | ±0.5℃ | Temp Uniformity: | ±1℃ |

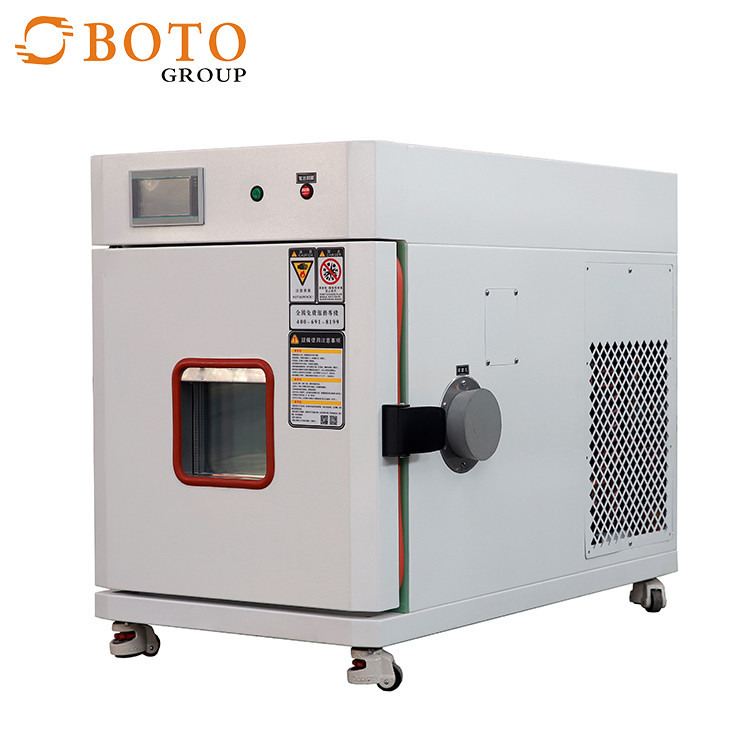

SUS#304 B-T-107(A-D) Temp Range -60℃-130℃ Precision Humidity And Temperature Control Chamber
1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.
2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green environmental protection.
3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety of tests at the same time.
4. Both sides are equipped with side tests. Holes, easy to operate.
5. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Design Standard:
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Uses:
This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Character:
1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Standard Compliance:
This product meets the requirements of GB/T2423.1-2001 GB/T2423.3-1993 GB/T2423.2-2001 and other national standards, as well as other relevant standards.
Features:
1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.
2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green environmental protection.
3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety of tests at the same time.
4. Both sides are equipped with side tests. Holes, easy to operate.
5. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Product specification:
| Name | Small high and low temperature test chamber | Table type constant temperature and humidity test chamber | ||||
| Model | dry heat | B-T-107(A-D) | B-T-48L (A~D) | |||
| damp and hot | B-TH-48L (A-D) | |||||
| Internal Dim | 30.5x23x29 | 40x40x30 | ||||
| External Dim(W*H*D) | 53x68x72 | 60x80x107 | ||||
| Relative Humidity | ‘-40℃(-60℃)-130℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃) | ’7.081- -60℃~150℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ |
||||
| Relative humidity Range | 20%~98%RH | |||||
| heat-up time | About3℃/min | |||||
| Pull down time | About0.7~1℃/min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp Deviation | ±1.0℃ | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | 1KW~2KW | 1.5KW~2.5KW |
||||
Why should i choose your company and your products?
we have been in this field for more than 17 years,and our quality is good.Due to our good quality ,some of the famous companies are also using our products ,such as ,Apple ,Foxconn,BYD,etc.
How to choose the most suitable products?
just tell me your temperature and other requirements ,we will find the suitable machine for you according to your requirements .
Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after sale service
