| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | IESCO |
| Model Number: | B-ZW |
| Minimum Order Quantity: | 1SET |
| Price: | Negotionable |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 5-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000set/month |
| Power:: | Electronic | UV Wavelength:: | 290 ~ 400nm |
|---|---|---|---|
| Irradiation Source:: | Fluorescent UV Lamps (8) - 40 W | Capacity Of Test: | 48 Pieces, Size Is 75mm*150mm/specimen |
| Chamber Temperature Range:: | Ambient~90℃ ±2℃ | Black Panel Temperature:: | BPT 30~70℃ |
| High Light: | 400nm Environmental Test Chambers,Light Radiation UV Aging Test Chambers,UV Accelerated Aging Environmental Test Chambers |
||
High-low temperature test chamber

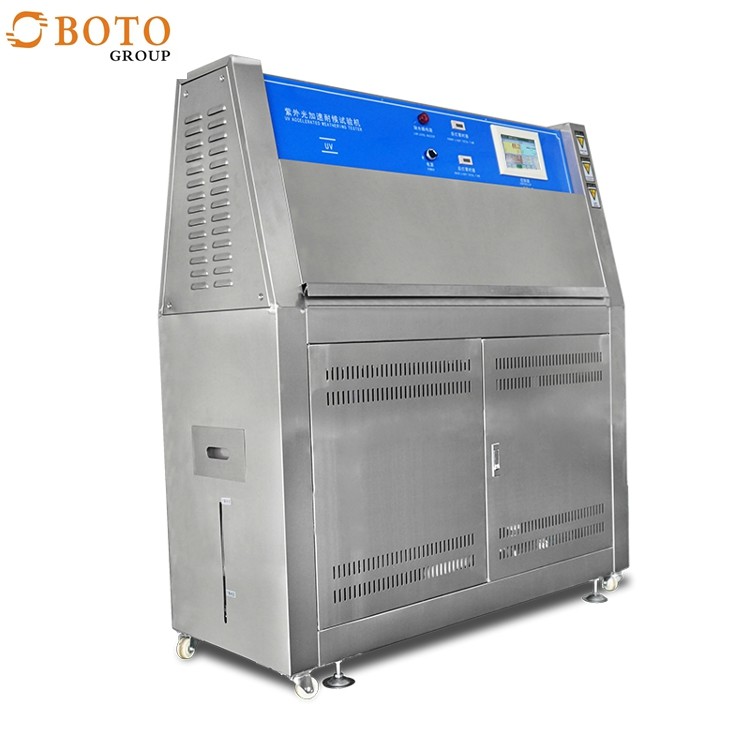

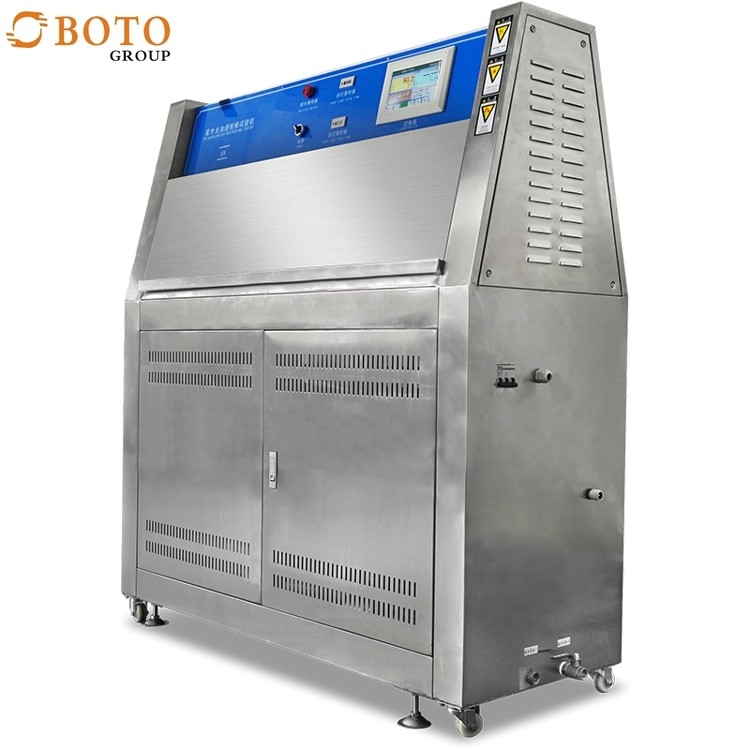

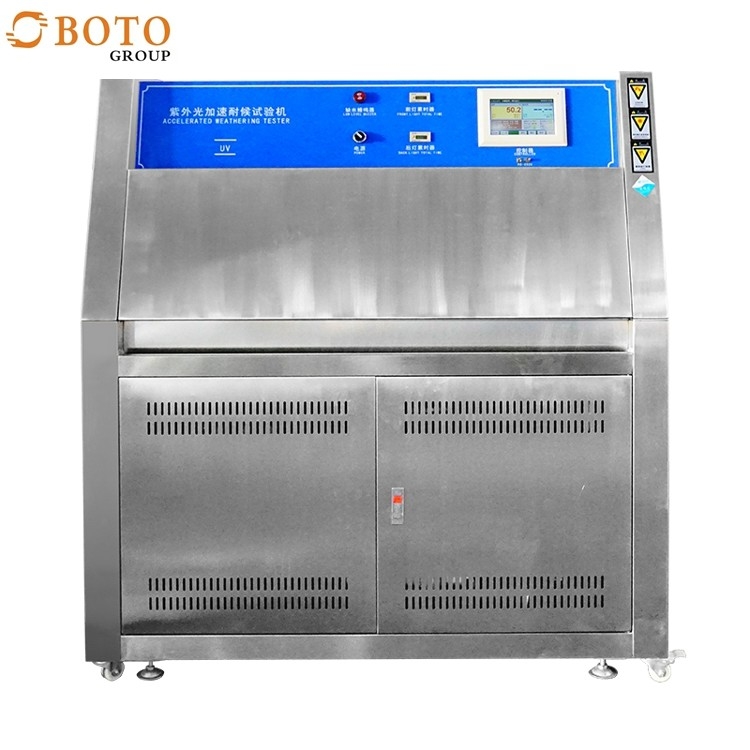

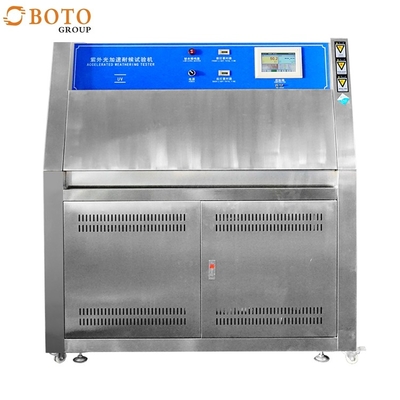

Laboratory ASTM G53-77 UV Test Chamber is equipped with fluorescent UV lamp which can simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light, moisture and temperature at controlled. It simulates dew and rain with condensing humidity and/or water spray.
2. Standard Features of Laboratory ASTM G53-77 UV Test Chamber
♦ Fluorescent UV lamps (8) - 40 W
♦ Black Panel Temperature (BPT) at controlled, BPT 30~70℃
♦ Temperature from Ambient to 90℃
♦ Spraying water, automatic water supply
♦ Water reservoir 50 Liter
♦ Can hold 48 pieces of specimens
♦ Programmable color display touch screen controller
♦ Safety protection system
♦ Easy to mount samples on the holders
♦ CE and RoHS compliance
| Model | UV-260 | UV-SI-260 |
| Internal dimensions (mm) | 450*1170*500 | 450*1170*500 |
| Overall dimensions (mm) | 680*1300*1500 | 680*1300*1500 |
| Capacity of test specimens | 48 pieces Individual specimen size is 75mm * 150mm | 48 pieces Individual specimen size is 75mm *150mm |
| Controller | Programmable color display touch screen controller | Programmable color display touch screen controller |
| Temperature range | Ambient~90℃ ±2℃ | Ambient~90℃ ±2℃ |
| Humidity range | ≥95%R.H ±2%R.H | ≥95%R.H ±2%R.H |
| Black Panel Temperature | BPT 30~80℃ | BPT 30~80℃ |
| Irradiation Source | Fluorescent UV lamps (8) - 40 W | Fluorescent UV lamps (8) - 40 W |
| UV wavelength | 290 ~ 400nm | 290 ~ 400nm |
| Irradiance Control | N/A | 0.3 ~ 20 W/m2(340 nm / 313 nm) |
| Water Spray | Spraying water | Spraying water |
| Distance of Specimen and lamp | 50mm | 50mm |
| Nominal power | 5000W | 5500W |
| Power Supply | 380V 50HZ | 380V 50HZ |
Warranty & Service - 3 Years Warranty, Lifelong Follow-up Services.
♦ 3 Years Warranty, Lifelong Follow-up Services.
♦ Training how to install, operate and maintain the machine.
♦ Provide calibration service for our customers
♦ Response within 24 hours once got questions from customers.
♦ Send spare parts within 2 days after got notice.
♦ Engineers available to service on site to install and commissioning overseas
Our Services
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
FAQ
1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.
