| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-OIL-01 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Internal: | 40x35x35 | External Dim: | 17x23x20 |
|---|---|---|---|
| Low Temp Range: | -10℃--60℃ | Model: | B-OIL-01 |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| Counting Display Range: | 20-260℃ | Time Display Range: | Hot Cylinder 1-199.9 |
Product Description:
1 Test physical changes of IC,PCB, ceramic semiconductors and other high polymer materials.
2 High and low temperature liquid tanks use forced mixing convection way.
3 Automatically move testing samples from up to down or left to right to preheating,precooling.
4 Use Garden D02TS in hot and cold chambers to reduce the cost.
5 Japan imported LCD touch screen controller.
6 Suitable for water cooling and air cooling.
7 Optional accessories: Temp. recorder and solution.
1.Applicable test plate specification: 350mm x 210mm;
2.Sanyo stepping motor and precision module are adopted for Transmission, with small vibration and low voice;

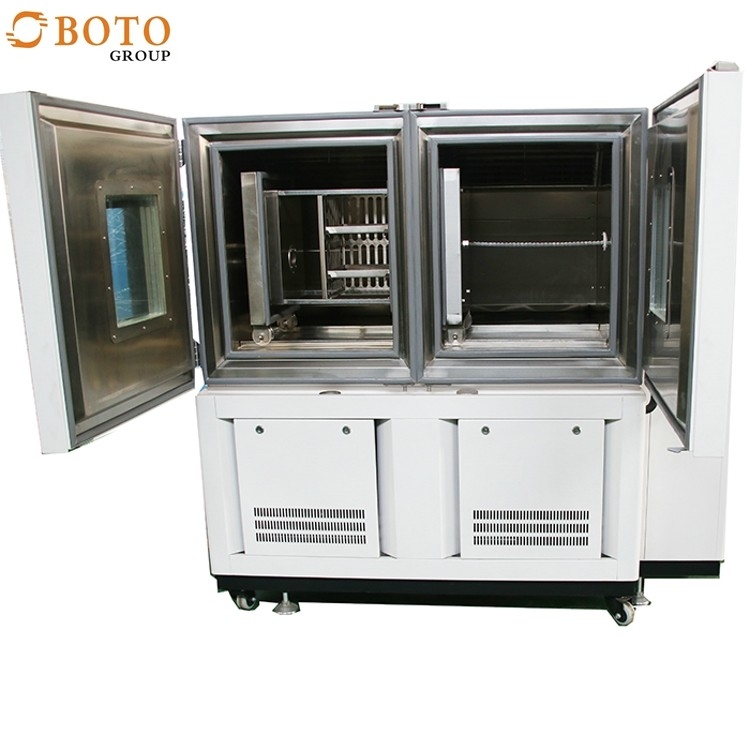

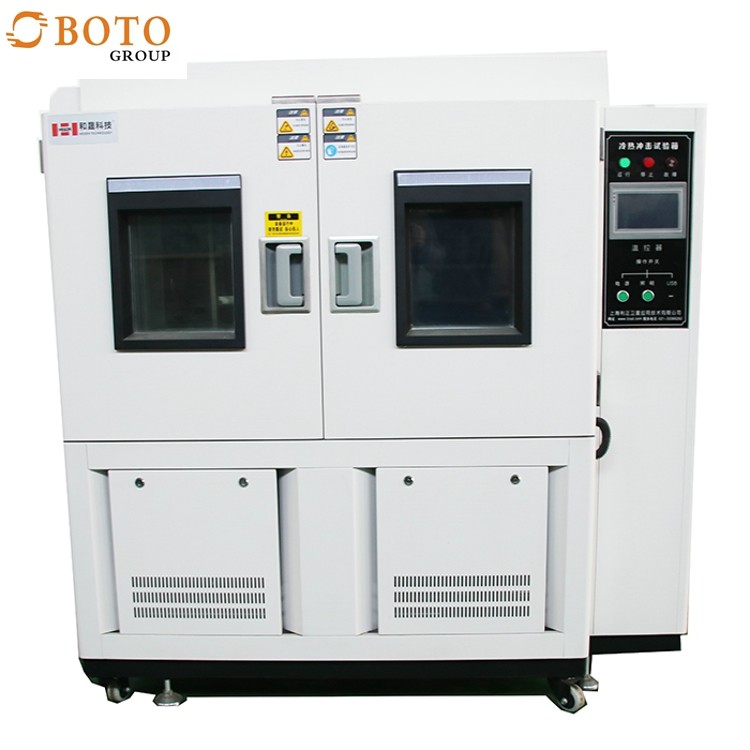

3.The equipment is divided into high and low temperature chamber;
4.Quickly change the temperature of the test room to make the test sample accept cold and hot shock.
Application:
Physical change test of electronic chip IC, PCB, semiconductor ceramic and polymer materials. The high and low temperature liquid tank adopts the forced stirring convection method. The full-automatic up, down, left, and right displacement mechanism is used to move the sample basket to the preheating and pre-cooling troughs, with a round-trip impact. Hot kerosene uses a single same liquid GARDEN D02TS in the high and low temperature tank, reducing the cost of frequent liquid replacement. It adopts the original large LCD Chinese/English display temperature programmable microcomputer controller.
PCB Test Chamber is used to test and determine the parameters, performance
of electrical, electronics, other products and materials for high temperature, low temperature, or the
temperature of the thermostat test environmental changes.And also is used in electronic connector,
semiconductor IC, transistors, diodes, LCD LCD, chip resistance capacitance and components industry
electronic components metal pin wetting resistance test before the aging accelerated life time test;
Semiconductor and passive components, parts pin oxidation test.
Feature:
1· Controlled by microcomputer digital LED.
2· Having time planning function.
3· Having safety device, including multi over-temperature protection and power off when out of water.
4· Testing high temperature/high humidity to spare pares, components.
5· Digital electronic indicators + S.S.R with PID automatic calculation capability.
6· Have time planning function, the maximum setting is 9990 minutes.
| model | B-OIL-01 | B-OIL-02 | B-OIL-03 | ||
| basic configuration | Looding baskets Dimensions(CM) | 17x23x20 | 23x29x30 | 28x34x35 | |
| External Dim(W*H*D) | |||||
| Operator interface | With 5.7color LCD touch screen and P.C control system |
||||
| Control mode | Japan's imports of time/temperature cortroler,high precision temperature control, heating,cooing PID operation are used |
||||
| PLC | Jpanese Mesubishi |
||||
| Heaters | Imports of nickel wire heater |
||||
| Carriageway mobile means | Stepping drive control |
||||
| Crriageway Component Contiguration | Impart modules |
||||
| Cooling mode | Imported compressor |
||||
| Hot oil cylinder temperature range (℃) | RT+40℃-260℃ Room+40℃---260℃ |
||||
| Heat oil cylinder temperature control accuracy(℃) | ±5℃ | ||||
| Cold oil cylinder temperature range(℃) | 20-25℃ | ||||
| Counting display range (times) | 1-199 | ||||
Time display range (S) |
Hot cylinder 1-199.9 |
||||
Input Power: |
380V 50Hz | ||||
Weight [KGI |
450 | 550 | 800 | ||
Power (W) |
15KW | 18KW | 21KW | ||
Our Company:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
