| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-120(A~E) |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Name: | Rapid Temperature Test Chamber | Interior: | SUS#304Stainless Steel Plate |
|---|---|---|---|
| Exterior: | Coating Or SUS#304Stainless Steel Plate | Power Source: | AV：220V/380V 50/60Hz |
| Power（KW）: | 1KW~2KW | Model: | B-T-120(A~E) |
| Temp Range: | -70℃~180℃(100℃) | Heat-up Time: | 1℃-15℃／min |
| High Light: | Microcomputer Touch Temperature Humidity Chamber,2KW Rapid Temperature Change Test Chamber |
||
Rapid temperature change test chamber refrigeration system and compressor:
In order to ensure the cooling rate of the test chamber and the minimum temperature requirements, the test chamber uses a set of Taikang fully enclosed compressor composed of binary overlapping air cooling refrigeration system. The overlapping refrigeration system consists of a high temperature refrigeration cycle and a low temperature refrigeration cycle, and its connecting vessel is the evaporative condenser. The evaporative condenser also plays the role of energy transfer, transferring the heat energy in the working room through the two-stage refrigeration system to achieve the purpose of long temperature. Refrigeration system design application of energy regulation technology, an effective treatment can ensure that in the normal operation of the refrigeration unit and the refrigeration system of energy consumption and cooling capacity for effective regulation, so that the refrigeration system operating costs and failure rate down to a more economic state.
Application:
This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566 etc.

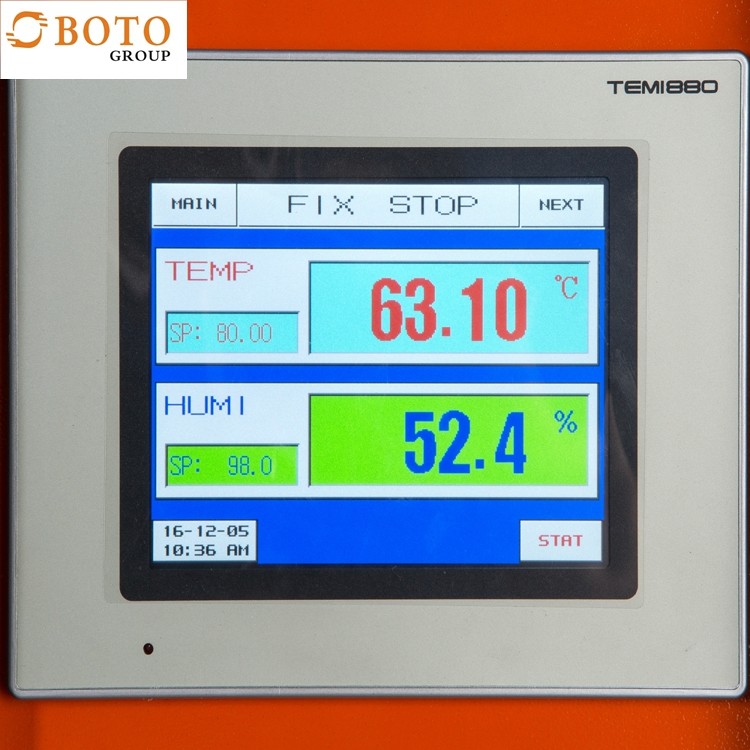

1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Control temperature&humidity well-distributed, precisely and steady.
3.Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
How does an environmental chamber work?
The temperature and humidity environmental chamber can simulate a variety of temperature and humidity natural environments, and is suitable for testing electronic devices, household appliances, food, trolleys, vulcanized rubber, plastic rubber, metal materials and other commodities. The whole process of humidification of the temperature and humidity environmental chamber is to increase the working pressure of water vapor. The more initial way is to spray water on the test box wall to control the saturation pressure of the water surface according to the operating temperature.
What’s Temperature Chamber quality difference between LISUN and other brands in China Market?
1. LISUN low temperature such as -60℃ warranty under a 200W lamps with heating but other brands under empty conditions.
2. LISUN adopts with Finland brand electronic humidity sensor which no need to maintenence. But our competitor used dry ball device which is easy dry to cause problems after used 3-6months.
3. LISUN equipped a water purification device, customer can use a water pipe connect it to provide water supply directly, our competitor but need to add the water by hand.
4. LISUN temperature chamber key electrical connector parts adopted with famous brand AC contactor and solid state relays from Schneider and Omron brands. It is easy for you to find in your local market if they were failed, but our competitors used them with almost Chinese local brands.
Manufacturer:
| Model | dry heat | B-T-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
| damp and ho | B-TH-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) | |
| Internal Dim (CM) | 40x50x40 | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 | |
| External Dim(CM) | 75x203x203 | 75X189X110 | 90X177X130 | 100X180X103 | 130X190X123 | |
| Relative Humidity | 20％-98％RH | |||||
Temp Range |
-70℃~180℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ E:-70℃) | |||||
| heat-up time | 1℃-15℃／min |
|||||
| Pull down time | 1℃-15℃／min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp&Humi.Deviation | ±1.0℃/±3.0℃RH | |||||
| Interior | SUS#304Stainless steel plate | |||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | The technical proposal shall prevail | |||||
