| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO JIS STD GB IEC |
| Model Number: | B-OIL-02 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | PLY-WOODEN-CASE |
| Delivery Time: | 20~30days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000pieces |

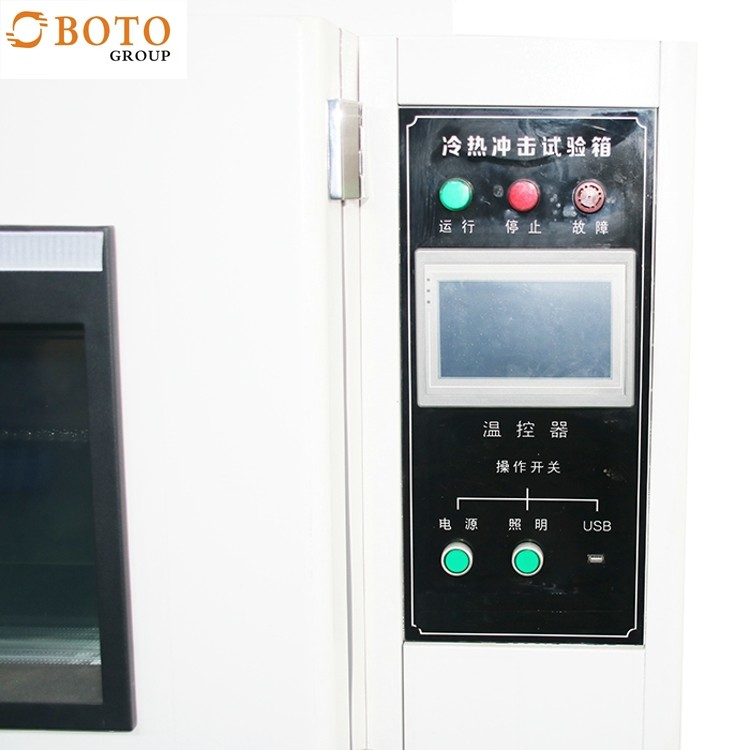

| Operator Interface: | With 5.7"color LCD Touch Screen And PLC Contral System | PLC: | Japanese Mitsubishi |
|---|---|---|---|
| Heaters: | Imports Of Nickel Wire Heater | Carriageway Mobile Means: | Stepping Drive Control |
| Cooling Mode: | Imported Compressor | Time Display Range (S): | Hot Cylinder 1~199.9 |
| Input Power（S): | 380V/50Hz | Hot Oil Cylinder Temperature Range: | RT+40°C-----260°C/Room+40°C------260°C |
| Heat Oil Cylinder Temperature Control Accuracy: | ±5°C | Cold Oil Cylinder Temperature Range: | 20~25°C |

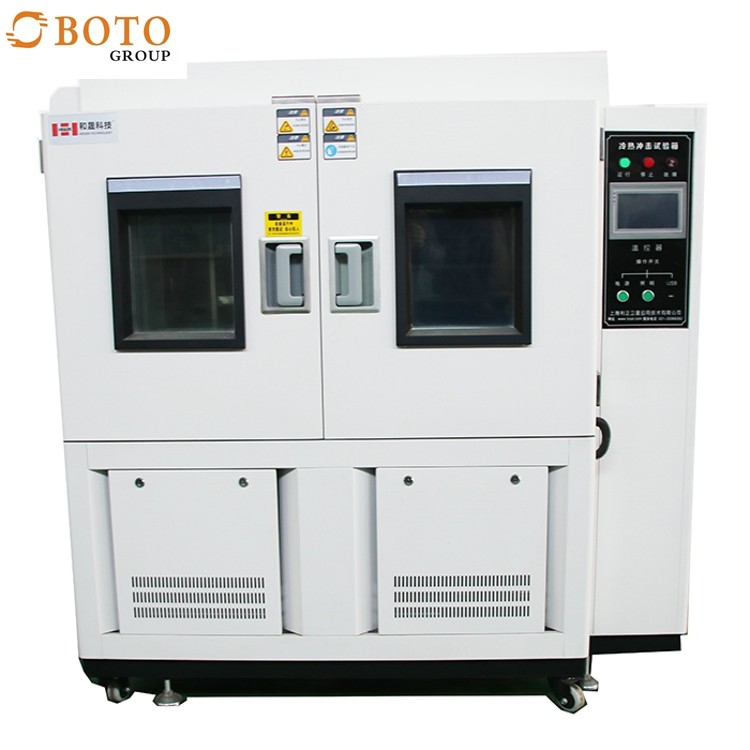

B-OIL-02 Environmental Test Chambers For PCB Temperature Test Machine, Imported Compressor
Product Description:
This machine realizes the cold and heat cycle test by alternately using two independent fluid baths. It is a special testing instrument for the control of the production process of printed circuit boards. It is used for the cold and heat shock test of the printing plate and can be connected to a low resistance test system. Online resistance test.
Features:
1. Applicable experimental board specifications: 350mm×210mm;
2. It adopts Sanyo stepping motor and precision module transmission, low vibration and low noise;

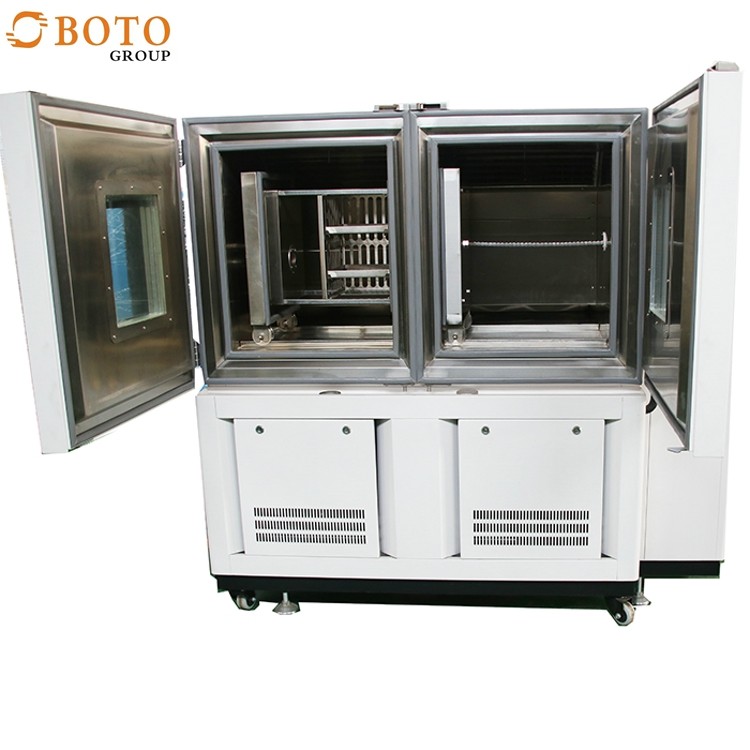

3. The equipment is divided into two parts: high temperature room and low temperature room;
4. Quickly change the temperature condition of the test chamber, so that the test sample is subject to thermal shock;
5. Use touch-type color LCD to control, easy to operate and learn;
6. The number of cycles can be set, and various experiments can be done according to different standards.
Specification:
| Model | B-OIL-01 | B-OIL-02 | B-OIL-03 | |
| Loading baskets Dimensions(CM) | 17×23×20 | 23×29×30 | 28×34×35 | |
| External Dim(CM) (W*H*D) |
Depending on the circumstances | Depending on the circumstances | Depending on the circumstances | |
| Operator interface | with 5.7"color LCD touch screen and PLC contral system | |||
| PLC | Japanese Mitsubishi | |||
| Heaters | imports of nickel wire heater | |||
| Carriageway mobile means | stepping drive control | |||
| Carriageway Component Configuration | import modules | |||
| cooling mode | imported compressor | |||
| Hot oil cylinder temperature range(°C ) | Room+40°C ----260°C | |||
| Hot oil cylinder temperature contral accuracy(°C ) | ±5°C | |||
| Cold oil cylinder temperature range(°C ) | 20~25°C | |||
| Counting display range (times) | 1~199 | |||
| Shock range | 20°C ~260°C | |||
| Time display range (S) | Hot cylinder 1~199.9 | |||
| Input Power(S) | 380V/50Hz | |||
| Weight(KG) | 450 | 550 | 800 | |
| Power(W) | 15KW | 18KW | 21KW | |
Production Process
Production Details
Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Company Profile
BOTO GROUP is a professional manufacturer of various kinds of testing equipment over 20 years. BOTO products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
BOTO deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
Main market
The factory has the ability to calibrate, and the customer can also designate a ISO 17025 accredited third-party organization to calibrate and issue a calibration report.
Certification
The certificate is valid until June 17, 2024
Cooperative partners
BOTO ADVANTAGE
Customers photos
OUR TEAM
Our Services
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.30days after confirming order,detail delivery date should be decided according to production season and order quantity.
FAQ
1. How can we guarantee quality?
Continuous testing is performed after production is completed to ensure product stability.
All parts come from manufacturers of world-renowned brands.
2.What can you buy from us?
Checkweigher,Packing machine,CNC machine
3. why should you buy from us not from other suppliers?
We are a manufacturer with ISO9001, CE international certificates,
*12+ years of production experience
* 10+ years of foreign trade experience
*10+ national technology patents
*Exported more than 1,000 units without receiving complaints from customers
4. what services can we provide?
warranty:12 months free warranty, life-long maintenance.
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Japanese,Chinese,
