| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT-1000 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 15 workdays |
| Payment Terms: | Western Union, T/T, |
| Supply Ability: | 1000 set/month |
| Model: | B-ZW | Name: | UV Aging Test Chamber |
|---|---|---|---|
| Application: | Instrument And Other Industry | Ultraviolet Wavelength: | 290nm~400nm UV-A、UV-B、UV-C |
| External Dim: | 58x128x134 | Warranty: | 3 Years |
| Humidity Range: | ≥ 95%R.H | Distance Between Tubes: | 35mm |
Product Description:

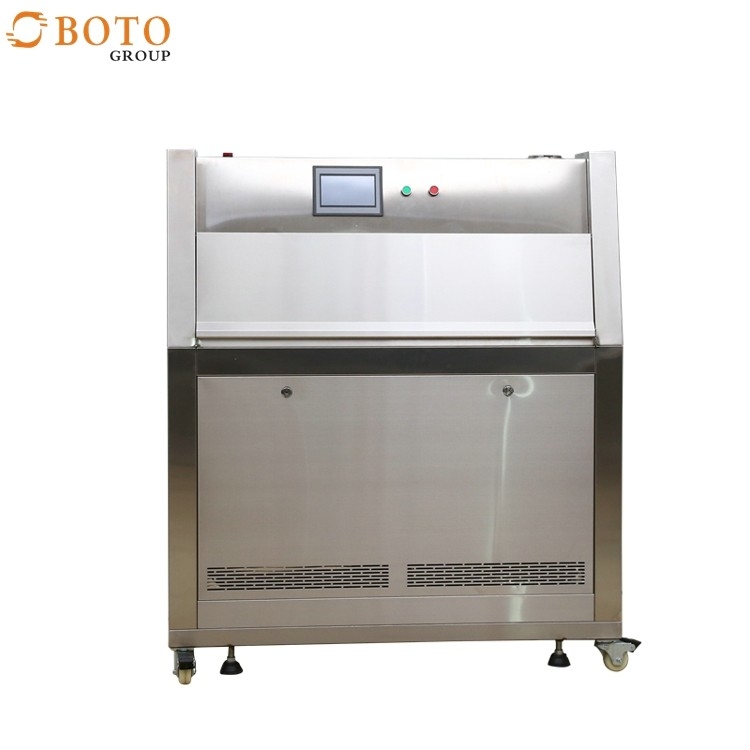

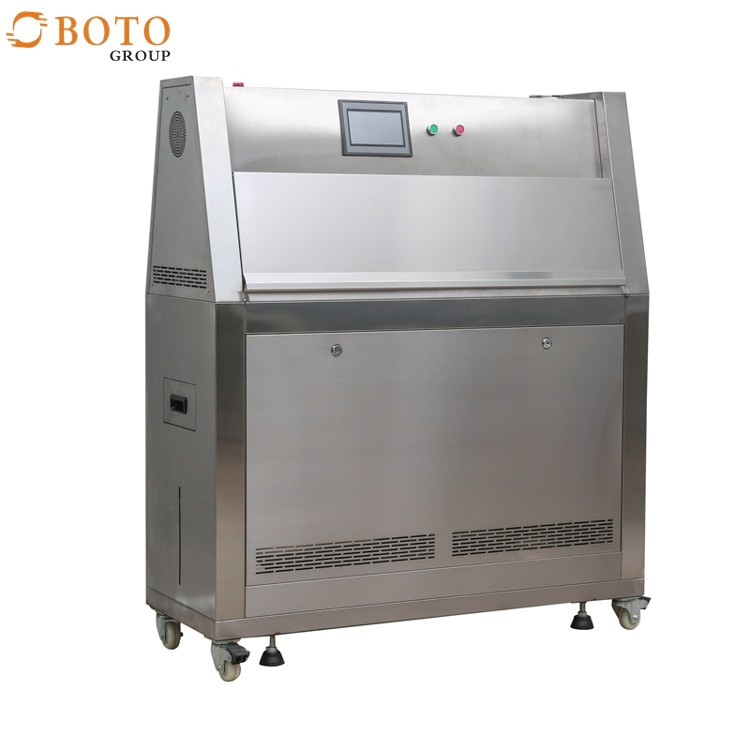

The UV weather resistance test box uses fluorescent ultraviolet lamps and condensed water to simulate sunlight and dew conditions respectively. For example: fading, discoloration, loss of light, cracking, turbidity, blistering, embrittlement, strengthening, recession and oxidation, etc.
Chamber Material:
Inner container use SUS304# stainless steel plate;
Outer shell use SUS304# stainless steel plate;
Specimen frame use stainless steel and aluminum alloy net frame,easy access to samples;
Features:
The UV accelerated aging test chamber can simulate environmental conditions such as self-climate ultraviolet rays, rain, high temperature, high humidity, dew condensation, darkness, etc. By reproducing these conditions, it is merged into a cycle, and it automatically executes the number of cycles completed. In this process, the equipment can be used for automatic monitoring of blackboard temperature and water tank temperature; by configuring irradiance measurement and control device (optional), the irradiance can be measured and controlled, and the irradiance is stable at 0.76W/m2/340nm or specified setting. Fixed value, greatly extending the service life of lamps.
Uses:
It is the most widely used UV Weathering tester in the world, there are thousands of ultraviolet aging testers coming into use. It has become the standard of the UV test, fit standards of ISO,ASTM,DIN,JIS,SAE,BS,ANSI,GM,U.S.GOVT,ect. It can simulate the damage of sunshine, rain, dew to the material quickly and exactly. Damage types including bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embitterment, strength decline and oxidation need to be engender in months or years but can engender in a few days or weeks.
Characteristics:
1.The ultraviolet aging tester is designed according to uses’ operation , it’s easy to operate, safe and reliable.
2. The thickness of specimen installation is adjustable and the specimen installation is fast and convenient.
3. The door rotating up does not interfere with the operation and the tester takes a very small space only.
4. Its unique condensation system can be contented by tap water.
5. The heater is under the container rather than in the water, which is long life, easy to maintain.
6. The water level controller is outside the box, easy to monitor.
7. The machine has truckles, convenient to move.
8. Computer programming is convenient, automatically alarming when incorrect operated or faulted.
9. It has irradiance calibrator to extend the life of the lamp tube (more than 1600h).
10. It has Chinese and English instruction book, convenient to consult.
11. Divided into three types: common, light irradiance controlling, spraying
Model |
B-ZW | ||||
Internal Dim(DxWxH) |
50x75 | ||||
| External Dim(DxWxH) | 58x128x135 | ||||
| power(kw) | 4KW/3.2kW | ||||
| performance index | Temperature range | RT+10℃-70℃ | |||
| Humidity range | ≥95%R.H | ||||
| Distance between tubes | 35mm | ||||
| Distance between sample and tube | 50mm | ||||
| ultraviolet wavelength | 290nm-400nm UV-A,UV-B,UV-C | ||||
| Lamp wattage | 40W | ||||
| safety protection | Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory | ||||
