| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO |
| Model Number: | B-TH-225 |
| Minimum Order Quantity: | 1 |
| Price: | 3000$ |
| Packaging Details: | Carton |
| Delivery Time: | 5-15 workdays |
| Payment Terms: | T/T, D/P |
| Voltage: | 220V/50Hz | Humidity Range: | 10% To 98% RH |
|---|---|---|---|
| Temperature Falling Time: | ≤30min | Inner Size: | 600*600*600mm |
| Temperature Fluctuation: | ≤0.5℃ | Temperature Uniformity: | ≤2.0℃ |
| Outer Size: | 1000*1000*1700mm | Humidity Rising Time: | ≤60min |
| High Light: | Benchtop Climatic Test Chamber,600*600*600mm Climatic Test Chamber |
||

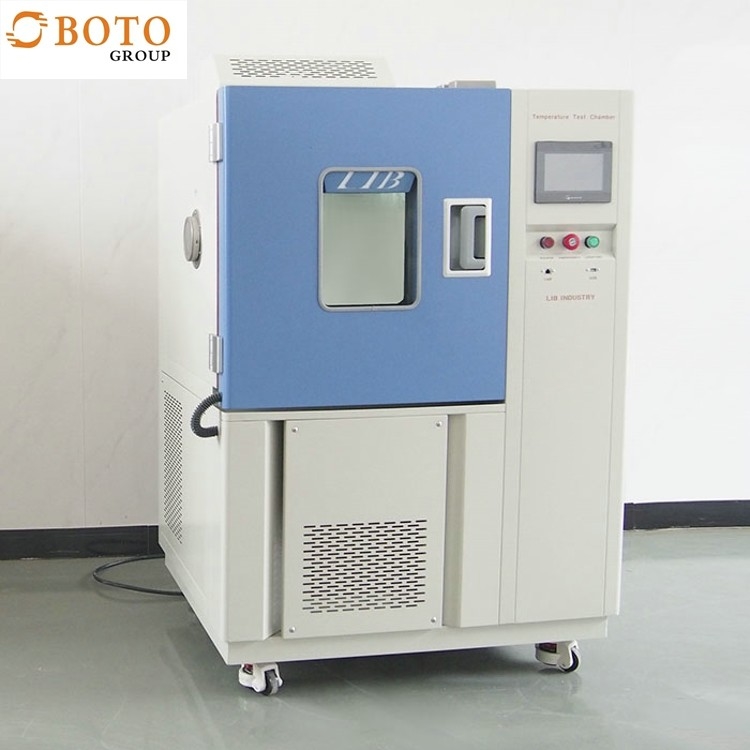

Climatic Test Chamber is a benchtop environmental test chamber designed for testing products to its damp heat performance. It can maintain a wide range of humidity from 10% to 98%RH and a temperature range from -40℃ to +150℃. It has a high humidity uniformity of ≤3.0%RH and a fast humidity falling time of ≤60min. This test chamber is powered by 220V/50Hz voltage and offers reliable and accurate testing results. It is ideal for damp heat testing, thermal shock testing, high and low temperature testing, and other related tests. This test chamber is equipped with advanced technology and features to ensure precise and reliable testing. It is easy to operate and provides excellent quality and performance. With its superior features and benefits, the Climatic Test Chamber is the perfect choice for any laboratory or industrial setting.
Specifications
| Model | BT-280 | BT-2150 | BT-2225 | BT-2408 | BT-2800 | |
|
Inner Size W×H×D(cm) |
40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | |
|
Outside Size W×H×D(cm) |
93×155×95 | 100×148×106 | 117×166×91 | 140×176×101 | 170×186×111 | |
| Volume (V) | 80 L | 150L | 225L | 408L | 800L | |
| Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|||||
| Function | Fluctuation | ±0.5°C ±2.5%RH | ||||
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |||||
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |||||
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |||||
| Refrigeration Way | Single stage compression refrigeration | |||||
| Refrigerator | French Tecumseh | |||||
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) | |||||
| Condensing Way | Air-cooled or water-cooled | |||||
| Water Supplying Way | Automatic cycling water supply | |||||
| Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |
|||||
| Feature | Specification |
|---|---|
| Product Name | Climatic Test Chamber |
| Voltage | 220V/50Hz |
| Humidity Range | 10% to 98% RH |
| Humidity Uniformity | ≤3.0% RH |
| Temperature Range | -40℃ to +150℃ |
| Humidity Falling Time | ≤60min |
| Inner Size | 600*600*600mm |
| Humidity Rising Time | ≤60min |
| Temperature Rising Time | ≤30min |
| Temperature Fluctuation | ≤0.5℃ |
| Benchtop Environmental Test Chamber | Yes |
| High And Low Temperature Test Chamber | Yes |
| Damp Heat Test Chamber | Yes |
BOTO B-TH-225 Climatic Test Chamber is designed for repetitive environmental testing of materials and components in a variety of industries. It can simulate different environmental conditions, such as temperature, humidity, air pressure, wind speed, etc., to test the performance of the material or component under different conditions. The features of this product include:
This Benchtop Environmental Test Chamber is widely used in electronics, automotive, aerospace, medical, and other industries. It is suitable for testing the performance of components such as semiconductors, capacitors, resistors, and integrated circuits under a variety of high and low temperature conditions. It can also be used to test the environmental resistance of materials, such as insulation materials, corrosion-resistant materials, etc.
BOTO B-TH-225 Climatic Test Chamber is a reliable and accurate tool for simulating temperature and humidity test conditions. It is made of high-quality stainless steel and other materials, which ensures its durability and strength. It is easy to operate with a large LCD display and intuitive user interface.
Brand Name: BOTO
Model Number: B-TH-225
Place of Origin: China
Damp Heat Test Chamber:Temperature Falling Time: ≤30min, Humidity Fluctuation: ≤2.0%RH, Temperature Range: -40℃ To +150℃, Voltage: 220V/50Hz, Humidity Rising Time: ≤60min
High Altitude Test Chamber:Temperature Falling Time: ≤30min, Humidity Fluctuation: ≤2.0%RH, Temperature Range: -40℃ To +150℃, Voltage: 220V/50Hz, Humidity Rising Time: ≤60min
Damp Heat Test Chamber:Temperature Falling Time: ≤30min, Humidity Fluctuation: ≤2.0%RH, Temperature Range: -40℃ To +150℃, Voltage: 220V/50Hz, Humidity Rising Time: ≤60min
Temperature Humidity Test Chamber:Temperature Falling Time: ≤30min, Humidity Fluctuation: ≤2.0%RH, Temperature Range: -40℃ To +150℃, Voltage: 220V/50Hz, Humidity Rising Time: ≤60min
Our experienced team of engineers and technicians provide technical support and service for Climatic Test Chambers to ensure your product performs optimally.
We provide regular maintenance and repair services for your Climatic Test Chamber. This includes:
We offer a range of customer support services to ensure that your Climatic Test Chamber is running smoothly and meets the highest standards. This includes:
The packaging and shipping of Climatic Test Chamber should be handled with care. The following items should be taken into consideration when packing and shipping the product:
A1: The brand name of the Climatic Test Chamber is BOTO.
A2: The model number of the Climatic Test Chamber is B-TH-225.
A3: The Climatic Test Chamber is made in China.
A4: The Climatic Test Chamber features a wide temperature range, superior temperature uniformity, and accurate temperature and humidity control.
A5: The Climatic Test Chamber is mainly used for environmental stress testing, reliability testing and accelerated aging testing.
