| Place of Origin: | China |
|---|---|
| Brand Name: | High and low temperature chamber |
| Certification: | ISO |
| Model Number: | B-TH-120 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Carton |
| Delivery Time: | 5-15 workdays |
| Accessories: | Data Logger, Chart Recorder, Humidity Generator, Etc. | Humidity Range: | 10% To 98% RH |
|---|---|---|---|
| Power(KW): | 2~6.5KW | Certifications: | UL, CE, RoHS, Etc. |
| Chamber Construction: | Stainless Steel | Temperature Uniformity: | ±1°C |
| Chamber Dimensions: | Customizable | Product Name: | Environmental Test Chambers |
| High Light: | 6.5KW Constant Climate Chamber,Stainless Steel Benchtop Environmental Chamber,Humidity Accuracy Environmental Test Chambers |
||

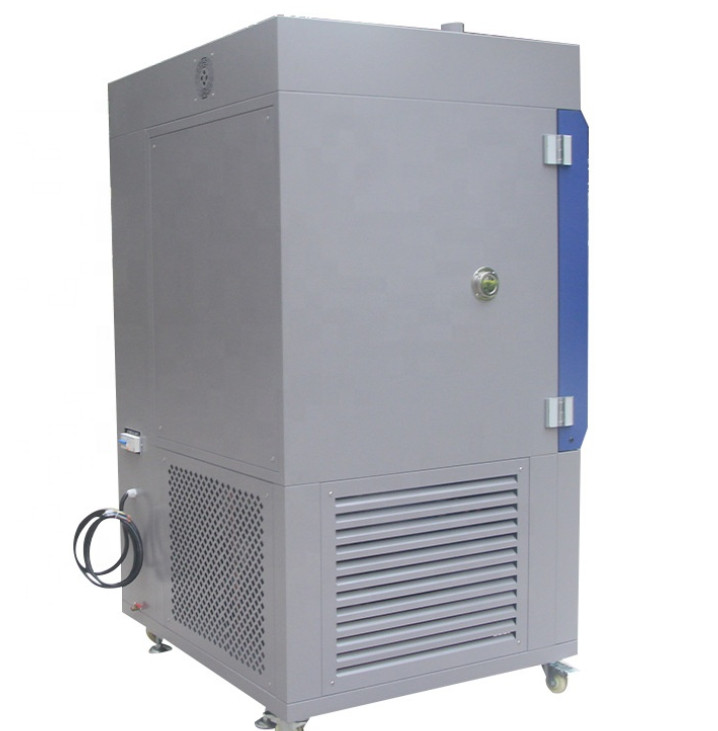

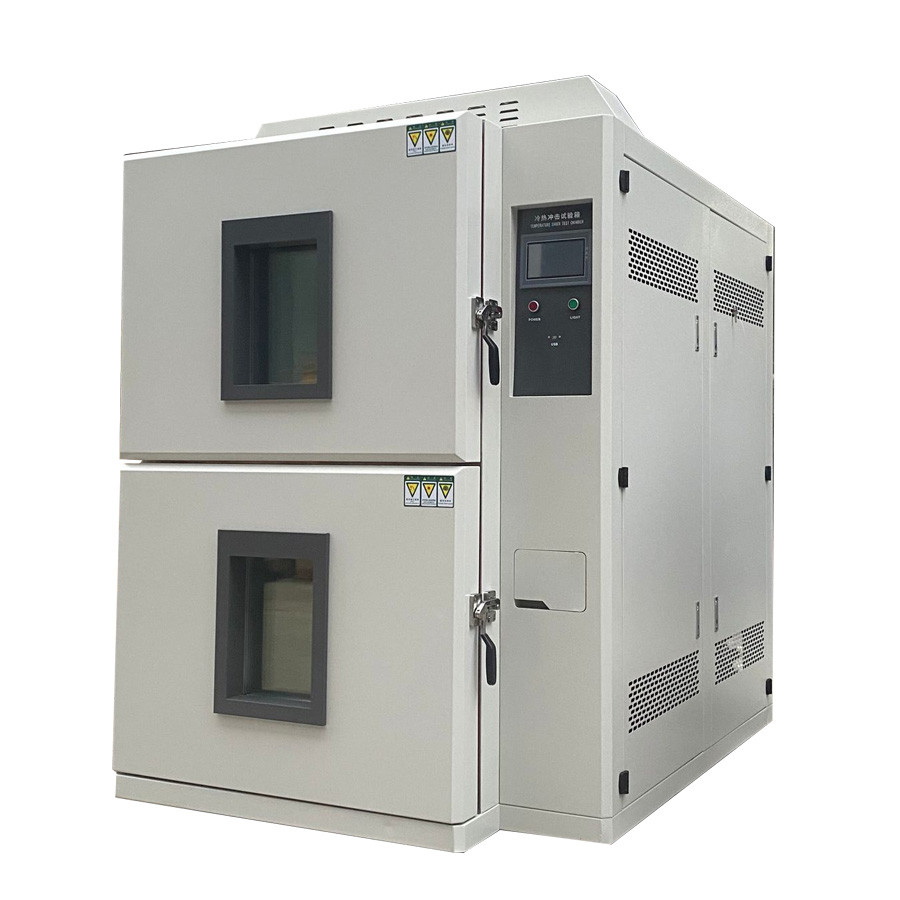

Environmental Test Chambers are designed to simulate a wide range of environmental conditions including temperature, humidity, and other parameters. B-T-225L Environmental Test Chamber offers temperature range from -70℃ to +150℃, Power 2~6.5KW, Chamber Volume 1.0 To 1000.0 Cu. Ft., humidity range from 20%-98% RH and Chamber Construction Stainless Steel that can be adjusted as per the user’s requirement. The external dimensions of this chamber are 75x189x110. It is used to test the temperature and humidity effects on products in order to ensure product reliability.
| Parameter | Specification |
|---|---|
| Power Source | AC:220V/380V 50Hz/60Hz |
| Power(KW) | 2~6.5KW |
| Relative Humidity | 20%-98% |
| Relative Humidity Uniformity | ±3% RH |
| Certifications | UL, CE, RoHS, Etc. |
| External Dimensions | 75x189x110 |
| Temperature Uniformity | ±1°C |
| Chamber Dimensions | Customizable |
| Control System | Programmable |
| Temperature Accuracy | ±0.5°C |
| Temperature Range | -70C To +150°C |

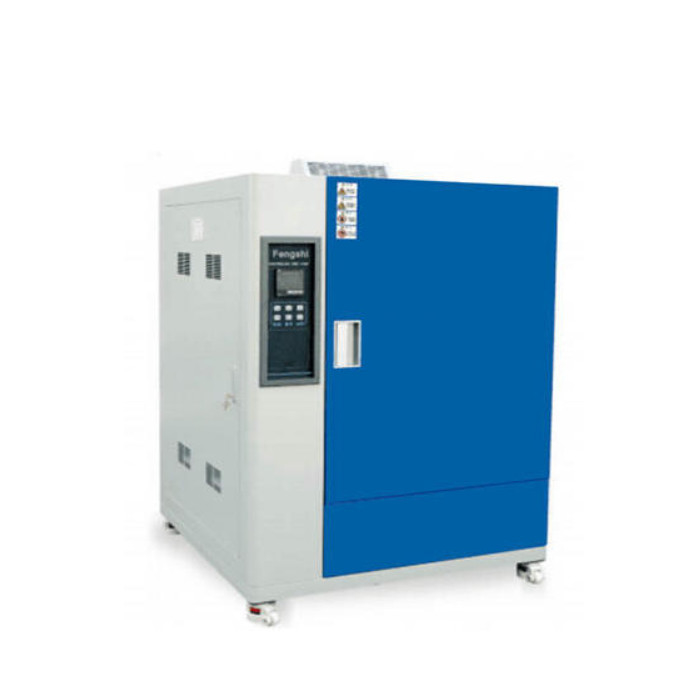

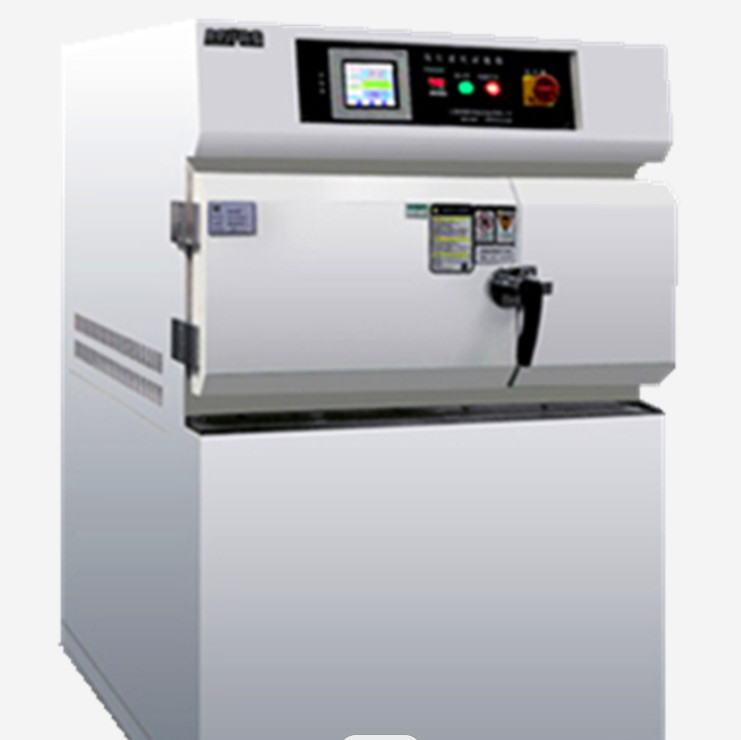

High and low temperature chamber, model B-TH-120, is a high-performance and reliable testing instrument, developed and manufactured by our company in China. It provides a temperature range from -70℃ to 150℃, with excellent stability and uniformity, and features a 45x60x45 internal dim. Moreover, the model is equipped with a programmable control system and has obtained certifications from UL, CE, RoHS, etc. The humidity accuracy and uniformity are both ±2.5% RH and ±3% RH respectively, making it an ideal choice for environmental testing.
Environmental Test Chambers are packaged and shipped in a secure manner to ensure safe arrival at the customer’s destination. Depending on the size, the product is wrapped in either a cardboard box or a wooden crate. The crates are then placed on a pallet for easy maneuverability. All crates are lined with foam and plastic for extra protection. Finally, the pallets are shrink-wrapped and secured for transport.
