| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO900 |
| Model Number: | B-T-48L(A-D) |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Plywood wooden case |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/month |
| Interior Material: | SUS#304 Stainless Steel | Inner Chamber Material: | SUS304# Stainless Steel |
|---|---|---|---|
| Oem Orde: | Acceptable | Pressure Range: | Constant Pressure ～1kPa |
| Temperature Resolution: | 0.1°C | Test Temp Range: | -60~+150°C（100°C） |
| Safety Protection: | Over-temperature Protection, Water Shortage Protection, Over-current Protection | Application: | Double Door |
| Temperature Accuracy: | ±0.5°C | Controller: | LCD Touch Screen Controller |
| Material: | SUS304 Stainless Steel | Outer Material: | Cold-rolled Steel Plate With Powder Coating |

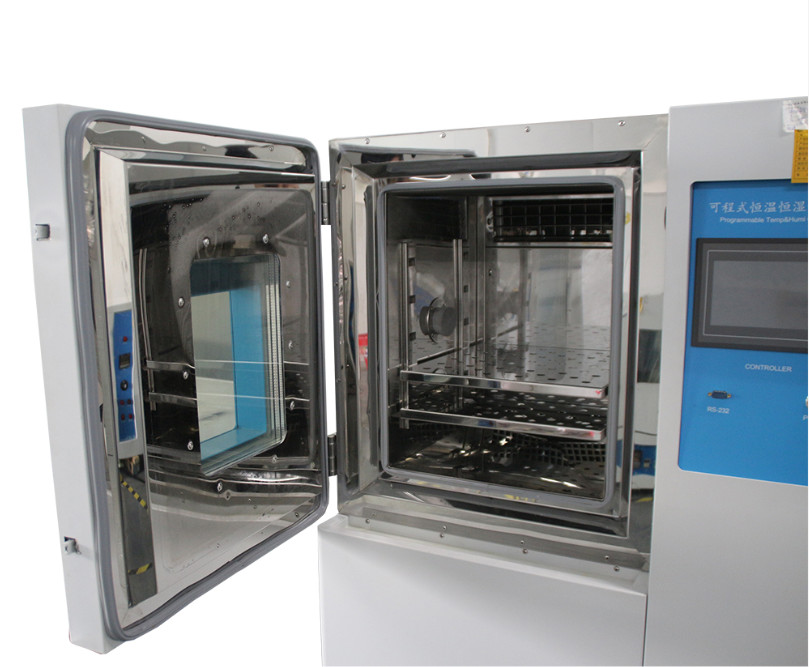

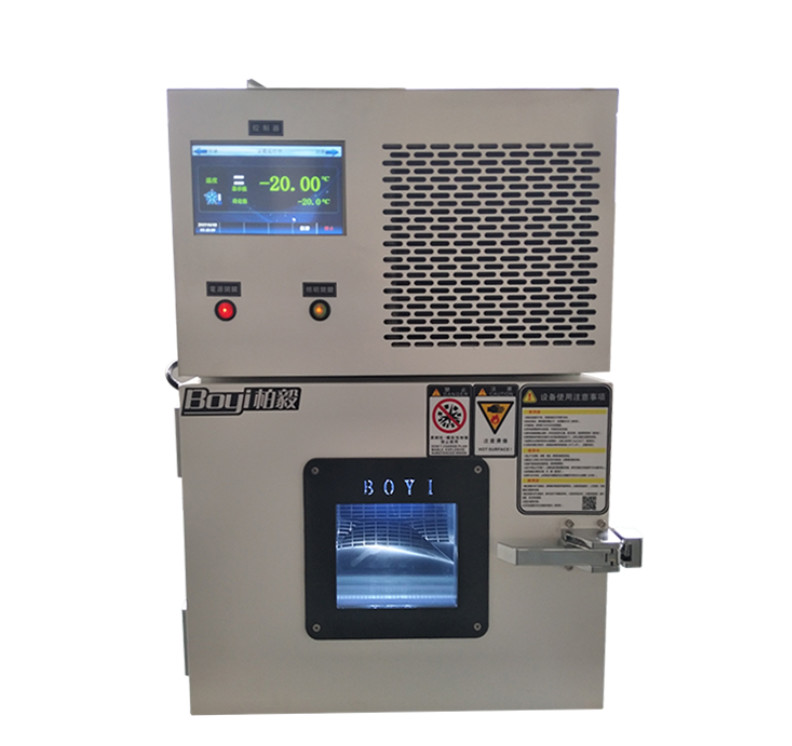

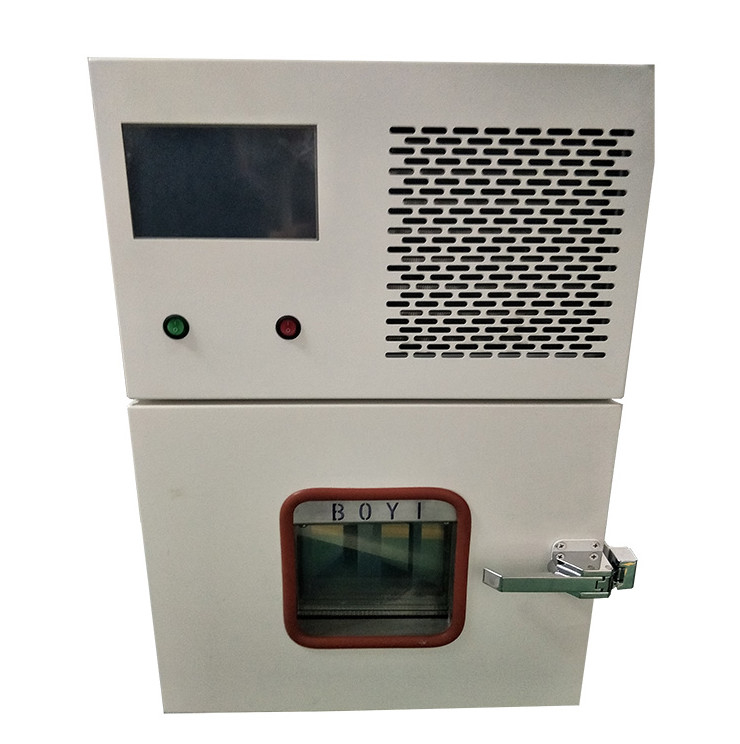

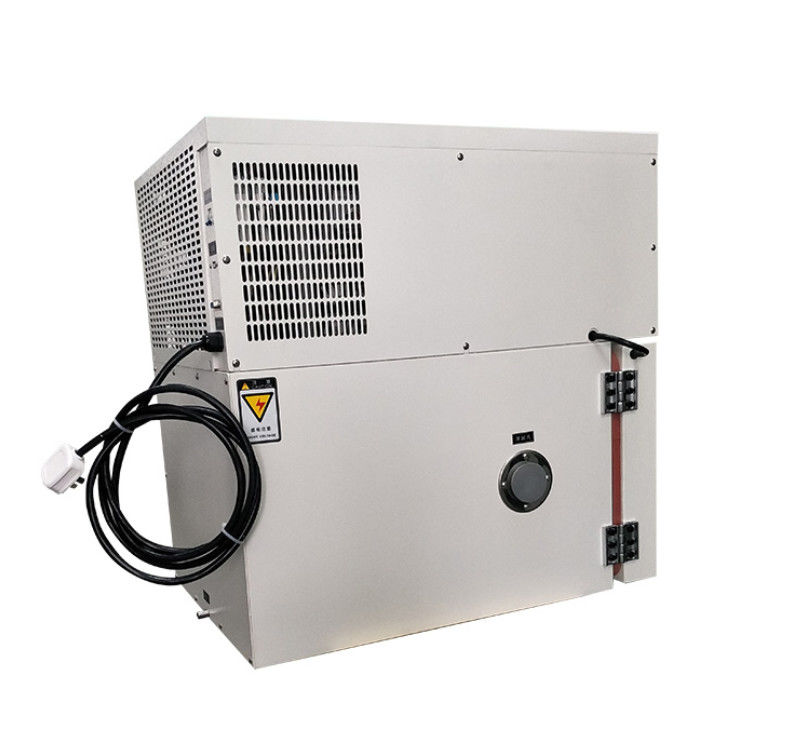

Small high and low temperature test chamber
1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.
2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green environmental protection.
3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety of tests at the same time.
4. Both sides are equipped with side tests. Holes, easy to operate.
5. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Design Standard: GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Uses:
This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Character:
1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Features:
1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.
2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green environmental protection.
3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety of tests at the same time.
4. Both sides are equipped with side tests. Holes, easy to operate.
5. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
| Model | B-T-48L(A-D) | B-T-107(A-D) |
| Inner box volume | 48L | |
| Inner box size | 40x40x30cm | 30.5X23X29cm |
| external dimension size | 60x80x107cm | 53X68X72cm |
| Temperature range |
-60~+150°C(100°C) (A:0°C B:-20°C C:-40°C D:-60°C) |
-40(-60°C)~+130°C(100°C) (A:0°C B:-20°C C:-40°C D:-60°C) |
| Humidity range | 20$-98%RH | |
| Temperature rise rate | 3°C/min | |
| Cooling rate | 0.7-1°C/min | |
| Temperature deviation | ±1°C | |
| Temperature fluctuation | ±0.5°C | |
| Temperature uniformity | ±1°C | |
Advantages:
We have professional packing teams and shipping forwarder to pack and deliver your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
FAQ:
Are your company a trading one or a factory ?
Factory + trade (integration),17 years focusing on test instruments field,11 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
