| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO900 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiable |
| Packaging Details: | Plywood wooden case |
| Delivery Time: | 10-15work days |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets/month |
| Exterior: | Coating Or SUS#304 Stainless Steel Plate | Temp Range: | -70~150℃ |
|---|---|---|---|
| Inner Box Size: | 40cm*40cm*30cm | Interior: | SUS#304Stainless Steel Plate |
| Exterior Material: | Baked Painting Steel | Oem Orde: | Acceptable |
| Relative Humidity: | 20%~98%RH | Touch Controller: | Programmable |
| Temperature Rise Rate: | 3°C/min | Humidity: | Optional |
| Control Interface: | LCD Touch Screen Display | Inside Material: | Stainless Steel SUS 304 # |

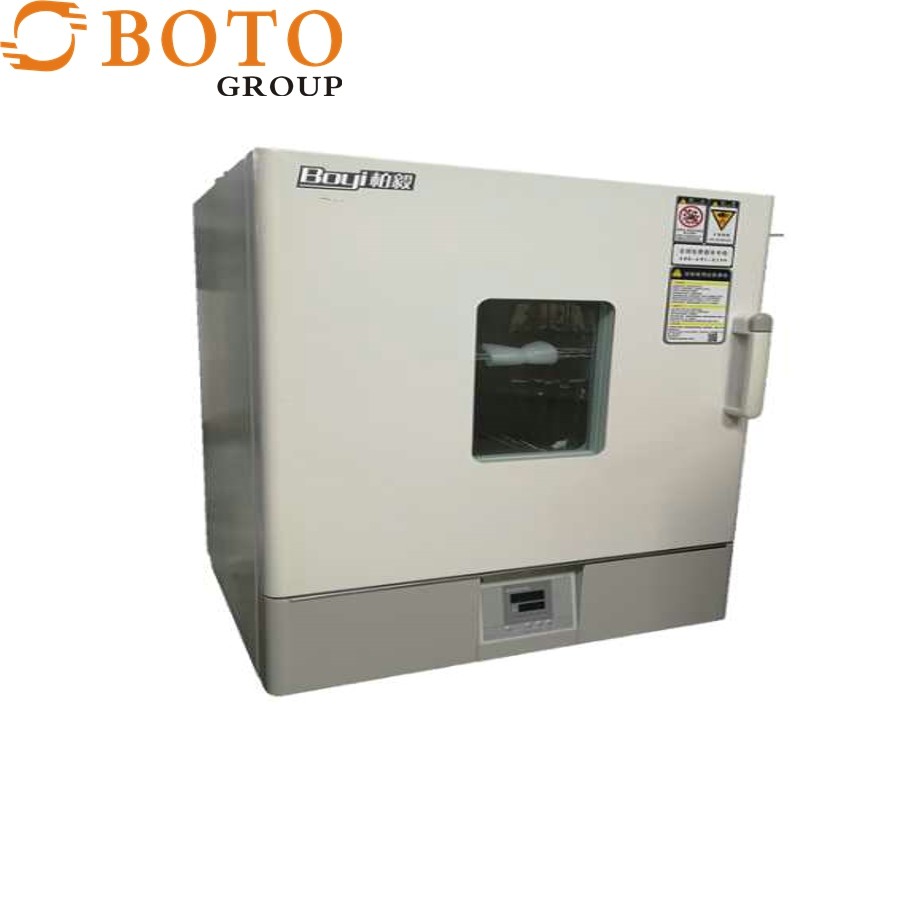

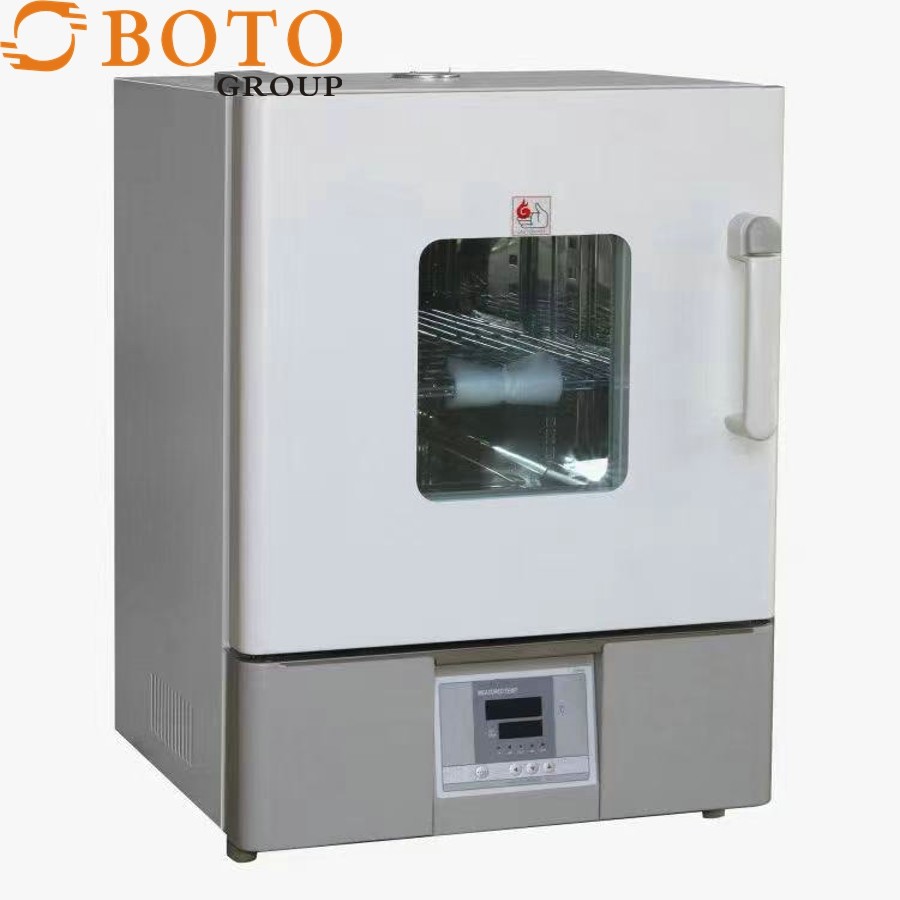

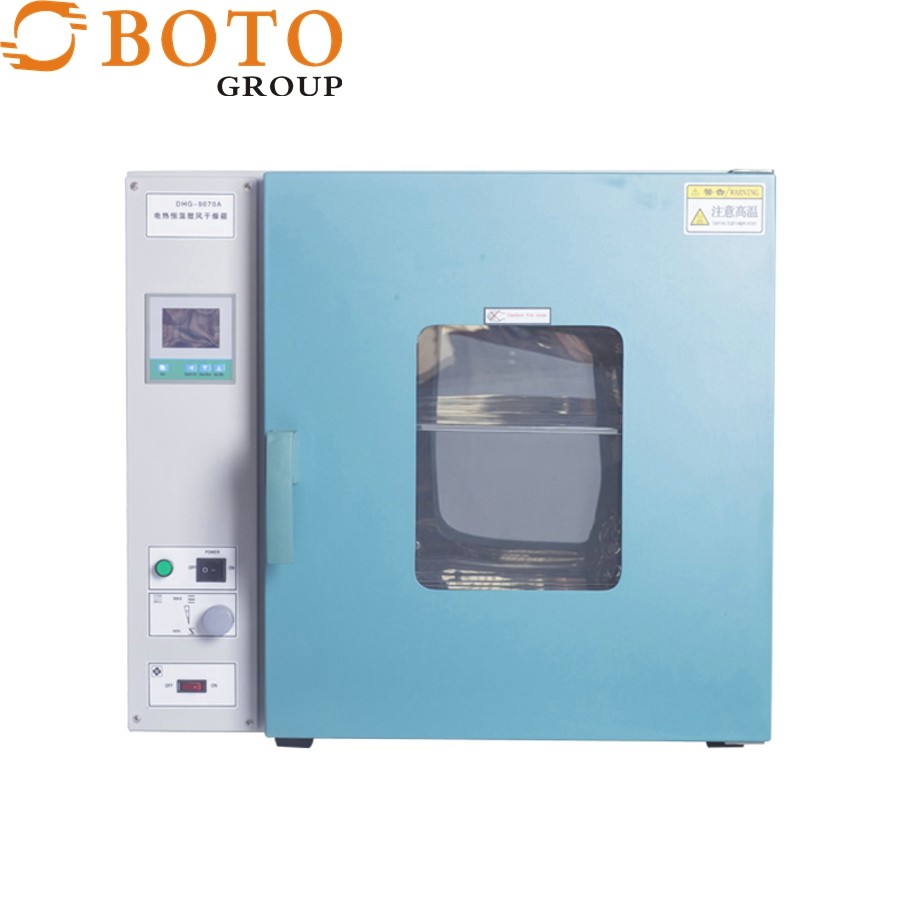

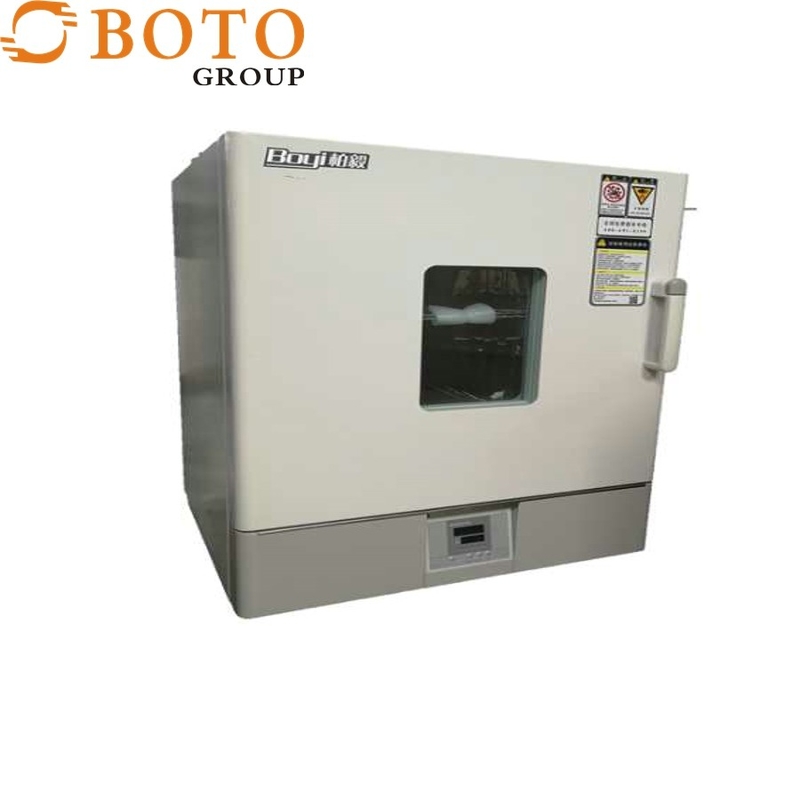

High temperature chamber
Product Description
4.It can show the cause of the failure and remove it easily.
5.Super-silent design, effectively reduce the noise of equipment operation.
6.Multiple safety protection, refrigerant high-voltage protection, compressor overload protection, current overload protection, over-temperature protection, leakage protection. It can ensure the safety of samples and more effective protection of equipment components overload operation, greatly reduce the incidence of equipment failure, and make the operation of equipment more stable and reliable.
Equipment summary:
Our company focuses on development and production of constant temperature and humidity testing machine, The machine specifically testing the materials in resistance of heat, cold, dry and moisture. Constant temperature and humidity testing machine is small size and not take up space.
Features:
1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.
2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green environmental protection.
3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety of tests at the same time.
4. Both sides are equipped with side tests. Holes, easy to operate.
5. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Corresponding standard:
1 GB11158 high-temperature technical condition.
2 GB10589-89 low-temperature technical condition
3 GB10592-89 high-low-temperature technical condition
4 GB/T10586-89 humidity technical condition
5 GB/T2423.1-2001 low-temperature testing method
6 GB/T2423.2-2001 high-temperature testing method
7 GB/T2423.3-93 humidity and heat testing method
8 GB/T2423.4-93 method of humidity and heat alternating
9 GB/T2423.22-2001 temperature testing method
10 IEC60068-2-1.1990 low-temperature testing method
11 IEC60068-2-2.1974 high-temperature testing method
12 GJB150.3 high-temperature test
13 GJB150.4 low-temperature test
14 GJB150.9 humidity test
Equipment Characteristics:
1 perfect design: the arc shape and surface coating processing, high body appearance, and USES the
plane has no reaction, easy to operate, safe and reliable.
2 bright, large observation window: three layers of vacuum window energy-saving fluorescent
lamps, window without wiper mist, keep clear observation of the effect of the sample to observe the
situation.
3 humidification system pipeline and control circuit separation: humidification system pipeline and power
supply, controller, PCB separation, avoid affected circuit by pipeline leakage, improve security.
4 advanced refrigeration and control system: closed compressor imported from Europe and US, import
environmental protection refrigerant, the world famous brand refrigeration devices, original installation
import LCD touch screen controller, friendly interface, easy operation.
Product details
| Inner box volume | 48L |
| Inner box size | 40cm*40cm*30cm |
| Temperature range | -60~+150°C |
| Temperature rise rate | 3°C/min |
| Cooling rate | 0.7-1°C/min |
| Temperature deviation | ±1°C |
| Temperature fluctuation | ±0.5°C |
| Temperature uniformity | ±1°C |
Our Services
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.
Onsite Service:
1. Device installation;
2. Equipment Operation Test Technology training;
3. Equipment Calibration;
4. Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;
2. Mail Seamless Docking;
3. Video Conferencing;
4. Artificial free door-to-door service
