It is mainly used to test the physical and other related properties of electrical, electronic products, components, parts, metal materials and their magnetic materials under the simulated climate conditions of high temperature, high temperature, high humidity and pressure, judge whether the performance of products can meet the requirements through verification, and provide help for the design, improvement, verification and delivery inspection of products.

Material:

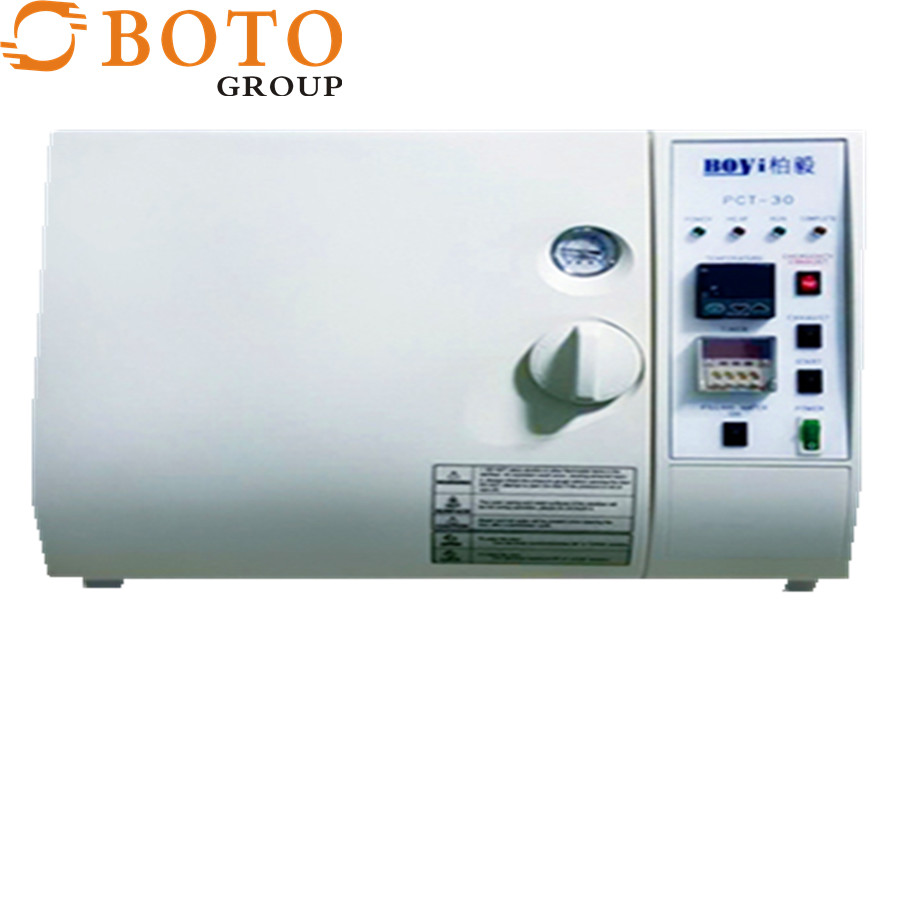

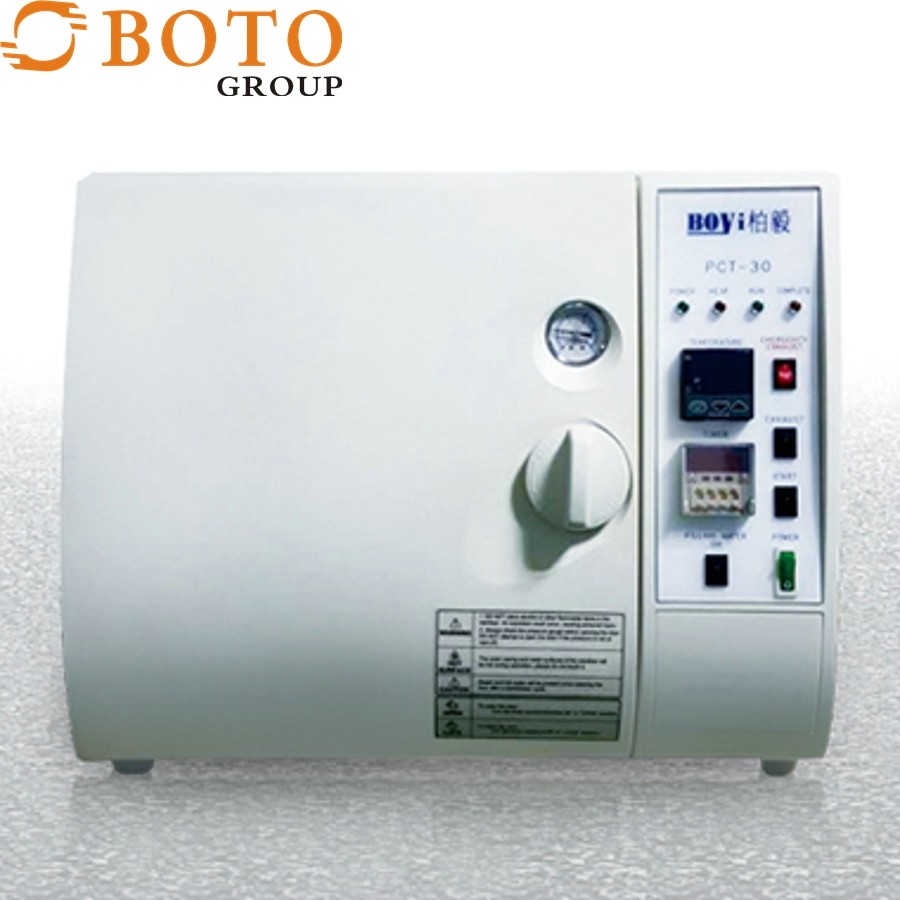

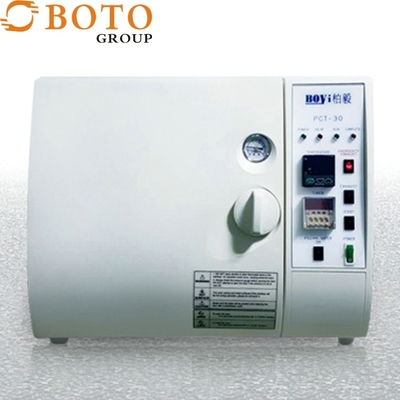

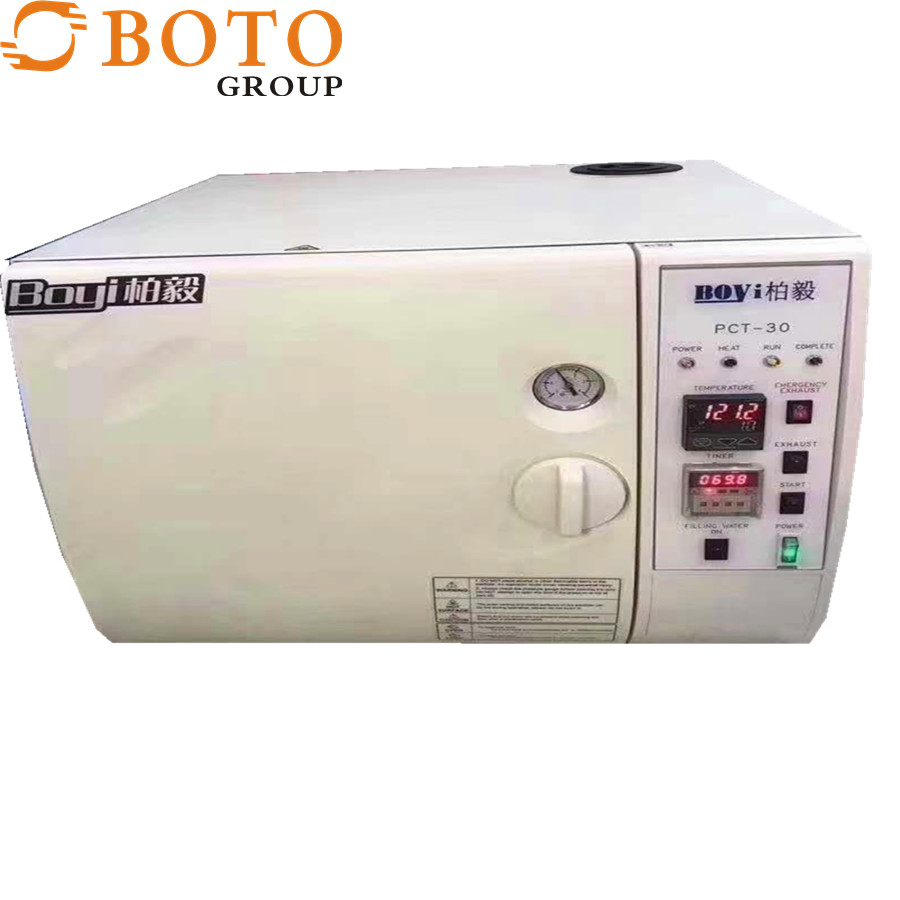

1.1Test box size: PCT-30 (300x L500 mm), round test box
1.2 Overall dimensions: 900x 900 x 1600 mm (W * D * H)
1.3 Inner barrel material: stainless steel plate (SUS # 316 3 mm) or plastic spray
1.4 Outer barrel material: stainless steel plate material
1.5 Insulation material: rock wool and rigid polyurethane foam insulation
1.6 Steam heating chamber heating tube: titanium tube heating, never rust.
1.7 Control system:
a. Use touch controller to control test temperature, time and information query and data export.
b. Use the pointer to display the pressure gauge.
c. Microcomputer P.I.D automatic calculation to control the temperature of saturated steam.
d. Manual water inlet valve (automatic water supply function, continuous test without stopping). Inquiry.
1.8 Mechanical structure:
a. Round inner box, stainless steel round test inner box structure, in line with industrial safety container standards, can prevent dew dripping during the test.
b.The circular web lining and stainless steel circular web lining design can avoid the latent heat of steam directly impacting the test product.
c. Precision design, good air tightness, low water consumption, continuous 400Hrs operation with each water addition.
d. The patented packing design makes the door and the box more closely integrated, which is completely different from the traditional squeeze type, which can extend the packing life.
e.Critical point LIMIT mode automatic safety protection, abnormal cause and fault indicator display.

1.9 Security protection:
a. The imported high temperature resistant sealed solenoid valve adopts a double circuit structure to ensure no pressure leakage.
b. The whole machine is equipped with multiple pressure protection devices such as over-pressure protection, over-temperature protection, one-button pressure relief, and manual pressure relief to ensure the user's use and safety to the greatest extent.
c. Back pressure door lock device, when there is pressure in the test chamber, the test chamber door cannot be opened

2.Main accessories table:
Thermostat: Touch controller
Test temperature record U disk export (standard configuration)
Computer online control (optional)
High temperature and high pressure water level device: Taiwan Hongyu
High temperature solenoid valve: German herion
Relay: Japan Omron
Pressure Gauge: China Red Flag
Over temperature protector: Korea AGO
S. S. R: Taiwan is famous
Temperature and humidity sensor: VAISALA, Netherlands
Heater: self-produced (all titanium tube)
Pressure safety device: self-produced (copper spring type)
High pressure clean water pump: (Germany) PUM
Hose: Nissan Aseptic
Cabinet material (inner barrel): SUS316
Outer box material: SUS304
Sealing ring: Silicone V-shaped mold
3.Other accessories
Test rack 1 set
Sample tray
4. Power supply system:
System power fluctuation must not be greater than ± 10
Power supply: single phase 220V 20A 50 / 60Hz
5.Environment & Facilities:
Allowable working environment temperature: 5 ℃ ~ 30 ℃
Experimental water: pure water or distilled water
6.With file:
System new warranty, warranty
Operation and Maintenance Manual

Features:
1. Adopting dual-circuit structure of imported high temperature-resistant solenoid valve, which reduces the failure rate to the greatest extent.
2. Independent steam generation chamber, avoid direct impact of steam on the product, so as not to cause partial damage to the product.
3. The labor-saving structure of the door lock solves the shortcomings of the disc-type handle of the first generation product which is difficult to lock.
4.Exhaust the cold air before the test; the design of the exhausted cold air (exhaust air in the test barrel) during the test improves the pressure stability and reproducibility.
5. Ultra-long-term experiment running time, long-term experiment machine running for 1000 hours.
6. Water level protection, detection and protection through water level sensor in the test room.
7.tank pressure resistance design, the pressure resistance of the cabinet (140 ℃) is 2.65kg, which meets the water pressure test of 6kg.
8. Two-stage pressure safety protection device adopts two-stage combination controller and mechanical pressure protection device.
9. Safety protection pressure release button, two-stage automatic pressure release button of emergency safety device
10. Full touch controller, support U disk export history
