BOTO Salt Fog Test Chamber Salt Spray Corrosion Tester Machine

Basic Information
Place of Origin: CHINA
Brand Name: BOTO
Certification: ISO\GB\GJB\ATSM
Model Number: BT-60
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: PLY-wooden case
Delivery Time: 18-25 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2100set/month
Model: BT-60 Cabinet Material: Corrosion-resistant Polymer Material
Power Source: AC:220V 50Hz PH Value: Saline Test Method:6.5~7.2/Corrosion Test Method:3.0~3.2
Saturated Air Barrel Temp(℃): Saline Test Method:47±1℃/Corrosion Test Method:63±1℃ External Dim(cm): 107x60x118
Internal Dim(cm): 60x45x40 Salt Spray Sedimentation Rate(ml/80cm2.h): 1~2ml/80cm2.h(Controllable)
Laboratory Temperature(℃): Saline Test Method:35±1℃/Corrosion Test Method:50±1℃ Saturated Air Pressure(kg/cm2): 0.8~2.0±0.01
High Light:

AC 220V Salt Fog Test Chamber

,

Salt Spray Corrosion Tester Machine

,

Anti Corrosion Salt Fog Test Chamber

Salt spray corrosion test chamber

Introduction:
Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.

Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
EIA - 364-59 ASTM B117

Product Features
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.
4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.

Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair



Packaging Dimensions: (WxDxH) 1610*1050*1400mm
Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight: 150kg
HS Code: 8479899990


Specifications:

Model BT-60 BT-90 BT-120 BT-160 BT-200
Inner size (cm) 60x45x40 90x60x50 120x100x50 160x100x50 200x100x50
External size(cm) 107x60x118 141x88x128 190x130x140 230x130x140 270x130x140
Inside temp Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method
(CASS)50°C±1°C
Brine temp 35°C±1°C 50°C±1°C
Test chamber volume 108L 270L 600L 800L 1000L
Brine chamber volume 15L 25L 40L 40L 40L
Compressed air pressure 1.00±0.01kgf/cm2
Spray volume 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average)
Test room relative humidity 85%RH or more
PH 6.5~7.2 3.0~3.2
Spray method
Programmable spray (including the continuous spray interrupted spray)
Power AC220V1Φ10A AC220V1Φ15A AC220V1Φ20A AC220V1Φ20A AC220V1Φ30A




Details&Pictures

A.The body material
1. The box body and inner liner are made of imported PVC high-strength corrosion-resistant plastic board, with smooth and smooth surface, aging resistance and corrosion resistance; Easy to clean, no leakage;

2. The box cover is made of imported PVC transparent plastic plate, which is easy to observe the test condition of the test samples during the test. The box cover and the box body are sealed with water, so as to prevent the leakage of salt spray.

3.The design of large salt water tank, to prevent the lack of salt water and interrupt the test;

4.Heating for tank heating and humidification, fast temperature rise, temperature and humidity distribution uniform;

B.Heating system

1.The test temperature in the box is water jacket heating and humidifying. The heater is made of U-shaped titanium alloy high-speed heating electric heating tube.
2.Fully independent system, does not affect the salt spray test and control circuit;
3.Temperature control output power are calculated by microcomputer, to achieve high precision and high efficiency of electricity benefits, low water level protection (prevent dry burning without water);

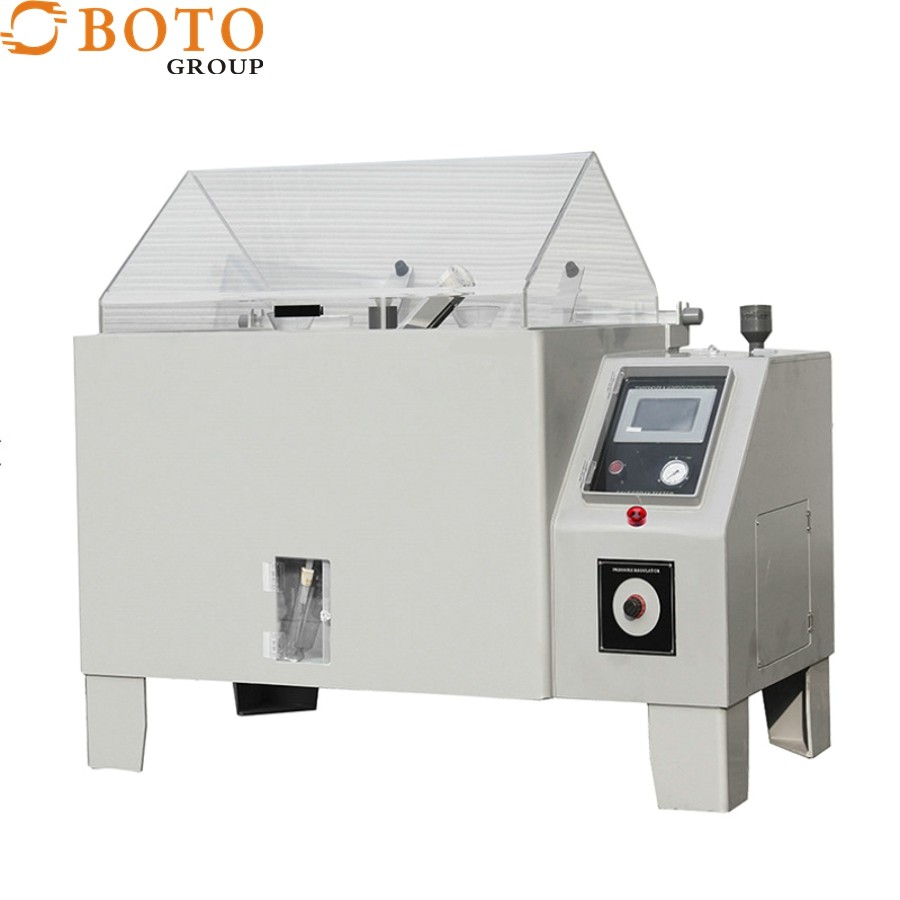

BOTO Salt Fog Test Chamber Salt Spray Corrosion Tester Machine 0

C.Spraying system

1.The spray adopts tower-type sprayer (the height of the spire can be adjusted), and four spray towers are placed in the box. Two salt spray towers and two water spray towers are crossed respectively.
2.Spray gas for two-stage pressure regulation, oil filtration, gas humidification preheating;
3.Atomized brine storage is built-in hidden type and storage capacity is large, brine is equipped with preheating function;
4.Quartz brine filter element is equipped before brine atomization to avoid the plug of impurities in the nozzle and stop the test;
5.All pipes in the test chamber are thickened fluorosilicone rubber pipes, which can be kept without aging and cracking in ten years.
6.Salt water tank with high and low water level display;

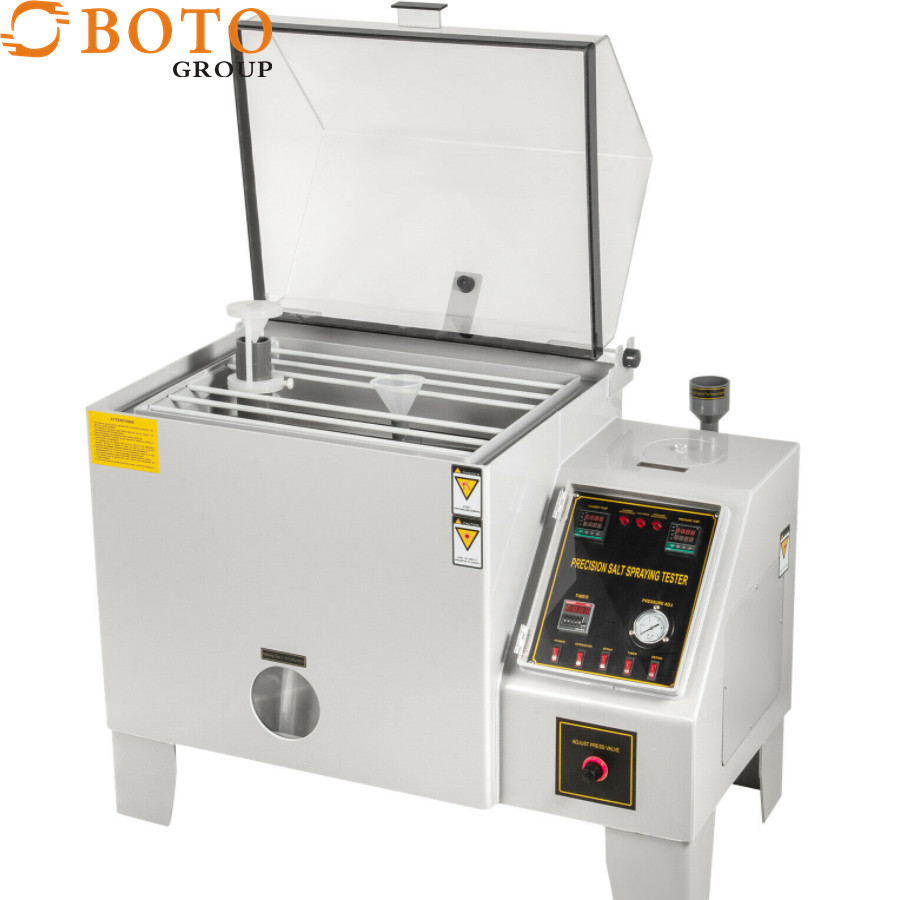

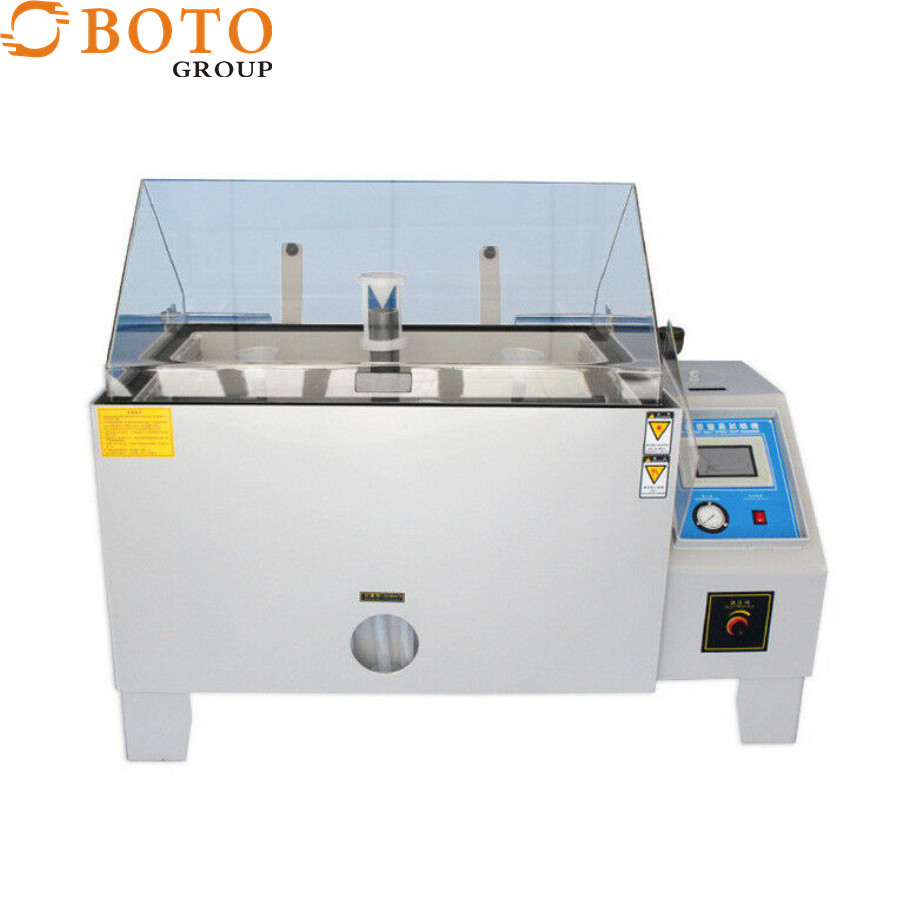

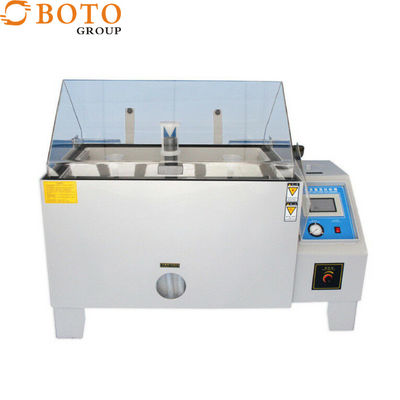

BOTO Salt Fog Test Chamber Salt Spray Corrosion Tester Machine 1BOTO Salt Fog Test Chamber Salt Spray Corrosion Tester Machine 2BOTO Salt Fog Test Chamber Salt Spray Corrosion Tester Machine 3

D.Control system

7-inch 260,000 color LCD hand touch screen.

1.7-inch TFT true color LED LCD touch screen interface
2.The program capacity can be up to 100 groups, each program can be freely linked to each other. Each program has multiple loop modes
3.24-bit high precision, full range of two decimal display, accurate, without correction
4.Support Chinese/English interface switching, support fixed value, program mode.
5.Support Chinese character input, input program name, and manufacturer information.

Different options



BOTO Salt Fog Test Chamber Salt Spray Corrosion Tester Machine 4



PACKAGE&DELIVERY

BOTO Salt Fog Test Chamber Salt Spray Corrosion Tester Machine 5



OUR CERTIFICATES



BOTO Salt Fog Test Chamber Salt Spray Corrosion Tester Machine 6



FAQ



Q1: How can i get a quotation?
A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!


Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .


Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.




Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
