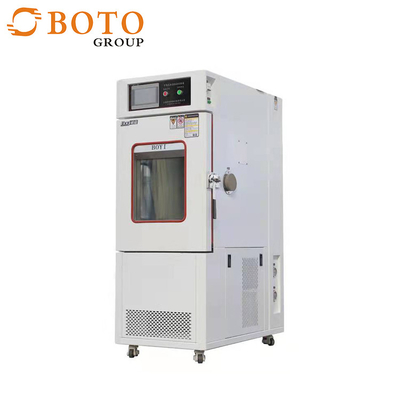

GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE certificate
Model Number: B-T-225(A~E)
Minimum Order Quantity: 1 Set
Price: Discussible
Packaging Details: Plastic+wooden case
Delivery Time: 5-15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 set/ Month
Temp Fluctudtiont: ±0.5℃ Relative Humidity: 20%~98%RH
Pull Down Time: About0.7~1℃/min Heat-up Time: About3~5℃/min
Power Source: 2.5KW~7KW Temp Uniformity: ±1.0℃
Temp&Humi.Deviation: ±1.0℃/±3.0℃RH Interior: SUS#304Stainless Steel Plate
High Light:

Full Automatic Poultry Egg Incubator

,

Chicken Bird Egg Hatchery Machine

,

2000W Poultry Egg Incubator

GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006



Product introduction

A temperature humidity test chamber is a piece of equipment used to simulate different environmental conditions such as temperature and humidity. It is commonly used in the manufacturing industry to test the durability and reliability of various products under different environmental conditions.

The chamber is designed to maintain a specific temperature and humidity level, which can be programmed and controlled by the user. The temperature and humidity can be set to different levels, depending on the requirements of the test.

The chamber typically consists of a sealed chamber, a temperature control system, and a humidity control system. The sealed chamber is made of a durable material such as stainless steel or aluminum and is insulated to prevent heat loss or gain.

The temperature control system consists of a heating and cooling system that maintains the desired temperature level within the chamber. The humidity control system consists of a humidifier and dehumidifier that maintain the desired humidity level.

Some temperature humidity test chambers also have additional features such as a programmable controller, data logging capabilities, and alarms to alert the user if the temperature or humidity levels deviate from the set parameters.

Features
High performance and quiet operation (65 dBa)
Space-saving footprint, designed for flush installation to wall
Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") diameter cable port on left, with flexible silicone plug(special requirement)
Three levels of overheat protection, plus overcool protection
Easy lift-off service panels, electrical access on left
Detachable eight-foot power cord with plug
Direct water supply connection for continuous operation (supply tank optional)
ETL listed electrical panel conforming to UL 508A

GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006 0GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006 1GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006 2



Standard
Test B: High temperature test method
GJB 150.3-1986 High temperature test
IEC68-2-2
Test B: dry heat. GB 11158 "High temperature test chamber technical conditions"
GB10586-1 "Humidity and heat test chamber technical conditions"
GB/T 2423.2 "Basic Environmental test procedures for Electrical and electronic products
Test B: high temperature test method".
GB/T 2423.3 "Basic environmental test procedures for Electrical and electronic products
Test Ca: Constant humid heat test method". Wait for...

The test standard to which the machine meets

ASTM F2825:Standard Specification for Climate Stress of Single-Package Shipping Packaging Systems
ASTM D6944:Standard Practice for Determining Thermal Cycling Resistance of Cured Coatings
ASTM D2126:Standard Test Method for Heat and Moisture Aging Response of Rigid Foams
MIL-STD-810G:High and low temperature testing part;Damp heat testing part
MIL-STD-202F: High and low temperature testing part;Damp heat testing part

Model:

(Model) dry heat B-T-120(A~E) B-T-225(A~E) B-T-504(A~E) B-T-1000(A~E)
damp and hot B-T-120(A~E) B-T-225(A~E) B-T-504(A~E) B-T-1000(A~E)
Internal Dim 45x60x45 60x75x50 70x90x80 100x100x100
External Dim(W*H*D) 75X189X110 90X177X130 100X180X103 130X190X123
Relative Humidity 20%~98%RH(10%~98%RH非标可选)
heat-up time About3~5℃/min
Pull down time About0.7~1℃/min
Temp Fluctudtiont ±0.5℃
Temp Uniformity ±1.0℃
Temp&Humi.Deviation ±1.0℃/±3.0℃RH
Interior SUS#304Stainless steel plate
Exterior Coating or SUS#304Stainless steel plate
Power Source AV:220V/380V 50/60Hz
power(KW) 2KW~6.5KW 2.5KW~7KW 3KW~8KW 4KW~10KW
Our company:
GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006 3
GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006 4
GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006 5
GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006 6
GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006 7
GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006 8
GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006 9

GB/T10586-2008 Temperature Humidity Test Chamber Programmable High temperature chamber GB/T10586-2006 10

FAQ

Q: What's the payment term?

A: T/T, L/C and other payment terms could be negotiated.

Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.

Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory

Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
