| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-XD-120 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Internal: | 40x35x35 | External Dim: | 107x145x68 |
|---|---|---|---|
| Model: | B-XD-120 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| High Light: | Environmental Xenon Arc Test Chamber,B-XD-120 Xenon Arc Test Chamber,Stainless Steel Xenon Lamp Aging Chamber |
||

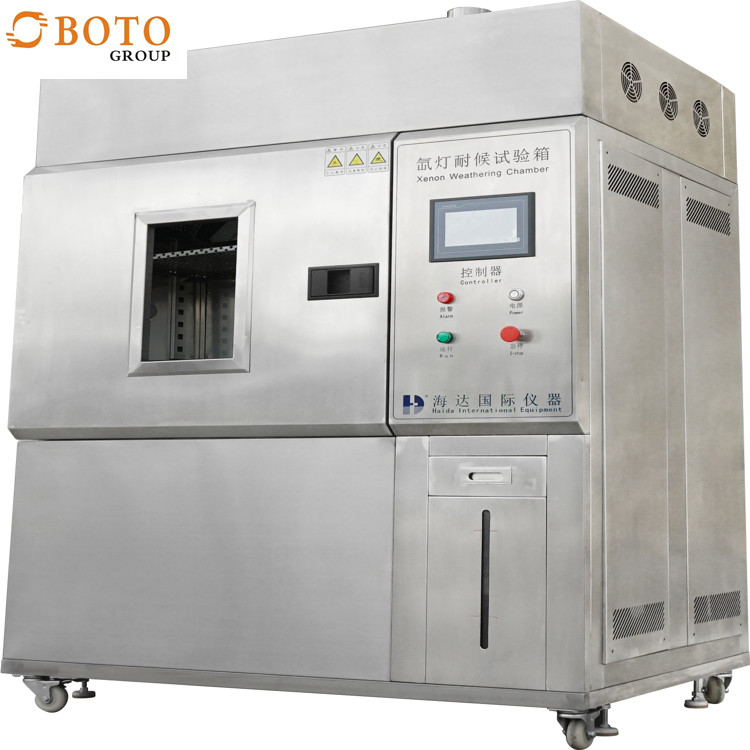

Xenon Lamp Aging Chamber Lab Instrument Xenon Arc Test Chamber DIN50021 B-XD-120
At the beginning of the last century, a xenon lamp aging test chamber appeared in the world. It is composed of a carbon arc lamp as a light source. The lamp tube is placed vertically in the center of the instrument, surrounded by a filtration system and a rotating sample rack. The test sample is mounted facing the light source and rotates around the center light like a conveyor belt. Since then, xenon lamp aging tests have been constantly improved, although the principle has not changed, but the performance and form have been fundamentally changed, nevertheless, no matter what type of test chamber, with control systems to control the intensity of light, temperature and relative humidity, xenon lamp test chamber is widely used to test the optical stability and aging resistance of materials and products.
Xenon arc lamp is used to simulate the full sunlight spectrum to reproduce the destructive light waves in different environments:
1. It can provide corresponding environmental simulation and accelerated test for scientific research, product development and quality control.
2. It can be used for selection of new materials, improvement of existing materials or change test to evaluate durability after changes in material composition.
3. It can well simulate the changes of materials exposed to sunlight under different environmental conditions.
4. If the test sample is not large or not much, it is recommended to use xenon lamp bench, can achieve the same effect.
It has the following performance characteristics:
1. Adopt full-spectrum xenon lamp luminescent tube;
2, a variety of filter system for choice;
3, rain spraying function;
4. Relative humidity control.
5, test chamber air temperature control system;
6. Sample fixer with irregular shape;
7. Cheap and fine xenon arc lamp tube.
8, xenon lamp aging test chamber has the characteristics of easy installation, convenient use and simple daily maintenance.
Model |
B-XD-120 | B-XD-225 | B-XD-408 | B-XD-800 | |
Internal Dim(W*H*D) |
45x60x45 | 50x75x60 | 60x85x80 | 100x100x80 | |
| External Dim(W*H*D) | 107x145x68 | 120x164x92 | 122x169x112 | 162x184x112 | |
| Temperature range | RT+10℃~70℃ | ||||
| Humidity range | 50%~90%RH | ||||
| Radiation intensity of xenon lamp | 550W/m² | ||||
| Spectral wavelength region | 290nm-800nm | ||||
| rainfall time | 0-9999／min | ||||
| Total power xenon lamp | 2KW/6KW | ||||
| type of cooling | forced air cooling／water-cooling | ||||
| Interior | SUS#304Stainless steel plate | ||||
| External material | Coating or SUS#304Stainless steel plate | ||||
Power Source |
AV:220V/380V 50/60Hz | ||||
Produce Making Details:
Packing/Shipping:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
