| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-TCT-402 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-TCT-402 | Internal: | 50x40x40 |
|---|---|---|---|
| External Dim: | 154x212x170 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| High Light: | B-TCT-402 Environmental Test Chambers,Three Box Type Environmental Control Chamber,Hot Cold Impact Test Chamber 50x40x40 |
||

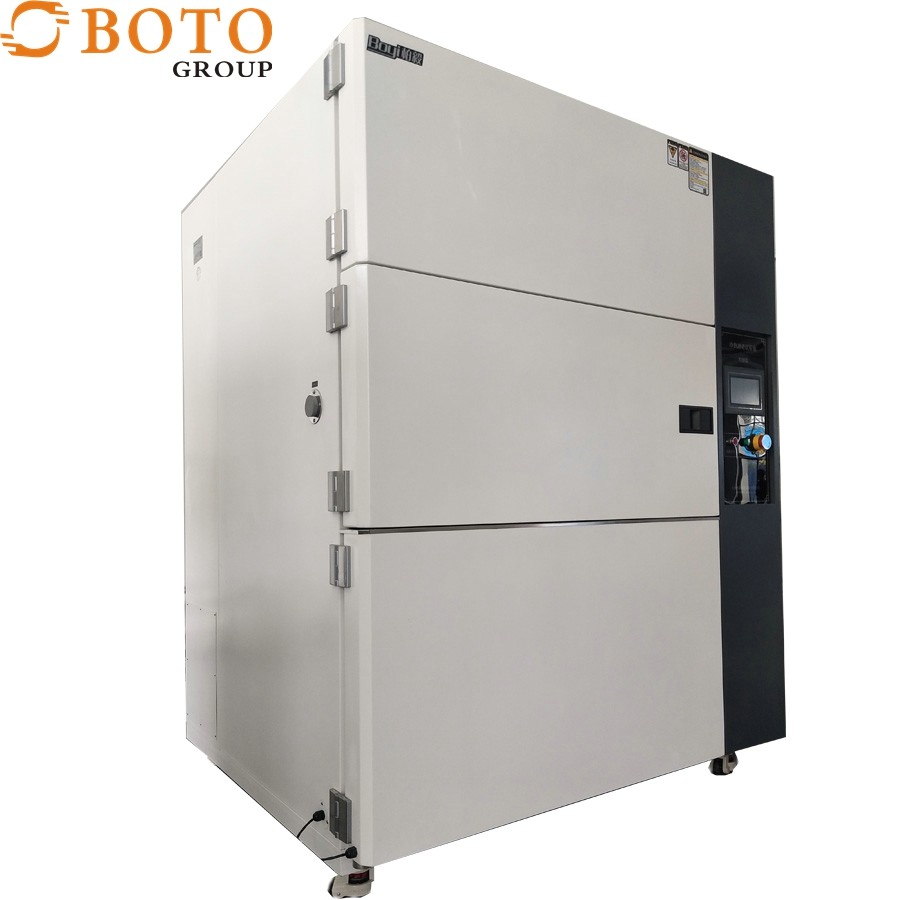

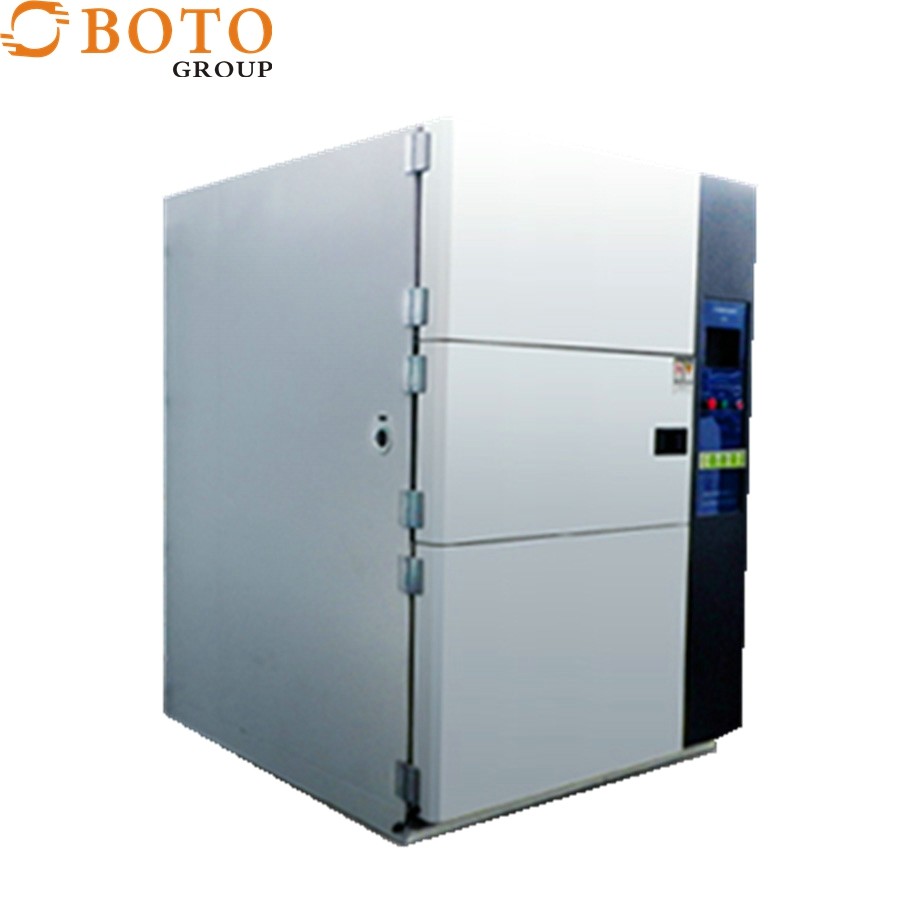

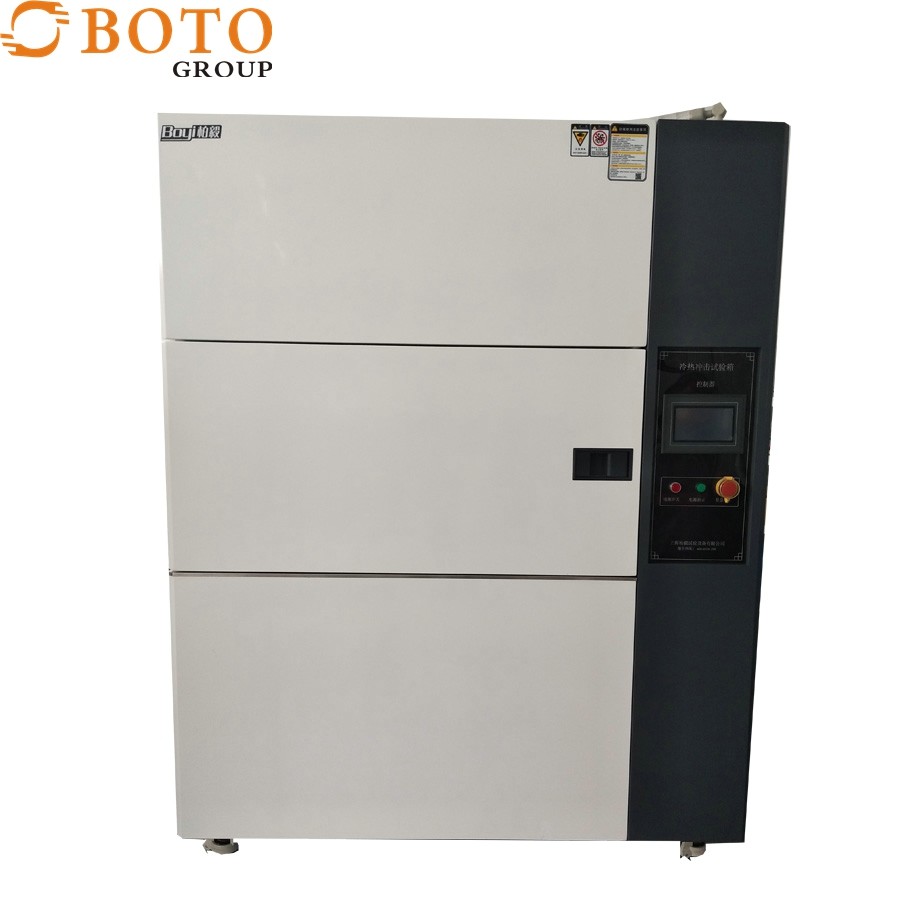

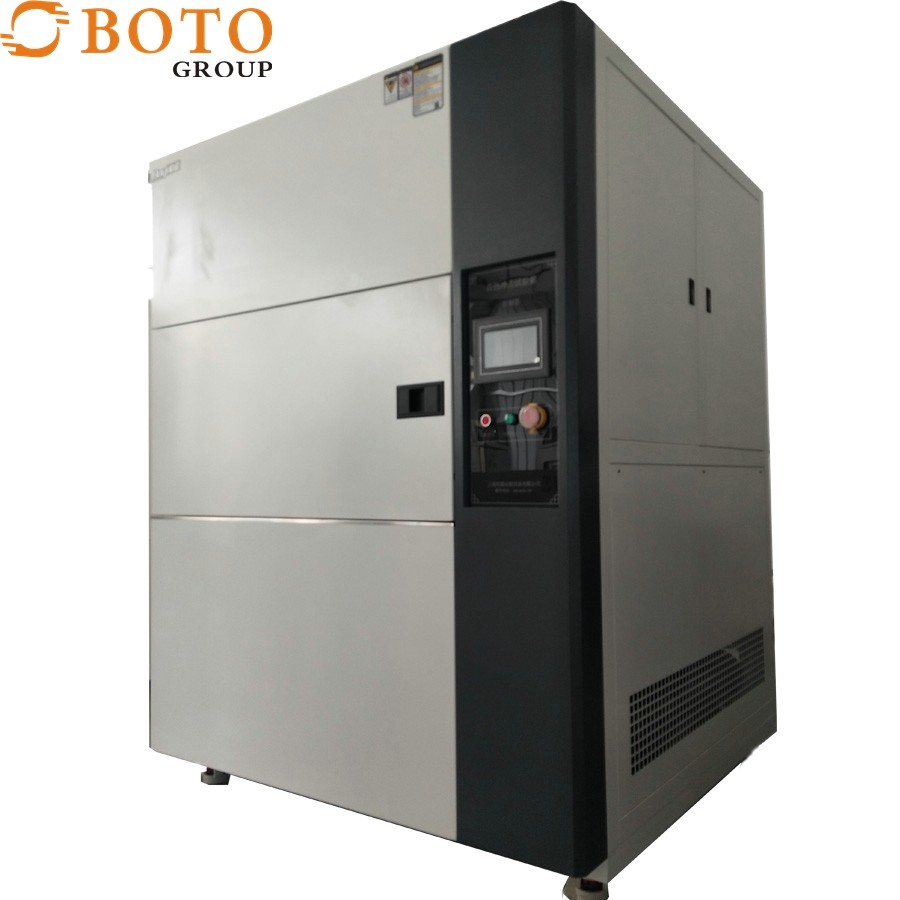

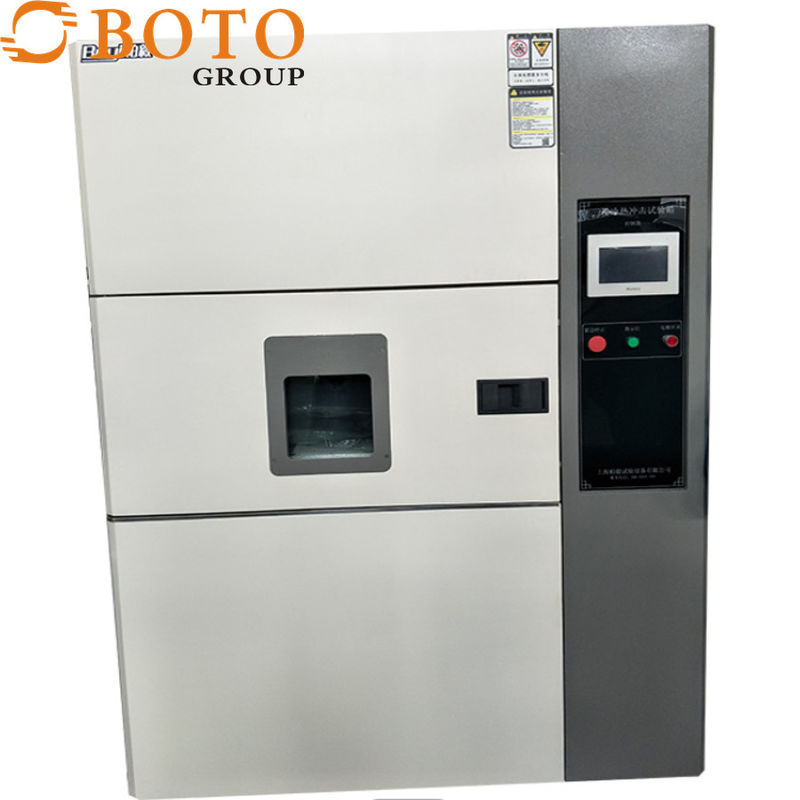

Three Box-Type Hot And Cold Impact Chamber GB10592-89-2001 B-TCT-402 50x40x40
Three-box cold and hot impact test chamber is designed and manufactured according to user requirements, suitable for aviation, aerospace, military, ship, electrical, electronic and other products and parts of the high and low temperature impact test and high temperature or low temperature environment storage and test.
It is applied to pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products etc; The test Data result which is very useful for scientific research, product development and quality control sector to help them produce high quality anlysis report.
The thermal shock test machine is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.
Thermal Shock Testing chamber features:
1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static
mode.

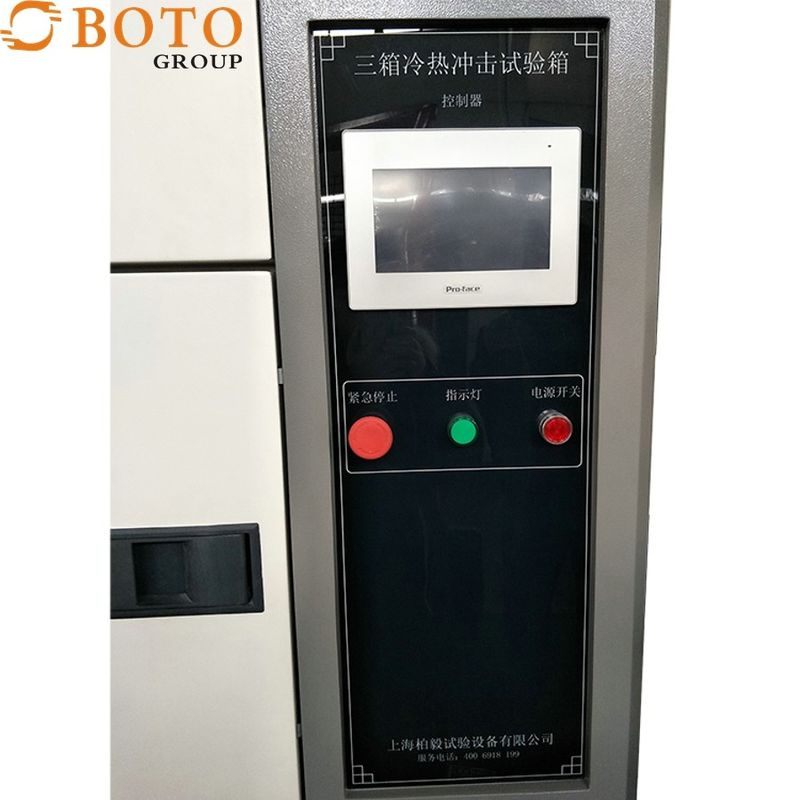

2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.
Test standards
1.GB/T2423.1-1989
2.GB/T2423.2-1989
3.GB/T2423.22-1989
4.GJB150.5-86
5.GJB360.7-87
6.GJB367.2-87 405
7.SJ/T10187-91Y73
8.SJ/T10186-91Y73
9.IEC68-2-14
10.GB/T 2424.13-2002
11.GB/T 2423.22-2002
12.QC/T17-92
13.EIA 364-32
| Model | B-TCT-401 | B-TCT-402 | B-TCT-403) | B-TCT-501 | B-TCT-502 | B-TCT-503 | B-TCT-601 | B-TCT-602 | B-TCT-603 | |
| Internal (CM) | 40x35x35 | 50x40x40 | 60x50x50 | 40x35x35 | 50x40x40 | 60x50x50 | 40x35x35 | 40x50x40 | 60x50x50 | |
| External Dim(CM) | 143x210x170 | 154x212x170 | 166x220x180 | 143x210x170 | 156x210x170 | 166x220x180 | 143x210x170 | 156x210x190 | 166x220x180 | |
| Low Temp Range | -10℃--60℃ | -10℃~-70℃ | -10℃--80℃ | |||||||
| Test Temp Rang | -40℃-150℃ | -55℃~150℃ | -65℃~150℃ | |||||||
| HighTemp | +80℃-200 ℃ lvarious specifications applicablel |
|||||||||
| Recovery time | 3 to 5 minutes | |||||||||
| Temp Fluctudtiont | ±2 ℃(various specifications applicable) | |||||||||
| Interior | SUS#304Stainless steel plate | |||||||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||||||
| Power Source | AV:380V 50/60Hz | |||||||||
| Power(KW) | 16KW | 19KW | 19KW | 19KW | 20.5KW | 22KW | 19KW | 26KW | 33KW | |
