| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-48L (A~D) |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-T-48L (A~D) | Power Source: | AV：220V/380V 50/60Hz |
|---|---|---|---|
| Internal Dim: | 40x40x30 | External Dim: | 60x80x107 |
| Power: | 1.5KW~2.5KW | Relative Humidity: | -60℃~150℃(100℃) |
| Relative Humidity Range: | 20%~98%RH | Heat-up Time: | About3℃/min |
| Temp Deviation: | ±1.0℃ | Temp Fluctudtiont: | ±0.5℃ |

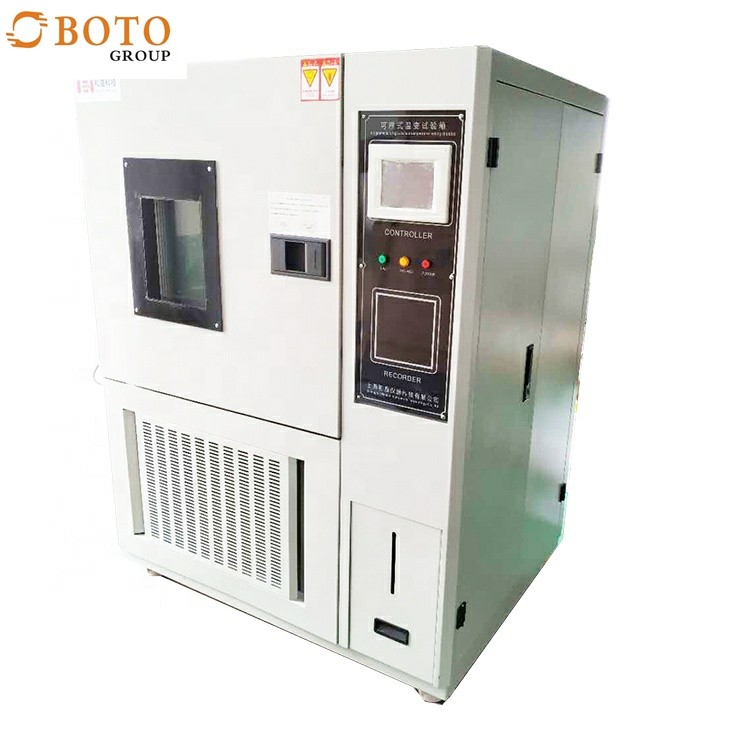

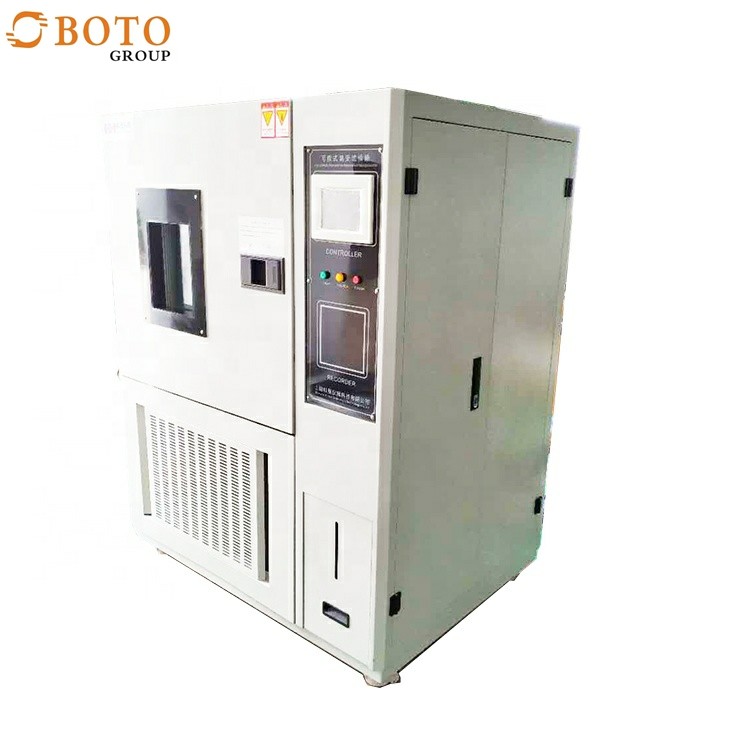

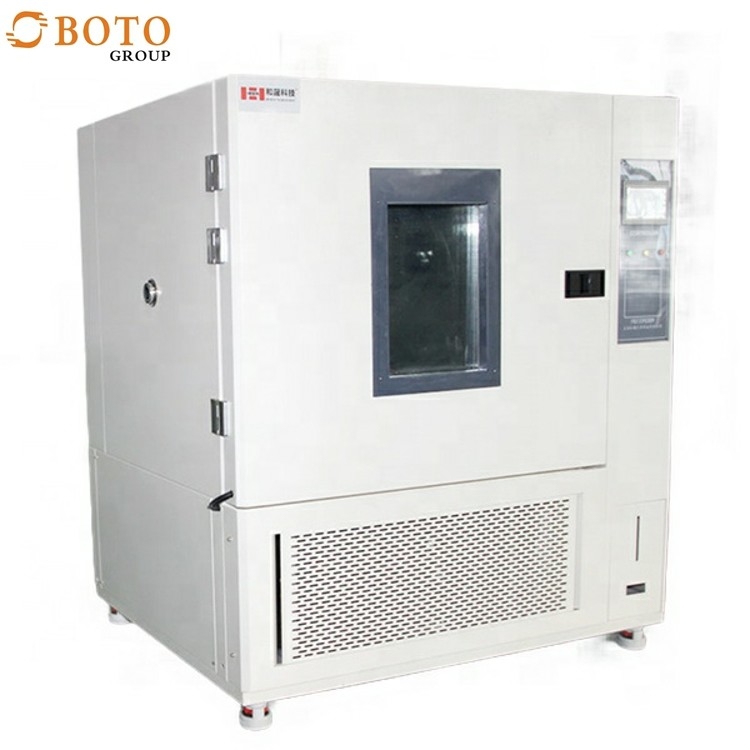

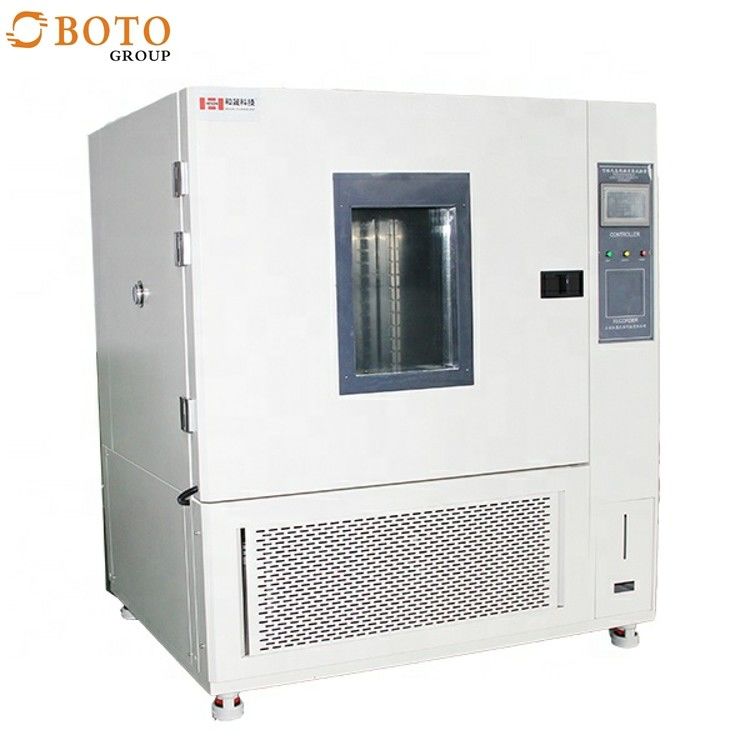

Environmental Test ChambersB-T-48L (A~D) Small High And Low Temperature Test Chamber G82423.22 87Nb
Application:
Bell’s Benchtop Mini Temperature Humidity Chamber provides a compact footprint and multi-function test performance. It is very popular for labs and product manufacturers to test various small electronic product, electronic components and materials with simulating temperature and humidity environment condition.
Design Standard:
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Uses:
This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Introduction:
test material heat, cold, dry resistance.Suitable for electronics, electrical appliances, Communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.
Standard Compliance:
This product meets the requirements of GB/T2423.1-2001 GB/T2423.3-1993 GB/T2423.2-2001 and other national standards, as well as other relevant standards.
Features:
1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.
2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green environmental protection.
3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety of tests at the same time.
4. Both sides are equipped with side tests. Holes, easy to operate.
5. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Product specification:
| Name | Small high and low temperature test chamber | Table type constant temperature and humidity test chamber | ||||
| Model | dry heat | B-T-107(A-D) | B-T-48L (A~D) | |||
| damp and hot | B-TH-48L (A-D) | |||||
| Internal Dim | 30.5x23x29 | 40x40x30 | ||||
| External Dim(W*H*D) | 53x68x72 | 60x80x107 | ||||
| Relative Humidity | ‘-40℃(-60℃)-130℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃) | ’7.081- -60℃~150℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ |
||||
| Relative humidity Range | 20%~98%RH | |||||
| heat-up time | About3℃/min | |||||
| Pull down time | About0.7~1℃/min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp Deviation | ±1.0℃ | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | 1KW~2KW | 1.5KW~2.5KW | ||||
About us:
Certifications:
Packing:
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.
Shipping:
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Small High And Low Femperafure Fest Chamber. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
4.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
