| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-107(A-D) |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-T-107(A-D) | Internal Dim: | 30.5x23x29 |
|---|---|---|---|
| External Dim: | 53x68x72 | Relative Humidity: | -40℃(-60℃)-130℃(100℃) |
| Relative Humidity Range: | 20%~98%RH | Power Source: | AV：220V/380V 50/60Hz |
| Power: | 1KW~2KW | Temp Fluctudtiont: | ±0.5℃ |
| Temp Uniformity: | ±1.0℃ | Temp Deviation: | ±1.0℃ |
G82423.22—87Nb Small High And Low Temperature Test Chamber Environmental Chambers B-T-107(A-D)
Product Description:
1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.
2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green environmental protection.
3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety of tests at the same time.
4. Both sides are equipped with side tests. Holes, easy to operate.
5. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Design Standard:
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Uses:
This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Character:

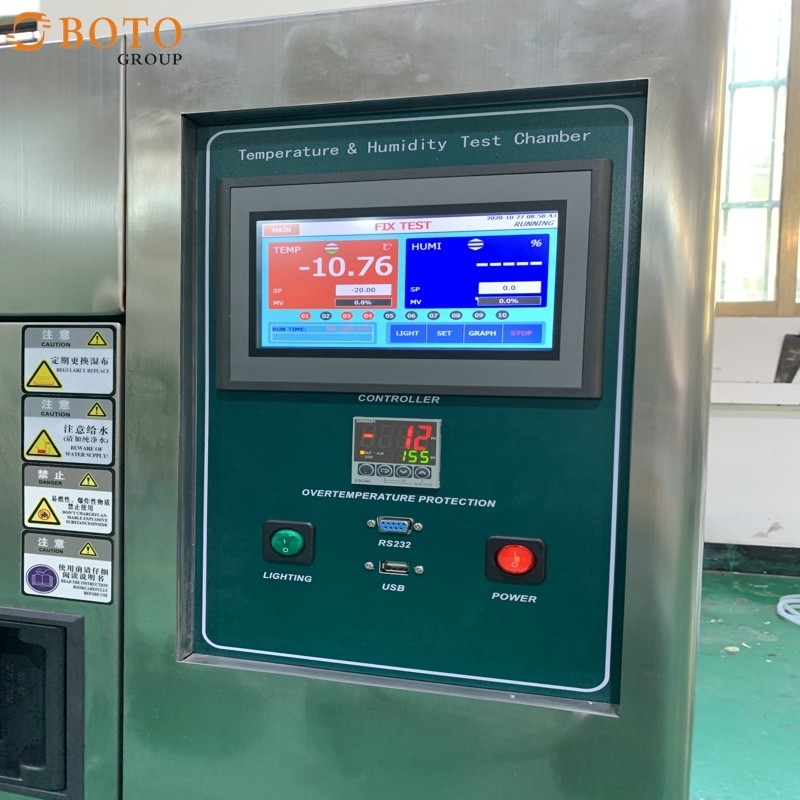

1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Application:

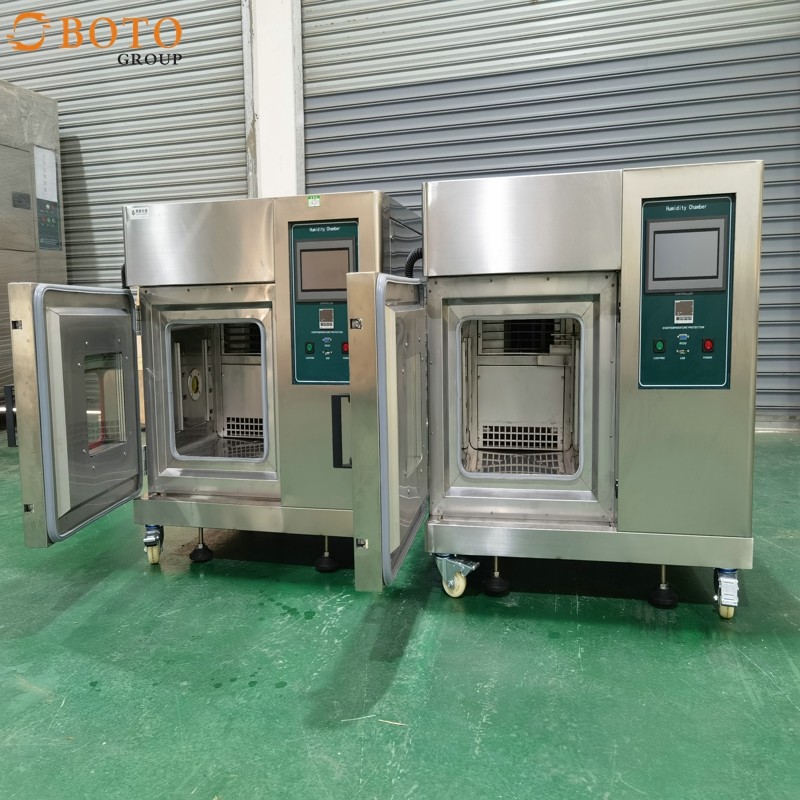

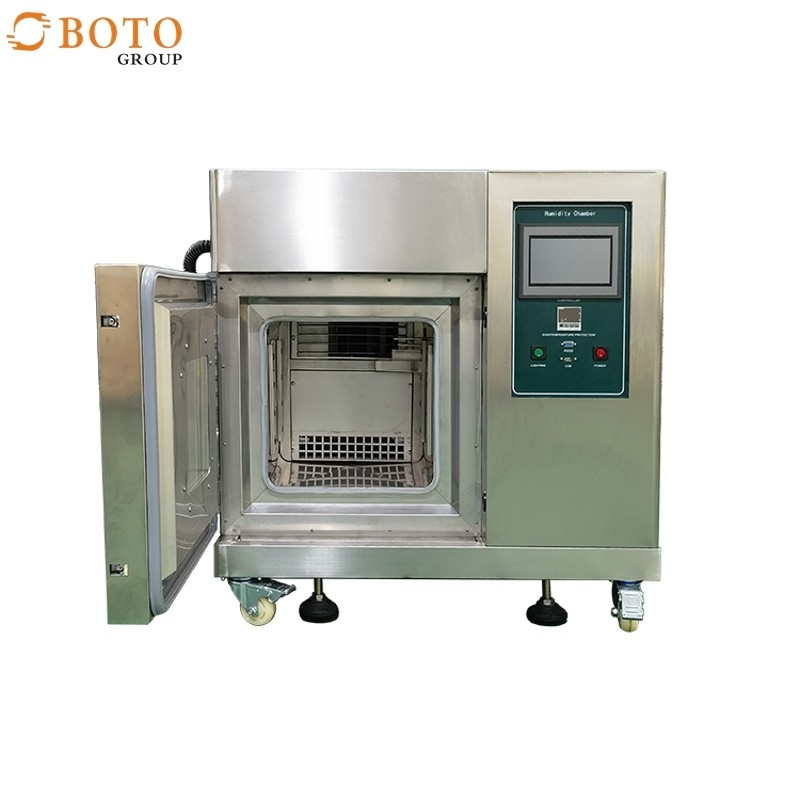

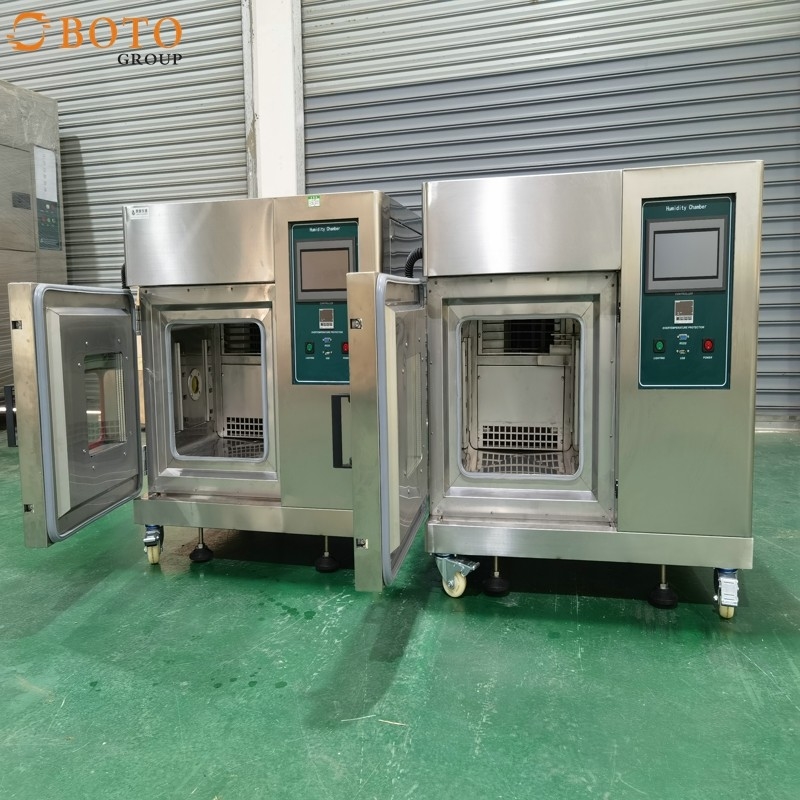

Small High And Low Temperature Test Chamber provides a compact footprint and multi-function test performance. It is very popular for labs and product manufacturers to test various small electronic product, electronic components and materials with simulating temperature and humidity environment condition.
Standard Compliance:
1. IEC 68-2-1 Test A: Low temperature test method.
2. IEC 68-2-2 Test B: High temperature test method.
3. IEC 68-2-3 Test CA: Constant damp heat test method.
4. IEC 68-2-30 Test CB: Alternating damp heat test method.
5. IEC 68-2-14 Test NB: Temperature cycling test method.
6. MIL-STD-810D High temperature test method.
7. MIL-STD-810D Low temperature test method.
8. MIL-STD-810D Damp heat test method.
Product specification:
| Name | Small high and low temperature test chamber | Table type constant temperature and humidity test chamber | ||||
| Model | dry heat | B-T-107(A-D) | B-T-48L (A~D) | |||
| damp and hot | B-TH-48L (A-D) | |||||
| Internal Dim | 30.5x23x29 | 40x40x30 | ||||
| External Dim(W*H*D) | 53x68x72 | 60x80x107 | ||||
| Relative Humidity | ‘-40℃(-60℃)-130℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃) | ’7.081- -60℃~150℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ |
||||
| Relative humidity Range | 20%~98%RH | |||||
| heat-up time | About3℃/min | |||||
| Pull down time | About0.7~1℃/min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp Deviation | ±1.0℃ | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | 1KW~2KW | 1.5KW~2.5KW | ||||
About us:
Shanghai BOTO GROUP LTD is a high technology company specializing in integrated incubation systems. We are conveniently located in Shanghai City.
With 20+ years of incubator R&D experience from our technical team, we have developed several series of the advanced integrated hatchery system.
Also we have gained the Authorized Poultry Industry R&D Center and been awarded the High-tech Enterprise by Chinese government. Also, both our company and products are approved by ISO9001, ISO14001, ISO45001, ISO50001
Certifications:
Packaging & Shipping
Packing:
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.
Shipping:
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Small High And Low Femperafure Fest Chamber. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
4.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
