| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-XD-120 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Internal: | 40x35x35 | External Dim: | 107x145x68 |
|---|---|---|---|
| Model: | B-XD-120 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |

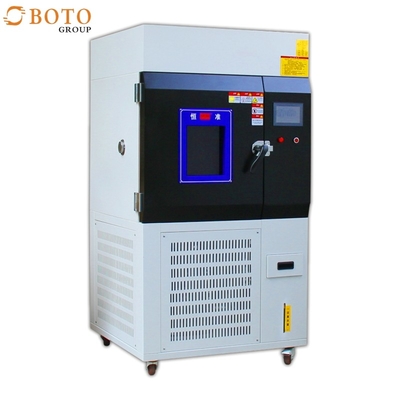

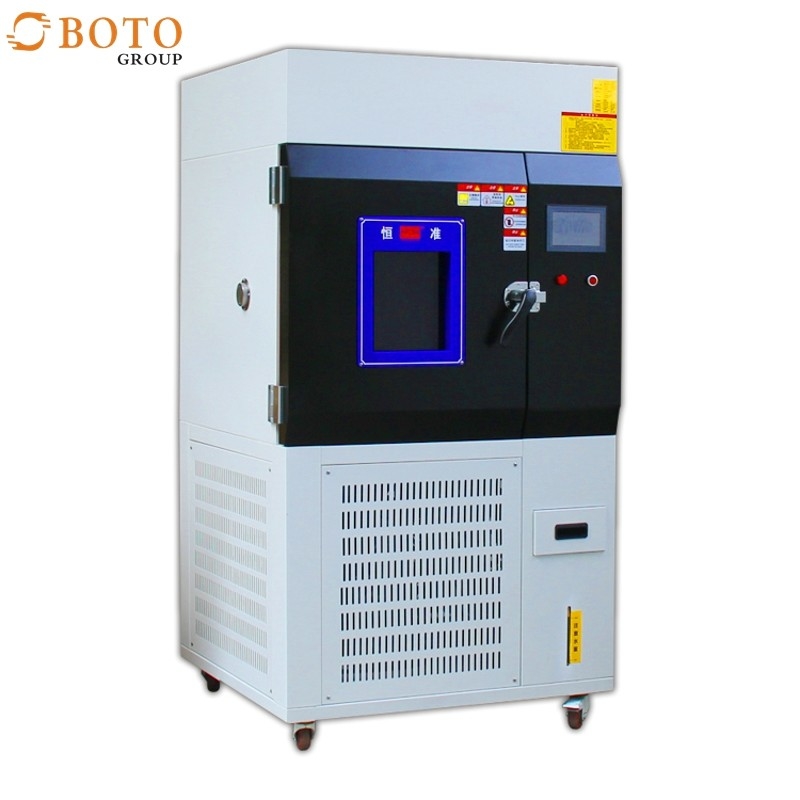

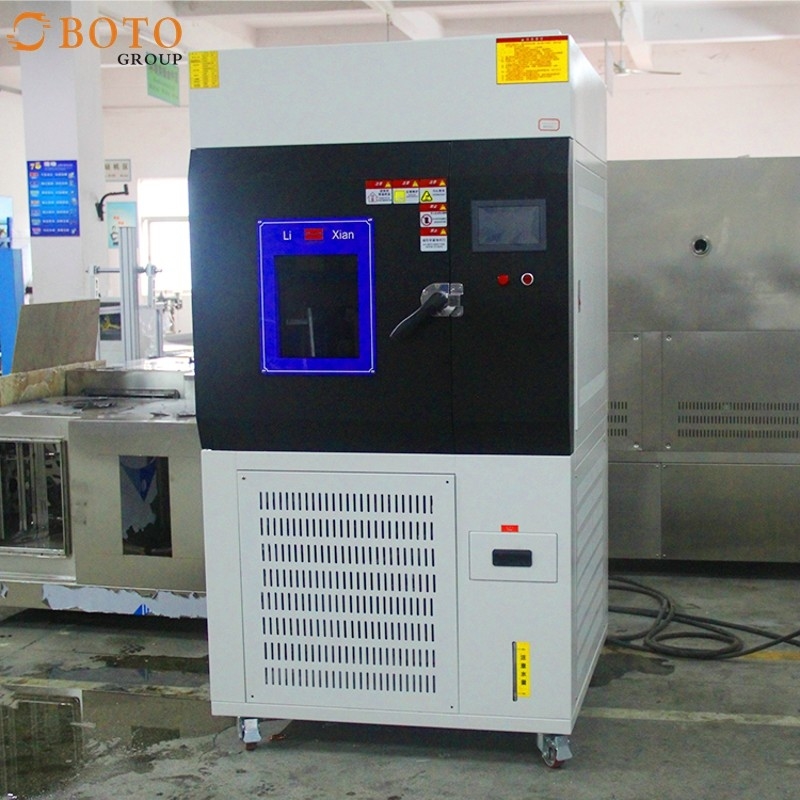

Xenon Lamp Aging Chamber Lab Instrument Xenon Arc Test Chamber DIN50021 B-XD-120
Description:
Xenon lamp weatherproof test chamber equipment can be used for the selection of new materials, improvement of existing materials or assessment of changes in the durability of materials after changes in composition. The device can well simulate the changes of materials exposed to sunlight in different environmental conditions. The equipment tests the light resistance of materials by exposing them to ultraviolet (UV), visible and infrared light. It uses filtered xenon arc lamps to produce a full spectrum of sunlight with maximum compatibility with sunlight. Xenon arc lamps with proper filtration treatment are the best way to test the sensitivity of products to ultraviolet and visible light in the longer wavelength range of direct illumination or sunlight through glass. When you expose your product to direct sunlight outside, it experiences maximum light intensity for only a few hours a day. Even so, the worst exposure occurs only during the hottest weeks of summer.
Xenon lamp test chamber is divided into three kinds according to the test standards and methods, air-cooled xenon lamp (LP/SN-500), water-cooled xenon lamp (LP/SN-500), bench xenon lamp (TXE), the difference lies in the test temperature, humidity, accuracy, time, etc. It is an indispensable testing instrument in the aging test chamber series.
Box structure:
External box material: All of them are made of high quality (t=1.2mm) A3 steel plate CNC machine tool processing, shell surface is sprayed with plastic treatment, more bright and clean, beautiful
Material: imported advanced stainless steel (SUS304)
Insulation material: rigid polyurethane foam + glass fiber
Temperature and humidity circulation system: special air conditioning low noise long shaft fan motor, high and low temperature resistant stainless steel multi-wing impeller, in order to achieve the intensity convection vertical diffusion cycle

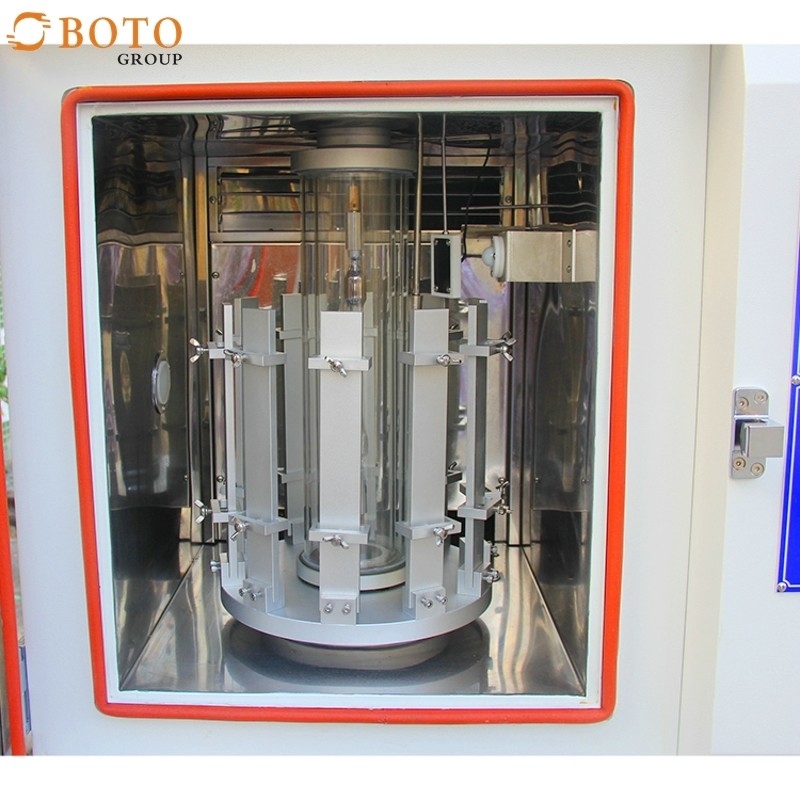

Test placement: Xenon lamp with built-in guide rail, articles flat. The hub type xenon lamp uses a fixture to fix the sample, and the sample is a flake specification item.
Sealing: A double-layer high temperature and high tension sealing strip is used between the door and the box to ensure the airtight of the test area
Door handle: Use no reaction door handle, easier to operate
Casters: High quality fixed PU movable wheels are used at the bottom of the machine
There is an air duct interlayer at the back of the studio, which distributes heating humidifiers, circulating air blades and other devices. The test chamber has a single door, which is sealed with age-resistant silicone rubber. The water is supplied by an underside water tank, and the water level is automatically controlled.
productive process:
It has the following performance characteristics:
1. Adopt full-spectrum xenon lamp luminescent tube;
2, a variety of filter system for choice;
3, rain spraying function;
4. Relative humidity control.
5, test chamber air temperature control system;
6. Sample fixer with irregular shape;
7. Cheap and fine xenon arc lamp tube.
8, xenon lamp aging test chamber has the characteristics of easy installation, convenient use and simple daily maintenance.
Model |
B-XD-120 | B-XD-225 | B-XD-408 | B-XD-800 | |
Internal Dim(W*H*D) |
45x60x45 | 50x75x60 | 60x85x80 | 100x100x80 | |
| External Dim(W*H*D) | 107x145x68 | 120x164x92 | 122x169x112 | 162x184x112 | |
| Temperature range | RT+10℃~70℃ | ||||
| Humidity range | 50%~90%RH | ||||
| Radiation intensity of xenon lamp | 550W/m² | ||||
| Spectral wavelength region | 290nm-800nm | ||||
| rainfall time | 0-9999／min | ||||
| Total power xenon lamp | 2KW/6KW | ||||
| type of cooling | forced air cooling／water-cooling | ||||
| Interior | SUS#304Stainless steel plate | ||||
| External material | Coating or SUS#304Stainless steel plate | ||||
Power Source |
AV:220V/380V 50/60Hz | ||||
