| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-ZW |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-ZW | Ultraviolet Wavelength: | 290nm-400nm UV-A、UV-B、UV-C |
|---|---|---|---|
| Internal: | 45x117x50 | External Dim: | 58x128x135 |
| Humidity Range: | ≥95%R.H | Distance Between Tubes: | 35mm |
| Distance Between Sample And Tube: | 50mm | Material: | 304Stainless Steel Plate |
| Lamp Wattage: | 40W | Safety Protection: | Leakage, Short Circuit, Over Temperature, Water Shortage, Over Current Protection/controller Power Failure Memory |

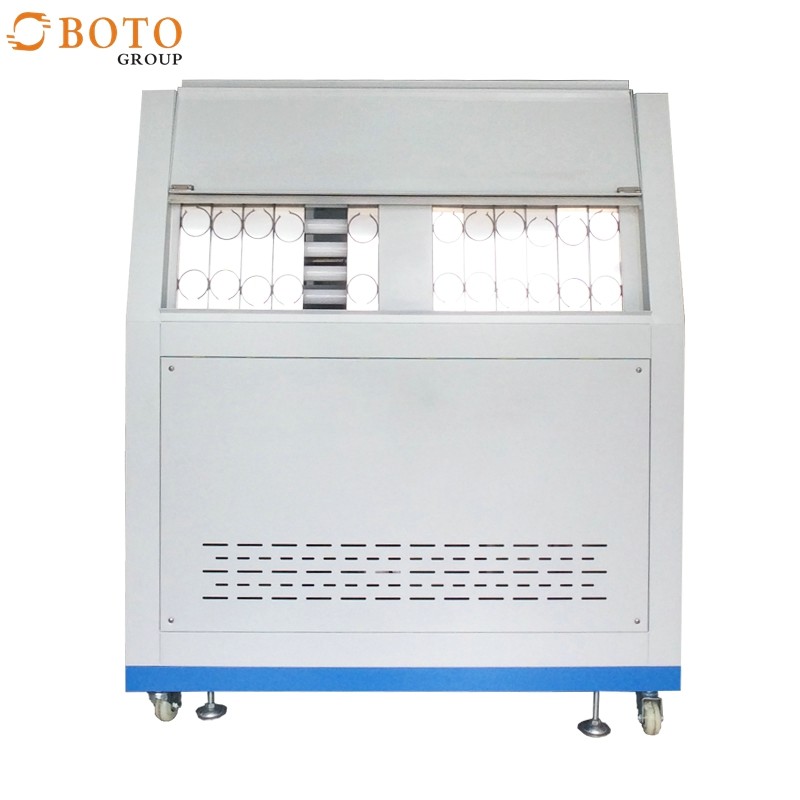

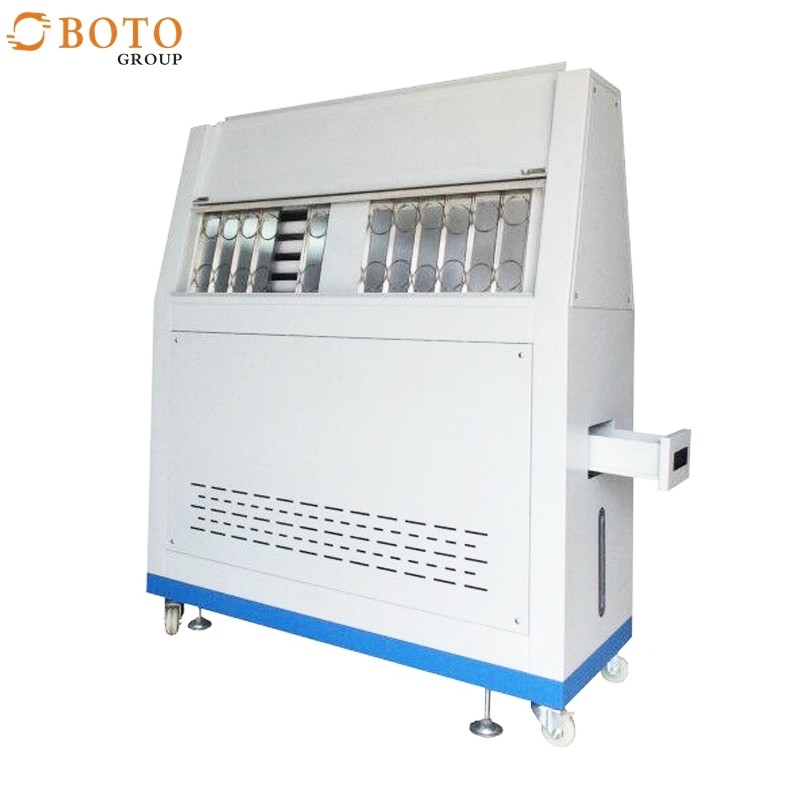

UV-A Mathine Climate Test Chambers VG95218-2 UV Aging Test Chamber Climatic Chamber
Equipment Summary
UV aging testing machine can simulate the sun, rain and dew to damage the material, QUV using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested, materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.
Main Functions
UV test machine, the UV lamp can simulate the effect of the sun, condensation and water spray system can simulate the effect of rain and dew. the temperature can be controlled at the process of testing. A typical test cycle is usually testing at UV radiation of high temperature and the 100% humidity at dark; Typically used in paint and coatings, automotive, plastic products, wood products, glue, etc.
Applicable Industries
It is widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto, cosmetics, metals, electronics, electroplating, medicine, etc..

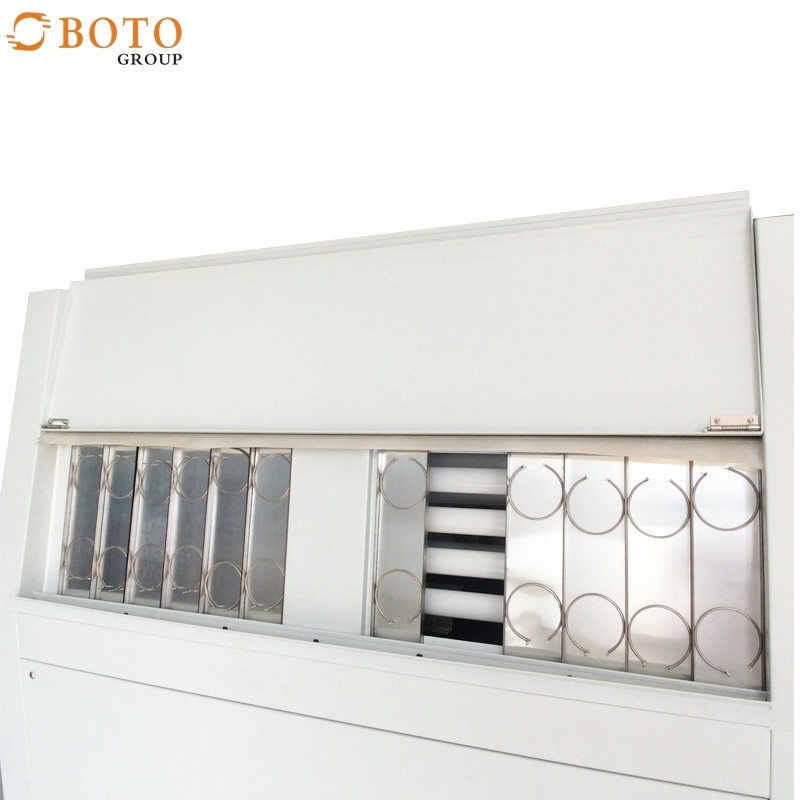

The UV aging test chamber simulates the effect of sunlight with fluorescent ultraviolet(UV) lamps and carry out these circles automatically.While it simulates rain and dew with condensing humidity or waterspray.In a few days or weeks,the UV can reproduce the damage that occurs over months or years outdoors.The damages include fading,color change,chalking,cracking,crazing,embrittlement,strength loss,etc.The test data can help you to select the new materials or improve the performance of materials. Chamber cover introduces the two-way flip type for easy opening and closing.The spec-imen and the shelf constitute the trapezidal inner wall of the chamber.
Innova UV Aging test chamber designing Standard:
IEC61215, ASTM D4329, D499, D4587, D5208, G154, G53; ISO 4892-3, ISO 11507; EN 534; prEN 1062-4, BS 2782; JIS D0205; SAE J2020, ect.
It has the following performance characteristics:
The heating mode is the inner tank heating, fast heating and uniform temperature distribution
The drainage system uses reflux type and U-type sedimentation device to drain water
The distance between the sample surface and the UV lamp plane is 50 mm and parallel
The actual studio consists of test samples and supports to form the inner wall of the box, trapezoidal
Automatic water refill of tank water level
The lid is bidirectional clamshell type, easy to open and close
High quality fixed PU movable wheel is used at the bottom of the test chamber
| Model | B-ZW | ||||
| Internal Dim(DxWxH) | 50x75 | ||||
| External Dim(DxWxH) | 58x128x135 | ||||
| power(kw) | 4KW/3.2kW | ||||
| performance index | Temperature range | RT+10℃-70℃ | |||
| Humidity range | ≥95%R.H | ||||
| Distance between tubes | 35mm | ||||
| Distance between sample and tube | 50mm | ||||
| ultraviolet wavelength | 290nm-400nm UV-A,UV-B,UV-C | ||||
| Lamp wattage | 40W | ||||
| safety protection | Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory | ||||
Packing/Shipping:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
