Internal Dim: | 30.5x23x29 | External Dim: | 53x68x72 |
---|---|---|---|
Relative Humidity: | -40℃(-60℃)-130℃(100℃) | Relative Humidity Range: | 20%~98%RH |
Power Source: | AV:220V/380V 50/60Hz | Power: | 1KW~2KW |
Temp Fluctudtiont: | ±0.5℃ | Temp Uniformity: | ±1.0℃ |
Heat-up Time: | About3℃/min | Pull Down Time: | About0.7~1℃/min |

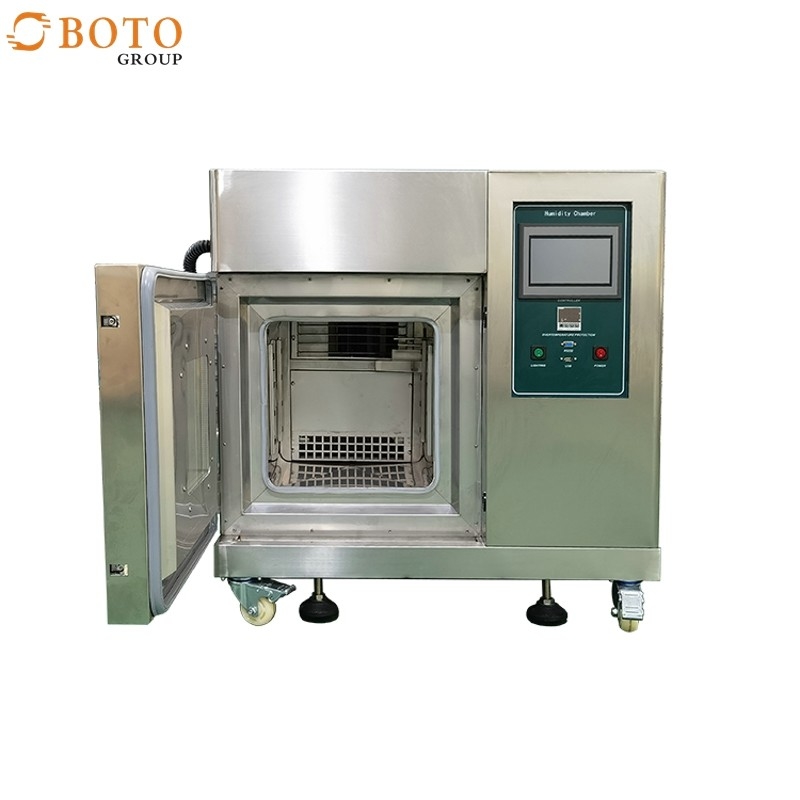

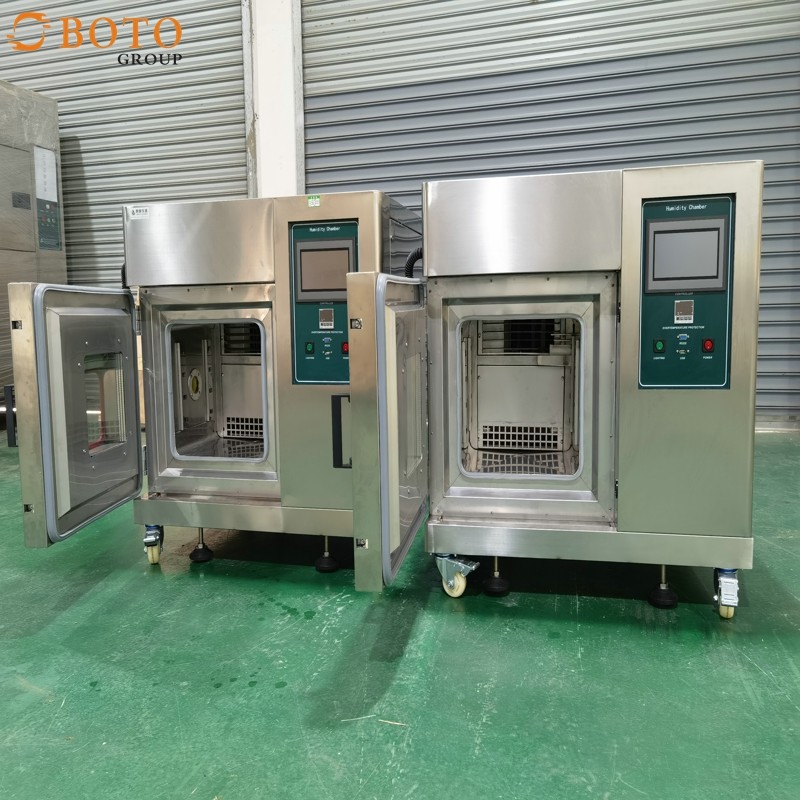

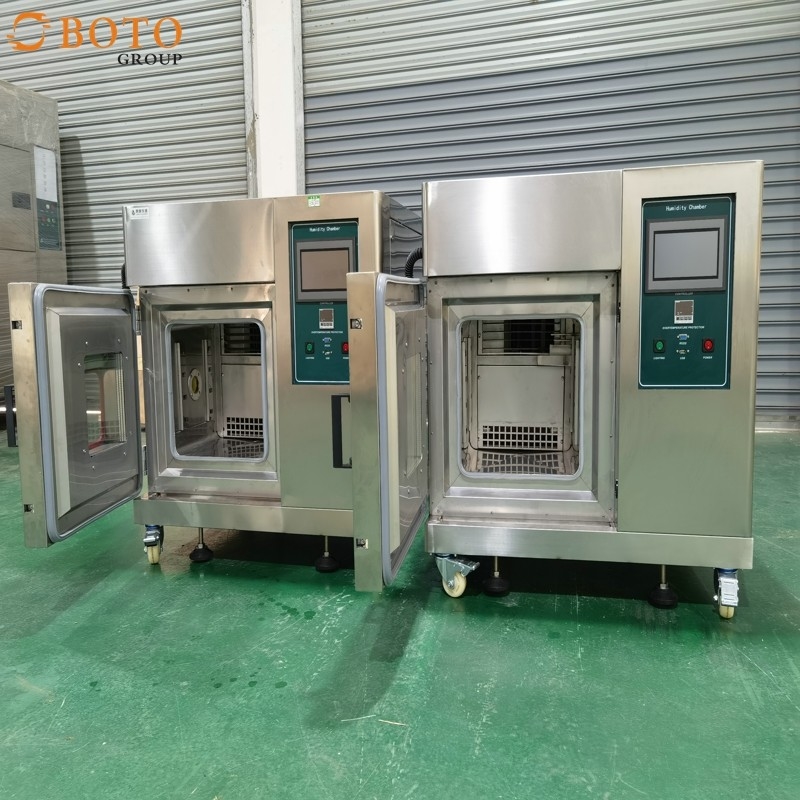

Environmental Test Chambers ASTM Small High And Low Temperature Test Chamber Environmental Chambers BT-107 ISO
Product use:
Used to test and determine the parameters and properties of electrical, electronic and other products and materials under high temperature, low temperature, alternating humidity or constant temperature test.
Test purpose:
The final result of the test was that the battery should not explode or catch fire; In addition, the battery should not smoke or leak, and the battery protection valve should not be damaged. Test other electronic and electrical products under low pressure can work normally, or be damaged.The final result of the test was that the battery should not explode or catch fire; In addition, the battery should not smoke or leak, and the battery protection valve should not be damaged. Test other electronic and electrical products under low pressure can work normally, or be damaged.
According to the standard:
Ambient temperature is +25℃, relative humidity ≤85%, no sample in the test box
GB/T2423.2-2008(IEC60068-2-2:2007) High temperature test method Bb
Gjb150.3-1986 High temperature test
GB/T2423.1-2008(IEC60068-2-1:2007) Low temperature test method Ab
Gjb150.4-1986 Low temperature test
GJB150.9-1986 thermal test
GB/T2423.3-2006(IEC60068-2-78:2007) Constant damp heat test method Cab
GB/T2423.4-2008(IEC60068-2-30:2005) Alternating damp heat test method Db
Chamber construction:
1, inside size: 500(W) * 500(D) * 500(H)mm;
2, the external size about: W1050*H1750*D970mm;
3. Interlayer: the inner box is divided into two layers, with two mesh plates;
4, can window: the door has 19mm toughened glass window, specification W300*H350mm;
5, the inner material is: 304# stainless steel industrial plate thickness is 4.0mm, internal strengthening treatment, vacuum does not deform;
6, the external material is: cold rolled steel plate, thickness of 1.2mm, powder baking paint processing; (beige white)
7. Hollow filling material: rock wool, good heat preservation effect;
8, the door sealing material is: high temperature resistant silicone strip;
9. Install movable brake casters, which can be fixed in position and pushed freely;
10. The structure of the box is connected, and the operating panel and vacuum pump are installed below the machine.
Standard Compliance:
1. IEC 68-2-1 Test A: Low temperature test method.
2. IEC 68-2-2 Test B: High temperature test method.
3. IEC 68-2-3 Test CA: Constant damp heat test method.
4. IEC 68-2-30 Test CB: Alternating damp heat test method.
5. IEC 68-2-14 Test NB: Temperature cycling test method.
6. MIL-STD-810D High temperature test method.
7. MIL-STD-810D Low temperature test method.
8. MIL-STD-810D Damp heat test method.
Product specification:
Name | Small high and low temperature test chamber | Table type constant temperature and humidity test chamber | ||||
Model | dry heat | B-T-107(A-D) | B-T-48L (A~D) | |||
damp and hot | B-TH-48L (A-D) | |||||
Internal Dim | 30.5x23x29 | 40x40x30 | ||||
External Dim(W*H*D) | 53x68x72 | 60x80x107 | ||||
Relative Humidity | ‘-40℃(-60℃)-130℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃) | ’7.081- -60℃~150℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ |
||||
Relative humidity Range | 20%~98%RH | |||||
heat-up time | About3℃/min | |||||
Pull down time | About0.7~1℃/min | |||||
Temp Fluctudtiont | ±0.5℃ | |||||
Temp Uniformity | ±1.0℃ | |||||
Temp Deviation | ±1.0℃ | |||||
Power Source | AV:220V/380V 50/60Hz | |||||
Power(KW) | 1KW~2KW | 1.5KW~2.5KW |
About us:
Shanghai BOTO GROUP LTD is a high technology company specializing in integrated incubation systems. We are conveniently located in Shanghai City.
With 20+ years of incubator R&D experience from our technical team, we have developed several series of the advanced integrated hatchery system.
Also we have gained the Authorized Poultry Industry R&D Center and been awarded the High-tech Enterprise by Chinese government. Also, both our company and products are approved by ISO9001, ISO14001, ISO45001, ISO50001
Certifications:
Packing:
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.
Shipping:
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Small High And Low Femperafure Fest Chamber. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
4.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
