| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | B-SST-60 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiation |
| Packaging Details: | wooden case |
| Delivery Time: | 15-30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 PC Per Month |
| Name: | Salt Spray Coeeosion Test Chamber | Material: | Coeeosion-resistant Polymer |
|---|---|---|---|
| Power Source: | AC:220V 50HZ | Saturated Air Pressure: | 0.8~2.0±0.01 |
| Usage: | Universal Testing Machine,Salt Spray Tester | Standard: | IEC60068-2-1 |
| High Light: | 220V Salt Spray Corrosion Test Chamber,Corrosion Resistance Analysis Salt Spray Chamber,Corrosion Resistant Polymer Salt Spray Machine |
||

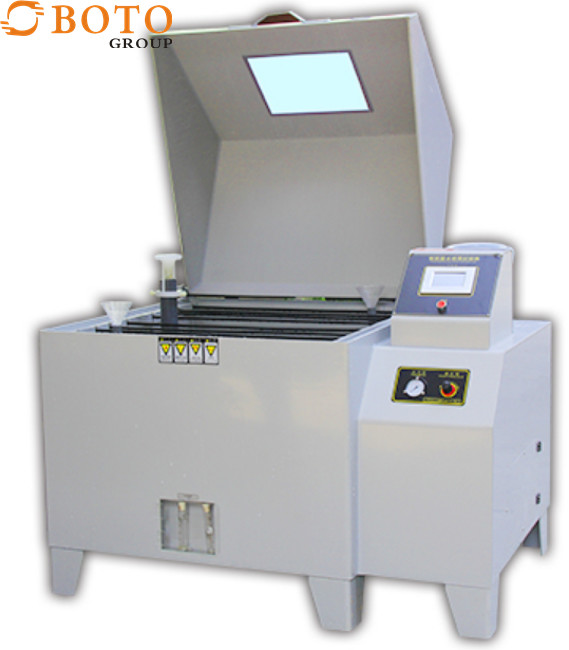

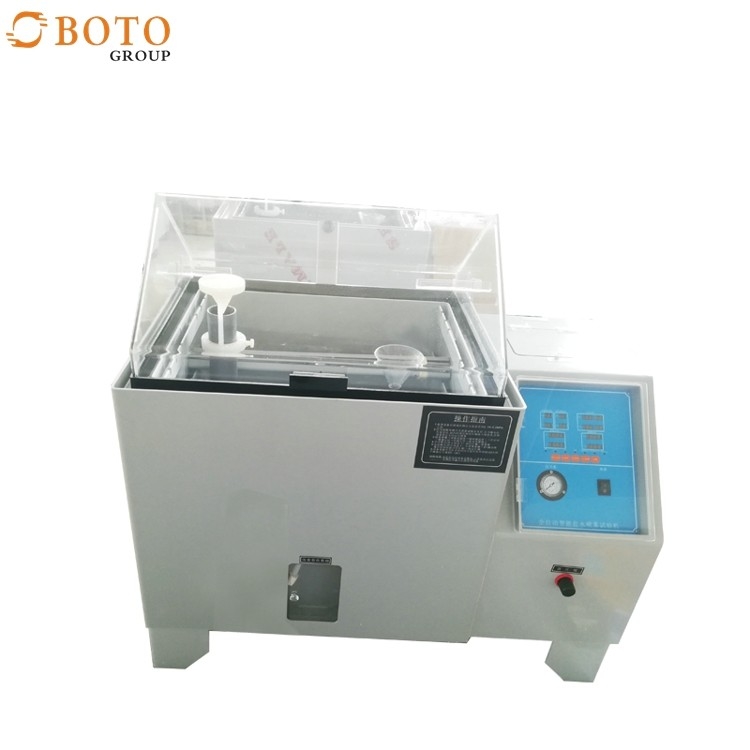

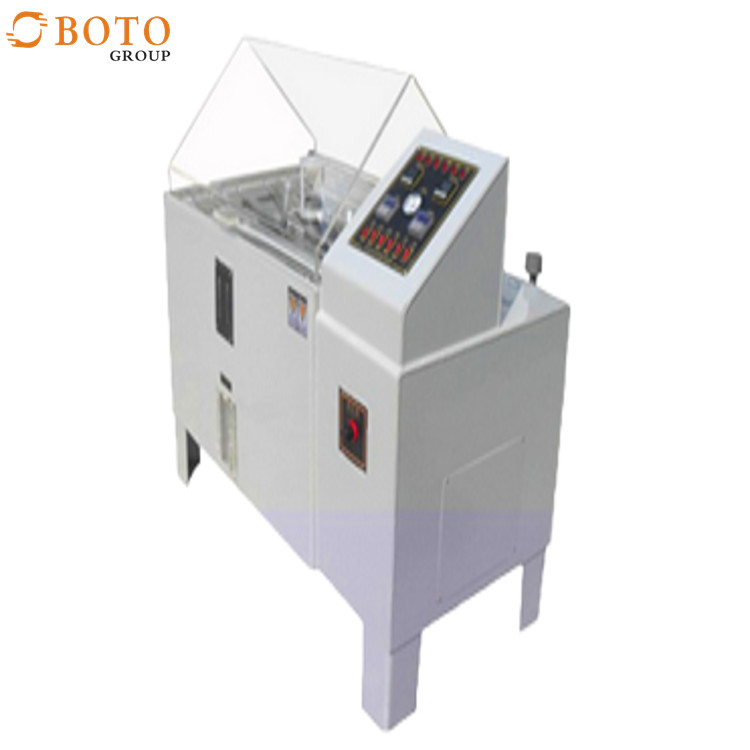

Introduction:
Salt Spray Tester is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting, coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion resistance of their products.
Salt spray test chamber is used to test the reliability of corrosion resistance of the tested samples by means of salt spray corrosion. Salt spray refers to the dispersion system composed of tiny droplets containing salt in the atmosphere, which is one of the three prevention series of artificial environment. Many enterprise products need to simulate the damage caused by the surrounding climate on the products, so the salt spray test chamber should be shipped. Salt spray test is divided into two kinds: neutral salt spray and acid salt spray. The difference lies in the standards and test methods they meet. They are called "NSS" and "CASS" test respectively, which are the most common test methods in artificial climate protection.
Corresponding Standard:
GB11158 GB10589-89
GB10592-89
GB/T10586-89
GB/T2423.22-2001
GB/T2423.1-2001
GB/T2423.2-2001
GB/T2423.3-93
GB/T2423.4-93
ASTM D1735
IEC60068-2-1.1990
IEC60068-2-2.1974
IEC 68-2-30 IEC68-2-03
EIA - 364-31C
EIA - 364-59
ASTM B117
Product Features
1, Durable hard 8 mm PVC construction, anti-corrosion and easy to clean.
2, Reservoirs with mixing system on stand.
3, Separate heating system apart from salt testing chamber to ensure accurate result and protect circuit.

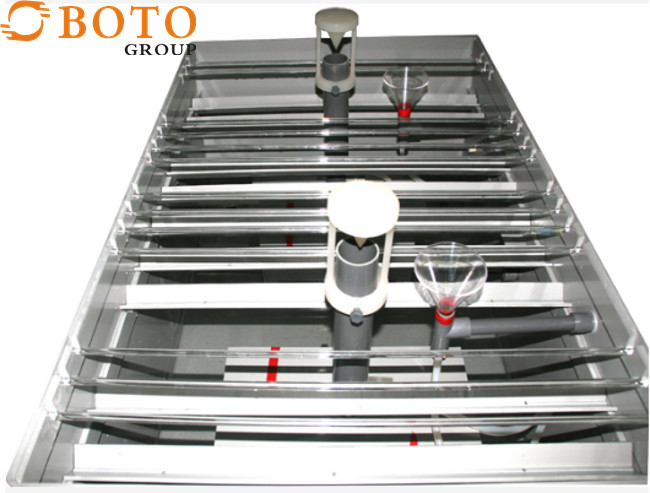

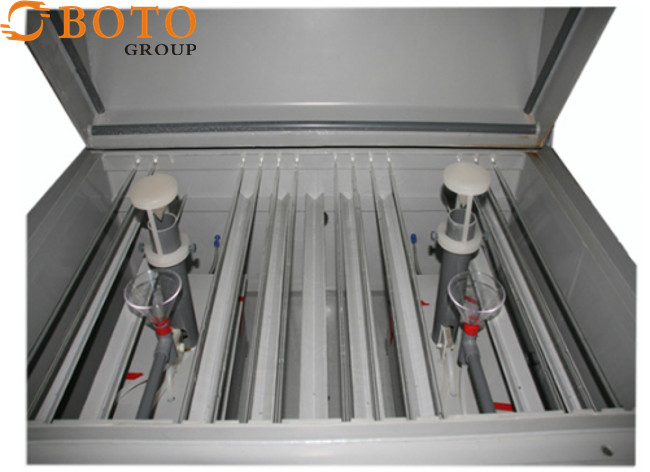

4, Exposure zone lined with corrosion-resistant PVC sheets.
5, Clear cover allows viewing of test conditions.
6, Peaked cover prevents dripping of condensation onto samples.
7, Water seal and water level protection system.
8, Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
9, Automatic DI water fills to humidifying tower.
10, Digital temperature control.
11, Integral over-protection on heaters.
12, Low water cut-off protection on humidifying tower.
| Model | B-SST-60 | B-SST-90 | B-SST-120 | B-SST-160 | B-SST-200 | |
Internal Dim(W*H*D) |
60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 | |
External Dim(W*H*D) |
108x63x119 | 140x80x139 | 178x120x149 | 230x130x149 | 270x130x159 | |
Cabinet Material |
Corrosion-resistant polymer material |
|||||
Laboratory temperature (℃) |
A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃ | |||||
Saturated air barrel temperature(℃) |
35±1℃50±1℃ Saline test method:35±1℃/Corrosion test method:50±1℃ |
|||||
Saturated air pressure (kg/c㎡) |
0.8-2.0±0.01 | |||||
| (ml／80c㎡.h) Salt spray sedimentation rate (ml/80c㎡.h) |
1-2ml/80 cm2.h(Controllable) | |||||
PH value |
Salt water test method:6.5～7.2／Test method for corrosion resistance:3.0-3.2 Saline test method:6.5-7.2/Corrosion test method:3.0-3.2 |
|||||
Power Source |
AC:220V 50Hz/AC:380V 60Hz | |||||
Our Company:
Shanghai BOTO GROUP LTD is a high technology company specializing in integrated incubation systems. We are conveniently located in Shanghai City.
With 20+ years of incubator R&D experience from our technical team, we have developed several series of the advanced integrated hatchery system.
Also we have gained the Authorized Poultry Industry R&D Center and been awarded the High-tech Enterprise by Chinese government. Also, both our company and products are approved by ISO9001, ISO14001, ISO45001, ISO50001
Packing/Shipping:
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of 1000L Touch Screen Laboratory Equipment Constant Temperature Humidity Climatic Test Chamber/Equipment/Machine/Cabinet . Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
4. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
5.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
