| Place of Origin: | China |
|---|---|
| Brand Name: | Salt spray corrosion test chamber |
| Model Number: | B-SST-120 |
| Spray Distance: | 30cm~50cm | Spray Nozzle: | 0.3mm~0.8mm |
|---|---|---|---|
| Test Area: | 0.09m2~2.25m2 | Chamber Material: | SUS304 |
| Spray Pressure: | 0.2Mpa~0.4Mpa | Product Name: | Salt Spray Test Chamber |
| Test Temperature: | 35℃~55℃ | Control System: | PLC/PC |
| High Light: | 35℃~55℃ corrosion resistant polymer material,SUS304 corrosion resistant polymer material,35℃~55℃ corrosion resistant polymer material 0.3mm~0.8mm |
||

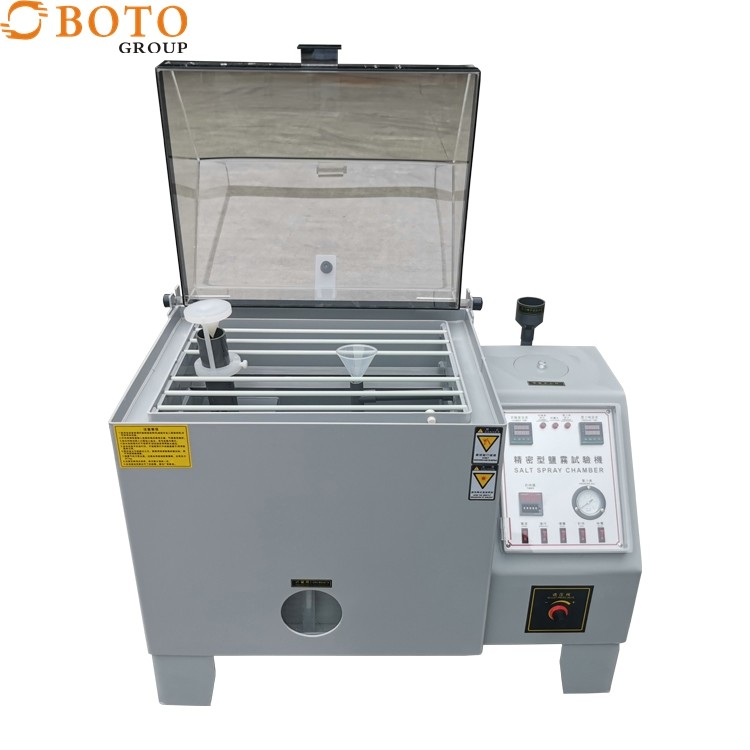

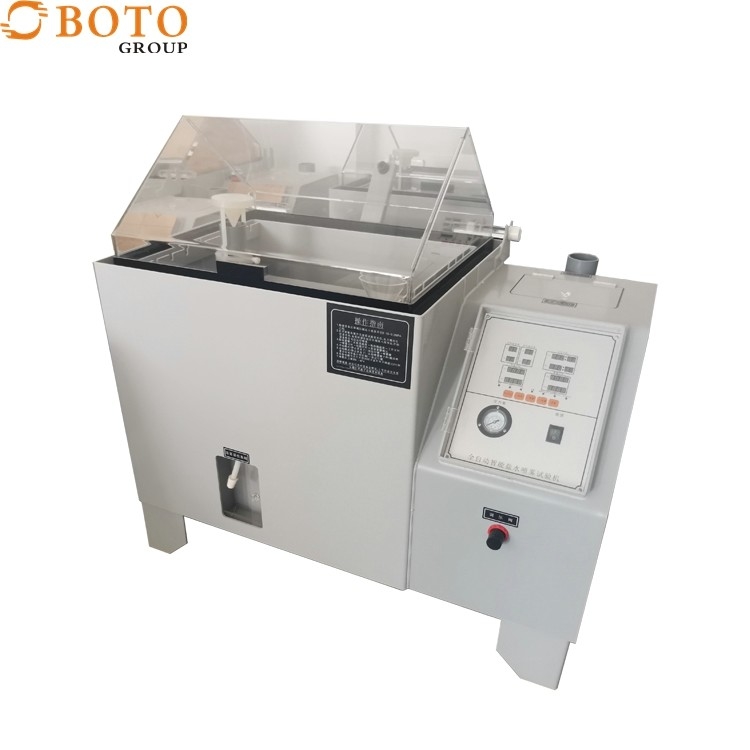

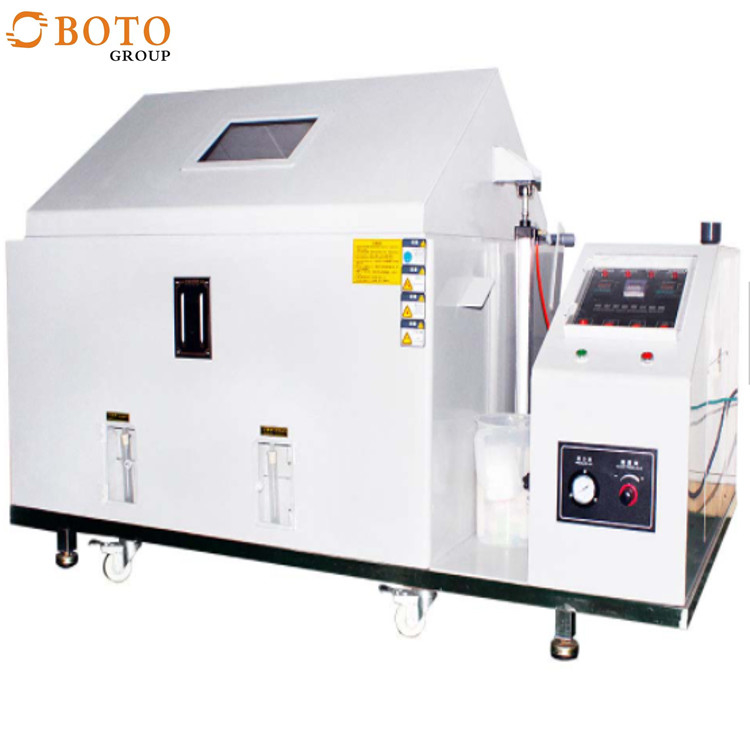

Salt Spray Test Chamber is a high-precision salt spray testing equipment used to perform corrosion tests. Its external dimension is 178x120x149mm and internal dimension is 120x100x50mm. It is powered by AC 220V 50Hz. The test time ranges from 48hrs to 1000hrs according to ASTM B117. This chamber is ideal for corrosion testing in various industries, such as automotive, aerospace, consumer electronics, and others. It is essential for quality control and advanced research of corrosion resistance of materials.
Salt Spray Test Chamber is designed with precise temperature control and automatic spray system. It meets the environmental requirements for corrosion testing and provides repeatable test results. The chamber is equipped with adjustable salt concentration, adjustable air pressure, adjustable humidity, adjustable temperature, and adjustable test duration. It is suitable for various types of corrosion tests, such as salt spray, fog, and cyclic tests. The chamber offers rapid and reliable testing, and is easy to operate.
Salt Spray Test Chamber is an essential piece of corrosion testing equipment. It is highly accurate and reliable, and provides precise test results. It is an ideal choice for quality control and advanced research of corrosion resistance of materials.
| Parameters | Details |
|---|---|
| Chamber Material | SUS304 |
| Spray Nozzle | 0.3mm~0.8mm |
| Spray Distance | 30cm~50cm |
| Spray Volume | 1~2ml/80cm2/h |
| Safety Protection | Overload/ Overheating/ Leakage |
| Product Name | Salt Spray Test Chamber |
| Test Humidity | 95%RH |
| Chamber Size | Customized |
| Internal Dim | 120x100x50 |
| Test Temperature | 35℃~55℃ |
| Material | Corrosion Resistant Polymer Material |
| Equipment | High-precision Salt Spray Testing Equipment |
| Instrument | Anti-corrosion Testing Instrument |
Salt Spray Test Chamber (Model: B-SST-120) is a brand name from China, with an internal dimension of 120x100x50 and external dimension of 178x120x149. It is designed to test the corrosion resistance of industrial material to salt spray according to the ASTM B117 standard. The chamber is made of SUS304 with a test temperature range of 35℃~55℃. This Salt Spray Test Chamber is an ideal tester for corrosion resistance of industrial material, gauging its capability to withstand the effects of salt spray.
Brand Name: Salt Spray Corrosion Test Chamber
Model Number: B-SST-120
Place of Origin: China
Spray Volume: 1~2ml/80cm2/h
Test Area: 0.09m2~2.25m2
Power Source: AC:220V 50Hz
Test Time: 48hrs~1000hrs
Test Temperature: 35℃~55℃
The Salt Spray Test Chamber is designed to measure the corrosion resistance of a variety of materials, including corrosion resistant polymer materials. It can simulate the corrosive environment of salt spray, and is an ideal corrosion testing equipment for customers to ensure product quality and safety.
The Salt Spray Test Chamber has a wide range of uses, including testing the corrosion resistance of metal and non-metallic materials, and controlling the salt spray concentration. It has a spray volume of 1~2ml/80cm2/h, a 0.09m2~2.25m2 test area, an AC220V 50HZ power source, and a test time of 48hrs~1000hrs with a temperature range of 35℃~55℃.
At XYZ, we are committed to providing the best service and technical support for our Salt Spray Test Chambers. Our team of experts is available to assist you with any questions you may have, from installation and operation to maintenance and troubleshooting.
We offer on-site and remote service and support, as well as preventive maintenance plans and spare parts for our Salt Spray Test Chamber products. Our expert technicians are available to help with installation, setup, calibration, and troubleshooting. We also provide technical advice and assistance with data analysis and reporting.
For more information about our Salt Spray Test Chamber technical support and service, please contact us.
The Salt Spray Test Chamber should be packaged in protective material, such as bubble wrap, foam, or corrugated cardboard. The package should be sealed with tape. The package should be clearly labeled with the company’s name, address, and contact information.
The Salt Spray Test Chamber should be shipped by a reputable carrier with tracking information. The box should be clearly labeled with the shipper’s name, address, and contact information.
