| Place of Origin: | China |
|---|---|
| Brand Name: | Salt spray corrosion test chamber |
| Certification: | CE ISO |
| Model Number: | B-SST-60 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wooden |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000sets/mouth |
| Spray Pressure: | 0.2Mpa~0.4Mpa | Chamber Size: | Customized |
|---|---|---|---|
| Test Temperature: | 35℃~55℃ | Chamber Material: | SUS304 |

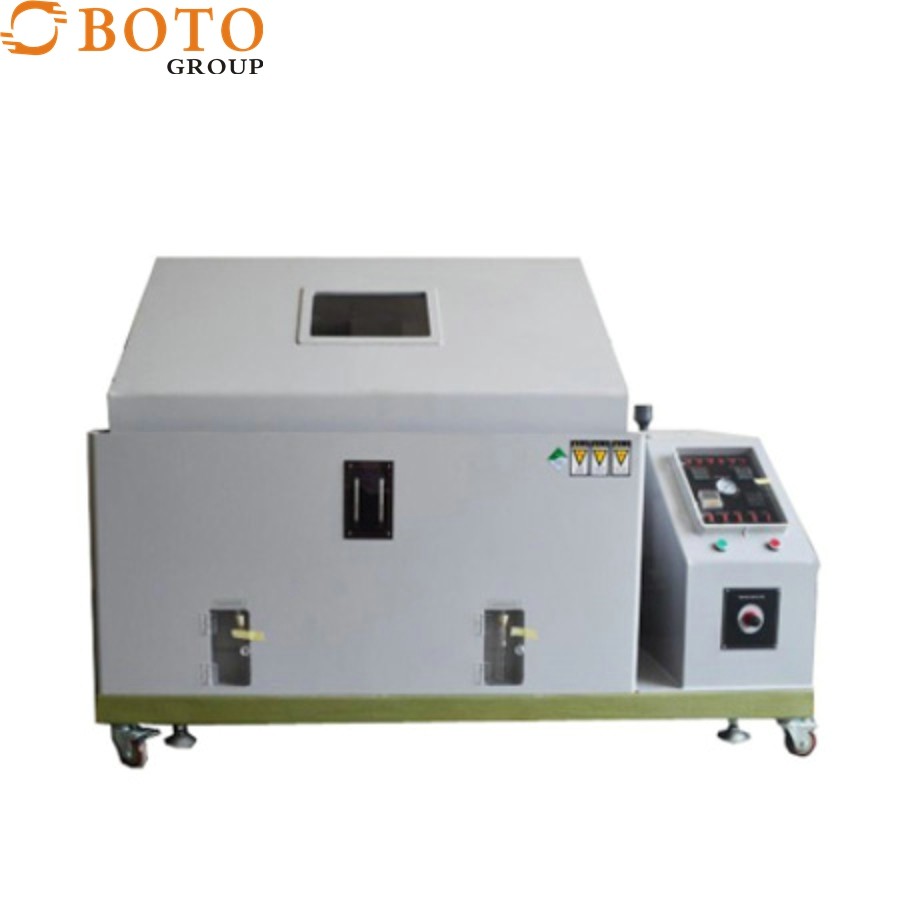

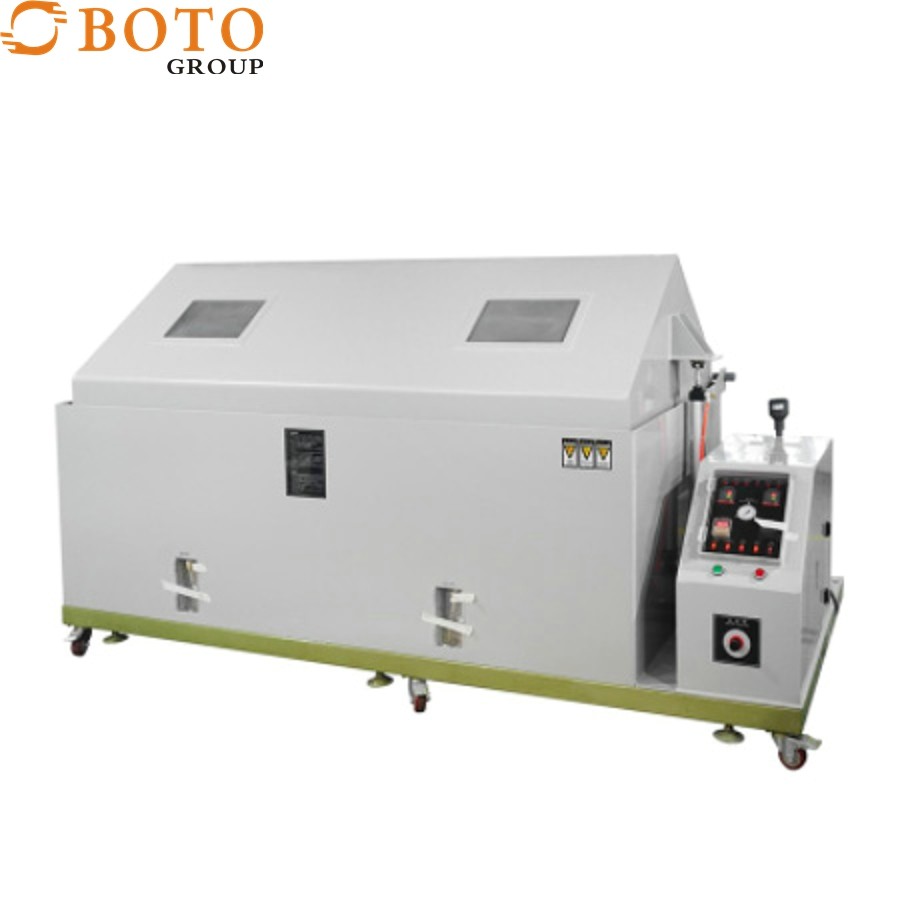

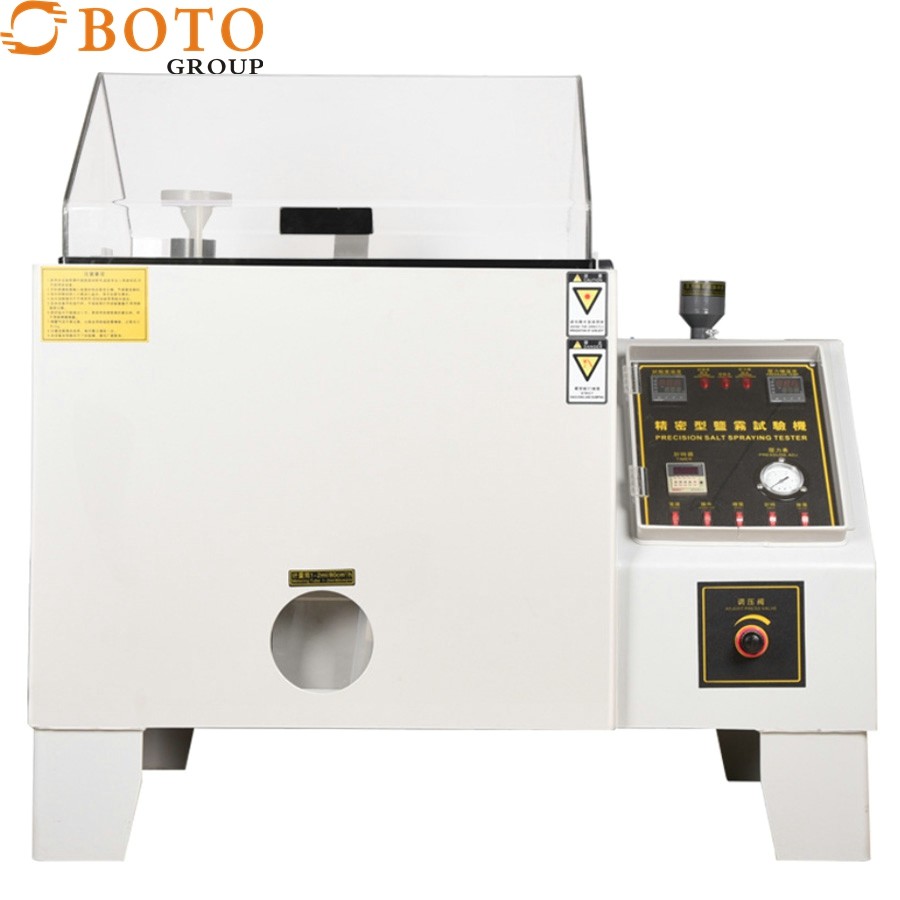

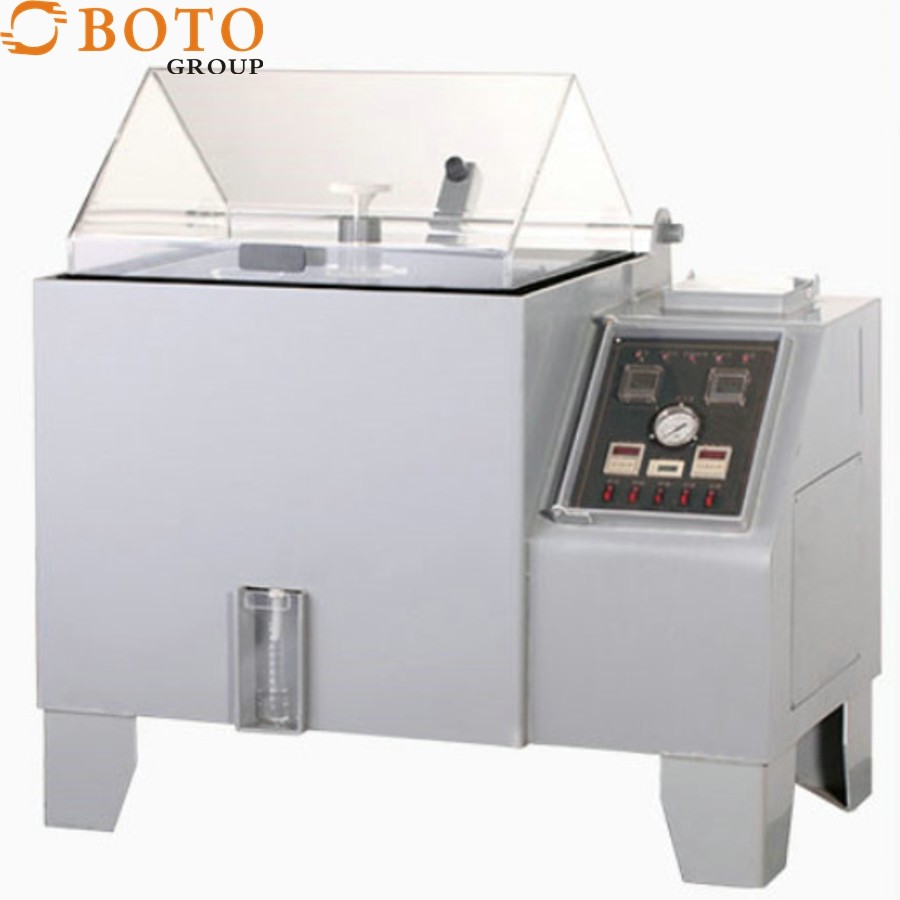

| Product Name: | Salt Spray Test Chamber | Test Method: | ASTM B117 |
| Test Humidity: | 95%RH | Test Area: | 0.09m2~2.25m2 |
The test temperature of the Salt Spray Test Chamber ranges from 35℃ to 55℃, and the humidity is maintained at 95%RH. The test method used in this chamber is ASTM B117, which is a standardized test method for salt spray corrosion testing. This test method is recognized worldwide and is widely used in various industries to evaluate the corrosion resistance of materials and coatings.
The Salt Spray Test Chamber operates by spraying a salt solution at a specific pressure onto the test samples. The spray pressure ranges from 0.2Mpa to 0.4Mpa, and the solution is prepared according to the specified concentration and pH value. The samples are placed in the test chamber and exposed to the salt spray for a specified period, which can range from a few hours to several weeks.
The Salt Spray Test Chamber is available in different sizes and configurations to meet the specific testing requirements of different industries. It can be used for testing a wide range of materials and coatings, including metals, alloys, plastics, ceramics, and paints. The test results obtained from this chamber can help manufacturers and researchers to improve the corrosion resistance of their products and materials.
In summary, the Salt Spray Test Chamber is a vital tool for evaluating the corrosion resistance of different materials and coatings. It is also known as a Corrosion Test Cabinet, Accelerated Corrosion Test Chamber, or Salt Mist Chamber. The chamber operates by spraying a salt solution onto the test samples at a specific temperature, humidity, and pressure, according to the ASTM B117 test method. The test results can help manufacturers and researchers to improve the quality and durability of their products and materials.
Model Number: B-SST-60
Place of Origin: China
Certification: CE ISO
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 3000sets/mouth
Chamber Material: SUS304
Chamber Size: Customized
Spray Nozzle: 0.3mm~0.8mm
Safety Protection: Overload/ Overheating/ Leakage
Spray Volume: 1~2ml/80cm2/h
Product Customization Services:
Specifications:
| Model | BT-60 | BT-90 | BT-120 | BT-160 | BT-200 |
| Inner size (cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 |
| External size(cm) | 107x60x118 | 141x88x128 | 190x130x140 | 230x130x140 | 270x130x140 |
| Inside temp | Brine test method(NSS ACSS)35°C±1°C/Corrosion resistance test method (CASS)50°C±1°C |
||||
| Brine temp | 35°C±1°C 50°C±1°C | ||||
| Test chamber volume | 108L | 270L | 600L | 800L | 1000L |
| Brine chamber volume | 15L | 25L | 40L | 40L | 40L |
| Compressed air pressure | 1.00±0.01kgf/c㎡ | ||||
| Spray volume | 1.0~2.0ml/80cm2/h (Collect at least 16 hours, the average) | ||||
| Test room relative humidity | 85%RH or more | ||||
| PH | 6.5~7.2 3.0~3.2 | ||||
| Spray method |
Programmable spray (including the continuous spray interrupted spray) |
||||
| Power | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |
The Salt Spray Test Chamber is designed to provide a controlled testing environment for evaluating the corrosion resistance of materials and coatings. Our technical support team is available to assist with any questions or issues related to the operation, maintenance, and calibration of the chamber.
We offer a range of services to ensure that your Salt Spray Test Chamber is operating at peak performance, including:
Our team of experienced technicians are dedicated to providing prompt and reliable service to help minimize downtime and ensure that your testing needs are met. Contact us for more information on our technical support and services.
