| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO GB |
| Model Number: | B-T-80 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiated |
| Packaging Details: | PLY-WOODEN-CASE |
| Delivery Time: | 15working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000sets per month |
| Relative Humidity(Temp&Humi): | RH20%-98% (Customize） | Temp Range: | -70°C ~ 150°C (Customize） |
|---|---|---|---|
| Heat-up Time(min): | 1°C~15°C/min(Linear Or Non-linear) | Pull-down Time(min): | 1°C~15°C/min(Linear Or Non-linear) |
| Temp Fluctudtiont: | ±0.5°C | Temp Uniformity: | ±1°C |
| Temp&Humi Deviation: | ±1°C /±3%RH | Interior: | SUS#304 Stainless Steel Plate |

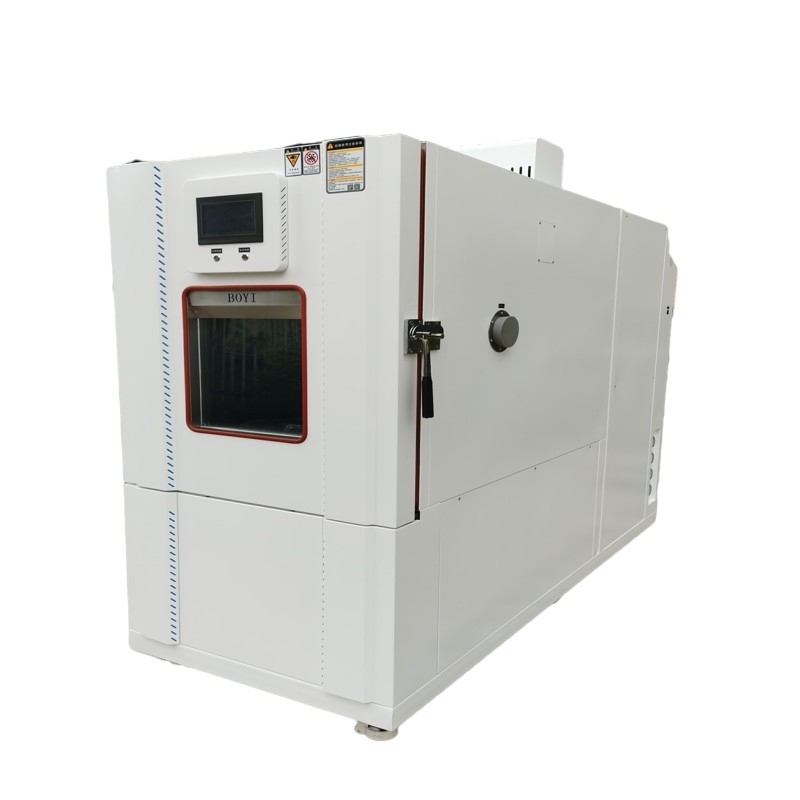

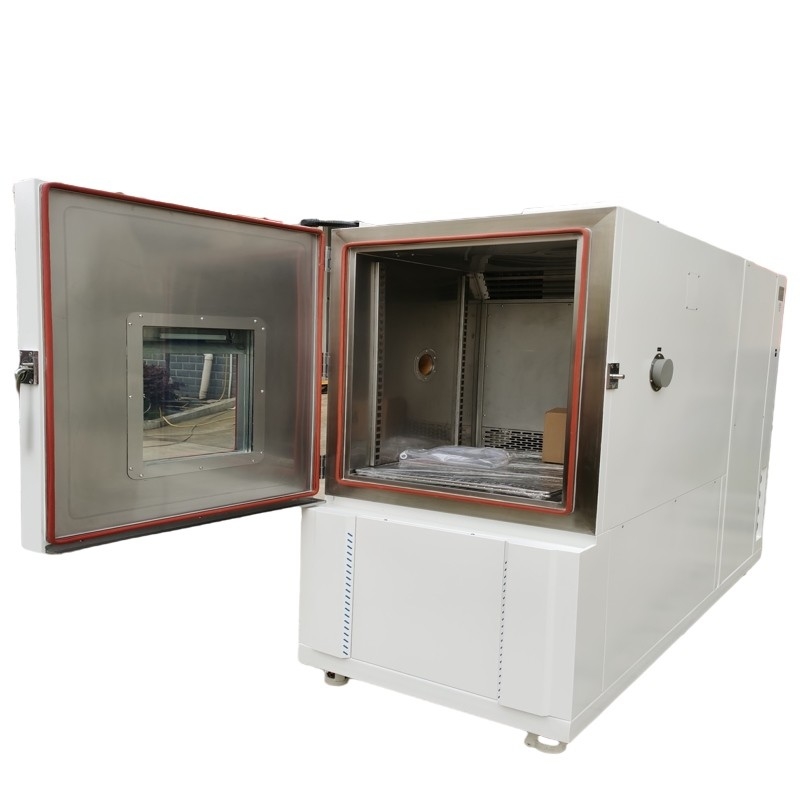

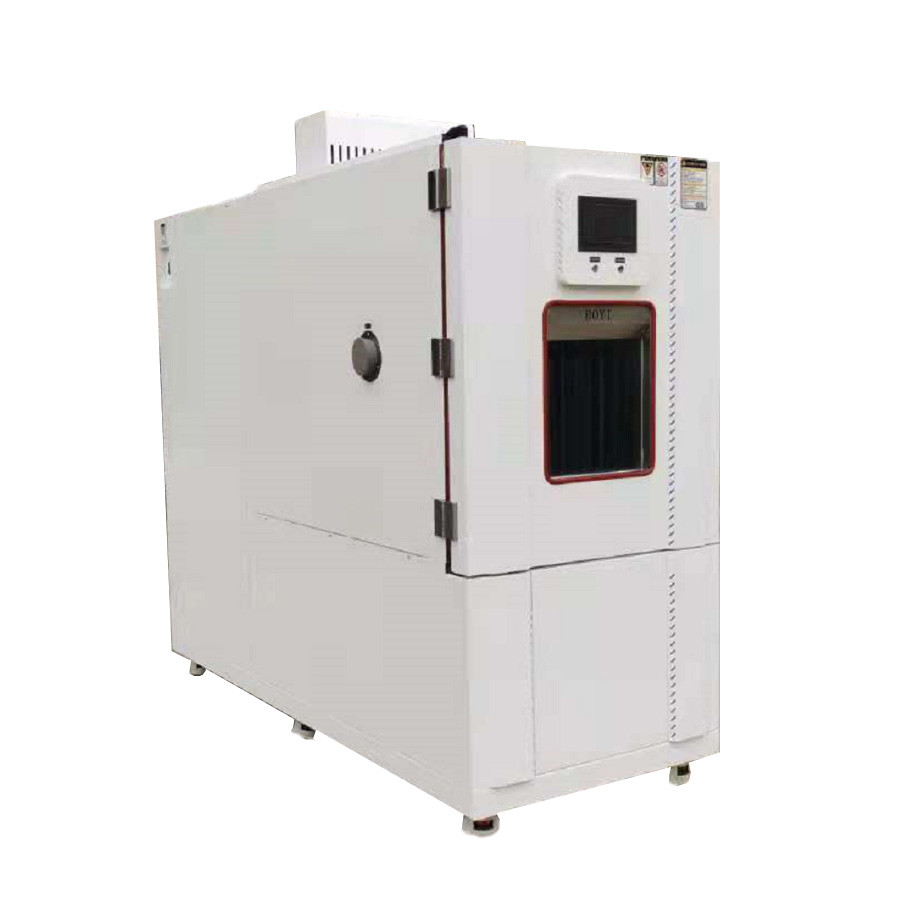

Rapid Temperature Change Test Chamber for Material Performance Testing 1°C~15°C/min Heat-up Time
Product Description
The rapid temperature change test box is used to test the performance of materials in various rapid temperature change environments and test the resistance, cold resistance, dry resistance, and humidity resistance of various materials. Mainly used in the national defense industry, aviation industry, automobile parts, electronic parts, plastics industry, food industry, pharmaceutical industry and related product research and development, quality management engineering test specifications.
Features
1. Imported compressors and refrigeration accessories from internationally renowned brands ensure the stability of the refrigeration system.
2. Special air circulation design, good temperature and humidity distribution uniformity.
3. A full range of imported microcomputer controllers, color touch screens, Chinese and English systems, program setting function can be done, test data can be exported to USB.
4.The cause of the failure can be displayed, making it easy to troubleshoot.
5.Ultra-quiet design, effectively reducing equipment operating noise.
6.Multiple safety protection: refrigerant high pressure protection, compressor overload protection, current overload protection, over temperature protection, leakage protection. It can ensure sample safety and more effectively protect equipment components from overloading operation, greatly reduce the incidence of equipment failures, and make equipment operation more stable and reliable.
Specification
| Model | Temp | B-T-80 (A~E) |
B-T-120 (A~E) |
B-T-225 (A~E) |
B-T-504 (A~E) |
B-T-1000 (A~E) |
| Temp&Humi | B-TH-80 (A~E) |
B-TH-120 (A~E) |
B-TH-225 (A~E) |
B-TH-504 (A~E) |
B-TH-1000 (A~E) |
|
| Internal Dim(CM) (W*H*D) |
40×50×40 | 45×60×45 | 60×85×80 | 70×90×80 | 100×100×100 | |
| External Dim(CM) (W*H*D) |
75×203×203 | 80×208×208 | 95×243×243 | 105×243×243 | 135×263×263 | |
| Relative humidity(Temp&Humi) | RH20%-98% (10%~98% Customize) | |||||
| Temp Range | -70°C ~ 150°C (100°C Customize) A:0°C B: -20°C C: -40°C D: -60°C E: -70°C |
|||||
| Heat-up time(min) | 1°C~15°C/min(Linear or non-linear) | |||||
| Pull-down time(min) | 1°C~15°C/min(Linear or non-linear) | |||||
| Temp Fluctudtiont | ±0.5°C | |||||
| Temp Uniformity | ±1°C | |||||
| Temp&Humi Deviation | ±1°C /±3%RH | |||||
| Interior | SUS#304 Stainless steel plate | |||||
| Exterior | Coating or SUS#304 Stainless steel plate | |||||
| Power Source | AC:220V/380V 50/60Hz | |||||
| Power(KW) | Subject to technical plan | |||||
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |||||
| Refrigeration Way | Single stage compression refrigeration | |||||
| Refrigerator | French Tecumseh | |||||
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) | |||||
| Condensing Way | Air-cooled or water-cooled | |||||
| Heater | Nickel chrome heating wire heater | |||||
| Humidifier | Semi-closed steam and wet | |||||
| Water Supplying Way | Automatic cycling water supply | |||||
Production Details
Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Workshop Machine
Company Profile
BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
Main equipment
Certification
Cooperative partners
Our Service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our technical team
6.Warranty period 12 months
Package&Delivery
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.30days after confirming order,detail delivery date should be decided according to production season and order quantity.
