IPX3 Environmental Test Chambers

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE
Model Number: BT
Minimum Order Quantity: 1 SET
Price: 3500USD
Packaging Details: Export carton
Delivery Time: 25 work days
Payment Terms: L/C, T/T
Power:: Electronic Machine Type: Rain: Rain Spray Test Equipment
Swiping Pipe Radius:: R400mm Test Chamber Size:: 1000*1000*1000mm
Overoll Size:: 1300mm*1100mm*1750mm Working Power:: AC220V 50HZ
Test Chamber Temp R: +5~+36℃ Dust Concentration:: 2~4kg/m3
Selling Units:: Single Item Test Time:: Dust Test Time Set Freely, 0~999.9hr
High Light:

IPX3 Environmental Test Chambers

,

PLC LCD Environmental Test Chambers

,

PLC LCD environmental temperature chamber

Laboratory Simulate Climatic Programmable Electronic IP Water Rain Spray Test Chamber Environmental Test Chambers

This Test Chamber used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.



Characteristics:

·Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.

·The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.

·Swing pipe standard configuration: R400mm and R500mm two types. Swing pipe inner diameter: Φ15mm.

DillΦ0.4 holes and make the water spray to the center. The water pressure of the device entrance is equal to 10m water level, spraying water pressure is 80-100kpa.

·Water spraying pipe swing angle: 120º,180º,360º, Vertical sides: 60º,90º,175º.

Complete a swing(2*120º) time is 4S.

Complete a swing(2*360º) time is 12S.

·Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe Angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.

·Use Mitsubishi PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.

·Servo drive mechanism, guarantee the pendulum pipe Angle of precision, the overall pendulum tube structure for hang a wall.

Specifications



Swiping pipe radius R400mm
Test chamber size 1000*1000*1000mm
Overoll size 1300mm*1100mm*1750mm
Sample shelf size D400mm
Working power AC220V 50HZ





Main configuration:

No. Main parts name Brand/Origin/Specifications Quantity
Controlling system(Main parts)
1 Main frame Aluminum frame,transparent density board 1group
3 PLC processor Mitsubishi, Japan 1group
4 Communication module Mitsubishi, Japan 1group
5 Controlling panel (English interface) WEINVIEW, Taiwan 1group
6 Transducer 0.75KW/220V 1group
Water line(Main parts)
1 Glass float flowmeter Range 7L/min 1pcs
2 Precision pressure gauge 0.4MPa 1pcs
3 Electric contact pressure sensor 0-0.8MPa 1group
Other parts
1 Turntable Stainless steel

1group

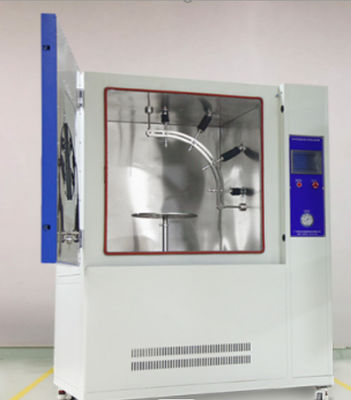

IPX3 Environmental Test Chambers 0

IPX3 Environmental Test Chambers 1





FAQ



Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service
