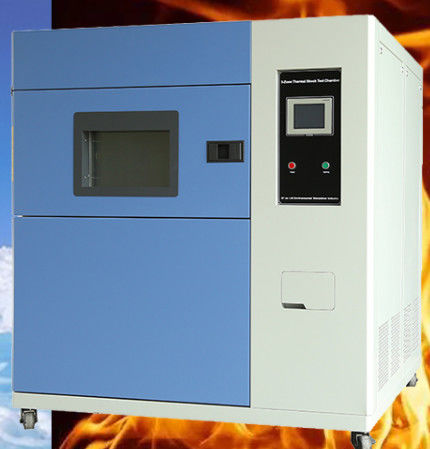

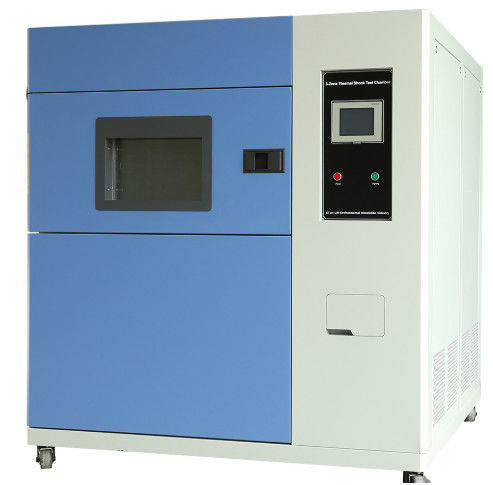

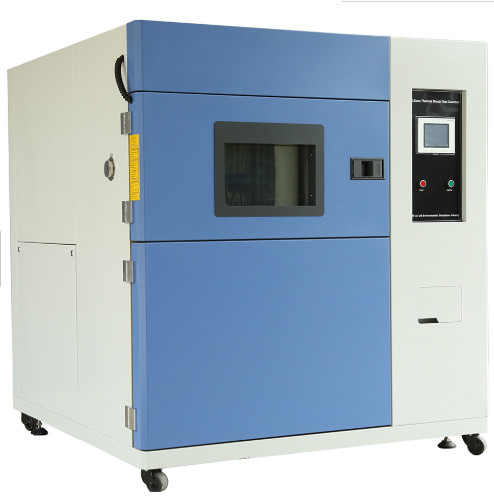

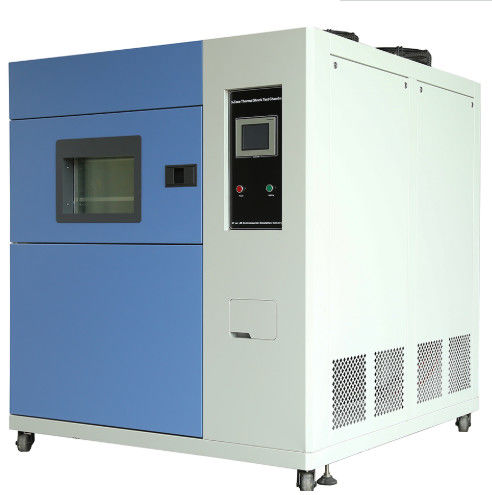

15kg Thermal Shock Test Cold Temperature Chamber 2pcs ROHS

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: ASTM
Model Number: BT-3TS-300
Minimum Order Quantity: 1SET
Price: USD7000-8000/SET
Packaging Details: Standard Wooden Box
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000SET/MONTH
Power: Electronic Product Name: Thermal Shock Chamber
Application:: Electrics Function:: Inspection
Warranty:: 3 Years Power Supply:: 380V 50Hz
Certificate:: ROHS Color:: Blue
Package:: Standard Wooden Box Max Load:: 25kg
High Light:

sus304 15kg Cold Temperature chamber

,

sus304 2pcs ROHS Cold Temperature chamber

,

sus304 15kg thermal shock test chamber

Hot Cold Temperature Resistance 3 zone Thermostatic Thermal Shock Test Chamber Environmental Test Chambers



           High-low temperature test chamber

·         Altitude Test Chamber



Advantage of Thermal Shock Test Chamber

1. Aluminum piece of refrigeration,Faster cooling rate
2. 2pcs shelf,Height can be adjustable; Can be remove
3. Cable hole:supply power to workroom's specimen, to better finish testing
Specifications of Thermal Shock Test Chamber
Name
Hot Cold Temperature Resistance 3 zone Thermostatic Thermal Shock Test Chamber
Model
3TS-100
3TS-210
3TS -300
Internal dimensions(mm)
500*500*400
700*600*500
700*780*550
Overall dimensions(mm)
1150*1950*2100
1350*2100*2200
1350*2250*2300
Sample Loads
10kg
15kg
25kg
Pre-heat room
Upper limit preheat temperature
+220℃

Heating time
Ambient temperature to ~ + 200℃, within in 30 minutes.

Pre-cool room
Lower limit pre-cool temperature
-70℃

Cooling time
Ambient temperature to ~ -70℃, within in 30 minutes
Test room
High temperature exposure range
Ambient temperature +20 to +200°C

Low temperature exposure range
–65 to -5°C
Recovery time
Within 15 minutes
Temperature fluctuation
≤±0.5℃
Temperature deviation
≤±3℃
Controller
Programmable color LCD touch screen controller
Cooling system
Mechanical compression refrigeration system
Refrigerating unit
French TECUMSEH compressor
Refrigerant
R404A, R23
Exterior material
Steel Plate with protective coating
Interior material
SUS304 stainless steel
Observation window
Interior lighting
Standard configuration
2 pieces of stainless steel shelves, Φ 50 round cable port
Power Supply
380V 50HZ
Environmental conditional
5℃~+40 ℃ ≤85% RH


 Company information



15kg Thermal Shock Test Cold Temperature Chamber 2pcs ROHS 0



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



15kg Thermal Shock Test Cold Temperature Chamber 2pcs ROHS 1



Main equipment

  • Constant Temperature and Humidity Test Chamber
  • Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
  • UV Accelerated Aging Test Chamber
  • Mini Environmental chamber / Desktop Environmental Test Chamber
  • Walk in Constant Temperature and Humidity Lab
  • High Temperature Chamber and Other Lab Test Equipment etc.


15kg Thermal Shock Test Cold Temperature Chamber 2pcs ROHS 2





In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market

15kg Thermal Shock Test Cold Temperature Chamber 2pcs ROHS 3



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Production Details

15kg Thermal Shock Test Cold Temperature Chamber 2pcs ROHS 4

15kg Thermal Shock Test Cold Temperature Chamber 2pcs ROHS 5

15kg Thermal Shock Test Cold Temperature Chamber 2pcs ROHS 6



Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.



Certification



15kg Thermal Shock Test Cold Temperature Chamber 2pcs ROHS 7



TRADING PROCESS

15kg Thermal Shock Test Cold Temperature Chamber 2pcs ROHS 8



Cooperative partners

15kg Thermal Shock Test Cold Temperature Chamber 2pcs ROHS 9



Our Service

1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our technical team
6.Warranty period 12 months












Payment
1. Price terms: EXW, FOB,CIF Shanghai or Shenzhen.
2. Payment terms: L/C. Western Union. Paypal. T/T.
3. Sample lead time: 3-8 days.
4. Mass production time: 10-15 days depending on the order qty.
5. Delivery method time: By air, by sea or combined transportation.
6. Door to door service with Express: Fedex, DHL, UPS, EMS.

We provide 1 stop solutions, provide standard and custom service.
