| Place of Origin: | CHINA |
|---|---|
| Brand Name: | BOTO |
| Certification: | ISO9001:2008 |
| Model Number: | BT-ZH-UV-500 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD3000-5000/SET |
| Packaging Details: | Sandard export wooden cases |
| Delivery Time: | 30DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000SET/MONTH |
| Power: | Electronic | Usage:: | Uv Weatherometer |
|---|---|---|---|
| Product Name:: | UV Aging Test Machine | Power Supply:: | 220V 50Hz |
| Temperature Range:: | RT+10℃~70℃ | Temperature Uniform: | ±2℃ |
| Temperature Fluctuation:: | ±0.5℃ | Testing Time:: | 0~999H, Adjustable |
| Highlight: | ISO9001 Electronic Environmental Test Chambers,plastic weatherometer Environmental Test Chambers,plastic weatherometer uv test machine |
||

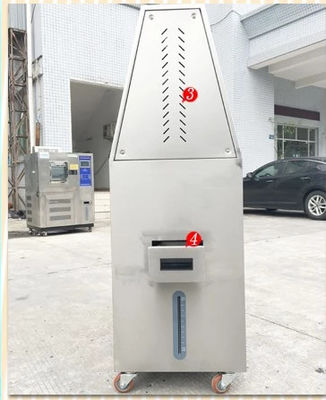

Flat type Programmable plastic uv weatherometer / UV aging test machine Environmental Test Chambers
High-low temperature test chamber
Flat type Programmable plastic uv weatherometer / UV aging test machine is to simulate the sun lighting, and it’ s specialized in the simulation of products in outdoors for a long time. The ultraviolet radiation in the sun is destructive on its exposure, only a few days or weeks, the equipment can reproduce the destruction outdoors for months or years. And then to see whether the
product has fading, discoloration, brightness decline, powder, cracking, blurred,
brittle, decreased strength and oxidation phenomena, while it can reproduce the
destruction of rain and dew.
Features:
1. UV aging test machine can do two kinds of testing: aging and anti-yellowing.
2. Aging: the machine can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.
3. Anti-yellowing: the machine stimulate the atmosphere environment, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to atmosphere for 6 months.
| Model | BT-ZH-UV-500 | BT-ZH-UV-400 |
| Studio Size | W1170*H450*D500mm | W1150 X H400 x D400mm |
| Outside dimension | W1300×H550×D1480mm | W1400 X H1450 x D650mm |
| Temperature range | RT+10~70°C | |
| Temperature uniformity | ±2°C | |
| Temperature fluctuation | ±0.5°C | |
| Testing time | 0~999H, adjustable | |
| Materials | Inside and Outside SUS#304 stainless steel | |
| Humidity range | ≥90%RH | |
| Controller | Korean TEMI programmable controller | |
| Lamp power | 40W/Piece | |
| Test cycle setting | Illumination, condensation and water spray test cycle is programmable | |
| Irradiance | 1.0W/cm2 | |
| Wavelength ultraviolet light | UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime) | |
| Distance from sample to lamp | 50±2mm (adjustable) | |
| Centre distance between the lamp | 70mm | |
| Standard Specimen Size | 75×150mm or 75×3000mm (special specitications to be described in the contact) | |
| Required water depth for water channel | 25mm, automatically control | |
| Protection system | Overload short circuit protection, over temperature protection, water lackin | |
| Power | 220V/50Hz /±10% 4.5KW | |
Sailham environmental test chambers are built to improve lives. Sailham test chambers are used for testing and improving the reliability of products. These chambers are sold in a large variety of industries including Pharmaceutical, Automotive, Electronics, Medical, Defense, Communications, Energy, and more.
Company Profile
BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
Main equipment
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
Main market
The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
Production Process
Production Details
Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.
Certification
TRADING PROCESS
Cooperative partners
Our Services
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
FAQ
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q:Do you accept customization service?
A:Yes, of course, we can not only offer standard High and Low Temperature Alternating Damp Heat Testing Chamber, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique support, Feedback to you within 24 hours and help you to repair your problem controller freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q:How about the packing for machine, is it safely protected during transportation?
A: Testing Chamber is packed by standard export wooden box for outside package and stretch film for inner package, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
